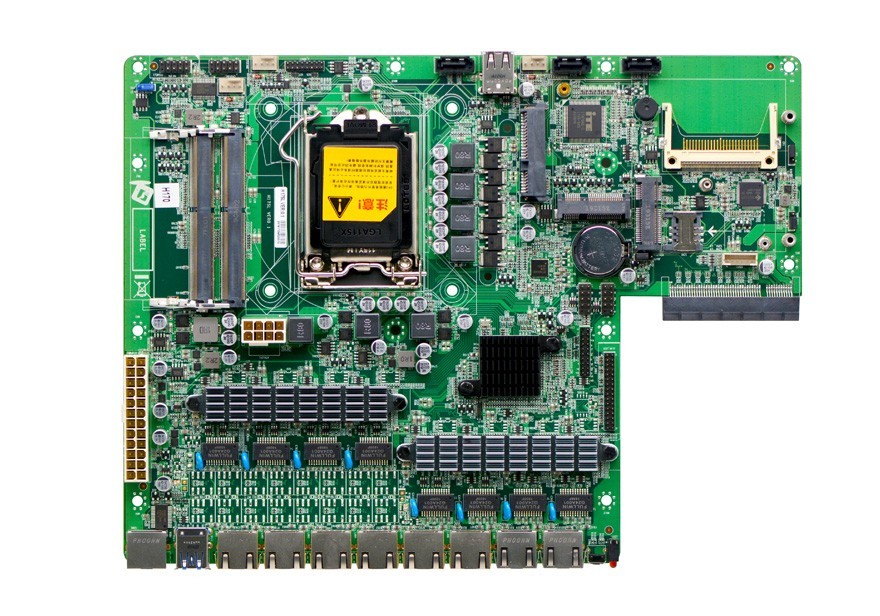

8 LAN ATX Power H87SL

H17SL VER:1.0

项目介绍:
Model NO.H17SL VER:1.0
Processor6th/7th Intel ®celeron/Pentium Core ™ i3/i5/i7 processor supporting LGA1151 architecture
ChipsetWith Intel ® H170 high-speed chipset
Memory2*SO DDR4 memory slot with 2400MHz memory, up to 32GB
DisplayIntegrated Intel ® HD Graphics Core Graphics, 1x HDMI display output
Network8-Intel WGI211AT Gigabit Card, supports network wake-up, PXE function
Storage1*SATA 2.5 inch notebook hard drive bit, can be installed directly hard drive, transmission speed of up to 6Gbps
1*MSATA slot, SSD SSD supports Intel protocol, with transmission speeds up to 6Gbps
3*SATA3.0 hard drive interface with a transmission rate of up to 6Gbps
1*CF card slot
Note: When using, CF card holder and MSATA second choice
Extended1*8X PCIE expansion slot for expandable light or electric port
1*Mini-PCIE slot, WIFI, 4G modules

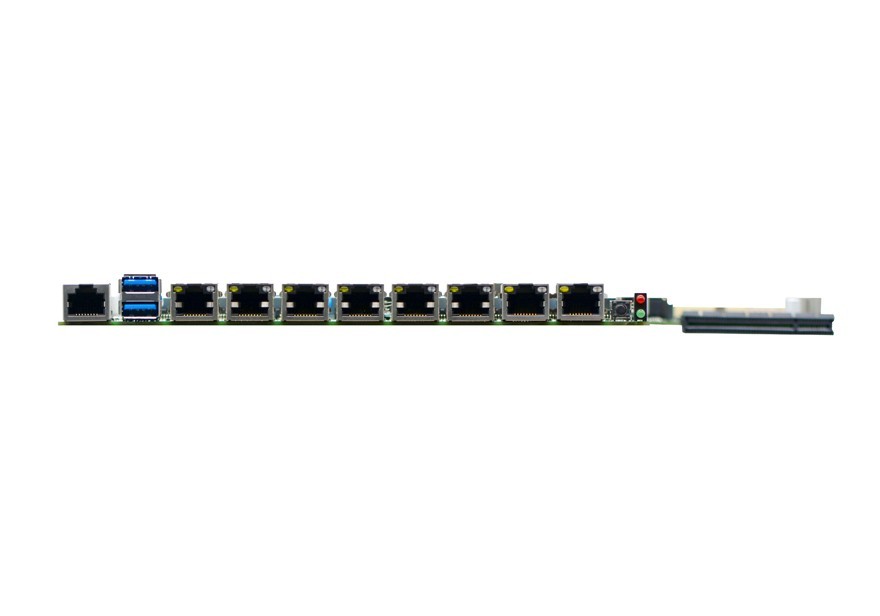

Backplane I/O Interface8*RJ-45 Gigabit Network Interface
2*USB3.0 interface,
1*CISCO standard-defined serial port
1*Tap the power-on button
1*Power/Hard Drive LED
Built-in I/O interface1*JHDMI interface 2*8pin
1*RS232 serial port 2*5Pin
1*Network LIGHT interface 2*16Pin
1*PS/2 keyboard mouse interface 1*6Pin
4*USB2.0 Interface 2x5Pin
2*USB3.0 interface 2*10Pin
2*USB standard interface
1*front panel switch button and LED interface 2*5Pin
1*24pin ATX power input
1*8pin ATX power input
1*SIM seat
FAN Interface1*4pin CPU fan interface, 2*4pin system fan interface
GPION/A
BIOSAMI 64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeATX Power Input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size280mm*209mm


事宜人群:

♦ 6th/7th Intel®celeron/Pentium Core™ i3/i5/i7 processor supporting LGA1151 architecture

♦ with Intel ® H170 high-speed chipset

♦ 2*SO DDR4 memory slot with 2133MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 8-Intel WGI211AT Gigabit Card, supports network wake-up, PXE function

♦ 6*USB2.0 interface, 4 x USB3.0 interface, 2 x RS232 serial port

♦ 1*8X PCIE expansion slot for scalable gigabit


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.H17SL VER:1.0
Processor6th/7th Intel ®celeron/Pentium Core ™ i3/i5/i7 processor supporting LGA1151 architecture
ChipsetWith Intel ® H170 high-speed chipset
Memory2*SO DDR4 memory slot with 2400MHz memory, up to 32GB
DisplayIntegrated Intel ® HD Graphics Core Graphics, 1x HDMI display output
Network8-Intel WGI211AT Gigabit Card, supports network wake-up, PXE function
Storage1*SATA 2.5 inch notebook hard drive bit, can be installed directly hard drive, transmission speed of up to 6Gbps
1*MSATA slot, SSD SSD supports Intel protocol, with transmission speeds up to 6Gbps
3*SATA3.0 hard drive interface with a transmission rate of up to 6Gbps
1*CF card slot
Note: When using, CF card holder and MSATA second choice
Extended1*8X PCIE expansion slot for expandable light or electric port
1*Mini-PCIE slot, WIFI, 4G modules
Backplane I/O Interface8*RJ-45 Gigabit Network Interface
2*USB3.0 interface,
1*CISCO standard-defined serial port
1*Tap the power-on button
1*Power/Hard Drive LED
Built-in I/O interface1*JHDMI interface 2*8pin
1*RS232 serial port 2*5Pin
1*Network LIGHT interface 2*16Pin
1*PS/2 keyboard mouse interface 1*6Pin
4*USB2.0 Interface 2x5Pin
2*USB3.0 interface 2*10Pin
2*USB standard interface
1*front panel switch button and LED interface 2*5Pin
1*24pin ATX power input
1*8pin ATX power input
1*SIM seat
FAN Interface1*4pin CPU fan interface, 2*4pin system fan interface
GPION/A
BIOSAMI 64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeATX Power Input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size280mm*209mm


NO.

Model

Processor

Frequency

Southbridge

Memory

HDMI

LAN

USB

COM

BYPASS

Power

1

H17SL VER:1.0

LGA1151

/

H170

2*SODDR4

1

8*211AT

10

2

/

ATX



SpecificationsH17SL VER:1.0


Driver

OSDriver TypeDriver NameDownload Now
Win 10 64BITChipsetchipset-10.1.1.45_nda-mupH17SL
Win 10 64BITGraphicsWin64H17SL
Win 10 64BITAudioRealtek AudioH17SL
Win 10 64BITLANIntelH17SL
Win 10 64BITMEintel(r) management_engine_consumer_12.0.0.1033H17SL
Win 10 64BITRSTRSTH17SL
Win 10 64BITDPTF
DPTFH17SL
Win 10 64BITSerial IO
SerialIO_30.100.1727.1_CNL-PCH_RS2H17SL



♦ 6th/7th Intel®celeron/Pentium Core™ i3/i5/i7 processor supporting LGA1151 architecture

♦ with Intel ® H170 high-speed chipset

♦ 2*SO DDR4 memory slot with 2133MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 8-Intel WGI211AT Gigabit Card, supports network wake-up, PXE function

♦ 6*USB2.0 interface, 4 x USB3.0 interface, 2 x RS232 serial port

♦ 1*8X PCIE expansion slot for scalable gigabit
