8 LAN ATX Power H87SL

H87SL_B VER:1.3

项目介绍:

Model No.

H87SL VER:1.3

CPU

Support 4th Intel® Core™ i7/i5/i3/Pentium/celeron LGA1150 processor

Chipset

Adopt Intel® H87 Express chipset,Compatible Intel 8 series chipset

Memory

2* SODDR3 memory slot ,support 1600/1333MHz memory,up to 16GB

Graphics

Integrated Intel® HD Graphics,support 1*VGA display output

LAN

Integrated 8* Intel 82574L/82583V Gigabit Ethernet., support wake on LAN/PXE


can support two sets of BYPASS functions(Management1,2 and 3,4 network ports)

Storage

Provide 1* SATA3.0 2.5 inch Notebook hard disk,can be installed the hard disk directly,the transfer rate up to 6Gbps


1* MSATA slot,support SSD ,the transfer rate up to 6Gbps


3个SATA3.0

Expansion slots

1* 8X PCIE expansion slot ,can expand Gigabit /10Gigabit Fiber port


Provide 1* Mini-PCIE slot,support WIFI/3G Module

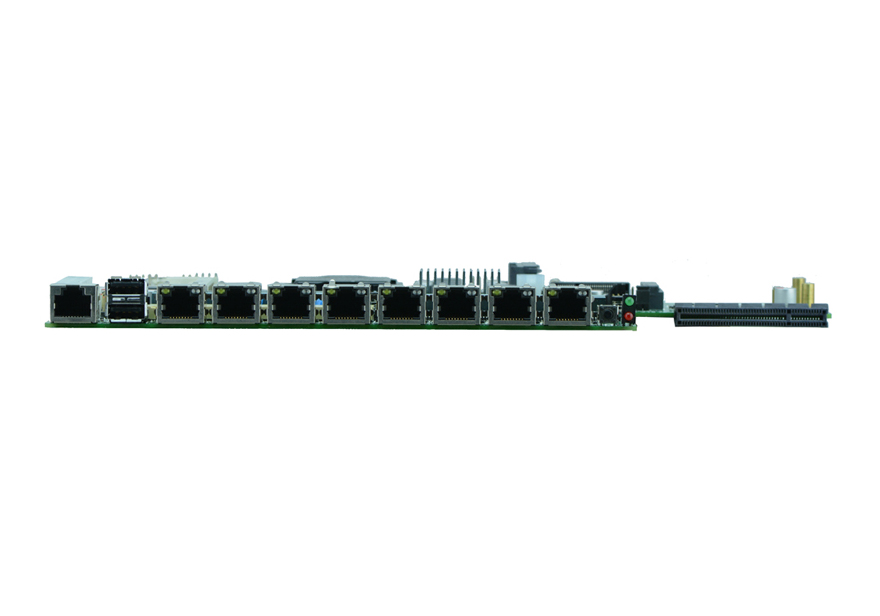

Rear I/O

8* RJ-45 Gigabit Ethernet connector


2* USB2.0


1* CISCO serial port


1* power switch


1* power/HDD LED

Internal I/O

1* JVGA1 1*12pin


1* RS232 serial port2*5Pin


1* Network indicator interface2*16Pin


1* PS/2 KB/MS connector 1*6Pin


4* USB2.0 2*5Pin


2* USB3.0 2*10Pin


1* front panel function buttons and indicator connector 2*5Pin


1* 24pin ATX power input


1* 4pin ATX power input


1* SIM card socket

FAN interface

2*4pin CPUFAN,1* 4pin system FAN

GPIO

Support 4-way input/output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

280mm x 209mm



事宜人群:

♦ Support LGA1150 Intel® Core™ i3/i5/i7 Pentium 22nm Core processor

♦ Intel® H87 High-speed chipset

♦ 2* SODDR3,Support 1600/1333MHz Memory,Up to 16GB

♦ 8* Intel 82574L/82583V Gigabit Ethernet., support wake on LAN/PXE









  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

H87SL VER:1.3

CPU

Support 4th Intel® Core™ i7/i5/i3/Pentium/celeron LGA1150 processor

Chipset

Adopt Intel® H87 Express chipset,Compatible Intel 8 series chipset

Memory

2* SODDR3 memory slot ,support 1600/1333MHz memory,up to 16GB

Graphics

Integrated Intel® HD Graphics,support 1*VGA display output

LAN

Integrated 8* Intel 82574L/82583V Gigabit Ethernet., support wake on LAN/PXE


can support two sets of BYPASS functions(Management1,2 and 3,4 network ports)

Storage

Provide 1* SATA3.0 2.5 inch Notebook hard disk,can be installed the hard disk directly,the transfer rate up to 6Gbps


1* MSATA slot,support SSD ,the transfer rate up to 6Gbps


3个SATA3.0

Expansion slots

1* 8X PCIE expansion slot ,can expand Gigabit /10Gigabit Fiber port


Provide 1* Mini-PCIE slot,support WIFI/3G Module

Rear I/O

8* RJ-45 Gigabit Ethernet connector


2* USB2.0


1* CISCO serial port


1* power switch


1* power/HDD LED

Internal I/O

1* JVGA1 1*12pin


1* RS232 serial port2*5Pin


1* Network indicator interface2*16Pin


1* PS/2 KB/MS connector 1*6Pin


4* USB2.0 2*5Pin


2* USB3.0 2*10Pin


1* front panel function buttons and indicator connector 2*5Pin


1* 24pin ATX power input


1* 4pin ATX power input


1* SIM card socket

FAN interface

2*4pin CPUFAN,1* 4pin system FAN

GPIO

Support 4-way input/output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

280mm x 209mm



NO.

Model

Processor

Frequency

Southbridge

Memory

VGA

LAN

USB

COM

BYPASS

Power

1

H87SL_B VER:1.3

LGA1150

/

H87

2*SODDR3

1

8*82574L

8

2

2 group

ATX

2

H87SL VER:1.3

LGA1150

/

H87

2*SODDR3

1

8*82583V

8

2

/

ATX

3

H81SL VER:1.3

LGA1150

/

H81

2*SODDR3

1

6*82583V

8

2

/

ATX


SpecificationsH87SL_B VER:1.3




Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetH87SL
Win7/8/10 32/64BITGraphicsVGAH87SL
Win7/8/10 32/64BITAudioRealtek AudioH87SL
Win7/8/10 32/64BITLANIntel
H87SL
Win7/8/10 32/64BITMEME_SW_MSIH87SL
WIN7 32/64BITUSB3.0USB3.0H87SL
