6 LAN ATX Power G41XE/H67SL

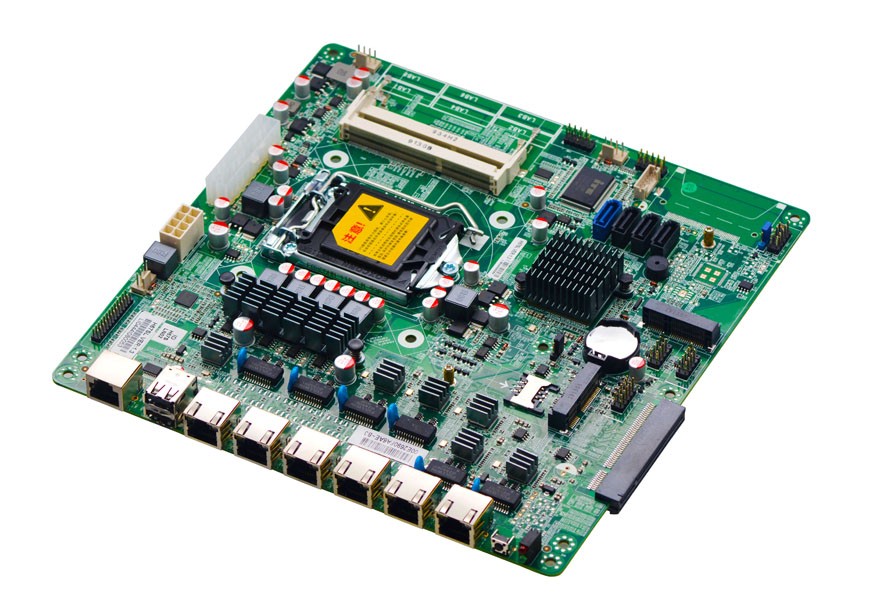

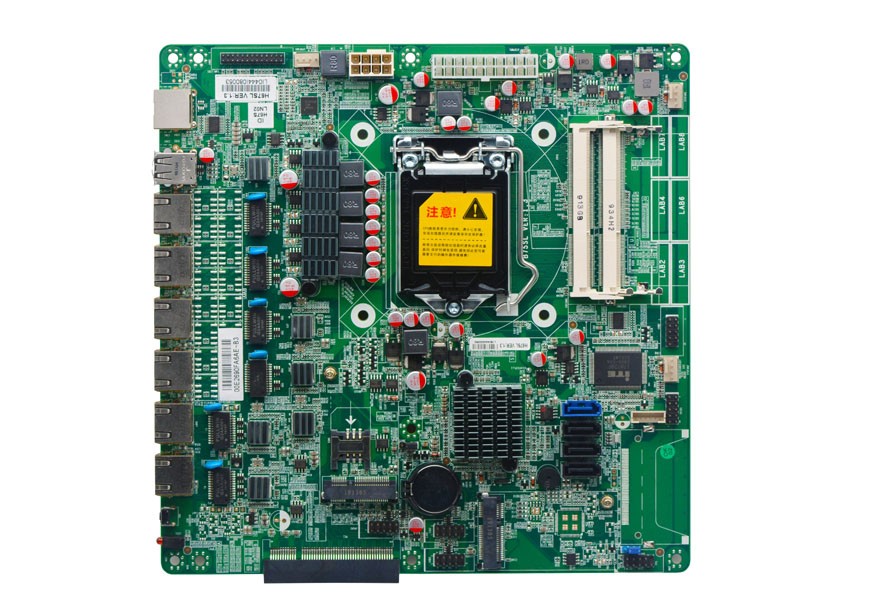

H67SL VER:1.3

项目介绍:

Model No.

H67SL VER:1.3

CPU

Support Intel®LGA1155 2th/3th Corei3/i5/i7/Pentium/Celeron processor

Chipset

Integrated Intel® H67 Express chipset

Memory

Provide 2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB

Graphics

Integrated Intel® HD Graphics, Provide 1*VGA display output

LAN

Integrated 6*Intel 82574L or 82583V Gigabit Ethernet, support wake on LAN/PXE

Storage

Provide 1* SATA3.0 HDD interface, transmission rate up to 6Gbps


3* SATA2.0 HDD interface, transmission rate up to 3Gbps


1* MSATA slot , support Intel protocol SSD, transmission rate up to 6Gbps

Expansion slots

Provide 1* PCIE 8x slot, can expand fiber port / electrical port module


1* Mini-PCIE slot, support WIFI, 3G module

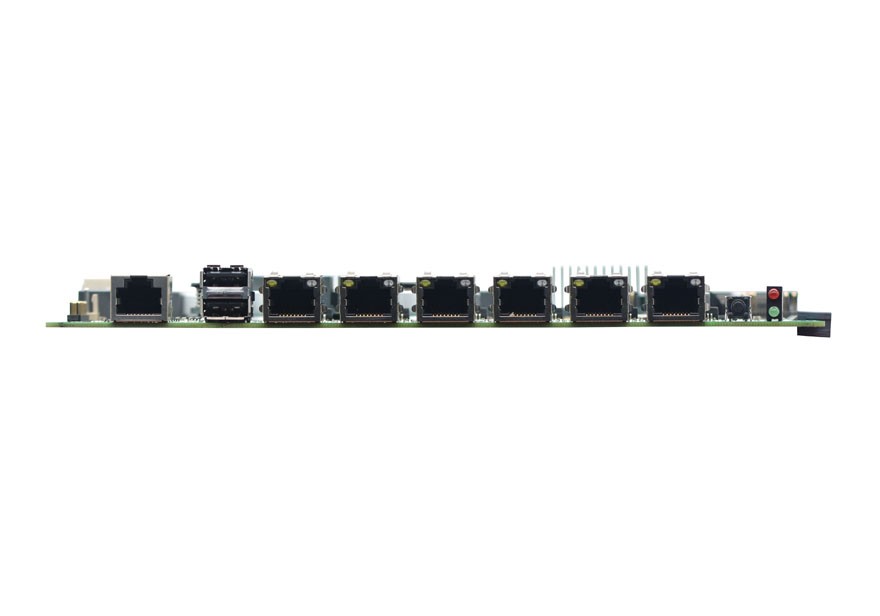

Rear I/O

1* CISCO COM (COM1 and USB4 optional)


2* USB 2.0  (USB1 and COM3 optional)


6* RJ-45 Gigabit LAN port


1* Power switch


1* Power/HDD LED

Internal I/O

1* JVGA  2*5pin


1* LAN LED 2*13pin


1* RS232 COM port 2*5pin


4* USB2.0 2*5pin


1* Front panel function buttons and LED indicator connector 2*5pin


1* PS/2 KB/MS connector 1*6pin


1* SIM card socket


1* 20pin ATX power input connector


1* 8pin ATX power input connector

FAN interface

 1* 4pin CPU FAN interface, 2* 4pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

220mm x 220mm


事宜人群:

♦ Support Intel®LGA1155 2th/3th Corei3/i5/i7/Pentium/Celeron processor

♦ Base on Intel® Bay trail SOC platform

♦ Provide 2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB

♦ Integrated 6*Intel 82574L or 82583V Gigabit Ethernet, support wake on LAN/PXE

♦ Integrated Intel®HD Graphics,1*VGA

♦ Provide 1* PCIE 8x slot, can expand fiber port / electrical port module


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

H67SL VER:1.3

CPU

Support Intel®LGA1155 2th/3th Corei3/i5/i7/Pentium/Celeron processor

Chipset

Integrated Intel® H67 Express chipset

Memory

Provide 2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB

Graphics

Integrated Intel® HD Graphics, Provide 1*VGA display output

LAN

Integrated 6*Intel 82574L or 82583V Gigabit Ethernet, support wake on LAN/PXE

Storage

Provide 1* SATA3.0 HDD interface, transmission rate up to 6Gbps


3* SATA2.0 HDD interface, transmission rate up to 3Gbps


1* MSATA slot , support Intel protocol SSD, transmission rate up to 6Gbps

Expansion slots

Provide 1* PCIE 8x slot, can expand fiber port / electrical port module


1* Mini-PCIE slot, support WIFI, 3G module

Rear I/O

1* CISCO COM (COM1 and USB4 optional)


2* USB 2.0  (USB1 and COM3 optional)


6* RJ-45 Gigabit LAN port


1* Power switch


1* Power/HDD LED

Internal I/O

1* JVGA  2*5pin


1* LAN LED 2*13pin


1* RS232 COM port 2*5pin


4* USB2.0 2*5pin


1* Front panel function buttons and LED indicator connector 2*5pin


1* PS/2 KB/MS connector 1*6pin


1* SIM card socket


1* 20pin ATX power input connector


1* 8pin ATX power input connector

FAN interface

 1* 4pin CPU FAN interface, 2* 4pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

220mm x 220mm


No.

Model

Processor

Memory

VGA

LVDS

LAN

USB

COM

BYPASS

Power

1

H67SL VER:1.3

LGA1155 CPU

2*SODDR3

1

X

6*82583V

6

2

X

ATX


SpecificationsH67SL VER:1.2


Driver(WINXP/7/8)

OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetinfH67SL
WinXP/7/8 32/64BITGraphicsVGAH67SL
WinXP/7/8 32/64BITAudioRealtek AudioITX-D310_2L
WinXP/7/8 32/64BITLANIntel
ITX-D310_2L
WinXP/7/8 32/64BITMEiamt70H67SL
Win7  32/64BITUSB3.0USB3.0H67SL
