6 LAN DC Power D525~3855U

N39SL VER:1.0(3865U)

项目介绍:

Product No.

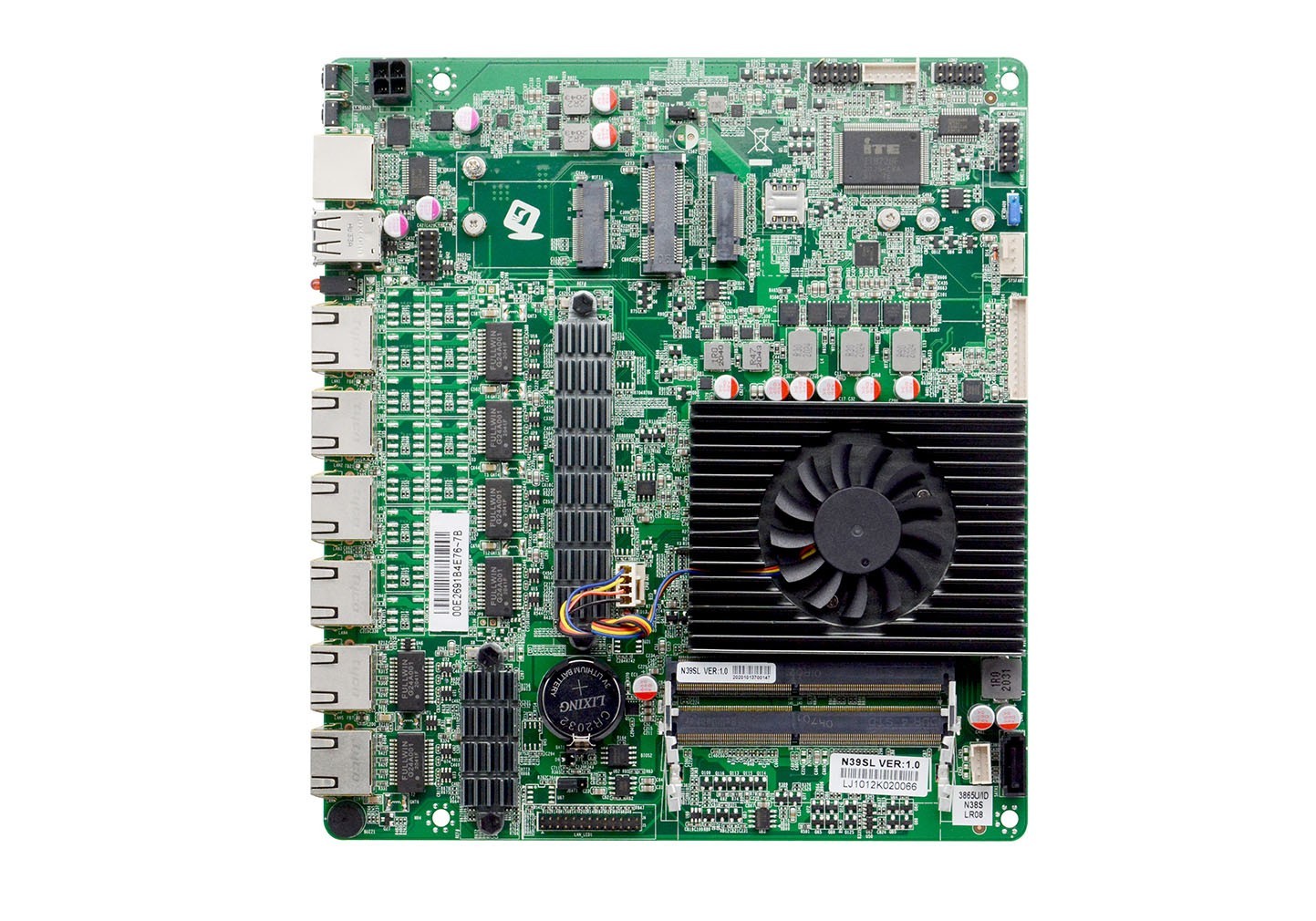

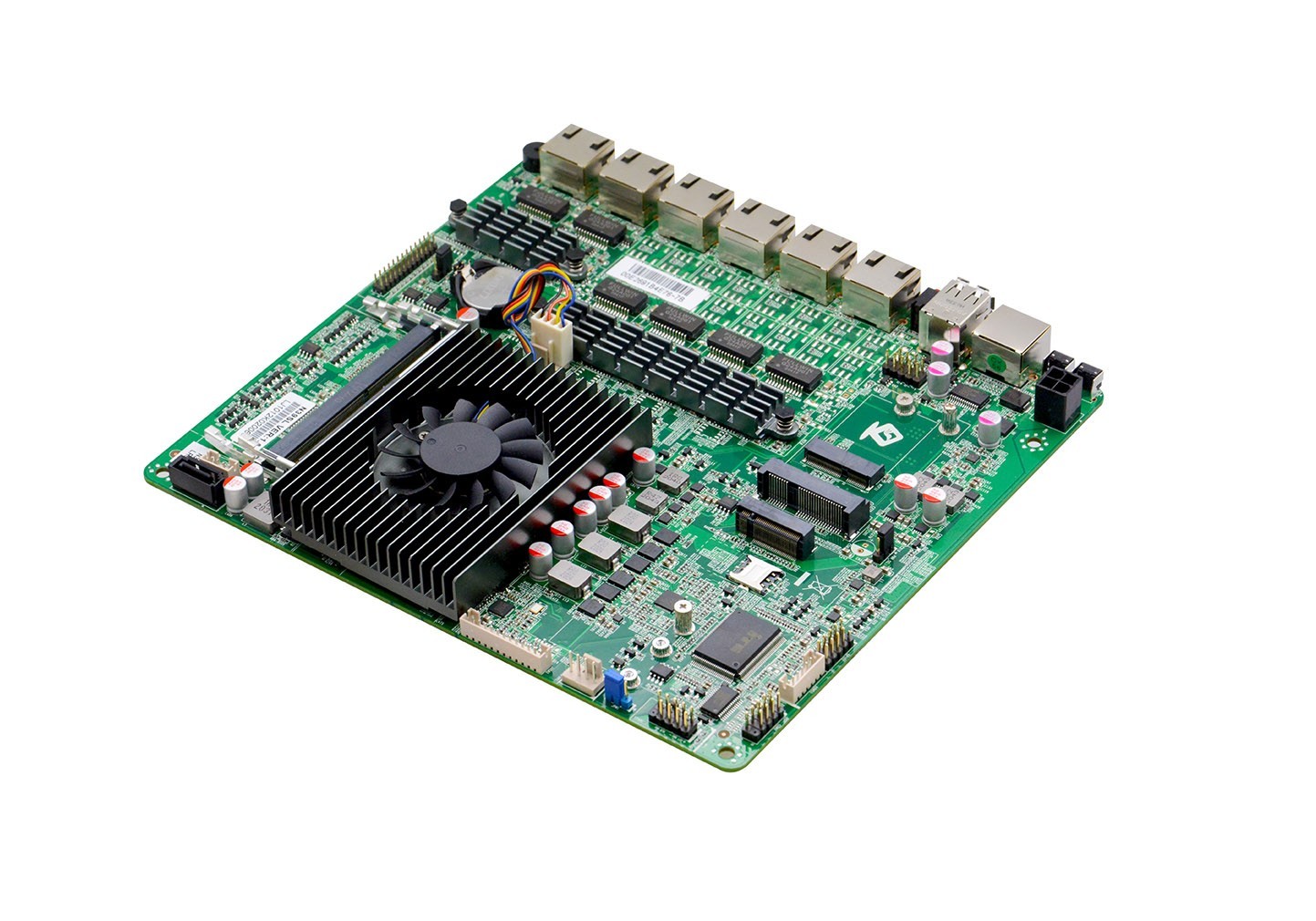

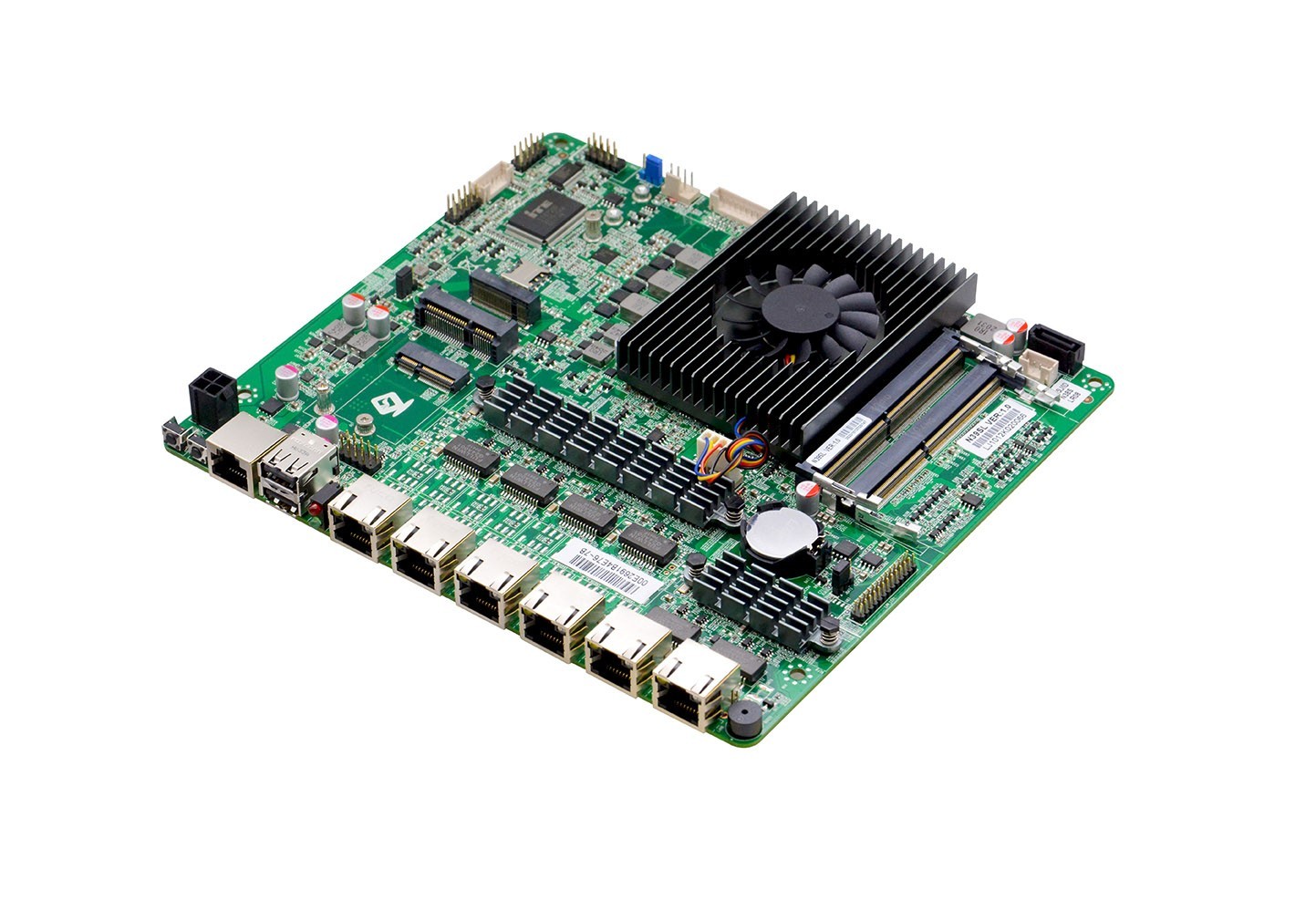

N39SL VER:1.0(3865U)

Processor

Integrated Intel® Celeron® Processor 3865U 1.8GHz dual-core processor, TDP15W

Chipset

Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low-power processors

RAM

SOC

Display

2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB

Internet

Integrated Intel® HD Graphics610 core graphics card, providing 1*VGA display output

Store



6*Intel WGI211AT Gigabit Ethernet, support Wake on LAN, PXE function,

1* 7pin SATA3.0 hard disk interface, transmission speed can reach 6Gbps

Expansion slot



1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps

1* M.2 slot, support M.2 2230 WIFI module.

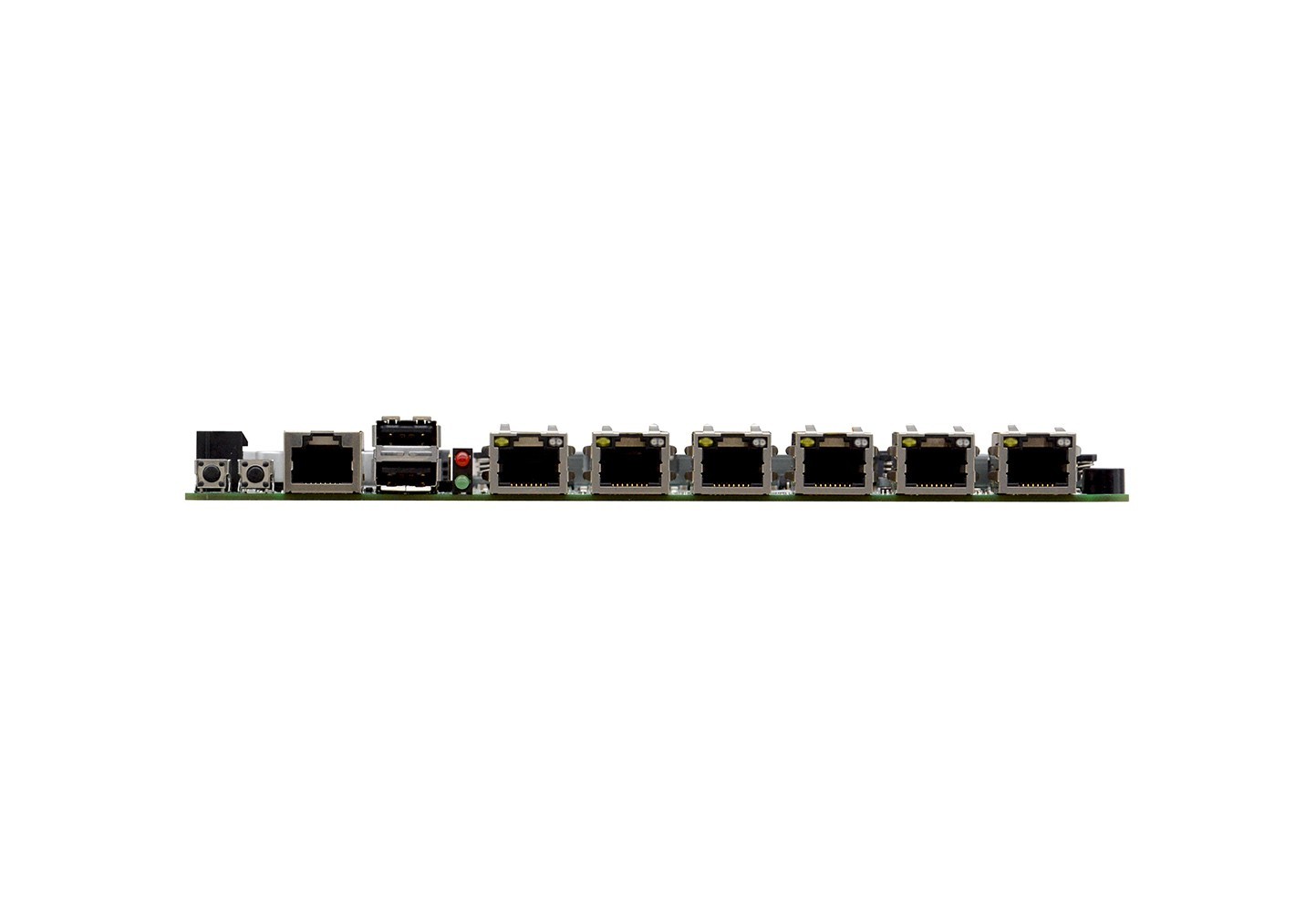

Backplane I/O interface



1* M.2 slot, support M.2 2242 4G/5G module

1* RJ45 serial interface

2* USB 2.0 interface

6* RJ-45 Gigabit network interface

1* power switch, 1* reset switch

Built-in I/O interface



1* Power indicator (red)/hard disk indicator (green)

1* JVGA port 1*12pin

1* Network indicator port 2*13pin

2* USB2.0 interface 2*5pin

1* Front panel function button and indicator port 2*5pin

1* PS/2 keyboard and mouse interface 1*6pin

1* RS232 serial interface 2*5pin

1* SIM card holder

1* Hard disk power supply voltage interface 1*4pin

Fan interface

1*4pinATX power input interface, support 12V power input and output

GPIO

1* 4pin CPU fan interface, 1* 4pin system fan interface

BIOS

Support 4 input and output GPIO

Watchdog

64Mb Flash ROM

Power type

Support hardware reset function (256 levels, 0~255 seconds)

Operating temperature

Powered by DC 12V power supply

Storage temperature

-1060

Working humidity

-2070

Size

5%-95% relative humidity, non-condensing


事宜人群:

♦Integrated Intel® Celeron® Processor 3865U 1.8GHz dual-core processor, TDP15W

♦Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦SOC2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB

♦Integrated Intel® HD Graphics610 core graphics card, providing 1*VGA display output

♦6*Intel WGI211AT Gigabit Ethernet, support Wake on LAN, PXE function,

♦1* 7pin SATA3.0 hard disk interface, transmission speed can reach 6Gbps

♦1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps

♦1* M.2 slot, support M.2 2230 WIFI module.


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

N39SL VER:1.0(3865U)

Processor

Integrated Intel® Celeron® Processor 3865U 1.8GHz dual-core processor, TDP15W

Chipset

Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low-power processors

RAM

SOC

Display

2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB

Internet

Integrated Intel® HD Graphics610 core graphics card, providing 1*VGA display output

Store



6*Intel WGI211AT Gigabit Ethernet, support Wake on LAN, PXE function,

1* 7pin SATA3.0 hard disk interface, transmission speed can reach 6Gbps

Expansion slot



1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps

1* M.2 slot, support M.2 2230 WIFI module.

Backplane I/O interface



1* M.2 slot, support M.2 2242 4G/5G module

1* RJ45 serial interface

2* USB 2.0 interface

6* RJ-45 Gigabit network interface

1* power switch, 1* reset switch

Built-in I/O interface



1* Power indicator (red)/hard disk indicator (green)

1* JVGA port 1*12pin

1* Network indicator port 2*13pin

2* USB2.0 interface 2*5pin

1* Front panel function button and indicator port 2*5pin

1* PS/2 keyboard and mouse interface 1*6pin

1* RS232 serial interface 2*5pin

1* SIM card holder

1* Hard disk power supply voltage interface 1*4pin

Fan interface

1*4pinATX power input interface, support 12V power input and output

GPIO

1* 4pin CPU fan interface, 1* 4pin system fan interface

BIOS

Support 4 input and output GPIO

Watchdog

64Mb Flash ROM

Power type

Support hardware reset function (256 levels, 0~255 seconds)

Operating temperature

Powered by DC 12V power supply

Storage temperature

-1060

Working humidity

-2070

Size

5%-95% relative humidity, non-condensing


No.

Model

Processor

Frequency

Memory

VGA

LVDS

LAN

USB

COM

BYPASS

Power

1

N39SL VER:1.0

3865U

1.8GHz

2*SODDR4

1

X

6*WGI211AT

4

2

X

DC12V


Specification

S65




Driver(Win7/8/10 )

OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetN39SL
Win7/8/10 32/64BITGraphicsVGAN39SL
Win7/8/10 32/64BITAudioRealtek AudioN39SL
Win7/8/10 32/64BITLANIntel
N39SL
Win7/8/10 32/64BITMEMEN39SL
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114N39SL
Win7/8/10 32/64BITRSTRSTN39SL
Win7/8/10 32/64BITSerial IOSerial_ION39SL




♦Integrated Intel® Celeron® Processor 3865U 1.8GHz dual-core processor, TDP15W

♦Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦SOC2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB

♦Integrated Intel® HD Graphics610 core graphics card, providing 1*VGA display output

♦6*Intel WGI211AT Gigabit Ethernet, support Wake on LAN, PXE function,

♦1* 7pin SATA3.0 hard disk interface, transmission speed can reach 6Gbps

♦1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps

♦1* M.2 slot, support M.2 2230 WIFI module.
