6 LAN DC Power D525~3855U

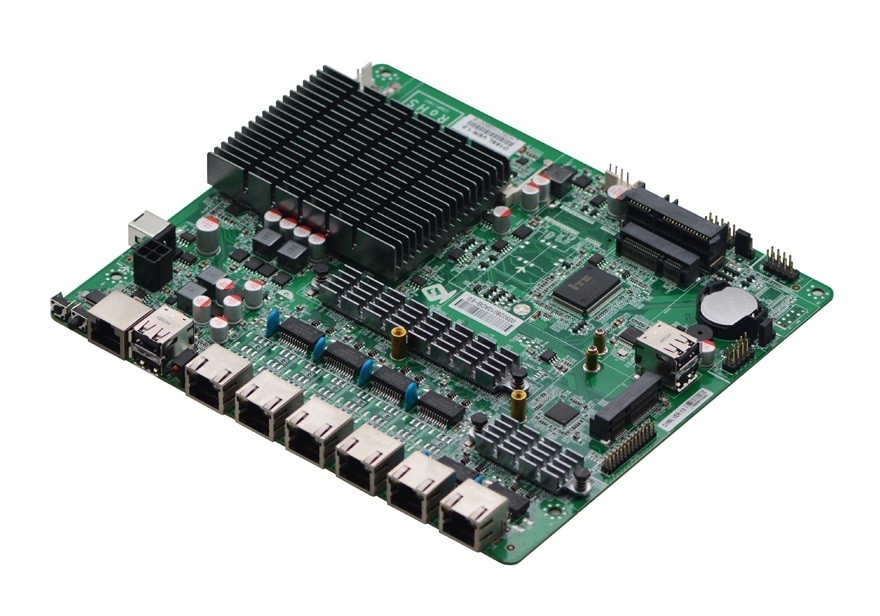

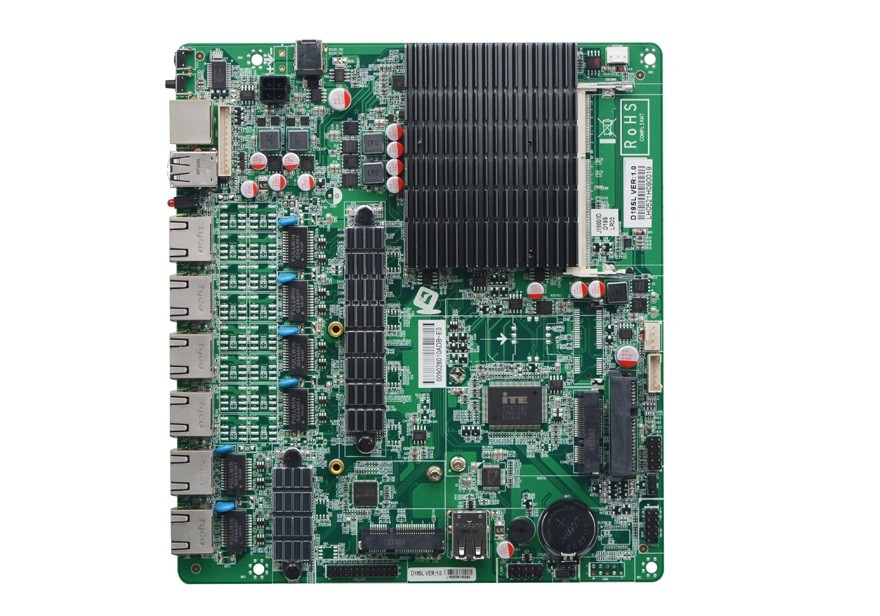

D19SL VER:1.0

项目介绍:

Model No.

D19SL VER:1.0

Processor

Integrated Intel® Celeron®J1900 2.0GHz quad core processor,TDP10W

Chipset

Intel® Bay trail SOC

Memory

1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD Graphics, provide 1*VGA display output

Network

6* Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

Storage

1* SATA2.0 2.5 inch laptop HDD slot, can install HDD directly


1* MSATA slot, support Intel protocol SSD, transmission rate up to 3Gbps

Expansion Slot

2* Mini-PCIE slot, support WIFI、3G/4G module.

MINIPE2 support WIFI, MINIPE1 support 3G/4G

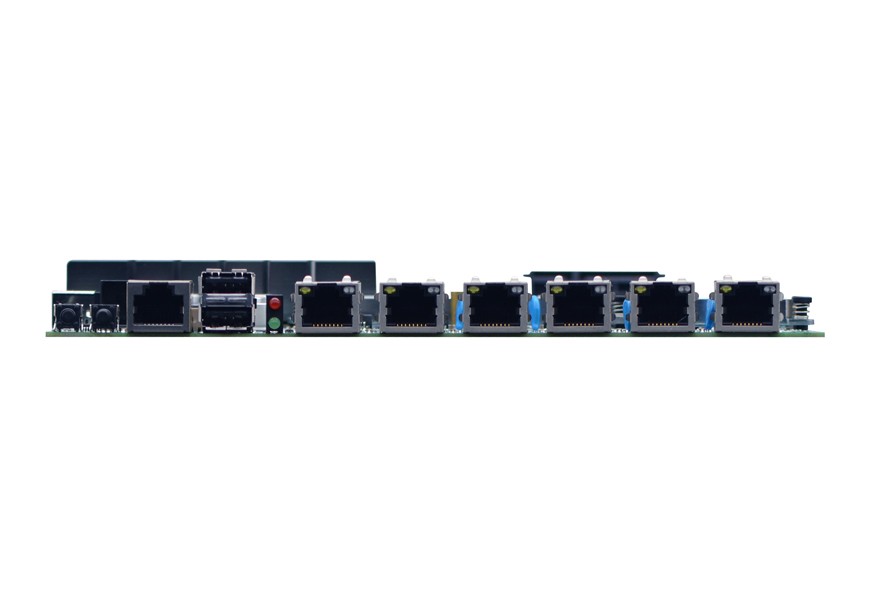

Rear I/O

1* CISCO standard RS232 COM port


2* USB 2.0


6* RJ-45 Gigabit LAN port


1* Power switch, 1* Reset switch


1* Power LED(green)/ HDD LED(red)

Internal I/O

1* JVGA 1*12pin


1* LAN LED 2*13pin


2* USB2.0, 2*5pin


2* Standard USB2.0


1*RS232 COM port 2*5pin


1* Front panel function button and LED indicator port 2*5pin


1* PS/2 KB/MS port 1*6pin


1* SIM socket


1* 12V DC_In Jack


1* 4pinATX power input port, support 12V power input output


1* 2pin blue power socket, support 12V power input output

Fan Connector

1* 4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power Type

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

200mm x 180mm


事宜人群:

♦ Integrated Intel® Celeron®J1900 2.0GHz quad core processor,TDP10W

♦ Base on Intel® Bay trail SOC platform

♦ 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB

♦ 6* Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

♦ Integrated Intel®HD Graphics,1*VGA


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

D19SL VER:1.0

Processor

Integrated Intel® Celeron®J1900 2.0GHz quad core processor,TDP10W

Chipset

Intel® Bay trail SOC

Memory

1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD Graphics, provide 1*VGA display output

Network

6* Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

Storage

1* SATA2.0 2.5 inch laptop HDD slot, can install HDD directly


1* MSATA slot, support Intel protocol SSD, transmission rate up to 3Gbps

Expansion Slot

2* Mini-PCIE slot, support WIFI、3G/4G module.

MINIPE2 support WIFI, MINIPE1 support 3G/4G

Rear I/O

1* CISCO standard RS232 COM port


2* USB 2.0


6* RJ-45 Gigabit LAN port


1* Power switch, 1* Reset switch


1* Power LED(green)/ HDD LED(red)

Internal I/O

1* JVGA 1*12pin


1* LAN LED 2*13pin


2* USB2.0, 2*5pin


2* Standard USB2.0


1*RS232 COM port 2*5pin


1* Front panel function button and LED indicator port 2*5pin


1* PS/2 KB/MS port 1*6pin


1* SIM socket


1* 12V DC_In Jack


1* 4pinATX power input port, support 12V power input output


1* 2pin blue power socket, support 12V power input output

Fan Connector

1* 4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power Type

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

200mm x 180mm


No.

Model

Processor

Frequency

Memory

VGA

LVDS

LAN

USB

COM

BYPASS

Power

1

D19SL  VER:1.0

J1900

2.0GHz

1*SODDR3L

1

X

6*WGI211AT

6

2

X

DC12V

2

D19SL_B VER:1.0

J1900

2.0GHz

1*SODDR3L

1

X

6*WGI211AT

6

2

2

DC12V


♦ Integrated Intel® Celeron®J1900 2.0GHz quad core processor,TDP10W

♦ Base on Intel® Bay trail SOC platform

♦ 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB

♦ 6* Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

♦ Integrated Intel®HD Graphics,1*VGA
