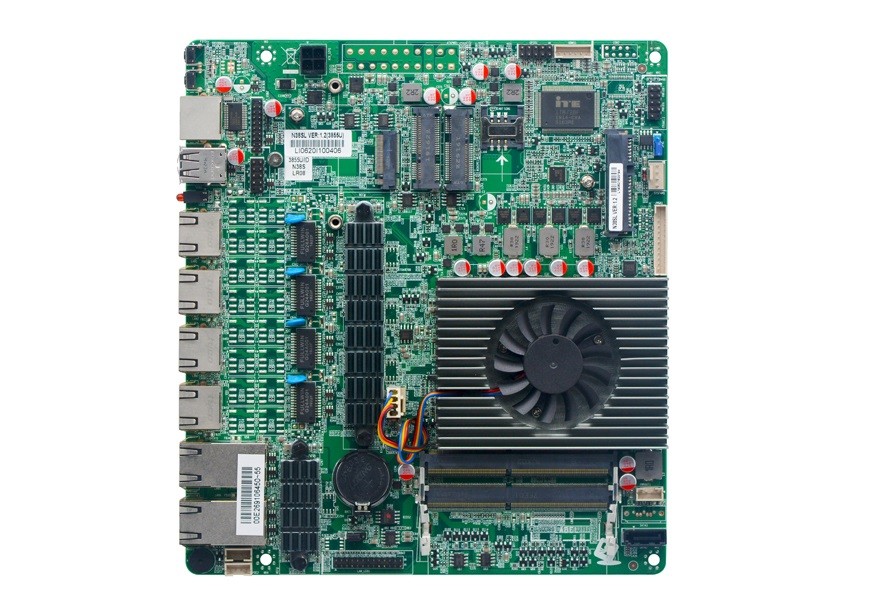

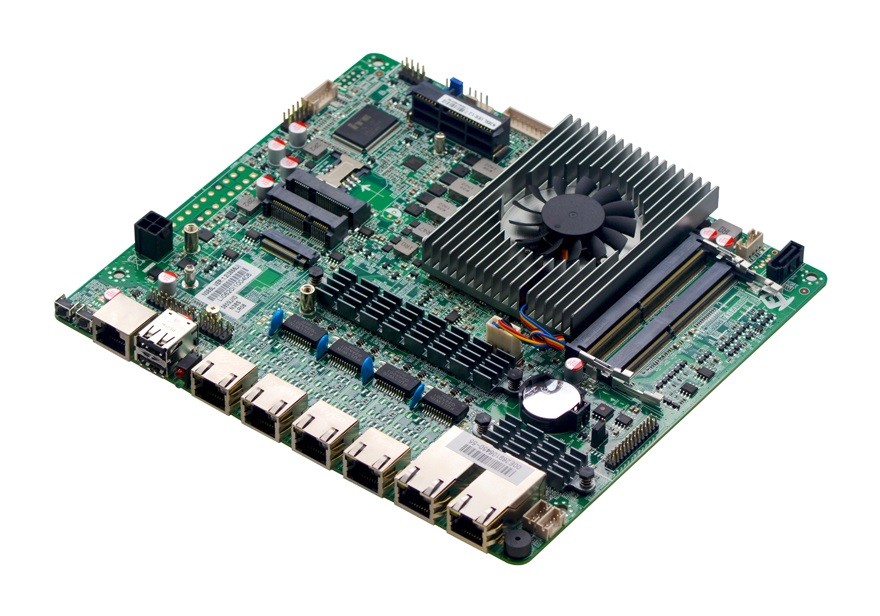

N38SL VER:1.0

项目介绍:

Model

N38SL VER:1.0

Provessor

Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor,TDP15W

Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

Chipset

SOC

Memory

2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, up to 32GB

Display

Integrated Intel® HD Graphics 510,provide 1*VGA display output.

Network

Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE


Integrated 2 group BYPASS function(Optional)

Storage

Provide 1* SATA3.0 HDD interface, the transfer rate up to6Gbps(with 2.5 inch HDD optional)


1* SATA3.0 2.5 inch Notebook HDD interface,can be install HDD directly


Provide 1* M.2 standard slot,support M.2 2242 standard SSD(with MSATA slot optional)


Provide 1* MSATA slot,support Intel protocol ,the transfer rate up to 6Gbps(with M.2 slot optional)

Expansion slots

1* Mini-PCIE slot, supportWIFI、3G module.

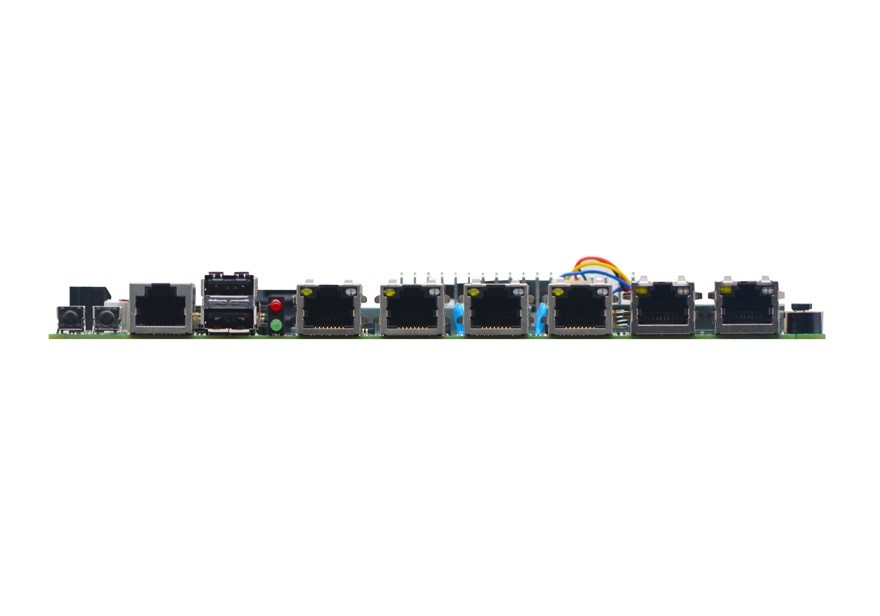

Rear I/O

1* CISCO standard RS232 serial port


2* USB 2.0 ports


6* RJ-45 Gigabit Ethernet ports


1* power switch,1* reset swtich


1* power LED(Green)/HDD LED(Red)

Internal I/O

1* JVGA port 1*12pin


1* Network indicator port 2*13pin


1* RS232 serial port 2*5pin


2* USB2.0 ports 2*5pin


2*USB3.0 ports*10pin


1* front panel function buttons and indicator port 2*5pin


1* PS/2 KB/MS port 1*6pin


1* SIM card socket


1*HDD power supply connector 1*4pin(Use DC power supply have this connector)


1* 4pin ATX power supply connector(use DC power supply have this connector)


1*DC power supply connector,support 12V power input/output(use DC power supply have this connector)


1*2pin blue power element ,support 12V power input/output(use DC power supply have this connector)


1* 20pinATX power supply connector(optional,use ATX power supply have this connector)

FAN interface

1* 4pin CPU fan connector, 1* 4pin system fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function(L256,0~255 second)

Power input

Adopt DC 12V power supply or 20pin ATX power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

200mm x 180mm



事宜人群:

♦ Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

♦ 2*DDR4 SODIMM ,support dual channel 2133MHz memory, up to 32GB

♦ Integrated Intel® HD Graphics 510,Provide 1*VGA

♦ Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE

♦ 4*USB2.0,2*USB3.0,2*RS232 serial ports



  • Product Specifications
  • Ordering Information
  • Download Center

Model

N38SL VER:1.0

Provessor

Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor,TDP15W

Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

Chipset

SOC

Memory

2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, up to 32GB

Display

Integrated Intel® HD Graphics 510,provide 1*VGA display output.

Network

Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE


Integrated 2 group BYPASS function(Optional)

Storage

Provide 1* SATA3.0 HDD interface, the transfer rate up to6Gbps(with 2.5 inch HDD optional)


1* SATA3.0 2.5 inch Notebook HDD interface,can be install HDD directly


Provide 1* M.2 standard slot,support M.2 2242 standard SSD(with MSATA slot optional)


Provide 1* MSATA slot,support Intel protocol ,the transfer rate up to 6Gbps(with M.2 slot optional)

Expansion slots

1* Mini-PCIE slot, supportWIFI、3G module.

Rear I/O

1* CISCO standard RS232 serial port


2* USB 2.0 ports


6* RJ-45 Gigabit Ethernet ports


1* power switch,1* reset swtich


1* power LED(Green)/HDD LED(Red)

Internal I/O

1* JVGA port 1*12pin


1* Network indicator port 2*13pin


1* RS232 serial port 2*5pin


2* USB2.0 ports 2*5pin


2*USB3.0 ports*10pin


1* front panel function buttons and indicator port 2*5pin


1* PS/2 KB/MS port 1*6pin


1* SIM card socket


1*HDD power supply connector 1*4pin(Use DC power supply have this connector)


1* 4pin ATX power supply connector(use DC power supply have this connector)


1*DC power supply connector,support 12V power input/output(use DC power supply have this connector)


1*2pin blue power element ,support 12V power input/output(use DC power supply have this connector)


1* 20pinATX power supply connector(optional,use ATX power supply have this connector)

FAN interface

1* 4pin CPU fan connector, 1* 4pin system fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function(L256,0~255 second)

Power input

Adopt DC 12V power supply or 20pin ATX power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

200mm x 180mm



♦ Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

♦ 2*DDR4 SODIMM ,support dual channel 2133MHz memory, up to 32GB

♦ Integrated Intel® HD Graphics 510,Provide 1*VGA

♦ Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE

♦ 4*USB2.0,2*USB3.0,2*RS232 serial ports
