6 LAN DC Power

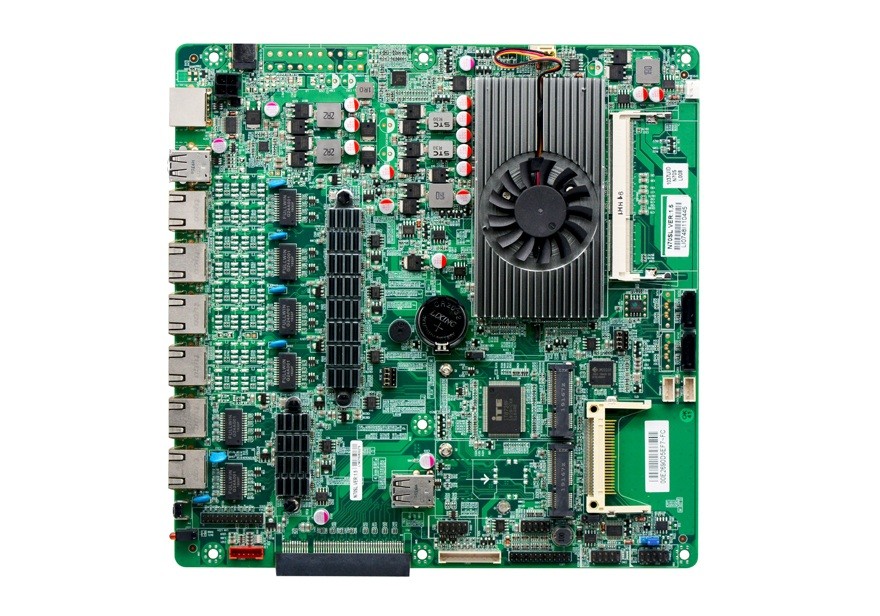

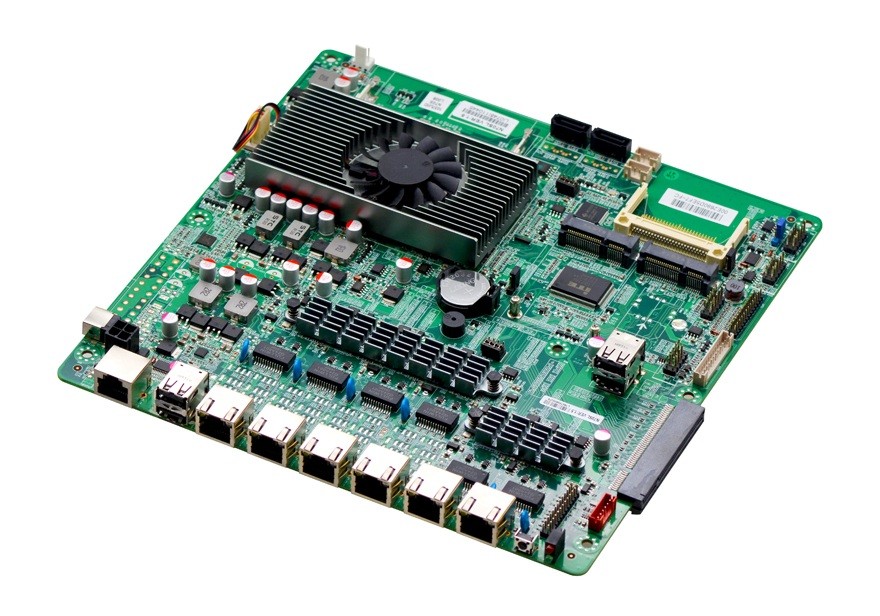

N70SL VER:1.3

项目介绍:

Model No.

N70SL VER:1.3

CPU

Integrated Intel®1037U/1.80GHz dual processor,TDP17W

Chipset

Adopt Intel® NM70 Express chipset

Memory

1*SO DDRIII slot,support1600/1333/1066MHz memory,up to 8GB

Graphics

Integrated Intel®HD Graphics

LAN

Integrated 6* Intel® 82583V orIntel® 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE

Integrated 2 groups of BYPASS (Management 1,2 and 3,4 net ports,optional

Storage

1*MSATA slot, supportSSD,USB WIFI,the transfer rate up to 6Gbps

2*SATA2.0, the transfer rate up to3Gbps

1*CF card socket(with MSATA two choose one, SATA1_SW1 jumper control interface exchange)

Expansion slots

1*Mini-PCIE slot,support WIFI,3G module(with PCI-E 8x slot two choose one)

1* PCI-E 8x slot, can extend Fiber port /electrical port module andPCIE device

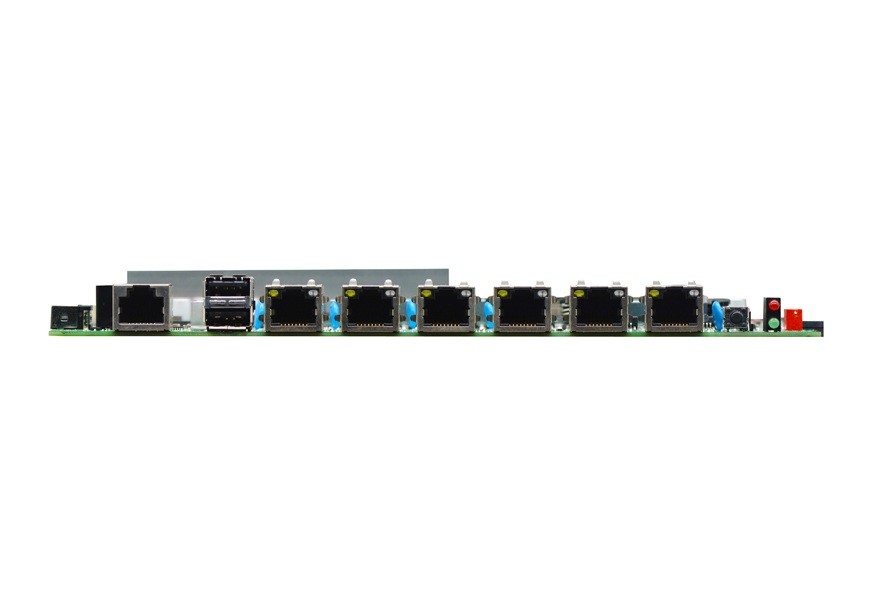

Rear I/O

1* CISCO serial port

 2* USB 2.0

6* RJ-45 Gigabit Ethernet connector

1* power switch

1* power/HDD LED

1* 12V DC JACK input connector

Internal I/O

1* JVGA 1*12pin

1* Gigabit Ethernet indicator connector 2*13pin

1* LPT 2*13pin

1* RS232 serial port 2*5pin

4* USB 2.0 , 2 of them are standard interface,2 of them are 2* 5pin

1* PS/2 KB/MS connector 1*6pin

1* front panel function buttons and indicator connector 2*5pin

1* ATX 4Pin power connector(can do +12V power input/output connector)

1* ATX 20Pin power connector(Reserve, can do ATX power input connector)

2* HDD power supply connector

1* SIM card socket

Fan interface

1* 4pin CPU intelligent fan interface,1* 3pin intelligent system fan interface

GPIO

 support 4 way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power input or或ATX power input(Optional)

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

220mm x 220mm



事宜人群:

♦ Integrated Intel®1037U/1.80GHz Dual core processor,TDP 17W

♦ Intel® NM70

♦ 1*SO DDRIII,Support 1600/1333/1066MHz Memory ,Up to 8GB

♦ Integrated Intel®HD Graphics

♦Integrated 6* Intel® 82583V orIntel® 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE











  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

N70SL VER:1.3

CPU

Integrated Intel®1037U/1.80GHz dual processor,TDP17W

Chipset

Adopt Intel® NM70 Express chipset

Memory

1*SO DDRIII slot,support1600/1333/1066MHz memory,up to 8GB

Graphics

Integrated Intel®HD Graphics

LAN

Integrated 6* Intel® 82583V orIntel® 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE

Integrated 2 groups of BYPASS (Management 1,2 and 3,4 net ports,optional

Storage

1*MSATA slot, supportSSD,USB WIFI,the transfer rate up to 6Gbps

2*SATA2.0, the transfer rate up to3Gbps

1*CF card socket(with MSATA two choose one, SATA1_SW1 jumper control interface exchange)

Expansion slots

1*Mini-PCIE slot,support WIFI,3G module(with PCI-E 8x slot two choose one)

1* PCI-E 8x slot, can extend Fiber port /electrical port module andPCIE device

Rear I/O

1* CISCO serial port

 2* USB 2.0

6* RJ-45 Gigabit Ethernet connector

1* power switch

1* power/HDD LED

1* 12V DC JACK input connector

Internal I/O

1* JVGA 1*12pin

1* Gigabit Ethernet indicator connector 2*13pin

1* LPT 2*13pin

1* RS232 serial port 2*5pin

4* USB 2.0 , 2 of them are standard interface,2 of them are 2* 5pin

1* PS/2 KB/MS connector 1*6pin

1* front panel function buttons and indicator connector 2*5pin

1* ATX 4Pin power connector(can do +12V power input/output connector)

1* ATX 20Pin power connector(Reserve, can do ATX power input connector)

2* HDD power supply connector

1* SIM card socket

Fan interface

1* 4pin CPU intelligent fan interface,1* 3pin intelligent system fan interface

GPIO

 support 4 way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power input or或ATX power input(Optional)

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

220mm x 220mm



Order information:





NO.

Model

Processor

Frequency

Memory

VGA

LAN

USB

COM

BYPASS

Power

1

N70SL_B VER:1.3

1037U

1.80G

1*SODDR3

1

6*82574L

6

2

2group

DC12V

2

N70SL VER:1.3

1037U

1.80G

1*SODDR3

1

6*82583V

6

2

/

DC12V



♦ Integrated Intel®1037U/1.80GHz Dual core processor,TDP 17W

♦ Intel® NM70

♦ 1*SO DDRIII,Support 1600/1333/1066MHz Memory ,Up to 8GB

♦ Integrated Intel®HD Graphics

♦Integrated 6* Intel® 82583V orIntel® 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE
