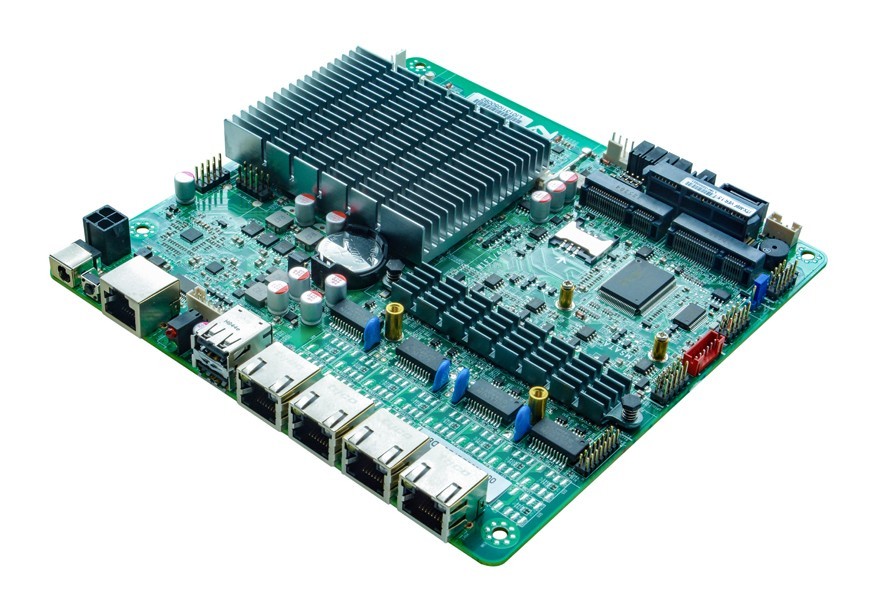

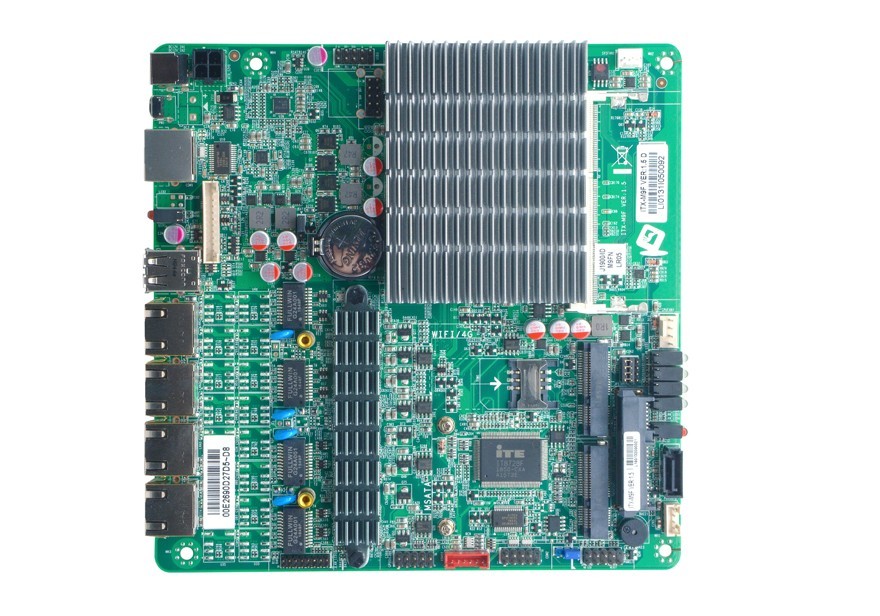

4 LAN DC Power D525/J1900

ITX-M9F VER:1.5

项目介绍:

Model No.

ITX-M9F VER:1.5

Processor

Integrated Intel® Celeron J1900/4Cores/2.0GHz TDP10W

Chipset

Based on Intel® Bay trail SOC platform

Memory

Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to 8GB

Graphics

Integrated Intel®HD Graphics ,support VGA display output

Network

4*82583V  Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*SATA 2.5 inch Notebook hard disk place, can be installed the hard disk directly,the transfer rate up to 3Gbps

1* standard  7PIN SATA HDD interface(with the 2.5 inch HDD place optional)

1* MSATA slot ,support SSD which support Intel protocol , the transfer rate up to 3Gbps

Expansion slots

1* Mini-PCIE slot,support WIFI3G module, default is USB signal

Note: Mini-PCIE  and LAN4 are shared PCIE channel,the user can optional

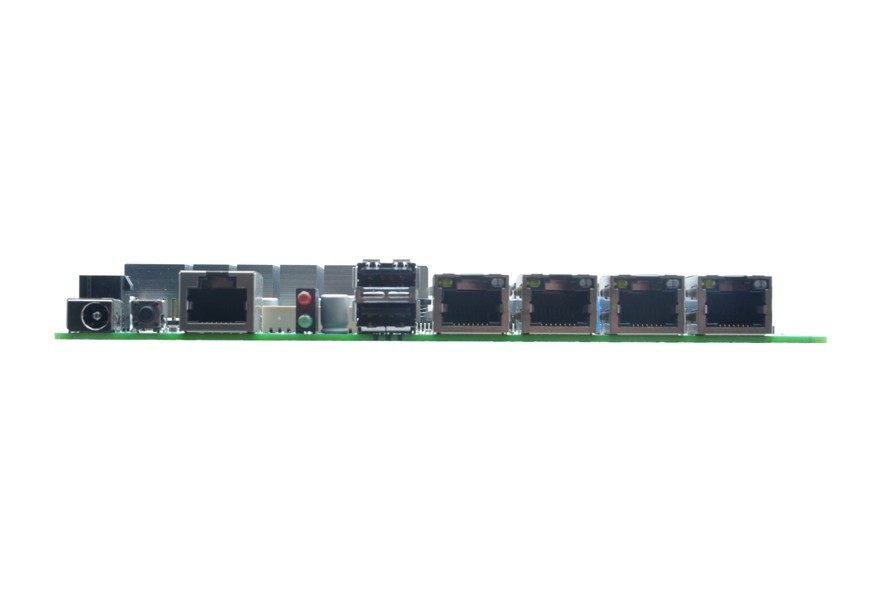

Rear I/O

1* 12V DC power input

4* RJ-45 Gigabit Ethernet connector

1* CISCO serial port

2* USB 2.0

1* power switch

2* HDD&Power LED

4* LAN_LED

Internal I/O

1* 4pin ATX Power interface(can do 12V power input/output interface)

4* USB 2.0  2*5Pin

1* JVGA  1*12Pin

1* LAN_LED 2*8Pin

1* PS/2 KB/MS connector 1*6Pin

1* RS232 serial port  2*5Pin

1*front panel  function buttons and indicator connector 2*5Pin

1* HDD power supply interface

1* SIM card socket

FAN interface

Fanless Cooling designReserve 1*4pin CPU fan interface1* 3pin system fan interface

GPIO

Support 4 way input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

 Adopt DC 12V power supply

Operating Temp.

-10℃~60

Storage Temp.

-20℃~70

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

FAN interface

Fanless Cooling designReserve 1*4pin CPU fan interface1* 3pin system fan interface


事宜人群:

♦Integrated Intel® Celeron J1900/4Cores/2.0GHz TDP10W

♦Based on Intel® Bay trail SOC platform

♦Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to 8GB

♦Integrated Intel®HD Graphics ,support VGA display output

♦4*82583V  Gigabit Ethernet ,support wake on LAN/PXE

♦1*SATA 2.5 inch Notebook hard disk place, can be installed the hard disk directly,the transfer rate up to 3Gbps

♦1* standard  7PIN SATA HDD interface(with the 2.5 inch HDD place optional)

♦1* MSATA slot ,support SSD which support Intel protocol , the transfer rate up to 3Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M9F VER:1.5

Processor

Integrated Intel® Celeron J1900/4Cores/2.0GHz TDP10W

Chipset

Based on Intel® Bay trail SOC platform

Memory

Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to 8GB

Graphics

Integrated Intel®HD Graphics ,support VGA display output

Network

4*82583V  Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*SATA 2.5 inch Notebook hard disk place, can be installed the hard disk directly,the transfer rate up to 3Gbps

1* standard  7PIN SATA HDD interface(with the 2.5 inch HDD place optional)

1* MSATA slot ,support SSD which support Intel protocol , the transfer rate up to 3Gbps

Expansion slots

1* Mini-PCIE slot,support WIFI3G module, default is USB signal

Note: Mini-PCIE  and LAN4 are shared PCIE channel,the user can optional

Rear I/O

1* 12V DC power input

4* RJ-45 Gigabit Ethernet connector

1* CISCO serial port

2* USB 2.0

1* power switch

2* HDD&Power LED

4* LAN_LED

Internal I/O

1* 4pin ATX Power interface(can do 12V power input/output interface)

4* USB 2.0  2*5Pin

1* JVGA  1*12Pin

1* LAN_LED 2*8Pin

1* PS/2 KB/MS connector 1*6Pin

1* RS232 serial port  2*5Pin

1*front panel  function buttons and indicator connector 2*5Pin

1* HDD power supply interface

1* SIM card socket

FAN interface

Fanless Cooling designReserve 1*4pin CPU fan interface1* 3pin system fan interface

GPIO

Support 4 way input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

 Adopt DC 12V power supply

Operating Temp.

-10℃~60

Storage Temp.

-20℃~70

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

FAN interface

Fanless Cooling designReserve 1*4pin CPU fan interface1* 3pin system fan interface


NO.

Model

Processor

Frequency

Memory

VGA

LAN

USB

COM

BYPASS

Power

1

ITX-M9F VER:1.5

J1900

2.0G/4C

1*SODDR3

1

4*82583V

6

2

/

DC12V


Specification
ITX-M9F  VER:1.5


Driver(WIN7/8/10 )


OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetITX-M9F
Win7/8/10 32/64BITGraphicsVGAITX-M9F
Win7/8/10 32/64BITAudioRealtek AudioITX-M9F
Win7/8/10 32/64BITLANIntelITX-M9F
Win7/8/10 32/64BITTXETXEITX-M9F
Win7/8/10 32/64BITMBIMBIITX-M9F
Win7 32/64BITUSB3.0USB3.0ITX-M9F
