4 LAN DC Power D525/J1900

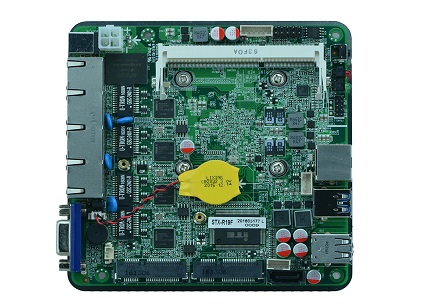

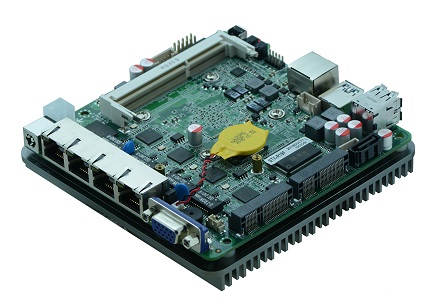

STX-R19F VER:1.1
项目介绍:
Model No. | STX-R19F VER:1.1 |
CPU | Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor |
Chipset | Base on Intel® Bay trail SOC platform |
Memory | 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB |
Graphics | Integrated Intel®HD Graphics |
| Provide 1*VGA |
LAN | 4* Intel WG82583V Gigabit Ethernet,support wake on LAN/PXE |
Storage | Provide 1* standard SATA2.0,the transfer rate up to 3Gbps |
| 1* eMMC Embedded storage chipset(baytrail-I seriesCPU supporteMMC, J1900/1800 not support) |
Audio | N/A |
Expansion slots | 1* MSATA slot,support SSD, the transfer rate up to3Gbps |
Front panel I/O | 1* CISCO standardRS232 serial port |
| 2* USB 2.0 |
| 1* USB 3.0 |
| 1* power LED |
| 1* HDD LED |
| 1* power switch |

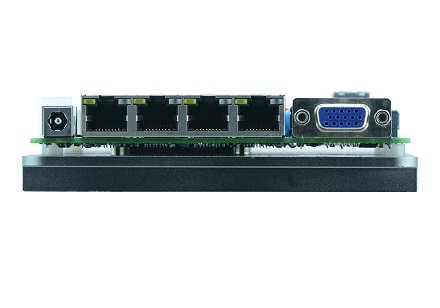

Rear I/O | 4* RJ-45 Gigabit Ethernet Connector |
| 1* VGA |
| 1* 12V DC power input connector |
Internal I/O | 1* USB 2.0 1* 4Pin |
| 1* PS/2 KB/MS connector 1*6Pin |
| 1* front panel function buttons and indicator connector 2*5pin |
| 1* HDD power supply connector 4pin |
| 1* 4pin ATX power connector (can do 12Vpower input/output connector) |
| 1* GPIO |
Fan interface | Fanless cooling design,Reserve 1*3pin CPU Intelligent fan interface |
GPIO | support 4 way input/output GPIO |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power input | Adopt DC 12V power supply |
Operating Temp. | -10℃~60℃ |
Storage Temp. | -20℃~70℃ |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 120mm x 120mm |
事宜人群:
♦ Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor
♦ Base on Intel® Bay trail SOC platform
♦ 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB
♦ 4* Intel WG82583V Gigabit Ethernet,support wake on LAN/PXE
♦ Integrated Intel®HD Graphics,1*VGA
-
Product Specifications
-
Ordering Information
-
Download Center
Model No. | STX-R19F VER:1.1 |
CPU | Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor |
Chipset | Base on Intel® Bay trail SOC platform |
Memory | 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB |
Graphics | Integrated Intel®HD Graphics |
| Provide 1*VGA |
LAN | 4* Intel WG82583V Gigabit Ethernet,support wake on LAN/PXE |
Storage | Provide 1* standard SATA2.0,the transfer rate up to 3Gbps |
| 1* eMMC Embedded storage chipset(baytrail-I seriesCPU supporteMMC, J1900/1800 not support) |
Audio | N/A |
Expansion slots | 1* MSATA slot,support SSD, the transfer rate up to3Gbps |
Front panel I/O | 1* CISCO standardRS232 serial port |
| 2* USB 2.0 |
| 1* USB 3.0 |
| 1* power LED |
| 1* HDD LED |
| 1* power switch |
Rear I/O | 4* RJ-45 Gigabit Ethernet Connector |
| 1* VGA |
| 1* 12V DC power input connector |
Internal I/O | 1* USB 2.0 1* 4Pin |
| 1* PS/2 KB/MS connector 1*6Pin |
| 1* front panel function buttons and indicator connector 2*5pin |
| 1* HDD power supply connector 4pin |
| 1* 4pin ATX power connector (can do 12Vpower input/output connector) |
| 1* GPIO |
Fan interface | Fanless cooling design,Reserve 1*3pin CPU Intelligent fan interface |
GPIO | support 4 way input/output GPIO |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power input | Adopt DC 12V power supply |
Operating Temp. | -10℃~60℃ |
Storage Temp. | -20℃~70℃ |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 120mm x 120mm |
No. | Model No. | Processor | Frequency | Memory | VGA | LAN | eMMC | USB2.0 | USB3.0 | COM | Power |
1 | ITX-R19F VER:1.1 | J1900 | 2.0G | 1*SODDR3L | 1 | 4*IntelWG82583V | NC | 3 | 1 | 1 | DC12V |
Specifications | ![STX-R19F VER:1.1 STX-R19F VER:1.1]() |
Driver(WIN7/8/10)
OS | Driver Type | Driver Name | Download Now |
Win7/8/10 32/64BIT | Chipset | chipset | ![ITX-R19F ITX-R19F]() |
Win7/8/10 32/64BIT | Graphics | VGA | ![ITX-R19F ITX-R19F]() |
Win7/8/10 32/64BIT | Audio | Realtek Audio | ![ITX-R19F ITX-R19F]() |
Win7/8/10 32/64BIT | LAN | Intel | ![ITX-R19F ITX-R19F]() |
Win7/8/10 32/64BIT | TXE | TXE | ![ITX-R19F ITX-R19F]()
|
Win7/8/10 32/64BIT | MBI | MBI | ![ITX-R19F ITX-R19F]() |
Win7 32/64BIT | USB3.0 | USB3.0 | ![ITX-R19F ITX-R19F]()
|
♦ Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor
♦ Base on Intel® Bay trail SOC platform
♦ 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB
♦ 4* Intel WG82583V Gigabit Ethernet,support wake on LAN/PXE
♦ Integrated Intel®HD Graphics,1*VGA
