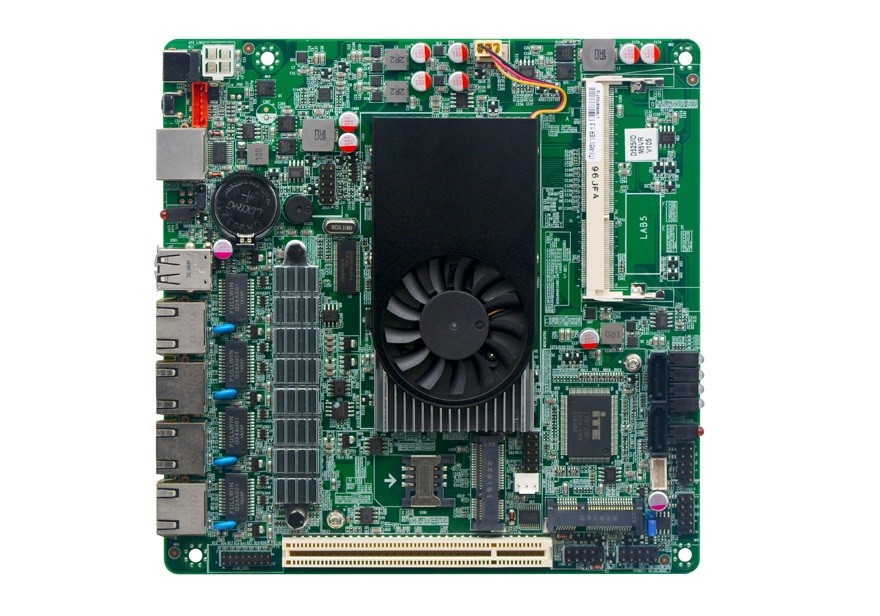

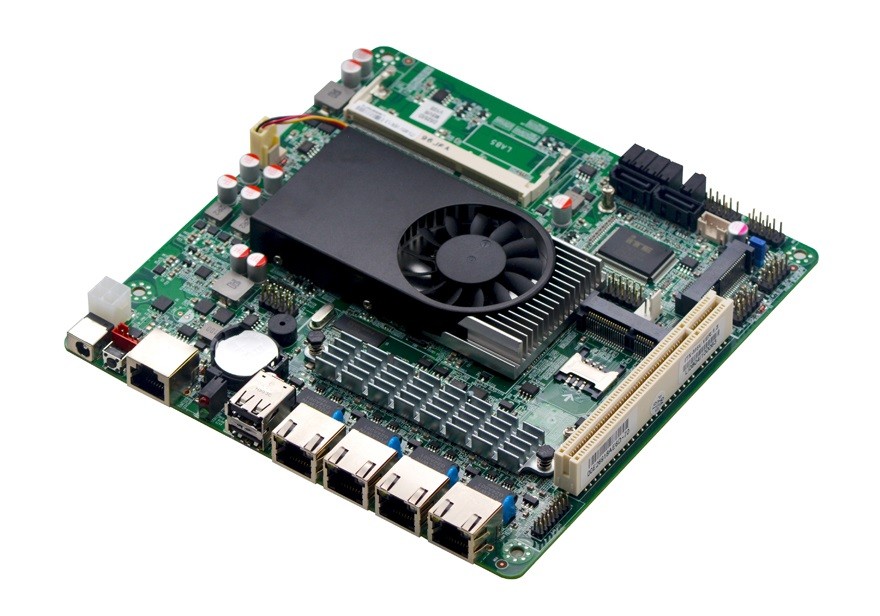

4 LAN DC Power D525/J1900

ITX-M5V VER:1.3

项目介绍:

Model No.

ITX-M5V VER:1.3

CPU

Integrated Intel® Atom D525 dual core processor(1.80GHz)

Chipset

Adopt Intel® ICH8M Express chipset

Memory

Provide1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB

Graphics

Integrated Intel® GMA3150 Graphics, supportVGA display output

LAN

Integrated 4* Intel® 82583V or82574L Gigabit Ethernet ,support wake on LAN/PXE

Storage

Integrated 2* SATA2.0HDD interface, the transfer rate up to3Gbps


1* MSATA slot, supportUSB WIFI、SSD, the transfer rate up to3Gbps

Expansion slots

1* Mini-PCIE slot(support WIFI、3G model)


1* PCI

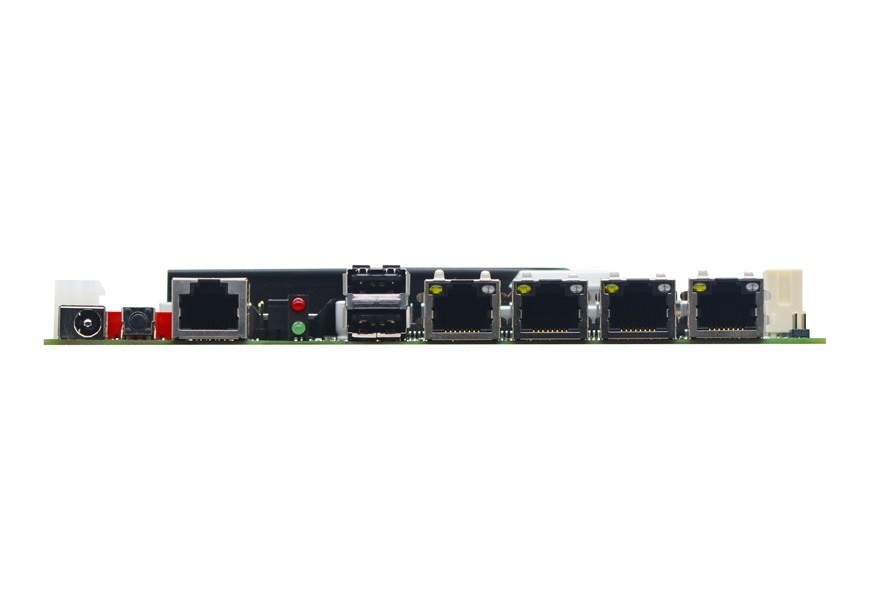

Rear I/O

1* CISCO serial port


2* USB 2.0


4* RJ-45 Gigabit Ethernet connector


1* power switch


2* Power/HDD LED


1* 12V DC JACK power input interface


 4*LAN LED(Optional)

Internal I/O

1* VGA 2*5pin


1*LAN LED 2*8pin


1* RS232 serial port 2*5pin


4* USB 2.0 2*5pin


1* front panel function buttons and indicator connector 2*5pin


1* PS/2 KB/MS connector 1*6pin


1* 4pin ATX Power interface(can do 12V power input/output interface)


1* HDD power supply connector


1* SIM card socket

FAN interface

1*4pin CPU intelligence fan interface, 1*3pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

8Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel®D525/1.8GHz Dual core processor,TDP 13W

♦ Intel® ICH8M Chipset

♦ 1*SO DDRIII,Support 1066/800MHz Memory,Up to 2GB

♦ Integrated Intel®G3150 Graphics

♦ 4* 82583V Intel 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE





  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M5V VER:1.3

CPU

Integrated Intel® Atom D525 dual core processor(1.80GHz)

Chipset

Adopt Intel® ICH8M Express chipset

Memory

Provide1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB

Graphics

Integrated Intel® GMA3150 Graphics, supportVGA display output

LAN

Integrated 4* Intel® 82583V or82574L Gigabit Ethernet ,support wake on LAN/PXE

Storage

Integrated 2* SATA2.0HDD interface, the transfer rate up to3Gbps


1* MSATA slot, supportUSB WIFI、SSD, the transfer rate up to3Gbps

Expansion slots

1* Mini-PCIE slot(support WIFI、3G model)


1* PCI

Rear I/O

1* CISCO serial port


2* USB 2.0


4* RJ-45 Gigabit Ethernet connector


1* power switch


2* Power/HDD LED


1* 12V DC JACK power input interface


 4*LAN LED(Optional)

Internal I/O

1* VGA 2*5pin


1*LAN LED 2*8pin


1* RS232 serial port 2*5pin


4* USB 2.0 2*5pin


1* front panel function buttons and indicator connector 2*5pin


1* PS/2 KB/MS connector 1*6pin


1* 4pin ATX Power interface(can do 12V power input/output interface)


1* HDD power supply connector


1* SIM card socket

FAN interface

1*4pin CPU intelligence fan interface, 1*3pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

8Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm


NO

Model

CPU

Frequency

Memory

VGA

LAN

BYPASS

USB

COM

POWER

1

ITX-M5V VER:1.3

D525

1.80G

1*SODDR3

1

4*82583V

X

6

2

DC 12V





SpecificationsITX-M5V VER:1.2




Driver(WINXP/7/8)

OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetQintel_infITX-M5V
WinXP/7/8 32/64BITTGraphicsVGAITX-M5V
WinXP/7/8 32/64BITAudioRealtek AudioITX-M5V
WinXP/7/8 32/64BITLANIntelITX-M5V
Win7 32/64BITUSB3.0USB3.0ITX-M5V
