LGA115X

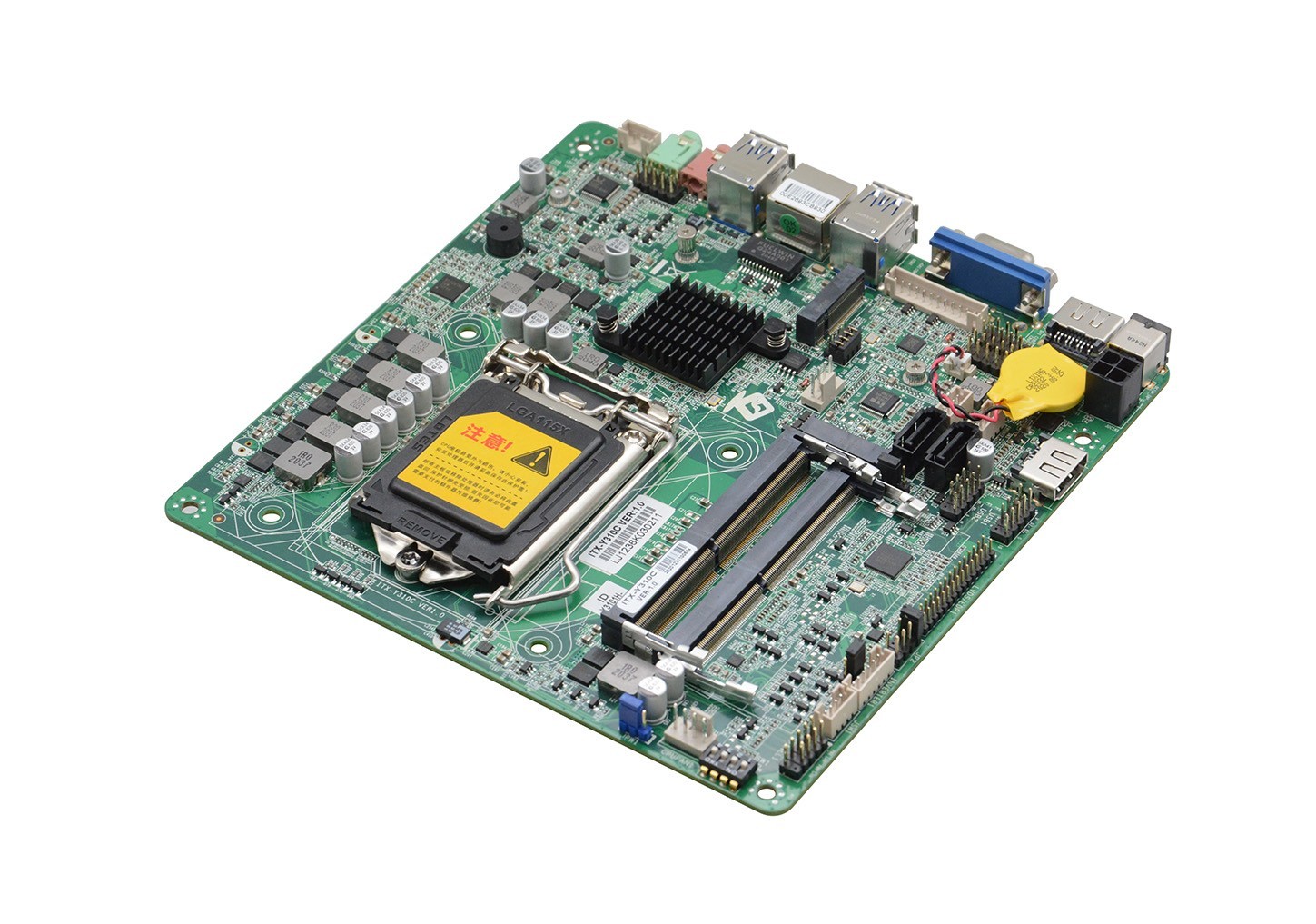

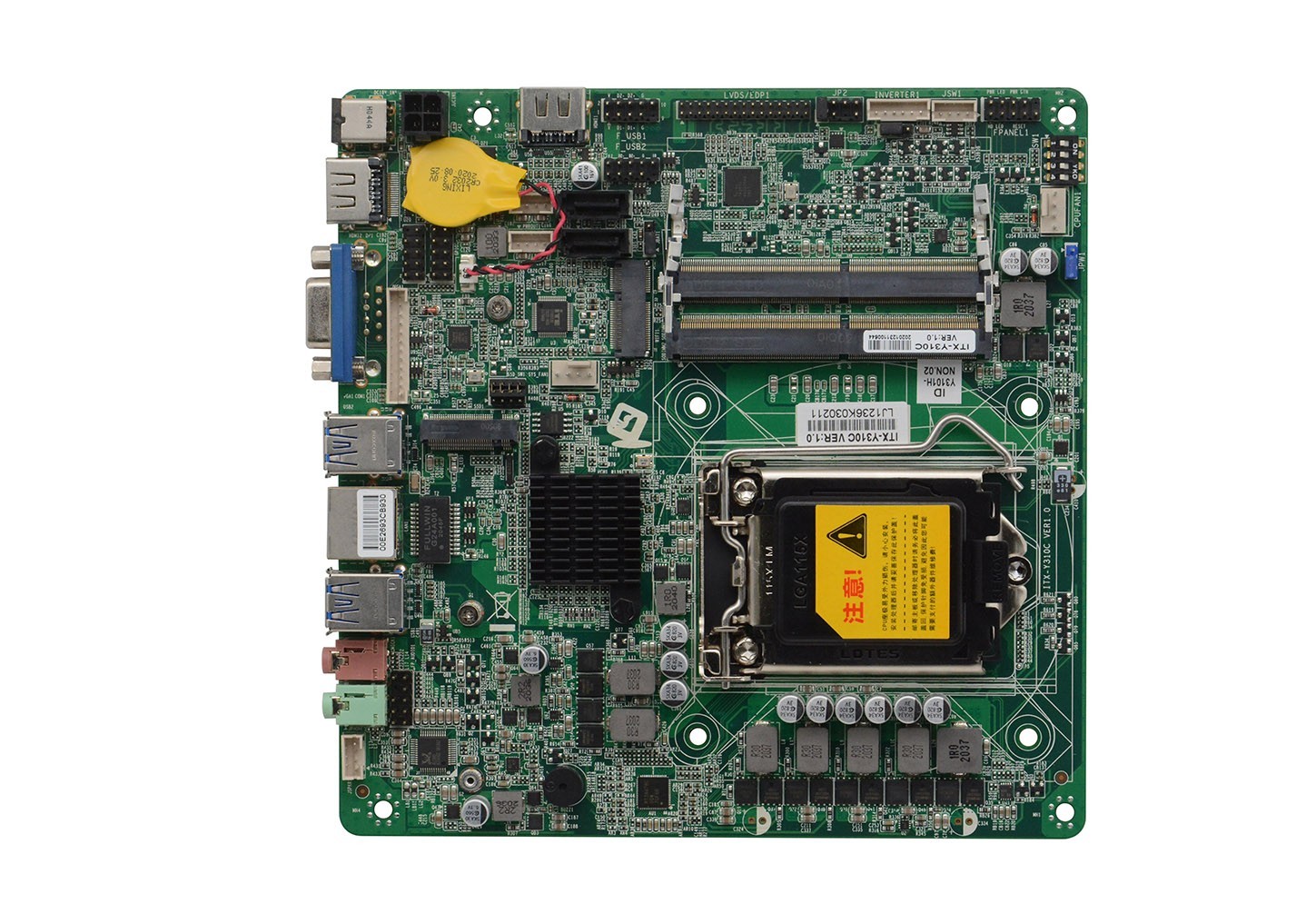

ITX-Y310C VER: 1.0

项目介绍:

Product number

ITX-Y310C VER: 1.0

processor

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

chipset

Using Intel® H310C Express Chipset,

RAM

2* DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB

Show

Integrated Intel® HD Graphics core graphics card, support DirectX12, OpenGL4.4, support 4K display 1* VGA interface, support the highest resolution 1920X1200@60Hz, 2* HDMI1.4 interface, support the highest resolution 4096X2304@24H, 1* Support dual channel 24bit LVDS interface

The internet

1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store



2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD, choose one of the two through the jumper

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier supports 2Ω/5W dual-channel

Expansion slot

1* M.2 slot, support M.2 2242 standard WIFI module

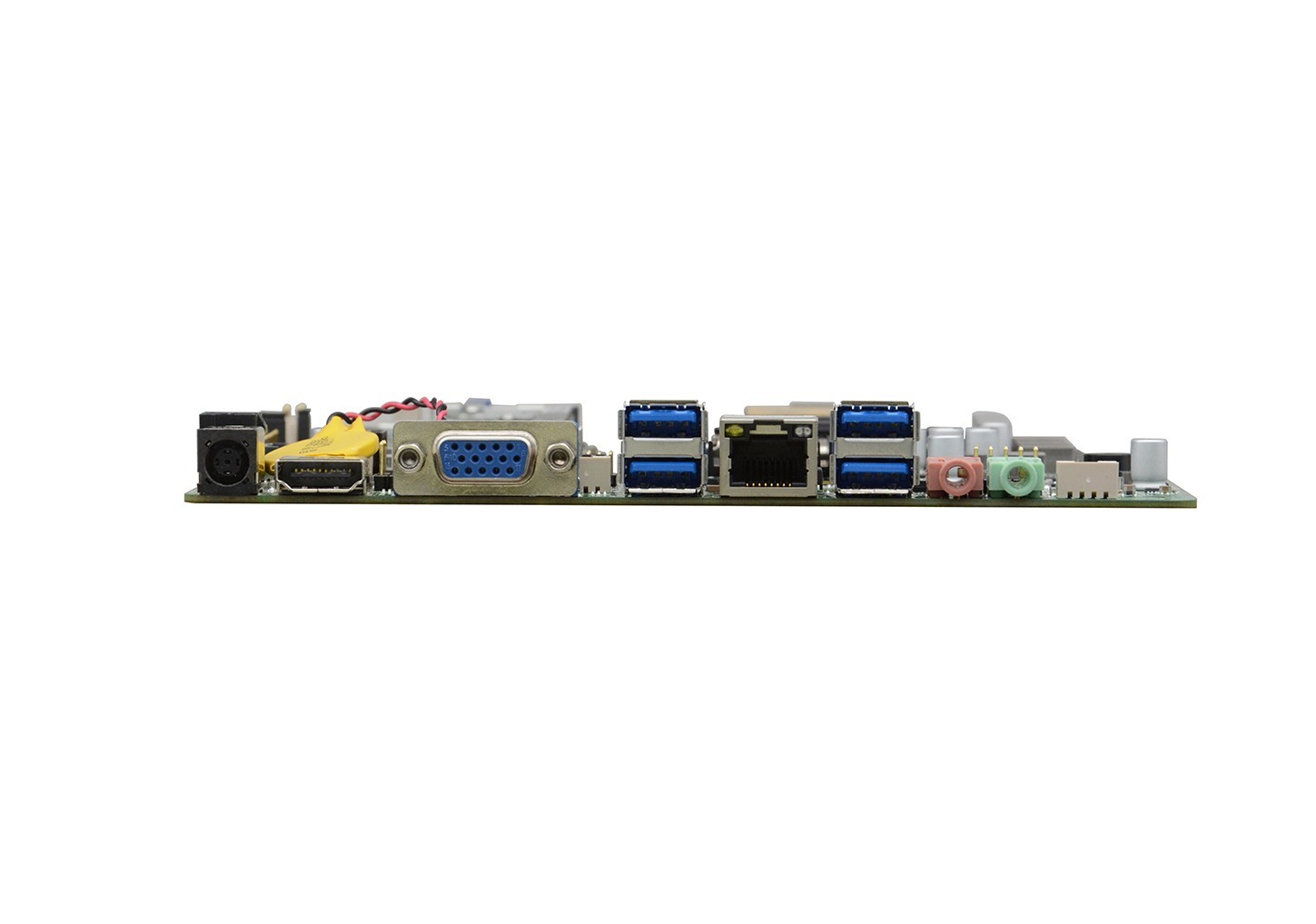

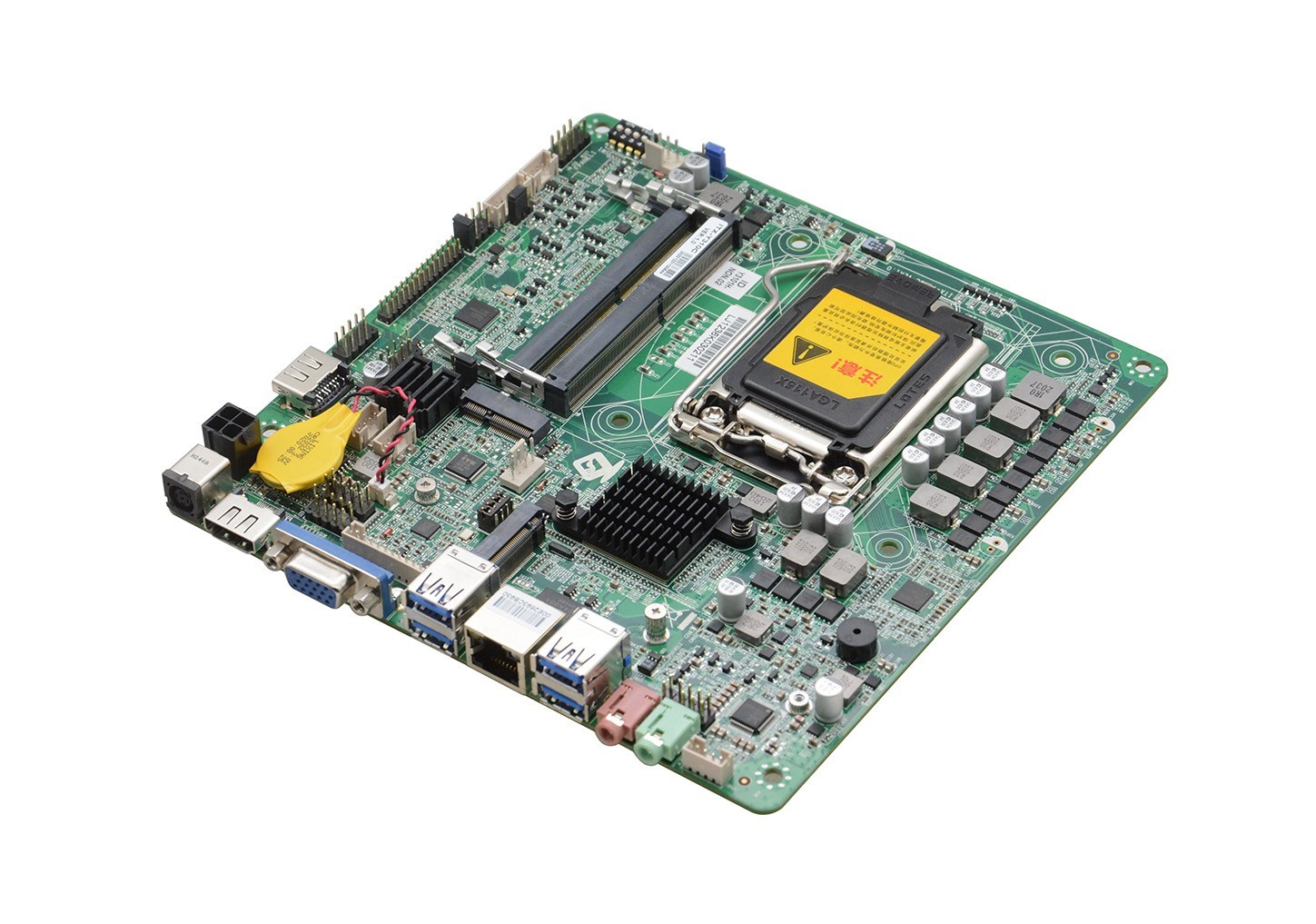

Backplane I/O interface



4* USB3.0 interface

2* HDMI interface (choose one of HDMI2 and DP interface, optional DP interface)

1* VGA port (choose one from DB9 serial port, DB9 serial port is optional)

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC12~19V power input interface

Built-in I/O interface



1* JVGA interface 1*12pin, same signal as VGA interface

1* LVDS interface 2*15pin, support dual channel 24bit

1* Backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface, 2*5pin

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin

1*4pin ATX power interface. Support 12V~19V power input and output

Fan interface

1*4pin CPU smart fan interface; 1*3pin system fan interface

GPIO

Support 4 input and output GPIO function

BIOS

64Mb Flash ROM

support system

Windows 10/Linux

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC19V power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦Using Intel® H310C Express Chipset,

♦2* DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB

♦Integrated Intel® HD Graphics core graphics card, support DirectX12, OpenGL4.4, support 4K display 1* VGA ♦interface, support the highest resolution 1920X1200@60Hz, 2* HDMI1.4 interface, support the highest resolution ♦4096X2304@24H, 1* Support dual channel 24bit LVDS interface

♦1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

♦2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

♦1* M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD, choose one of the two through the jumper

♦Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier supports 2Ω/5W dual-channel


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

ITX-Y310C VER: 1.0

processor

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

chipset

Using Intel® H310C Express Chipset,

RAM

2* DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB

Show

Integrated Intel® HD Graphics core graphics card, support DirectX12, OpenGL4.4, support 4K display 1* VGA interface, support the highest resolution 1920X1200@60Hz, 2* HDMI1.4 interface, support the highest resolution 4096X2304@24H, 1* Support dual channel 24bit LVDS interface

The internet

1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store



2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD, choose one of the two through the jumper

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier supports 2Ω/5W dual-channel

Expansion slot

1* M.2 slot, support M.2 2242 standard WIFI module

Backplane I/O interface



4* USB3.0 interface

2* HDMI interface (choose one of HDMI2 and DP interface, optional DP interface)

1* VGA port (choose one from DB9 serial port, DB9 serial port is optional)

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC12~19V power input interface

Built-in I/O interface



1* JVGA interface 1*12pin, same signal as VGA interface

1* LVDS interface 2*15pin, support dual channel 24bit

1* Backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface, 2*5pin

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin

1*4pin ATX power interface. Support 12V~19V power input and output

Fan interface

1*4pin CPU smart fan interface; 1*3pin system fan interface

GPIO

Support 4 input and output GPIO function

BIOS

64Mb Flash ROM

support system

Windows 10/Linux

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC19V power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-Y310C_D11L VER:1.0

LGA1151

/

H310C

2*SODDR4

1

2

/

2ch/24bit

1*8111H

8

1

/

DC19V


SpecificationITX-Y310C



Driver(Win7/8/10 )

OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetITX-Y310C
Win7/8/10 32/64BITGraphicsVGAITX-Y310C
Win7/8/10 32/64BITAudioRealtek AudioITX-Y310C
Win7/8/10 32/64BITLANRealtek
ITX-Y310C
Win7/8/10 32/64BITMEMEITX-Y310C
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114ITX-Y310C
Win7/8/10 32/64BITRSTRSTITX-Y310C
Win7/8/10 32/64BITSerial IOSerial_IOITX-Y310C
