Coffeelake-U

ITX-Y89_I511L VER:1.0(8259U)

项目介绍:

Product No.

ITX-Y89_I511L VER:1.0(8259U)

Processor

Integrated 8th generation Intel@Coffee Lake-U I5-8259U 2.3GHz quad-core eight-thread processor, TDP 28W


Compatible with Intel@Coffee Lake-U core/I3/I5/I7 processors

Chipset

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2400MHz memory, maximum support 32GB

Display

Integrated Intel® Iris® Plus Graphics 655 core graphics card, support DirectX12, OpenGL4.5, support 4K display

1* VGA interface, supports a maximum resolution of 1920X1200@60Hz

1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

1*LVDS interface, support dual channel 24BIT

Internet

1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out,

Power amplifier supports 2Ω/5W dual channel

Expansion slot

1* M.2 slot, support M.2 2230 WIFI module

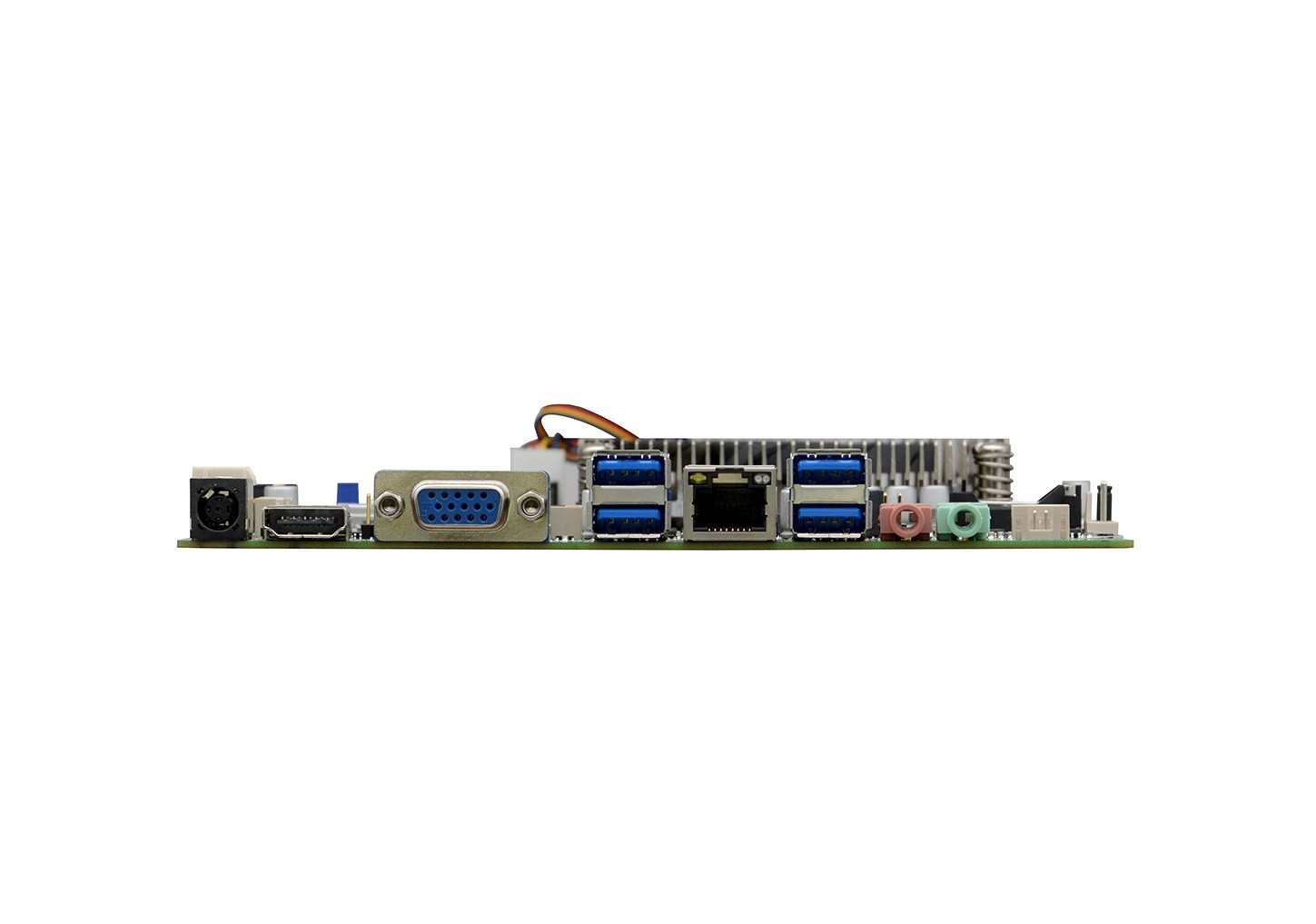

Backplane I/O interface



4* USB3.0 interface,

1* HDMI port

1* VGA display interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC 12~19V power input interface

Built-in I/O interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* JHDMI interface 2*8pin, the same signal as HDMI1

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin

4* USB2.0接口 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin

1*4pin ATX power connector. Support DC12~19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

BIOS

64Mb Flash ROM

GPIO

NA

support system

Windows 10/Linux

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC12~19V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated 8th generation Intel@Coffee Lake-U I5-8259U 2.3GHz quad-core eight-thread processor, TDP 28W

♦Compatible with Intel@Coffee Lake-U core/I3/I5/I7 processors

♦2* SODIMM memory slot, support dual-channel DDR4 2400MHz memory, maximum support 32GB

♦Integrated Intel® Iris® Plus Graphics 655 core graphics card, support DirectX12, OpenGL4.5, support 4K display

♦1* VGA interface, supports a maximum resolution of 1920X1200@60Hz

♦1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

♦1*LVDS interface, support dual channel 24BIT

♦1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

♦2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

♦1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-Y89_I511L VER:1.0(8259U)

Processor

Integrated 8th generation Intel@Coffee Lake-U I5-8259U 2.3GHz quad-core eight-thread processor, TDP 28W


Compatible with Intel@Coffee Lake-U core/I3/I5/I7 processors

Chipset

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2400MHz memory, maximum support 32GB

Display

Integrated Intel® Iris® Plus Graphics 655 core graphics card, support DirectX12, OpenGL4.5, support 4K display

1* VGA interface, supports a maximum resolution of 1920X1200@60Hz

1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

1*LVDS interface, support dual channel 24BIT

Internet

1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out,

Power amplifier supports 2Ω/5W dual channel

Expansion slot

1* M.2 slot, support M.2 2230 WIFI module

Backplane I/O interface



4* USB3.0 interface,

1* HDMI port

1* VGA display interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC 12~19V power input interface

Built-in I/O interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* JHDMI interface 2*8pin, the same signal as HDMI1

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin

4* USB2.0接口 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin

1*4pin ATX power connector. Support DC12~19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

BIOS

64Mb Flash ROM

GPIO

NA

support system

Windows 10/Linux

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC12~19V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

485/422

Power

1

ITX-Y89_I511L VER:1.0(8259U)

I5-8259U

2.3G

/

2*SODDR4

1

2

/

2ch*24bit

1*8111H

8

1

/

DC19V


Specification

Y89_I511L


Driver


OSDriver typeDriver nameDownload now
Win10 32/64BITChipsetchipsetY89_I511L
Win10 32/64BITGraphicsVGAY89_I511L
Win10 32/64BITAudioRealtek AudioY89_I511L
Win10 32/64BITLANRealtekY89_I511L
Win10 32/64BITMEMEY89_I511L
Win10 32/64BITUSB3.0USB3.0Y89_I511L
