Haswell-U

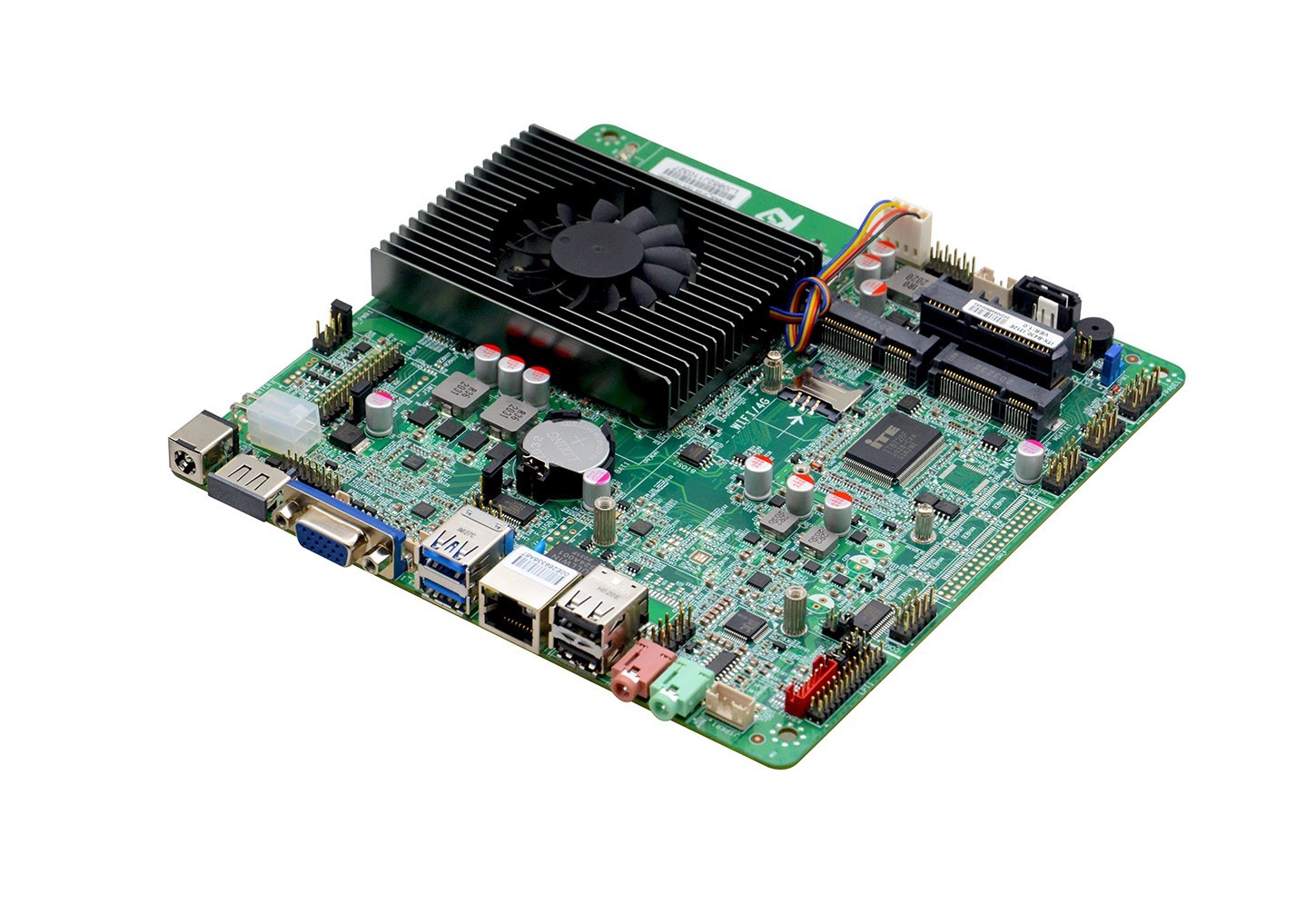

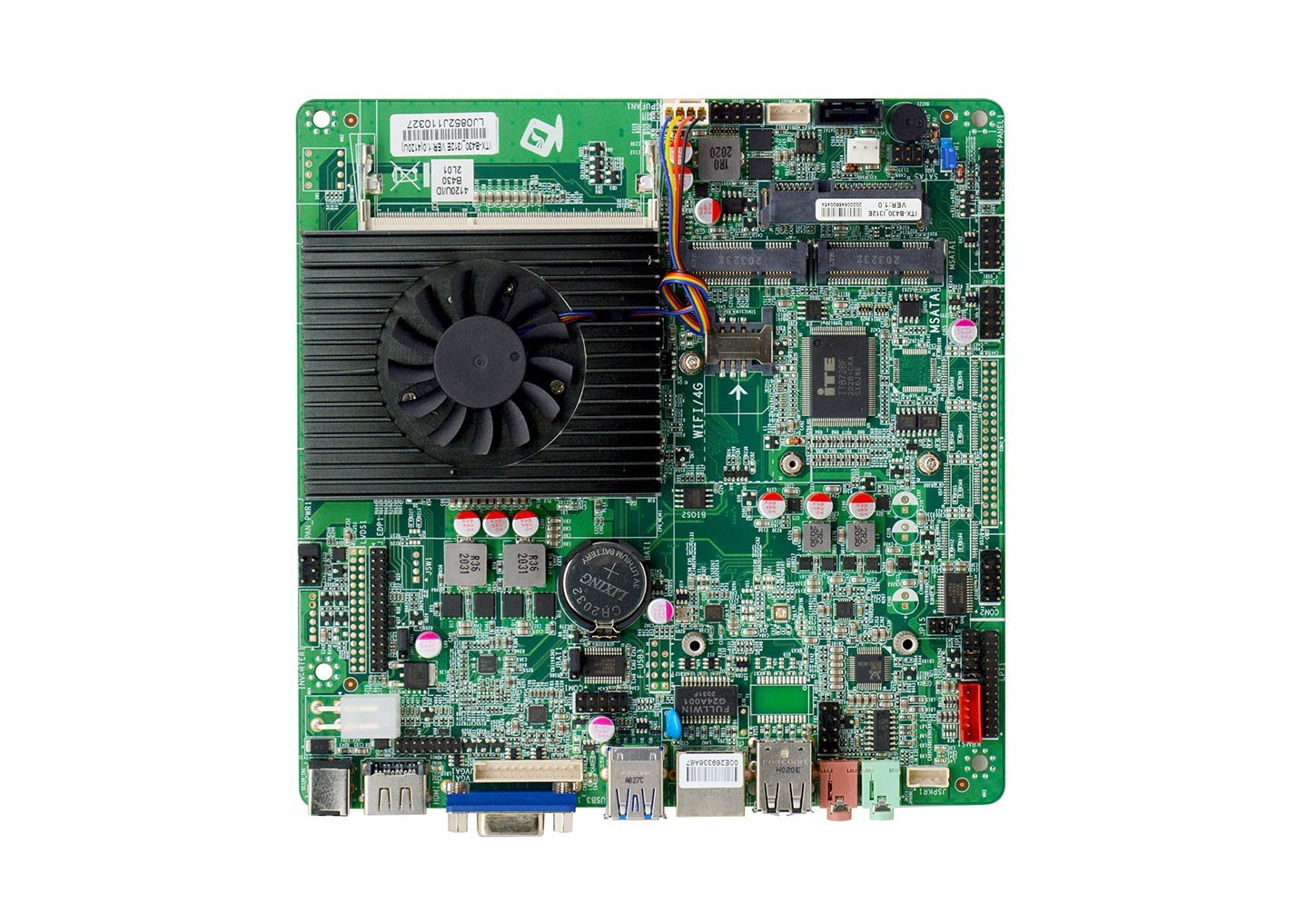

ITX-B430_I312E VER:1.0(4120U)

项目介绍:

Product No.

ITX-B430_I312E VER:1.0(4120U)

Processor



Integrated Intel®Haswell-U I3-4120U/2.0GHz dual-core four-thread processor, TDP15W

Compatible with Intel Celeoron, Pentium, Core®I3/I5/I7 Haswell/Broadwell-U processors

Chipset

Based on Intel®Haswell-U/Broadwell-U SOC platform

RAM

1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Display



Integrated Intel® HD Graphics 4400 core graphics

1* VGA, 1*HDMI, 1*EDP interface

Support single display, dual display mode, extended mode

Internet

1* RTL8111H Gigabit network card, support Wake-on-LAN/PXE function

Store

1* SATA3.0 2.5 inch notebook hard drive bay


1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

Audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier uses 2Ω5W speakers

Expand



1* Mini-PCIE slot supports WIFI/3G module

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps


Note: If MINIPE1 needs to support 3G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

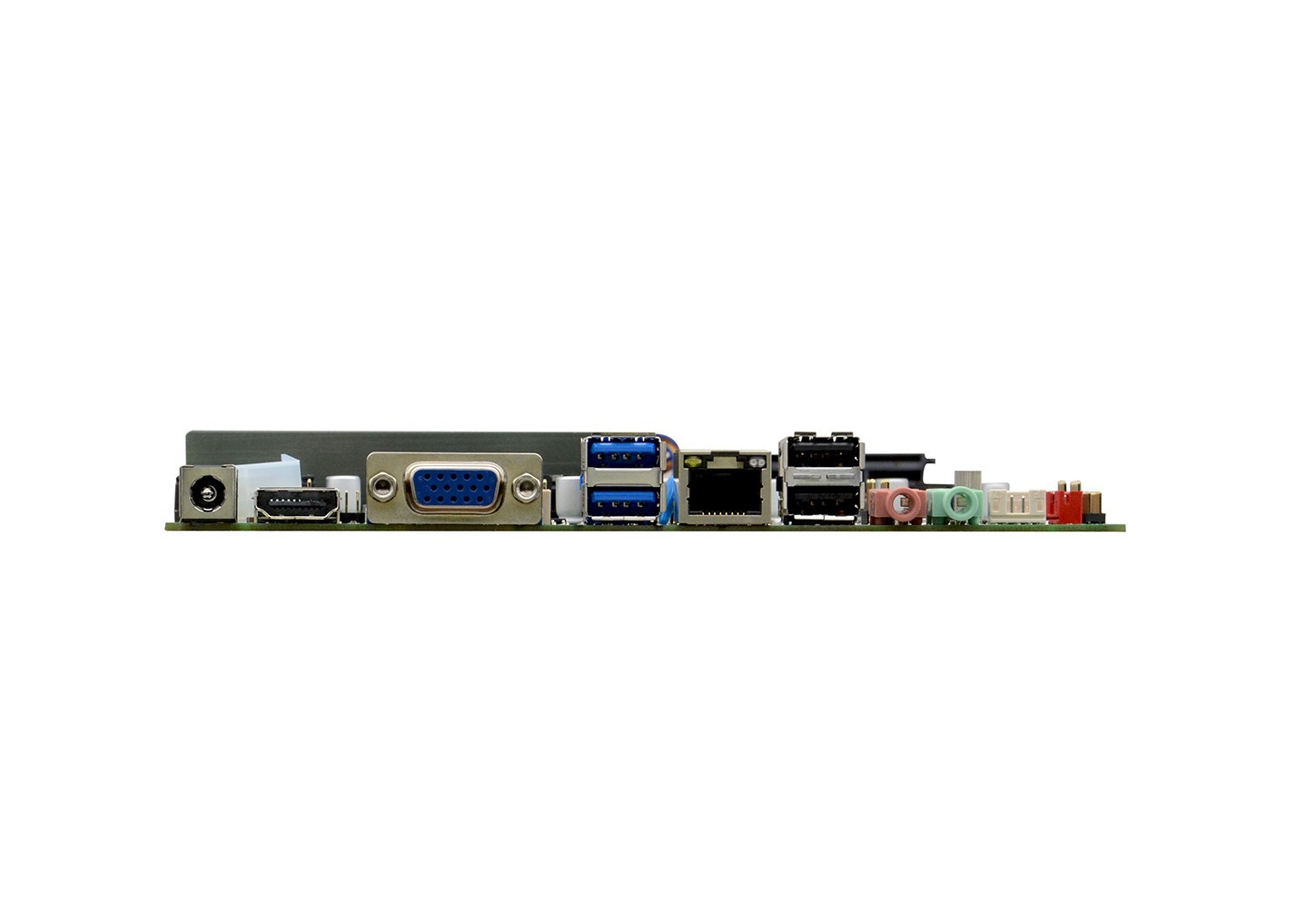

Backplane I/O interface



1* 12V DC JACK power input interface

1* HDMI display interface

1* VGA display interface

2* USB 3.0 interface

2* USB2.0 interface

1* RJ-45 Gigabit network interface

1* Line out interface (green)

1* MIC interface (red)

Built-in I/O interface



1* JVGA1 interface 1*12Pin (same signal as DB15)

1* J_HDMI port 2*8pin (same signal with backplane IO port HDMI)

1* EDP interface 2*15pin

1* Front audio interface 2*5pin

1* Front power amplifier interface 1*4Pin

4* USB 2.0 interface 2*5Pin

2* RS232 serial interface 2*5pin COM1/COM2 supports the 9th pin charged function, COM2 supports RS485

1* LPT printer interface 2*13pin

1* PS/2 keyboard and mouse interface 1*6Pin

1* Hard disk power supply interface 1*4pin

1* SIM card holder

1* Front panel function button and indicator port 2*5pin

1* 4pin ATX power connector

Fan interface

1* 4pin CPU smart fan interface, 1* 3pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 7/Windows 10/Linux

Power type

DC_12V single power input

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated Intel®Haswell-U I3-4120U/2.0GHz dual-core four-thread processor, TDP15W

♦Compatible with Intel Celeoron, Pentium, Core®I3/I5/I7 Haswell/Broadwell-U processors

♦Based on Intel®Haswell-U/Broadwell-U SOC platform

♦1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

♦Integrated Intel® HD Graphics 4400 core graphics

♦1* VGA, 1*HDMI, 1*EDP interface

♦Support single display, dual display mode, extended mode

♦1* RTL8111H Gigabit network card, support Wake-on-LAN/PXE function

♦1* SATA3.0 2.5 inch notebook hard drive bay

♦1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

♦Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

♦The power amplifier uses 2Ω5W speakers


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-B430_I312E VER:1.0(4120U)

Processor



Integrated Intel®Haswell-U I3-4120U/2.0GHz dual-core four-thread processor, TDP15W

Compatible with Intel Celeoron, Pentium, Core®I3/I5/I7 Haswell/Broadwell-U processors

Chipset

Based on Intel®Haswell-U/Broadwell-U SOC platform

RAM

1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Display



Integrated Intel® HD Graphics 4400 core graphics

1* VGA, 1*HDMI, 1*EDP interface

Support single display, dual display mode, extended mode

Internet

1* RTL8111H Gigabit network card, support Wake-on-LAN/PXE function

Store

1* SATA3.0 2.5 inch notebook hard drive bay


1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

Audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier uses 2Ω5W speakers

Expand



1* Mini-PCIE slot supports WIFI/3G module

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps


Note: If MINIPE1 needs to support 3G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

Backplane I/O interface



1* 12V DC JACK power input interface

1* HDMI display interface

1* VGA display interface

2* USB 3.0 interface

2* USB2.0 interface

1* RJ-45 Gigabit network interface

1* Line out interface (green)

1* MIC interface (red)

Built-in I/O interface



1* JVGA1 interface 1*12Pin (same signal as DB15)

1* J_HDMI port 2*8pin (same signal with backplane IO port HDMI)

1* EDP interface 2*15pin

1* Front audio interface 2*5pin

1* Front power amplifier interface 1*4Pin

4* USB 2.0 interface 2*5Pin

2* RS232 serial interface 2*5pin COM1/COM2 supports the 9th pin charged function, COM2 supports RS485

1* LPT printer interface 2*13pin

1* PS/2 keyboard and mouse interface 1*6Pin

1* Hard disk power supply interface 1*4pin

1* SIM card holder

1* Front panel function button and indicator port 2*5pin

1* 4pin ATX power connector

Fan interface

1* 4pin CPU smart fan interface, 1* 3pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 7/Windows 10/Linux

Power type

DC_12V single power input

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485

Power

1

ITX-B430_I512L VER:1.0(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

2ch*24bit

/

1*8111H

8

2

COM2

DC12V

2

ITX-B430_I516L VER:1.0(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

2ch*24bit

/

1*8111H

8

6

COM2

DC12V

3

ITX-B430_I316L VER:1.0(4120U)

I3-4120U

2.0G

1*SODDR3L

1

1

2ch*24bit

/

1*8111H

8

6

COM2

DC12V

4

ITX-B430_I312E VER:1.0(4120U)

I3-4120U

2.0G

1*SODDR3L

1

1

/

1

1*8111H

8

2

COM2

DC12V


SpecificationITX-B430_I312E




Driver (WIN7/8/10 )


OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetITX-B430_I312E
Win7/8/10 32/64BITGraphicsVGAITX-B430_I312E
Win7/8/10 32/64BITAudioRealtek AudioITX-B430_I312E
Win7/8/10 32/64BITLANIntelITX-B430_I312E
Win7/8/10 32/64BITMEME_SW_MSIITX-B430_I312E
WIN7 32/64BITUSB3.0USB3.0ITX-B430_I312E
