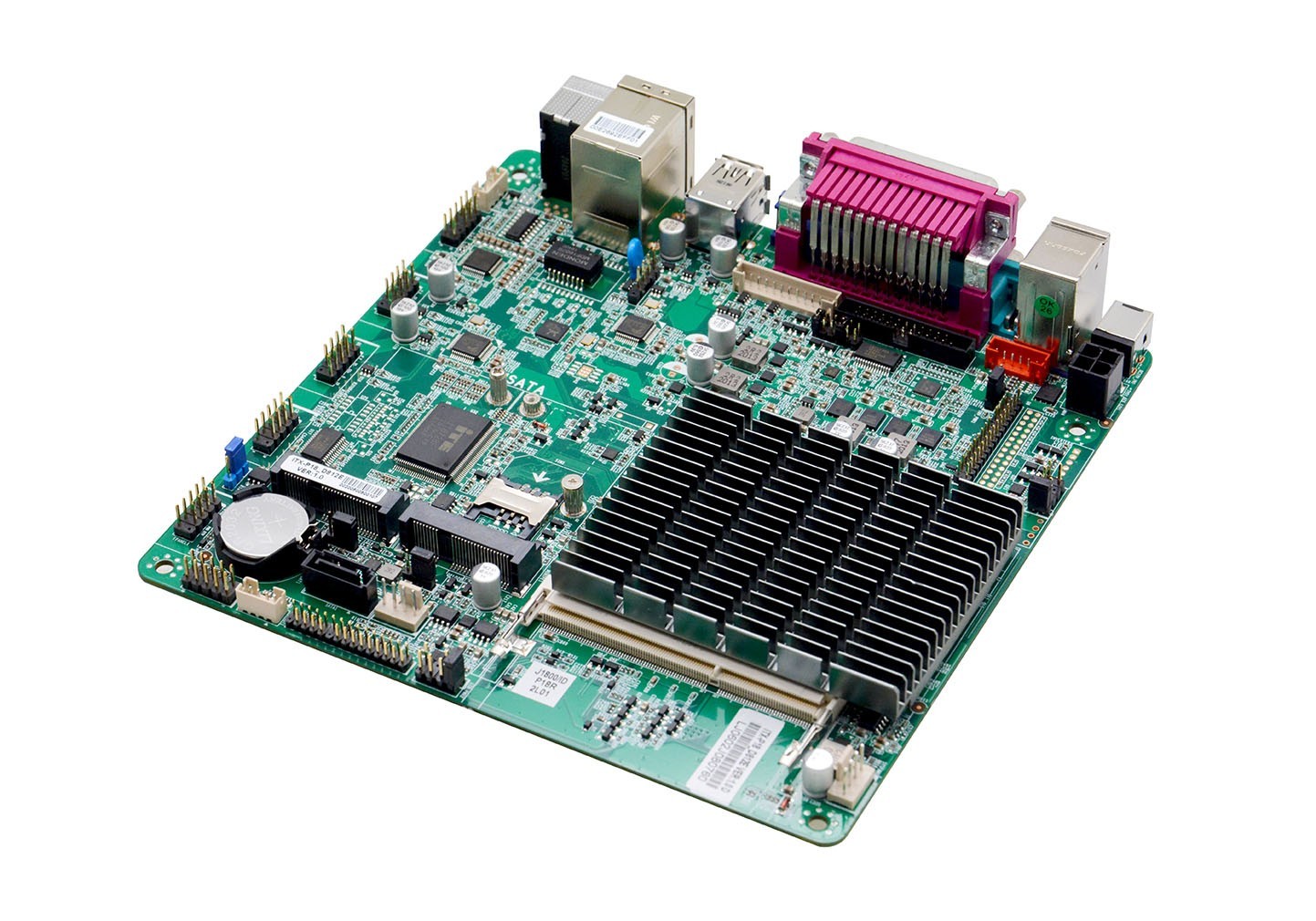

ITX-P18_D812E VER:1.0

项目介绍:

Product No.

ITX-P18_D812E VER:1.0

processor

Integrated Intel® Celeron J1800/2.41GHz dual-core processor, TDP 10W

chipset

Based on baytrail SOC platform

RAM

1* DDR3L SODIMM memory slot, support 1600/1333MHz SODIMM, maximum support 8GB

Show



Integrated Intel®HD Graphics core graphics card

1*VGA port, 2* EDP port,

Support single display, dual display mode, extended mode

The internet

1* RTL8105E 100M network card supports Wake on LAN, PXE function

Store

1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps.


1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 3Gbps

Audio

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier


It is recommended to use a 2Ω5W speaker for the power amplifier

Expansion slot

1* Mini-PCIE slot, support WIFI, 3G module

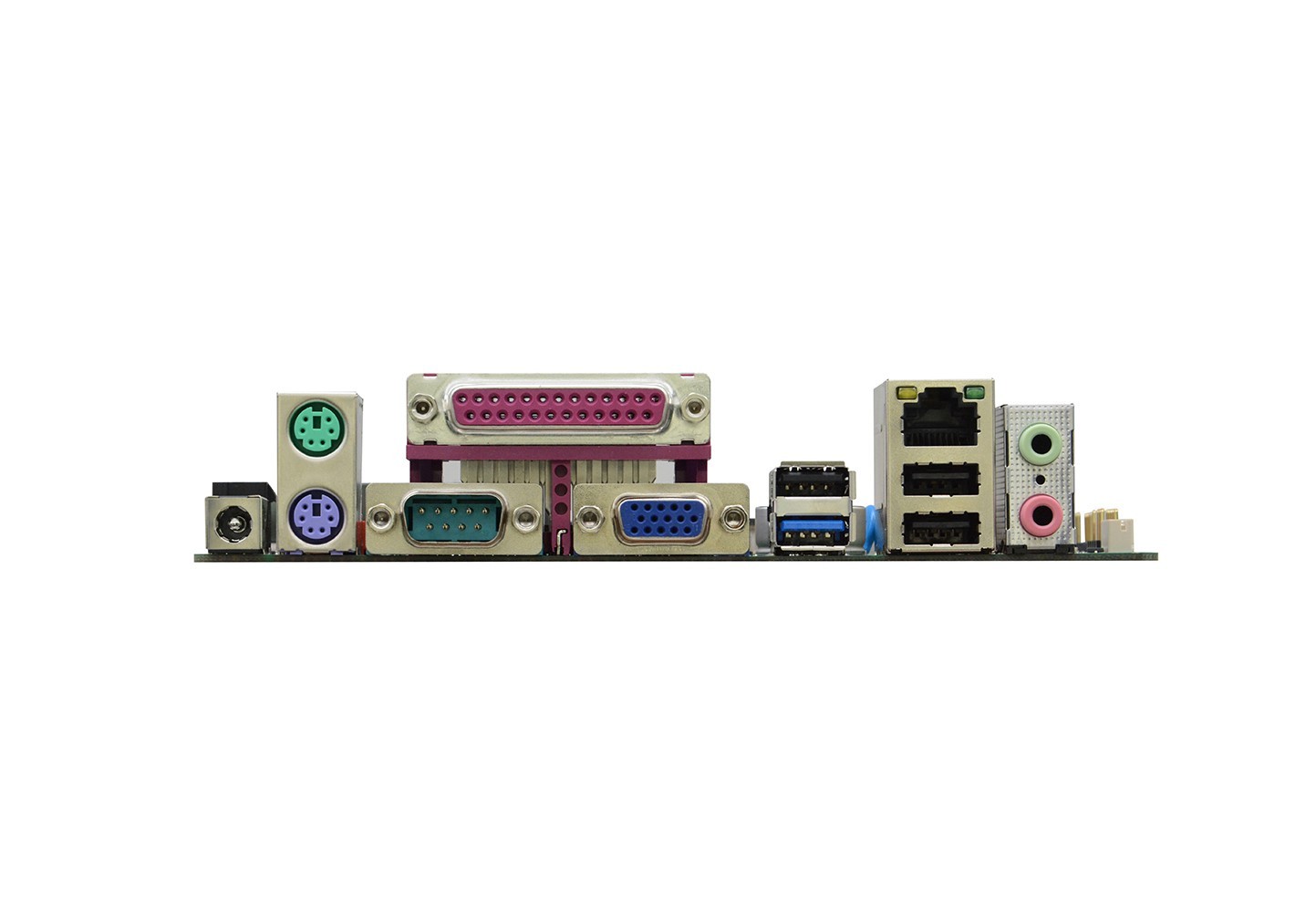

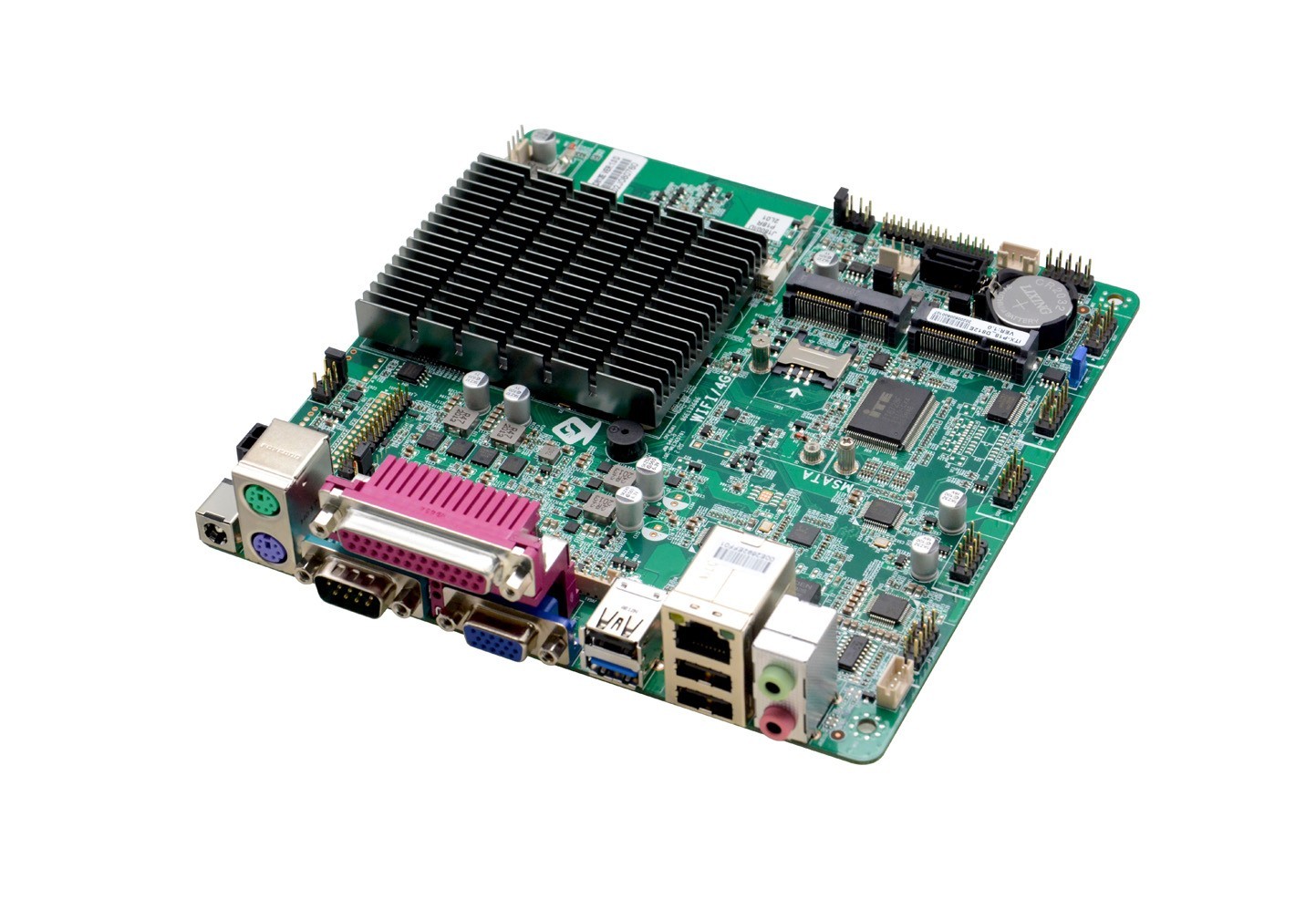

Backplane I/O interface



1* DC12V power input interface

1* PS/2 keyboard interface, 1* PS/2 mouse interface

1* VGA port

3* USB2.0 interface, 1* USB3.0 interface

1* RJ-45 100M network interface

1* Line-out (green), 1*MIC (purple)

1* DB9 serial interface, support the 9th pin charged function

1* LPT interface

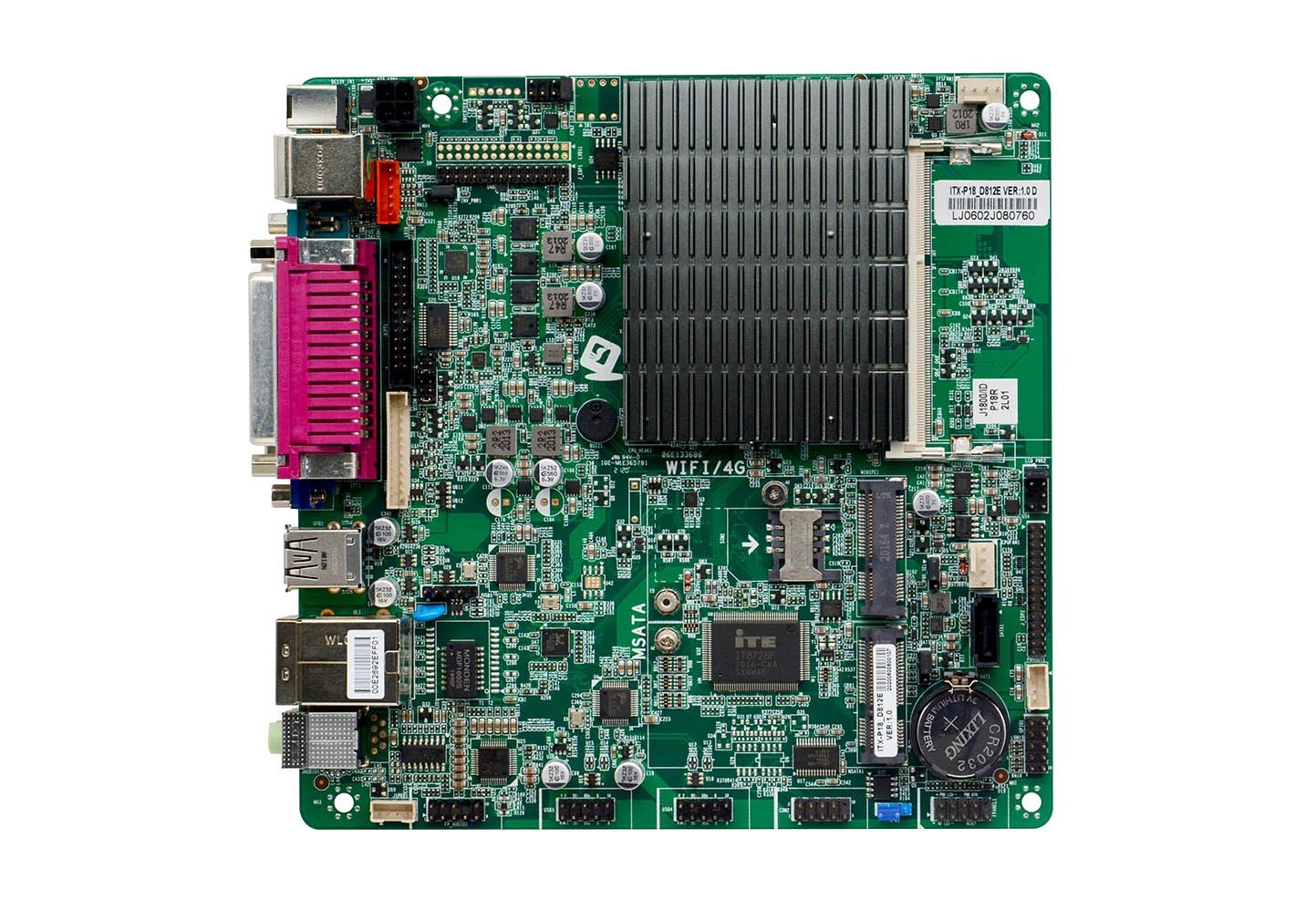

Built-in I/O interface



1* JVGA1 interface 1*12pin, same signal as DB15

2* EDP interface, 2*15pin

1* LPT interface, 2*13pin, choose one with external LPT

1* RS232 serial interface 2*5pin, support the 9th pin charged function

4* USB2.0 interface 2*5pin

1* USB2.0 interface 1*5pin

1* Front panel function button and indicator port 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* SIM card holder

1* Hard disk power supply interface 1*4pin

1* PS/2 keyboard and mouse interface 1*6pin

1* 4pin ATX 12V input and output power interface

Fan interface

Fanless cooling can be used, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO function

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 7/Windows10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated Intel® Celeron J1800/2.41GHz dual-core processor, TDP 10W

♦Based on baytrail SOC platform

♦1* DDR3L SODIMM memory slot, support 1600/1333MHz SODIMM, maximum support 8GB

♦Integrated Intel®HD Graphics core graphics card

♦1*VGA port, 2* EDP port,

♦Support single display, dual display mode, extended mode

♦1* RTL8105E 100M network card supports Wake on LAN, PXE function

♦1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps.

♦1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 3Gbps

♦Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-P18_D812E VER:1.0

processor

Integrated Intel® Celeron J1800/2.41GHz dual-core processor, TDP 10W

chipset

Based on baytrail SOC platform

RAM

1* DDR3L SODIMM memory slot, support 1600/1333MHz SODIMM, maximum support 8GB

Show



Integrated Intel®HD Graphics core graphics card

1*VGA port, 2* EDP port,

Support single display, dual display mode, extended mode

The internet

1* RTL8105E 100M network card supports Wake on LAN, PXE function

Store

1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps.


1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 3Gbps

Audio

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier


It is recommended to use a 2Ω5W speaker for the power amplifier

Expansion slot

1* Mini-PCIE slot, support WIFI, 3G module

Backplane I/O interface



1* DC12V power input interface

1* PS/2 keyboard interface, 1* PS/2 mouse interface

1* VGA port

3* USB2.0 interface, 1* USB3.0 interface

1* RJ-45 100M network interface

1* Line-out (green), 1*MIC (purple)

1* DB9 serial interface, support the 9th pin charged function

1* LPT interface

Built-in I/O interface



1* JVGA1 interface 1*12pin, same signal as DB15

2* EDP interface, 2*15pin

1* LPT interface, 2*13pin, choose one with external LPT

1* RS232 serial interface 2*5pin, support the 9th pin charged function

4* USB2.0 interface 2*5pin

1* USB2.0 interface 1*5pin

1* Front panel function button and indicator port 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* SIM card holder

1* Hard disk power supply interface 1*4pin

1* PS/2 keyboard and mouse interface 1*6pin

1* 4pin ATX 12V input and output power interface

Fan interface

Fanless cooling can be used, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO function

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 7/Windows10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


No.

Model

Processor

Frequency

Memory

LAN

VGA

EDP

LVDS

USB

COM

RS485/422

Power

1

ITX-P18_D912E VER:1.0

J1900

2.00G

1*SODDR3L

1*RTL8105E

1

2

/

8

2

/

DC12V

2

ITX-P18_D812E VER:1.0

J1900

2.41G

1*SODDR3L

1*RTL8105E

1

2

/

8

2

/

DC12V


SpecificationITX-P18_D812E


Driver(WIN7/8/10)


OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetITX-P18_D812E
Win7/8/10 32/64BITGraphicsVGAITX-P18_D812E
Win7/8/10 32/64BITAudioRealtek AudioITX-P18_D812E
Win7/8/10 32/64BITLANRealtekITX-P18_D812E
WIN7 32/64BITUSB3.0USB3.0ITX-P18_D812E
