Ivy Bridge

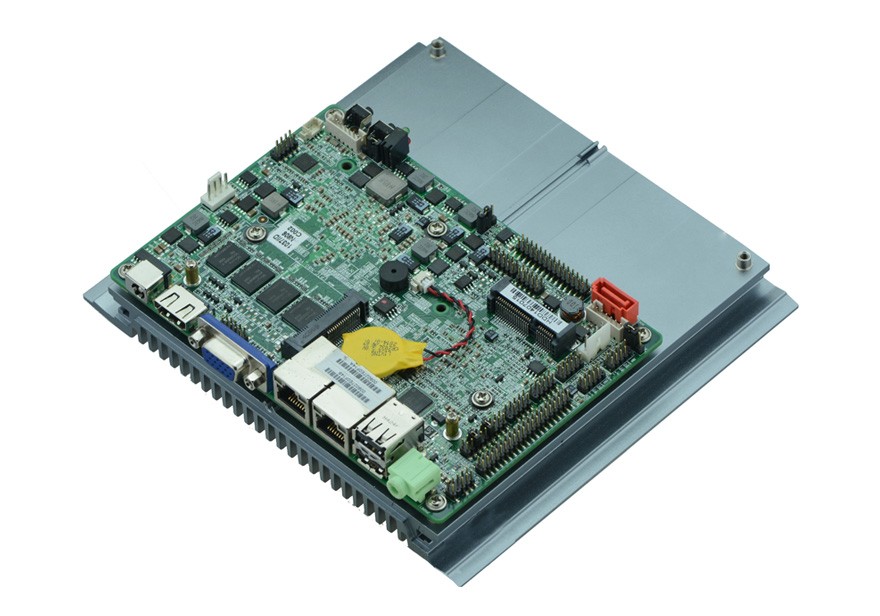

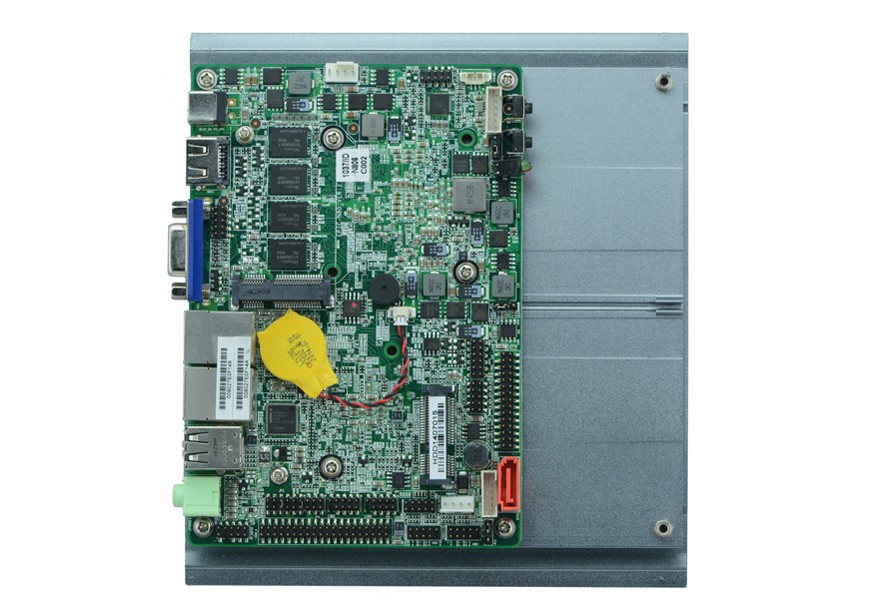

EPIC-N80_I5 VER:1.2(3317U)

项目介绍:

Model

EPIC-N80_I5 VER:1.2(3317U)

Processor

Intel® I5-3317U 1.7GHz 22nm dual core, TDP 17W


Compatible Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor

Chipst

Adopt Intel® NM70 high speed chipset

Memory

Onboard DDR3 4GB high speed memory shipset

display

Integrated Intel®HD Graphics graphics

1*VGA1*LVDSdual channel 24bit,1*HDMI display output

Support for separate display, dual-display replication, dual-display expansion.

network

2* Intel® 82583V Gigabit Ethernet, Support Wake On LAN, PXE

storage

1* SATA2.0 slot,transmission speed up to 3Gbps

1* MSATA slot ,support WIFI,SSD,SSD transmission speed up to 6Gbps

audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC,Line_out,Power amplifier

Expansion slot

1* Mini-PCIE slot, support WIFIUSB WIFI3G model

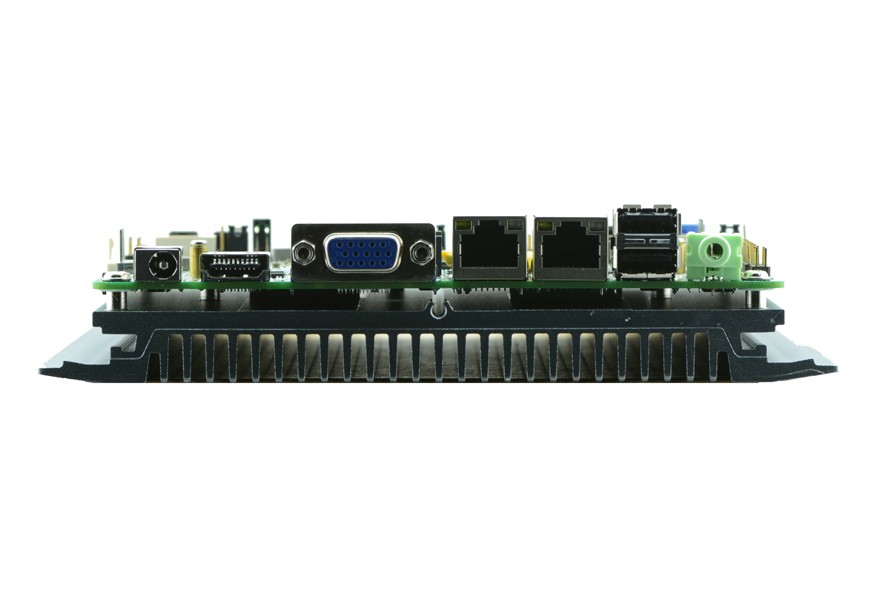

Rear IO

2* USB 2.0 slot

1* HDMI slot

1* VGA slot

2* RJ-45 Lan

1* Line out (green)

1* 12V DC_JACK input

1* Power switch, 1* reset switch (front panel)

1* Power/Hard Disk Indicator (Front Panel)

Built in I/O

1* LVDS slot 2*15pin

1* LVDS Screen Backlight Power Supply Interface 1*6pin

1* JVGA1 slot, 2*5pin (same signal as DB15)

6* RS232, COM2 support 485/422 function

1* TPM slot  2*6pin

4* USB 2.0 slot  2*5pin

1* PS/2 KB/MS 1*6Pin

1* Front audio interface 2*5pin

1* Front panel function button and indicator interface 2*5pin

1* JSATA2  2*5pin

1* SIM


1* Hard disk power interface

Fan

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

AMI 32Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power

DC_12V single power input

Working Temp.

-10℃~60

Storage Temp.

-20℃~70

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


事宜人群:

♦Intel® I5-3317U 1.7GHz 22nm dual core, TDP 17W

♦Compatible Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor

♦Adopt Intel® NM70 high speed chipset

♦Onboard DDR3 4GB high speed memory shipset

♦Integrated Intel®HD Graphics graphics

♦1*VGA、1*LVDS、dual channel 24bit,1*HDMI display output

♦Support for separate display, dual-display replication, dual-display expansion.

♦2* Intel® 82583V Gigabit Ethernet, Support Wake On LAN, PXE


  • Product Specifications
  • Ordering Information
  • Download Center

Model

EPIC-N80_I5 VER:1.2(3317U)

Processor

Intel® I5-3317U 1.7GHz 22nm dual core, TDP 17W


Compatible Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor

Chipst

Adopt Intel® NM70 high speed chipset

Memory

Onboard DDR3 4GB high speed memory shipset

display

Integrated Intel®HD Graphics graphics

1*VGA1*LVDSdual channel 24bit,1*HDMI display output

Support for separate display, dual-display replication, dual-display expansion.

network

2* Intel® 82583V Gigabit Ethernet, Support Wake On LAN, PXE

storage

1* SATA2.0 slot,transmission speed up to 3Gbps

1* MSATA slot ,support WIFI,SSD,SSD transmission speed up to 6Gbps

audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC,Line_out,Power amplifier

Expansion slot

1* Mini-PCIE slot, support WIFIUSB WIFI3G model

Rear IO

2* USB 2.0 slot

1* HDMI slot

1* VGA slot

2* RJ-45 Lan

1* Line out (green)

1* 12V DC_JACK input

1* Power switch, 1* reset switch (front panel)

1* Power/Hard Disk Indicator (Front Panel)

Built in I/O

1* LVDS slot 2*15pin

1* LVDS Screen Backlight Power Supply Interface 1*6pin

1* JVGA1 slot, 2*5pin (same signal as DB15)

6* RS232, COM2 support 485/422 function

1* TPM slot  2*6pin

4* USB 2.0 slot  2*5pin

1* PS/2 KB/MS 1*6Pin

1* Front audio interface 2*5pin

1* Front panel function button and indicator interface 2*5pin

1* JSATA2  2*5pin

1* SIM


1* Hard disk power interface

Fan

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

AMI 32Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power

DC_12V single power input

Working Temp.

-10℃~60

Storage Temp.

-20℃~70

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

EPIC-N80_2G

VER:1.2

1037U

1.80G

On board 2G

1

1

2ch/24Bit

2*82583V

6

6

DC12V

1

EPIC-N80_4G VER:1.2

1037U

1.80G

On board

4G

1

1

2ch/24Bit

2*82583V

6

6

DC12V

2

EPIC-N80_I3 VER:1.2

3217U

1.80G

On board 4G

1

1

2ch/24Bit

2*82583V

6

6

DC12V

3

EPIC-N80_I5 VER:1.2

3317U

1.70G

On board 4G

1

1

2ch/24Bit

2*82583V

6

6

DC12V


EPIC-N80Specifications


 Driver(WINXP/7/8)


OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetchipsetEPIC-N80
WinXP/7/8 32/64BITGraphicsVGAEPIC-N80
WinXP/7/8 32/64BITAudioRealtek AudioEPIC-N80
WinXP/7/8 32/64BITLANIntel
EPIC-N80
WinXP/7/8 32/64BITMEiamt
EPIC-N80
Win7 32/64BIT
USB3.0USB3.0EPIC-N80
