Ivy Bridge

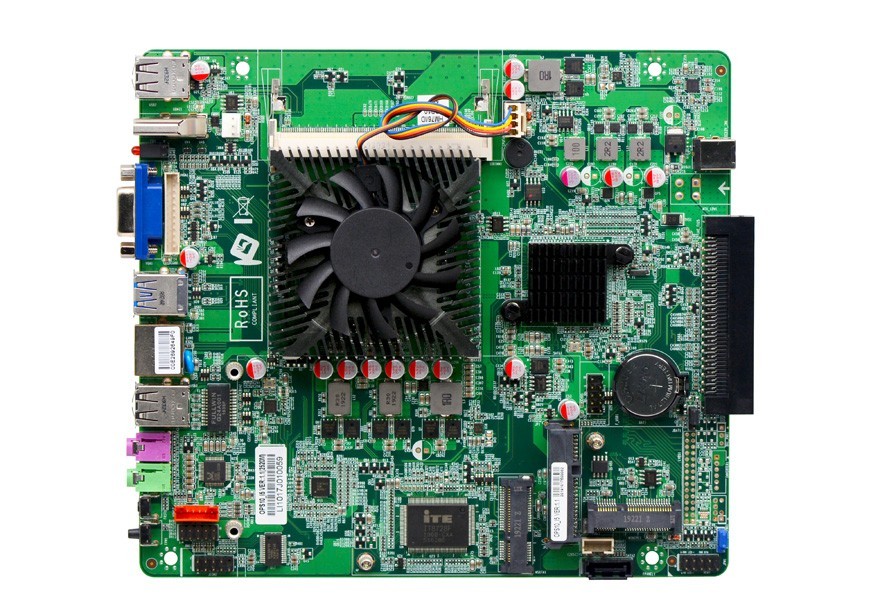

OPS10_I5 VER:1.1(2520M)

项目介绍:

Model NO.

OPS10_I5 VER: 1.1 (2520M)

Processor

Integrated Intel ® I5-2520M 2.5GHz dual-core processor, TDP power consumption 35W

Compatible with Intel® Sandy/Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processor

Chipset

With the HM76 high-speed chipset,

Memory

1*DDR3 SODIMM memory slot, supports single-channel 1333/1066MHz 1.5V memory, up to 8GB support

Display

Integrated Intel ® HD Graphics 3000 image controller for synchronous/asynchronous display

1*VGA, 1*HDMI interface,

The OPS standard slot JAE_TX25 provides an 1x HDMI and 1*Displayport interface;

Network

1*Realtek RTL811H Gigabit Network Card, supports network wake-up, PXE function

Storage

1*SATA2.0 2.5 inch notebook hard drive bit, can be installed directly

1*7pin SATA 2.0 hard drive interface with a transfer rate of up to 3Gbps.

1*MSATA slot for Intel protocol-enabled SSD SSDs with up to 3Gbps transfer speeds

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out support

Expansion

1*Mini-PCIE Slot Support WIFI Module

1*OPS-compliant slot JAE_TX25 (80pin)

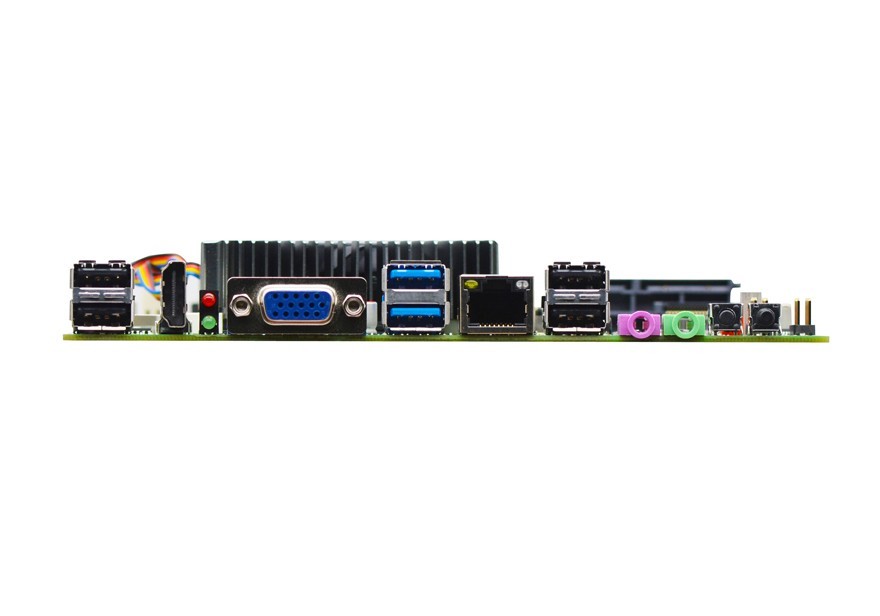

Backplane I/O Interface

4*USB 2.0 interface

2*USB 3.0 interface

1*HDMI interface

1*VGA display interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*power switch, 1*support one-click restore system switch

1*Power LED, 1*hard drive LED

1*DC power interface, support 12V to 19V power supply input and output

1*OPS-C standard slot JAE_TX25 (80Pin)

Built-in I/O interface

1*JVGA interface 1*12pin (same signal as DB15)

1*PS/2 mouse keyboard interface 1*6pin

1*RS232 Serial Interface 2x5pin

1*front panel switch button and LED interface 2*5Pin

2*USB 2.0 interface 2*5pin

1x hard drive power interface 1x4pin

FAN Interface

1x4pin CPU Smart Fan Interface, 1x3pin System Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

OS

Windows 7/Windows 10/Linux

Power type

Powered by DC 12V to 19V or via OPC-C standard slot JAE_TX25 12V to 19V supply

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

190mm*170mm


事宜人群:

♦ Integrated Intel ® I5-2520M 2.5GHz dual-core processor, TDP power consumption 35W

♦ Compatible with Intel ® Sandy/Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 Low Power Processor

♦ 1*DDR3 SODIMM memory slot, supports single-channel 1333/1600MHz 1.5V memory, up to 8GB

♦ Integrated Intel ® HD Graphics 3000 image controller for synchronous/asynchronous display

♦ 1*VGA, 1*HDMI interface available

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function

♦ 1*OPS-compliant slot JAE_TX25 (80pin)

♦ powered by DC 12V to 19V or plugged in by OPC-C


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

OPS10_I5 VER: 1.1 (2520M)

Processor

Integrated Intel ® I5-2520M 2.5GHz dual-core processor, TDP power consumption 35W

Compatible with Intel® Sandy/Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processor

Chipset

With the HM76 high-speed chipset,

Memory

1*DDR3 SODIMM memory slot, supports single-channel 1333/1066MHz 1.5V memory, up to 8GB support

Display

Integrated Intel ® HD Graphics 3000 image controller for synchronous/asynchronous display

1*VGA, 1*HDMI interface,

The OPS standard slot JAE_TX25 provides an 1x HDMI and 1*Displayport interface;

Network

1*Realtek RTL811H Gigabit Network Card, supports network wake-up, PXE function

Storage

1*SATA2.0 2.5 inch notebook hard drive bit, can be installed directly

1*7pin SATA 2.0 hard drive interface with a transfer rate of up to 3Gbps.

1*MSATA slot for Intel protocol-enabled SSD SSDs with up to 3Gbps transfer speeds

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out support

Expansion

1*Mini-PCIE Slot Support WIFI Module

1*OPS-compliant slot JAE_TX25 (80pin)

Backplane I/O Interface

4*USB 2.0 interface

2*USB 3.0 interface

1*HDMI interface

1*VGA display interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*power switch, 1*support one-click restore system switch

1*Power LED, 1*hard drive LED

1*DC power interface, support 12V to 19V power supply input and output

1*OPS-C standard slot JAE_TX25 (80Pin)

Built-in I/O interface

1*JVGA interface 1*12pin (same signal as DB15)

1*PS/2 mouse keyboard interface 1*6pin

1*RS232 Serial Interface 2x5pin

1*front panel switch button and LED interface 2*5Pin

2*USB 2.0 interface 2*5pin

1x hard drive power interface 1x4pin

FAN Interface

1x4pin CPU Smart Fan Interface, 1x3pin System Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

OS

Windows 7/Windows 10/Linux

Power type

Powered by DC 12V to 19V or via OPC-C standard slot JAE_TX25 12V to 19V supply

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

190mm*170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

OPS10_I5 VER:1.1(2520M)

I5-2520M

2.5G

1*SODDR3

1

1

/

1*8111H

8

1

DC/12V~19V


SpecificationsOPS10_I5 VER:1.1(2520M)





Driver(WINXP/7/8)

OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetchipsetOPS10
WinXP/7/8 32/64BITGraphicsVGAOPS10
WinXP/7/8 32/64BITAudioRealtek AudioOPS10
WinXP/7/8 32/64BITLANRealtekOPS10
WinXP/7/8 32/64BITMEiamt
OPS10
Win7 32/64BIT
USB3.0USB3.0OPS10


♦ Integrated Intel ® I5-2520M 2.5GHz dual-core processor, TDP power consumption 35W

♦ Compatible with Intel ® Sandy/Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 Low Power Processor

♦ 1*DDR3 SODIMM memory slot, supports single-channel 1333/1600MHz 1.5V memory, up to 8GB

♦ Integrated Intel ® HD Graphics 3000 image controller for synchronous/asynchronous display

♦ 1*VGA, 1*HDMI interface available

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function

♦ 1*OPS-compliant slot JAE_TX25 (80pin)

♦ powered by DC 12V to 19V or plugged in by OPC-C
