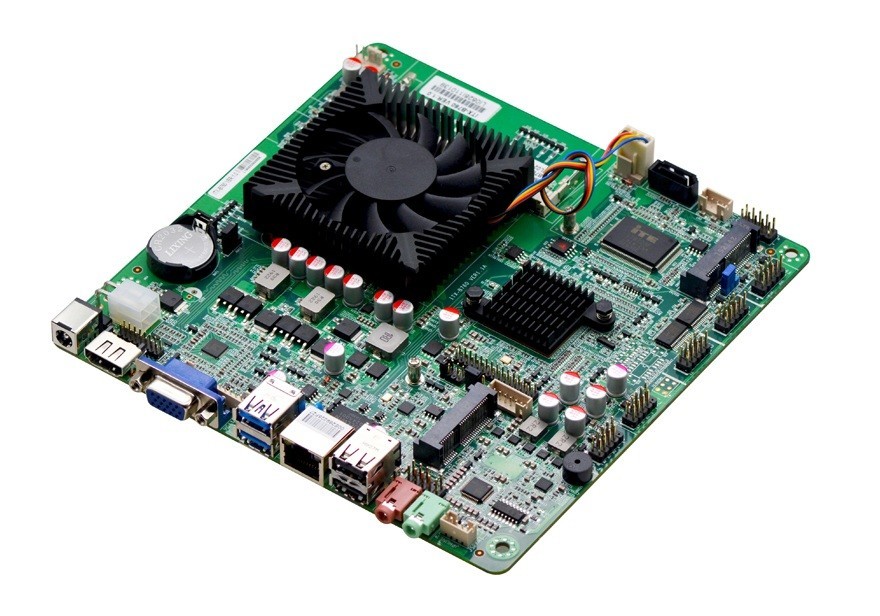

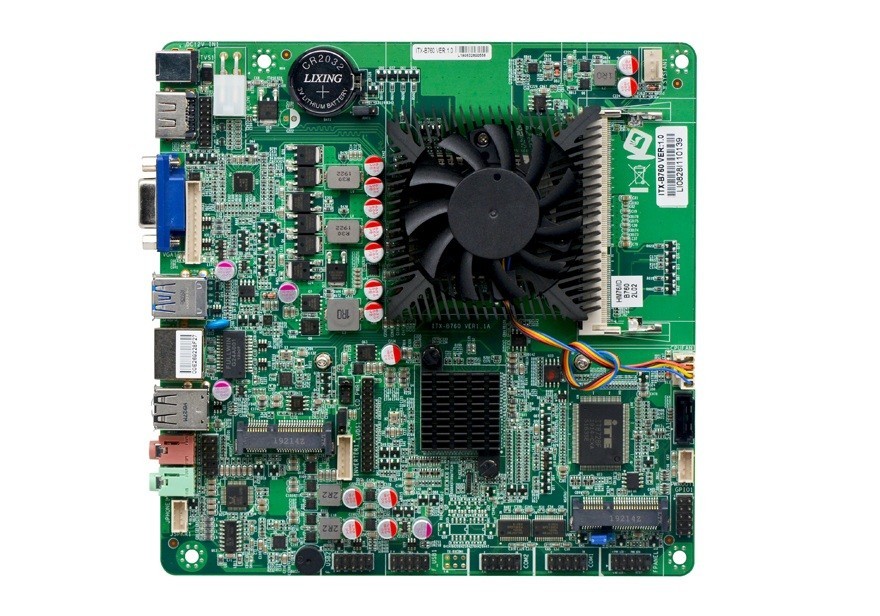

| Model NO. | ITX-B760 VER:1.0 |
| Processor | Support for Intel®PGA 988 Sandy Bridge/Ivy Bridge 2th/3th Celeron/Pentium/Corei3/i5/i7 Series Processors |
| Chipset | With HM77 high-speed chipset |
| If the HM70 chipset is used, only Celeron/Pentium processors are supported |
| Memory | 1*SODIMM memory slot with 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
| Display | Integrated Intel®HD Graphics Core Graphics |
| 1*VGA, 1*HDMI interface, 1*LVDS interface, support for dual-channel 24BIT |
| Support for VGA/HDMI/LVDS synchronous/asynchronous display |
| Network | 1*Realtek RTL811H Gigabit Network Card, supports network wake-up, PXE function |
| Storage | 1*7pin SATA2.0 interface with a transfer rate of up to 3Gbps |
| 1*MSATA slot with Intel Protocol SSD SSD drive with transmission speeds of up to 6Gbps |
| Audio | On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out support |
| Extended | 1x Mini-PCIE Slot Support WIFI Module |

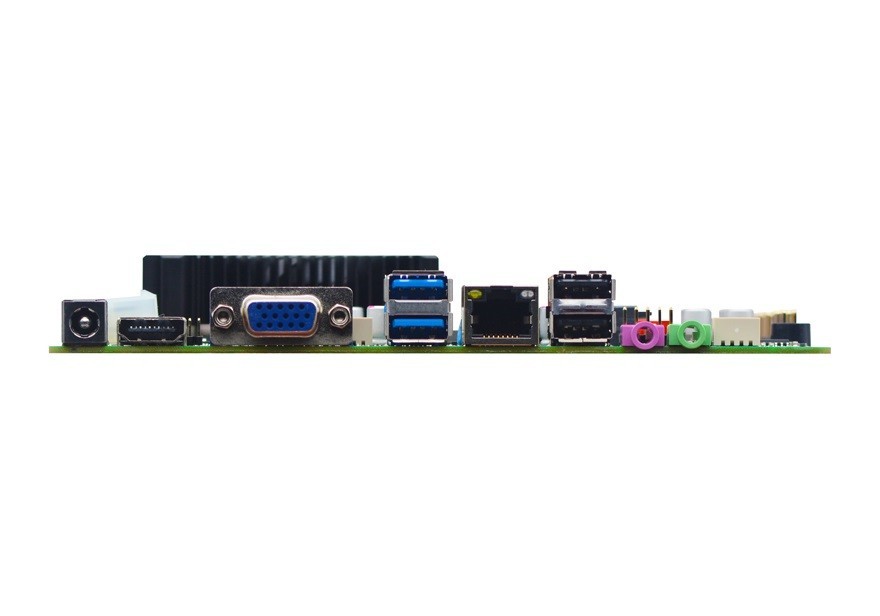

| Backplane I/O Interface | 2*USB 2.0 interface, 2*USB 3.0 interface |
| 1*HDMI display interface |
| 1*VGA display interface |
| 1*RJ-45 Gigabit Network Interface |
| 1*Line out interface (green), 1*MIC interface (red) |
| 1*DC power input |
| Built-in I/O interface | 2*RS232 Serial Interface 2x5pin |
| 4*USB2.0 interface |
| 1*front panel switch button and LED interface 2*5Pin |
| 1*LVDS interface 2*15pin, support s24BIT support |
| 1*screen backlit power supply interface 1x6pin |
| 1*JVGA interface 1*12pin, with DB15 signal |
| 1*JHDMI interface 2*8pin, with HDMI signal |
| 1*front audio interface 2x5pin |
| 1*Front Amplifier Interface 1x4pin |
| 1*hard drive power interface 1x4pin |
| 1*4pin ATX power interface with 12V power in and out |
| FAN Interface | 1*4pin CPU fan interface, 1x4pin system fan interface |
| GPIO | Support for 4-way input and output GPIO |
| BIOS | 64Mb Flash ROM |
| Watchdog | Support for hardware reset (256 levels, 0 to 255 seconds) |
| OS | Windows 7/Windows 10/Linux |
| Power type | Powered with DC 12V |
| Operating temperature | -10C to 60C |
| Storage temperature | -20C to 70C |
| Working humidity | 5%-95% relative humidity, no condensation |
| Size | 170mm*170mm |
