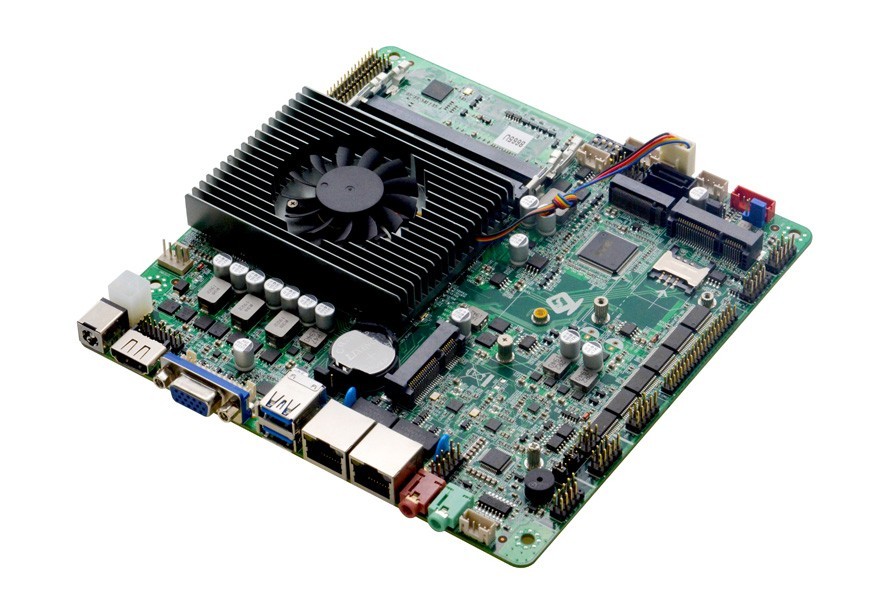

ITX-B810_I526L VER:1.0(8265U)

项目介绍:

Product No.

ITX-B810_I526L VER:1.0(8265U)

processor

Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W

Chipset

Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors


SOC

RAM

2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

Display

Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz

The internet

1*Support dual channel 24bit LVDS interface

Store



2* RTL8111H gigabit network card, support Wake on LAN, PXE function

1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio



1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

Expansion slot

Support power amplifier 2Ω5W speaker

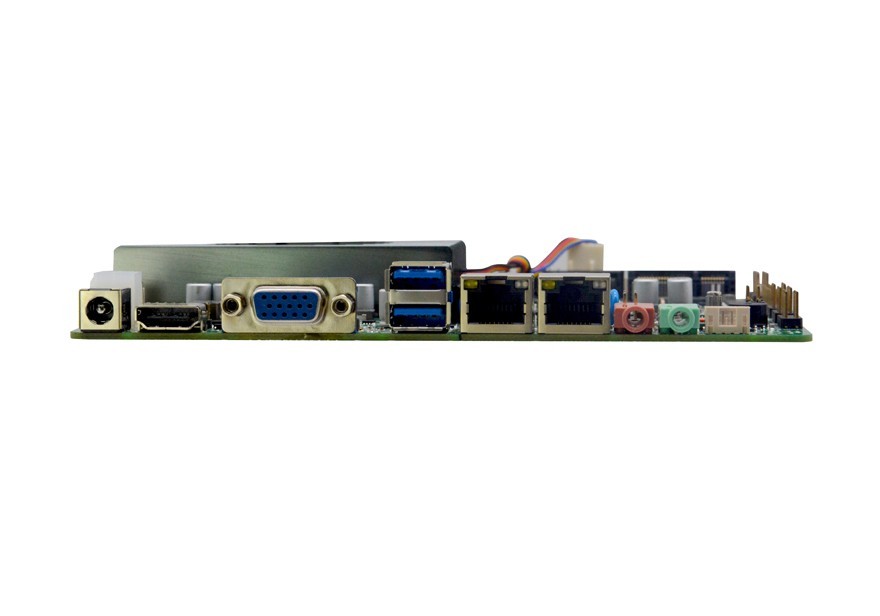

Backplane

I/O interface



1* Mini-PCIE slot, support WIFI/4G module

2* USB3.0 interface,

1* HDMI port

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

Built-in

I/O interface



1* DC12V power interface, support 12V power input

1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*10pin, same signal as HDMI interface

1* LVDS interface 2*15pin, support dual channel 24bit,

1* LVDS backlight power supply interface 1*6pin

1* Screen brightness adjustment interface

6* RS232 serial interface, COM2 supports RS485 function,

1* PS/2 keyboard and mouse interface (red) 1*6Pin

6* USB2.0 interface 2*5pin,

Built-in

I/O interface



1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

1* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin

1* 4pin ATX power interface (can be used as 12V input power interface)

Fan interface

1* SIM card holder

GPIO

1*4pin CPU smart fan interface, 1* 4pin system fan interface

BIOS

Support 4 input and output GPIO function

Watchdog

128Mb Flash ROM

Power type

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Powered by DC 12V power supply

Operating temperature

Windows 7 / Windows 10 ,/Linux

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

5%-95% relative humidity, non-condensing


事宜人群:

♦Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W

♦Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

♦Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K

♦1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

♦1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz

♦1*Support dual channel 24bit LVDS interface


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-B810_I526L VER:1.0(8265U)

processor

Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W

Chipset

Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors


SOC

RAM

2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

Display

Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz

The internet

1*Support dual channel 24bit LVDS interface

Store



2* RTL8111H gigabit network card, support Wake on LAN, PXE function

1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio



1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

Expansion slot

Support power amplifier 2Ω5W speaker

Backplane

I/O interface



1* Mini-PCIE slot, support WIFI/4G module

2* USB3.0 interface,

1* HDMI port

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

Built-in

I/O interface



1* DC12V power interface, support 12V power input

1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*10pin, same signal as HDMI interface

1* LVDS interface 2*15pin, support dual channel 24bit,

1* LVDS backlight power supply interface 1*6pin

1* Screen brightness adjustment interface

6* RS232 serial interface, COM2 supports RS485 function,

1* PS/2 keyboard and mouse interface (red) 1*6Pin

6* USB2.0 interface 2*5pin,

Built-in

I/O interface



1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

1* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin

1* 4pin ATX power interface (can be used as 12V input power interface)

Fan interface

1* SIM card holder

GPIO

1*4pin CPU smart fan interface, 1* 4pin system fan interface

BIOS

Support 4 input and output GPIO function

Watchdog

128Mb Flash ROM

Power type

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Powered by DC 12V power supply

Operating temperature

Windows 7 / Windows 10 ,/Linux

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

5%-95% relative humidity, non-condensing


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

485

Power

1

ITX-B810_I526L

VER:1.0(8265U)

I5-8265U

1.6G

2*SODDR4

1

1

2ch/24Bit

/

2*8111H

8

6

COM2

DC12V

2

ITX-B810_I726L

VER:1.0(8565U)

I7-8565U)

1.8G

2*SODDR4

1

1

2ch/24Bit

/

2*8111h

8

6

COM2

DC12V


SpecificationsITX-B810_I526L



Driver (Win10)

OSDrive TypeDriver NameDownload Now
Win 10 64BITChipsetchipsetITX-B810
Win 10 64BITGraphicsVGAITX-B810
Win 10 64BITAudioRealtek AudioITX-B810
Win 10 64BITLANRealtekITX-B810
Win 10 64BITDPTF
DPTFITX-B810
