Whiskey Lake-U

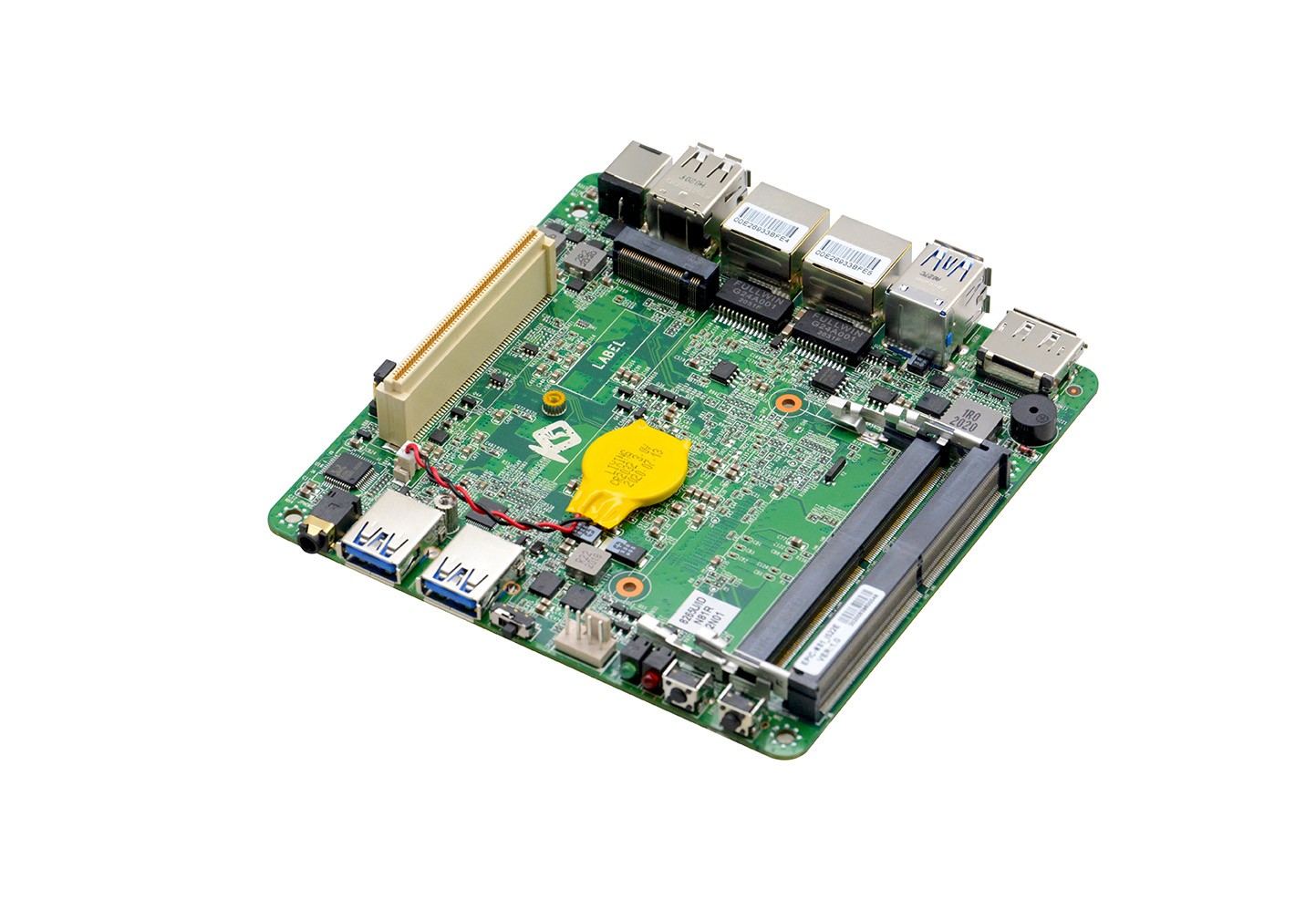

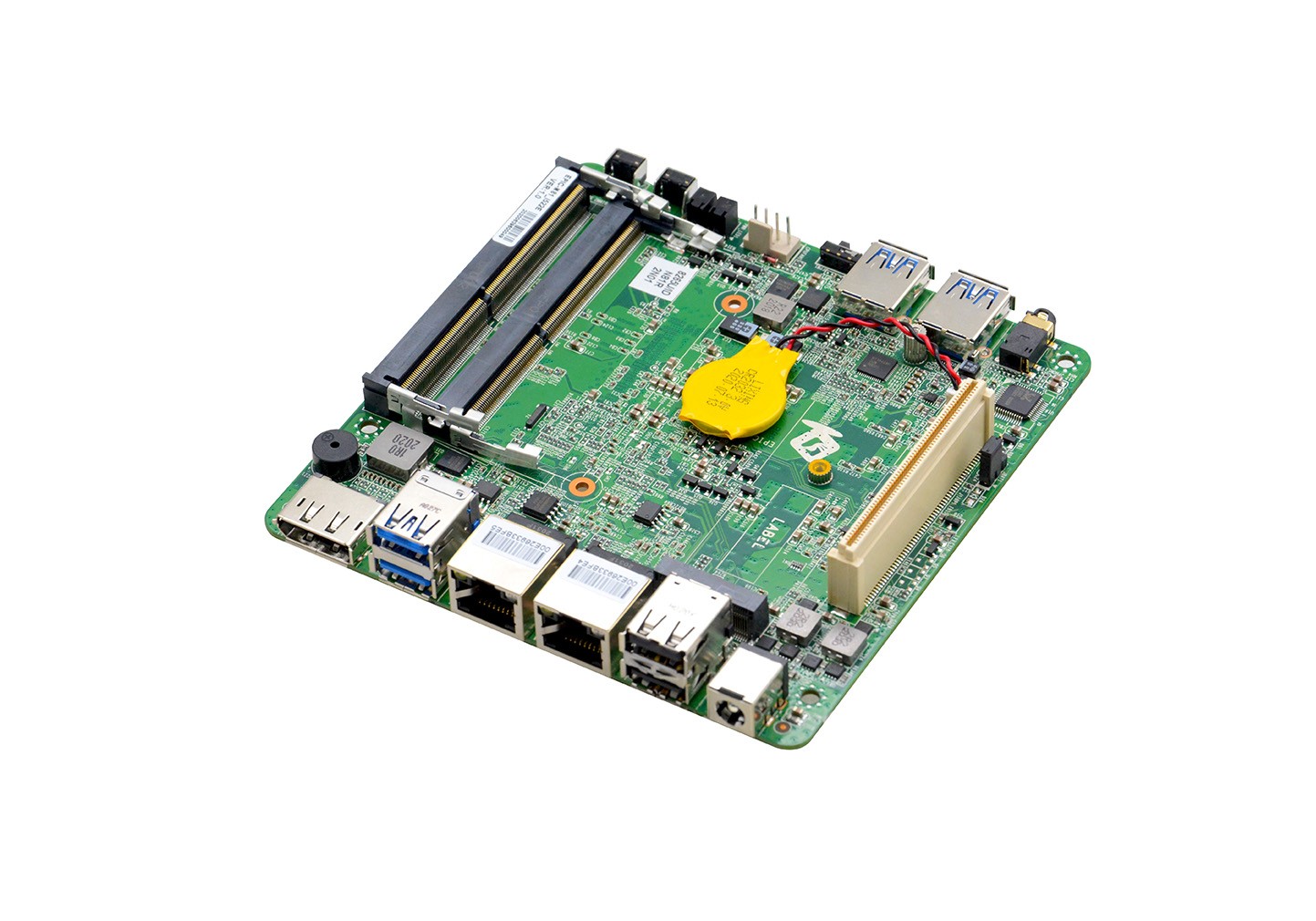

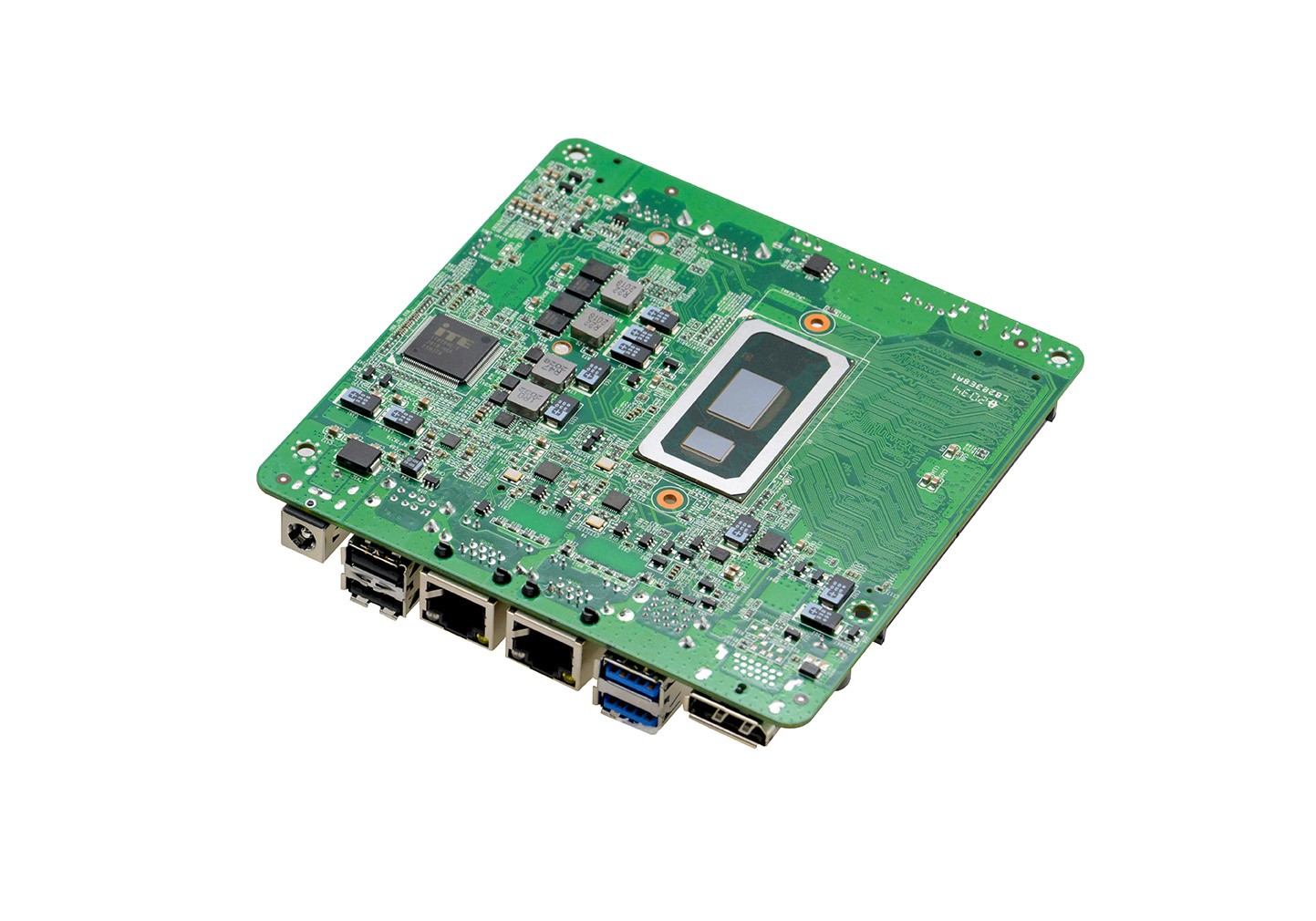

EPIC-N81_I522E VER:1.0(8265U)

项目介绍:

Product number

EPIC-N81_I522E VER:1.0(8265U)

Processor

Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W


Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors

Chipset

SOC

RAM Show



2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

1* Displayport, the highest resolution supported is 4096x2304@60Hz

Note: Displayport and HDMI are two options, optional HDMI interface

The internet

It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

Store



2* RTL8111H gigabit network card, support Wake on LAN, PXE function

1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD

Audio

Note: It can support 1* 2.5-inch hard disk position, realized by 120pin high-speed socket to IO board

Expansion slot

Onboard ALC662 6-channel high-fidelity audio controller, support Line-out.MICK

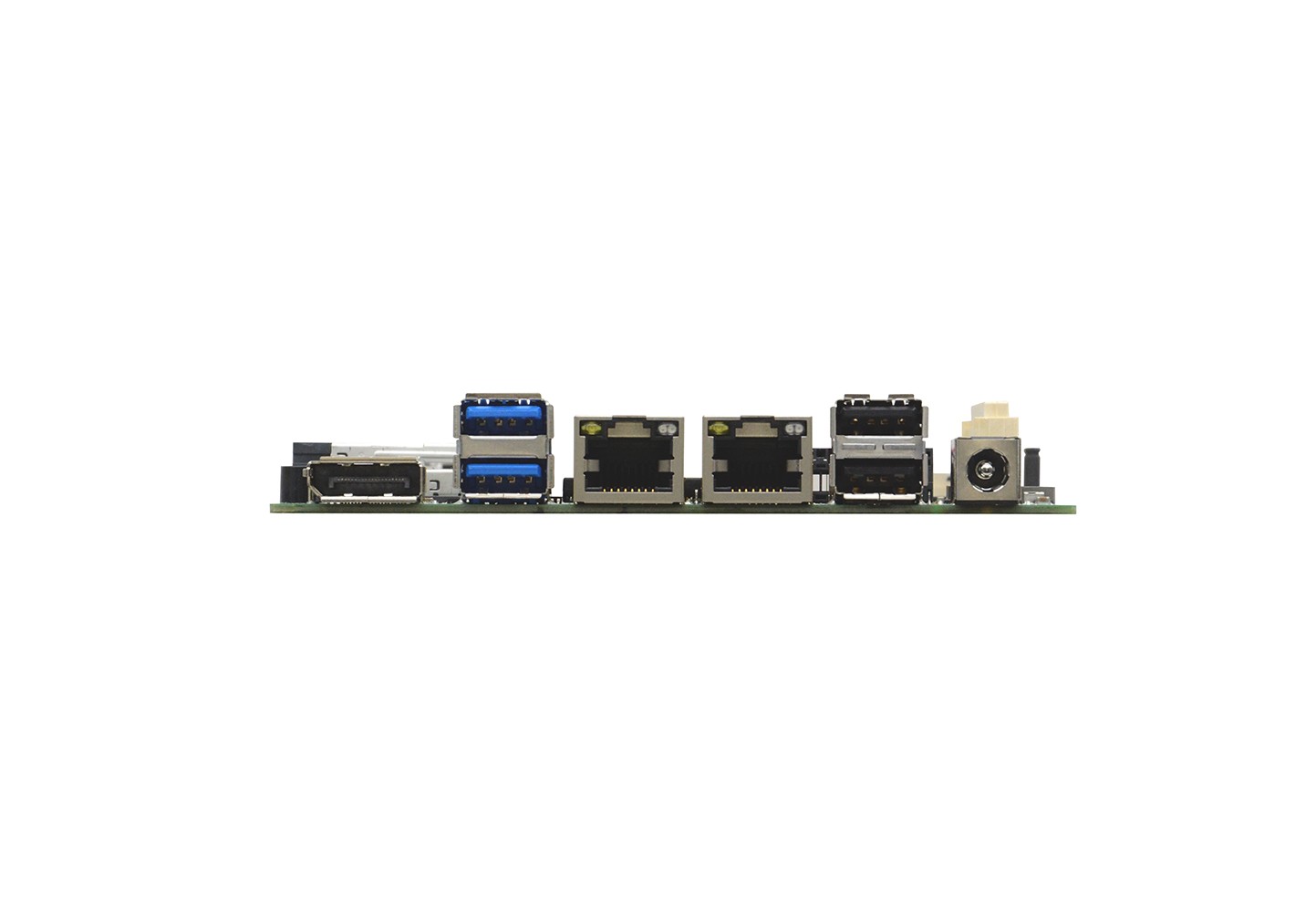

Rear panel I/O interface



1* 120pin high-speed terminal, including 2* COM, 5*USB2.0, 1*DDI, 1*EDP, 2*PCIE, 1*SATA, 1*AUDIO signal

1* DP interface

2* USB3.0 interface, 2*USB2.0

2* RJ45 Gigabit network interface

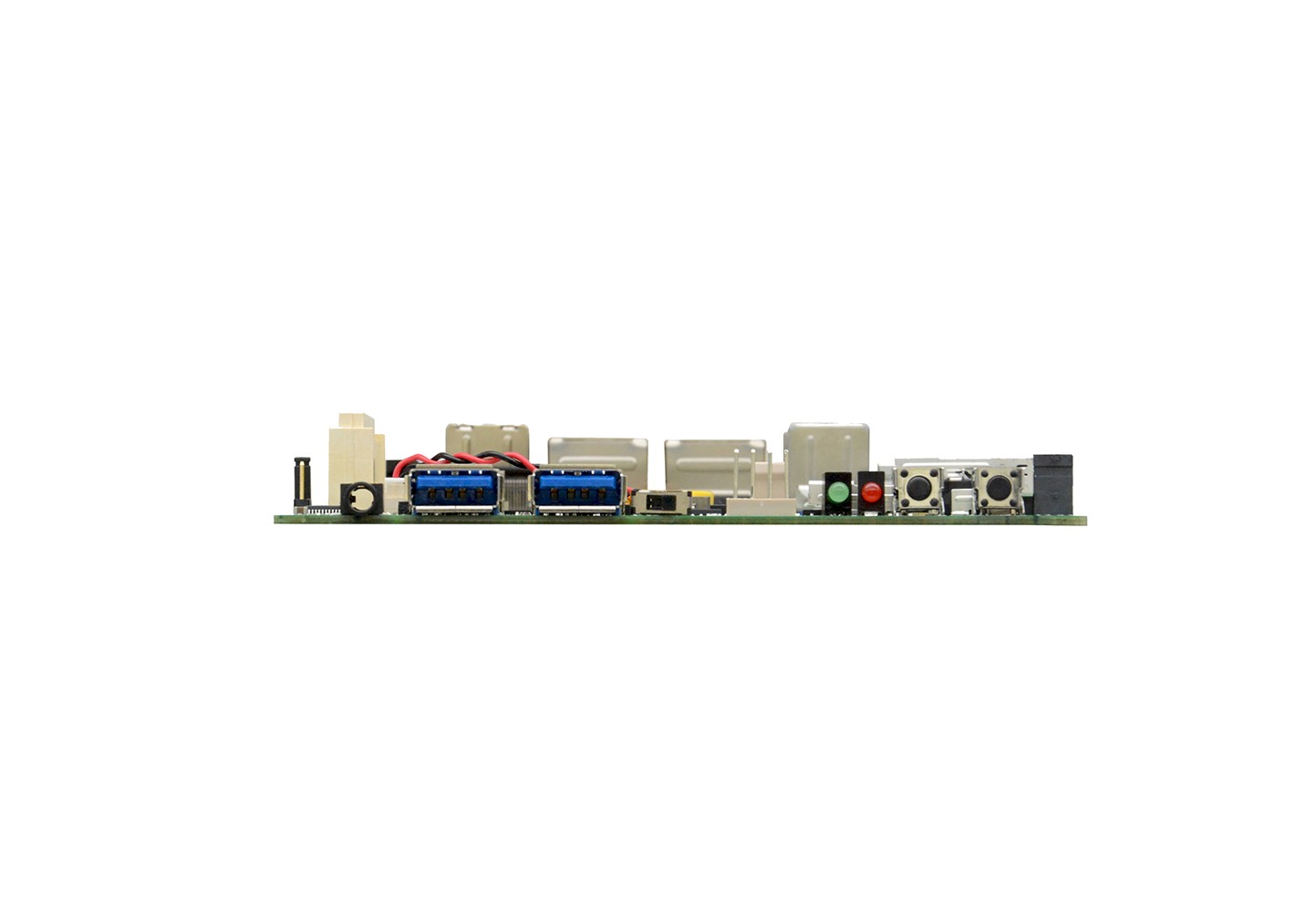

Front panel I/O interface



1* DC12V power interface, support 12V power input and output

1* power switch, 1* restart switch, 1* call self-start control switch

1* Power indicator (green) 1* Hard disk indicator (red)

2* USB3.0 interface

Built-in I/O interface

1* Audio interface, support Line-out/Mick

Fan interface

NA

GPIO

No fan cooling, reserved 1*4pin CPU smart fan interface,

BIOS

NA

Watchdog

128Mb Flash ROM

operating system

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Windows 10/Linux

Operating temperature

Powered by DC 12V power supply

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

5%-95% relative humidity, non-condensing


事宜人群:

♦Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W

♦Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

♦Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

♦1* Displayport, the highest resolution supported is 4096x2304@60Hz

♦It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

♦2* RTL8111H gigabit network card, support Wake on LAN, PXE function

♦1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

EPIC-N81_I522E VER:1.0(8265U)

Processor

Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W


Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors

Chipset

SOC

RAM Show



2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

1* Displayport, the highest resolution supported is 4096x2304@60Hz

Note: Displayport and HDMI are two options, optional HDMI interface

The internet

It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

Store



2* RTL8111H gigabit network card, support Wake on LAN, PXE function

1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD

Audio

Note: It can support 1* 2.5-inch hard disk position, realized by 120pin high-speed socket to IO board

Expansion slot

Onboard ALC662 6-channel high-fidelity audio controller, support Line-out.MICK

Rear panel I/O interface



1* 120pin high-speed terminal, including 2* COM, 5*USB2.0, 1*DDI, 1*EDP, 2*PCIE, 1*SATA, 1*AUDIO signal

1* DP interface

2* USB3.0 interface, 2*USB2.0

2* RJ45 Gigabit network interface

Front panel I/O interface



1* DC12V power interface, support 12V power input and output

1* power switch, 1* restart switch, 1* call self-start control switch

1* Power indicator (green) 1* Hard disk indicator (red)

2* USB3.0 interface

Built-in I/O interface

1* Audio interface, support Line-out/Mick

Fan interface

NA

GPIO

No fan cooling, reserved 1*4pin CPU smart fan interface,

BIOS

NA

Watchdog

128Mb Flash ROM

operating system

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Windows 10/Linux

Operating temperature

Powered by DC 12V power supply

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

5%-95% relative humidity, non-condensing


No

Model

Processor

Frequency

Memory

DP

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-N81_I522E

VER:1.0(8265U)

I5-8265U

1.6G

2* SODDR4

1

/

/

/

2*8111H

6

/

/

DC12V


SpecificationsITX-B810_I526L



Driver(Win10)

OSDriver TypeDriver NameDownload Now
Win 10 64BITChipsetchipsetEPIC-N81
Win 10 64BITGraphicsVGAEPIC-N81
Win 10 64BITAudioRealtek AudioEPIC-N81
Win 10 64BITLANRealtekEPIC-N81
Win 10 64BITDPTF
DPTFEPIC-N81



♦Integrated 8th generation Intel®I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W

♦Compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦2*DDR4 SODIMM memory slot, support 2400MHz memory, maximum support 32GB

♦Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

♦1* Displayport, the highest resolution supported is 4096x2304@60Hz

♦It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

♦2* RTL8111H gigabit network card, support Wake on LAN, PXE function

♦1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD
