EPIC-C81_I526D VER: 1.0 (8365U)

项目介绍:
Model NO.EPIC-C81_I526D VER: 1.0 (8365U)
ProcessorIntegrated 8 generation SI®5-8365U 1.6GHz quad-core processor, TDP 15W

Compatible with Intel ® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 Low Power Processor
ChipsetSoc
Internal storage2*DDR4 SODIMM memory slot with 2400MHz memory, up to 32GB
DisplayIntegrated Intel ® UHD Graphics supportS DirectX 12 OpenGL 4.5, 4K support
1*VGA interface with the highest supported resolution: 1920X1200@60Hz

Note: HDMI/DVI/DP display output can also be supported, from 2 120pin high-speed terminals transferred to IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps

Note: Can also support the 1*SATA interface, 1*M.2 slot, through 2 120pin high-speed terminals transferred to the IO board to achieve, specific refer to the adapter board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal

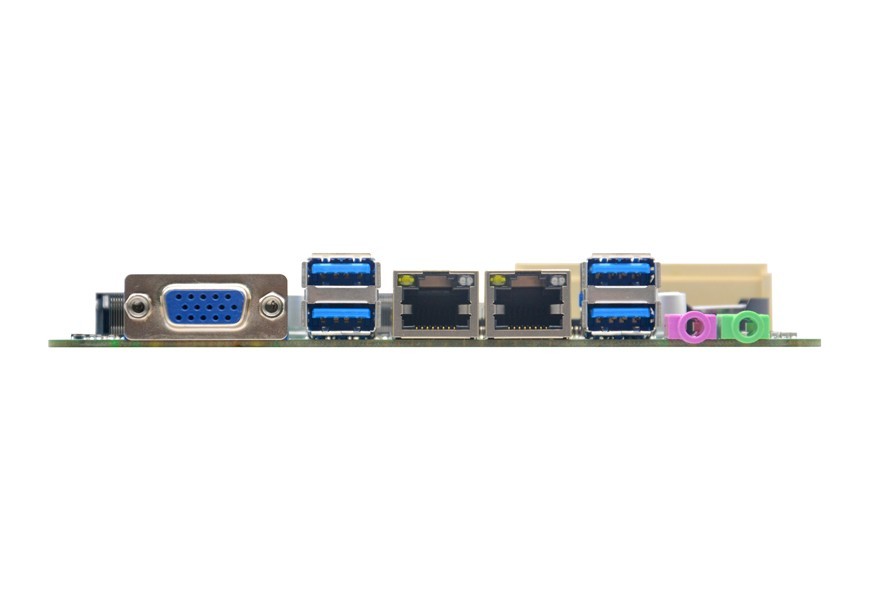

Backplane I/O Interface1*VGA interface
4* USB3.0 interface
2*RJ45 Gigabit Network Interface
1* Line-out (green)
1*MICK (red)
1*power switch, 1*power-on control switch
Built-in I/O interface1*4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1x4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*141mm


事宜人群:

♦ Integrated 8-generation Intel ® I5-8365U 1.6GHz quad-core processor, TDP 15W

♦ compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 Low Power Processor

♦ 2*DDR4 SODIMM memory slot with support for 2400MHz memory, up to 32GB

♦ Integrated Intel ® UHD Graphics, DirectX 12 OpenGL 4.5, 4K

♦ 2*Intel I211 Gigabit card with network wake-up, PXE capabilities

♦ 1*VGA interface, 4*USB 3.0 interface

♦ 2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER,

     1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.EPIC-C81_I526D VER: 1.0 (8365U)
ProcessorIntegrated 8 generation SI®5-8365U 1.6GHz quad-core processor, TDP 15W

Compatible with Intel ® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 Low Power Processor
ChipsetSoc
Internal storage2*DDR4 SODIMM memory slot with 2400MHz memory, up to 32GB
DisplayIntegrated Intel ® UHD Graphics supportS DirectX 12 OpenGL 4.5, 4K support
1*VGA interface with the highest supported resolution: 1920X1200@60Hz

Note: HDMI/DVI/DP display output can also be supported, from 2 120pin high-speed terminals transferred to IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps

Note: Can also support the 1*SATA interface, 1*M.2 slot, through 2 120pin high-speed terminals transferred to the IO board to achieve, specific refer to the adapter board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal
Backplane I/O Interface1*VGA interface
4* USB3.0 interface
2*RJ45 Gigabit Network Interface
1* Line-out (green)
1*MICK (red)
1*power switch, 1*power-on control switch
Built-in I/O interface1*4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1x4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*141mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-C81_I526D VER:0.1(8365U)

I5-8365U

1.6G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V



SpecificationsEPIC-C81_I526D



Driver(Win10)

OSDriver TypeDriver NameDownload Now
Win 10 64BITChipsetchipsetEPIC-C81_I526D
Win 10 64BITGraphicsVGAEPIC-C81_I526D
Win 10 64BITAudioRealtek AudioEPIC-C81_I526D
Win 10 64BITLANIntelEPIC-C81_I526D
Win 10 64BITDPTF
DPTFEPIC-C81_I526D



♦ Integrated 8-generation Intel ® I5-8365U 1.6GHz quad-core processor, TDP 15W

♦ compatible with Intel® Whiskey Lake-U Celeron/Pentium/I3/I5/I7 Low Power Processor

♦ 2*DDR4 SODIMM memory slot with support for 2400MHz memory, up to 32GB

♦ Integrated Intel ® UHD Graphics, DirectX 12 OpenGL 4.5, 4K

♦ 2*Intel I211 Gigabit card with network wake-up, PXE capabilities

♦ 1*VGA interface, 4*USB 3.0 interface

♦ 2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER,

     1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal
