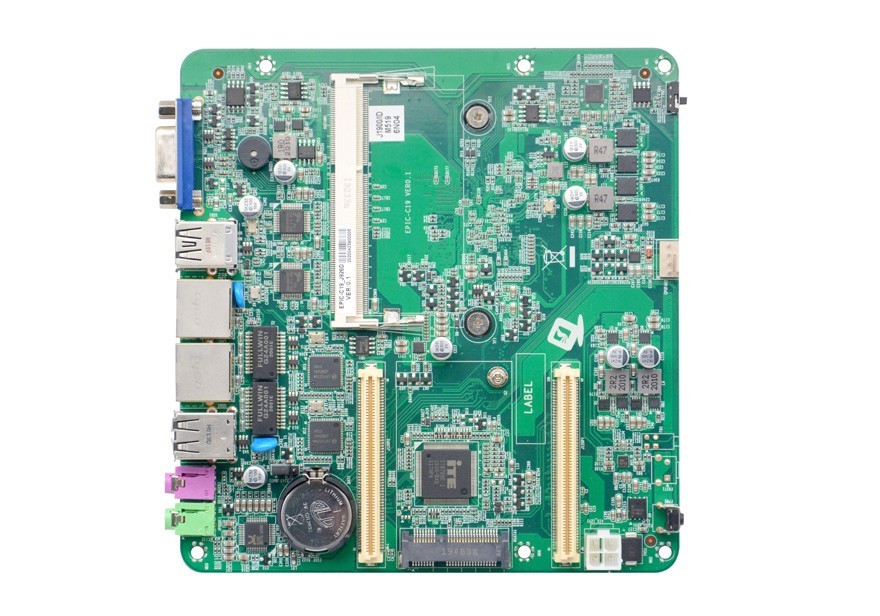

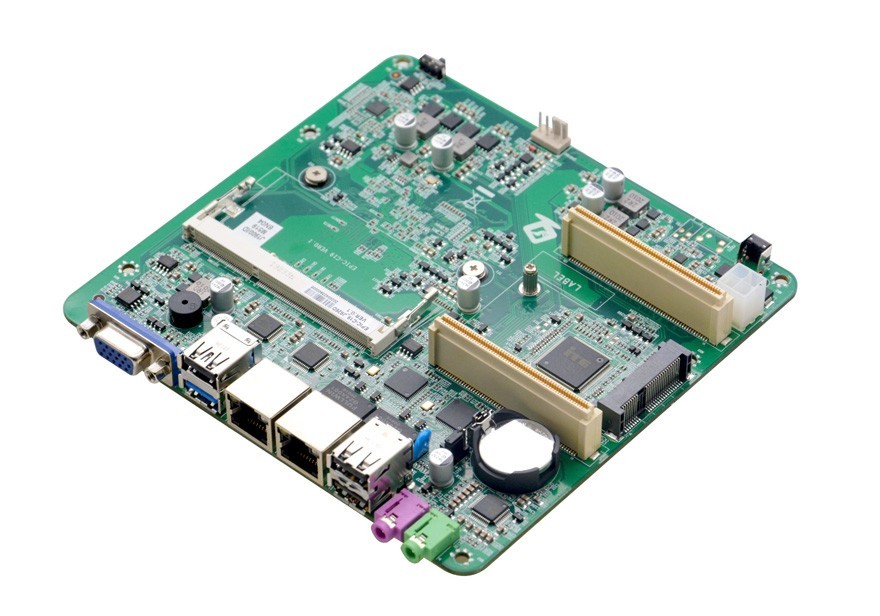

| Model NO. | EPIC-C19_J926D VER: 1.0 |
| Processor | Integrated Intel ® J1900/2.00GHz quad-core processor, TDP power consumption 10W |
| Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice |
| Chipset | Based on Bay Trail, CPU integration |
| Internal storage | 1'SODIMM memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
| Display | Integrated Intel ® HD Graphics Core Graphics |
| 1*VGA interface with the highest supported resolution: 2560X1600@60HZ |
| Note: 1 HDMI display output can also be supported, from 2 120pin high-speed terminals transferred to the IO trigger implementation, refer to the transfer plate specifications |
| Network | 2*Intel I211 Gigabit Card, supports network wake-up, PXE function |
| Storage | 1*MSATA slot, SSD supporting Intel protocol, transfer rate up to 3Gbps |
| Note: Can also support the 1 sATA interface, through 2 120pin high-speed terminals transferred to the IO board to achieve, refer to the transfer board specifications |
| Audio | On-board ALC662 6-channel hi-fi audio controller with line-out.MICK support |
| Extended slot | 2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal |

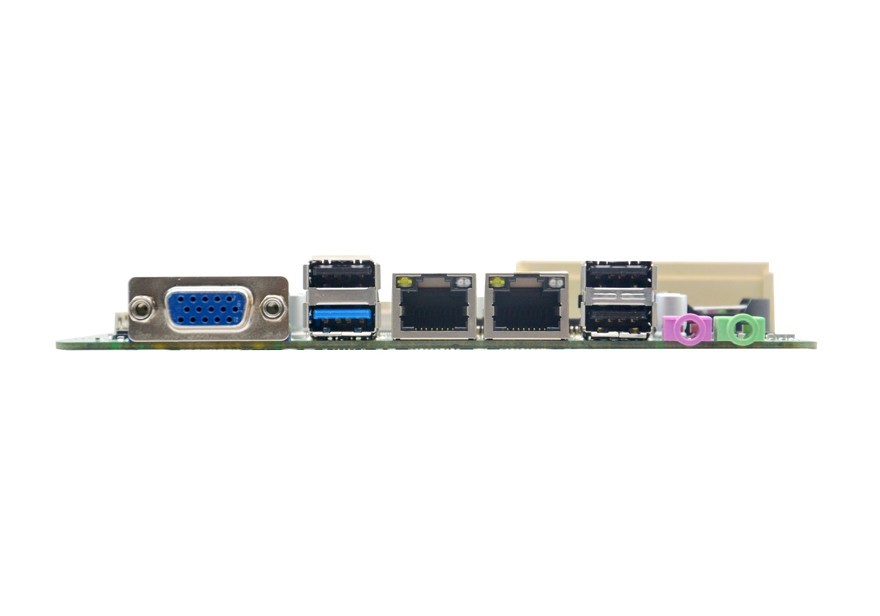

| Backplane I/O Interface | 1*VGA interface |
| 1*USB 3.0 interface, 3*USB2.0 interface |
| 2*RJ45 Gigabit Network Interface |
| 1*Line-out (green) |
| 1*MICK (red) |
| 1*power switch, 1*power-on control switch |
| Built-in I/O interface | 1*4pin ATX power interface with 12V power in and out |
| Fan interface | Fanless cooling, reserved 1x4pin CPU Smart Fan Interface |
| GPIO | Support for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation |
| Bios | 64Mb Flash ROM |
| Watchdog | Support for hardware reset (256 levels, 0 to 255 seconds) |
| Operating system | Windows 10/Linux |
| Power type | Powered with DC 12V |
| Operating temperature | -10C to 60C |
| Storage temperature | -20C to 70C |
| Working humidity | 5%-95% relative humidity, no condensation |
| Size | 148mm*141mm |
