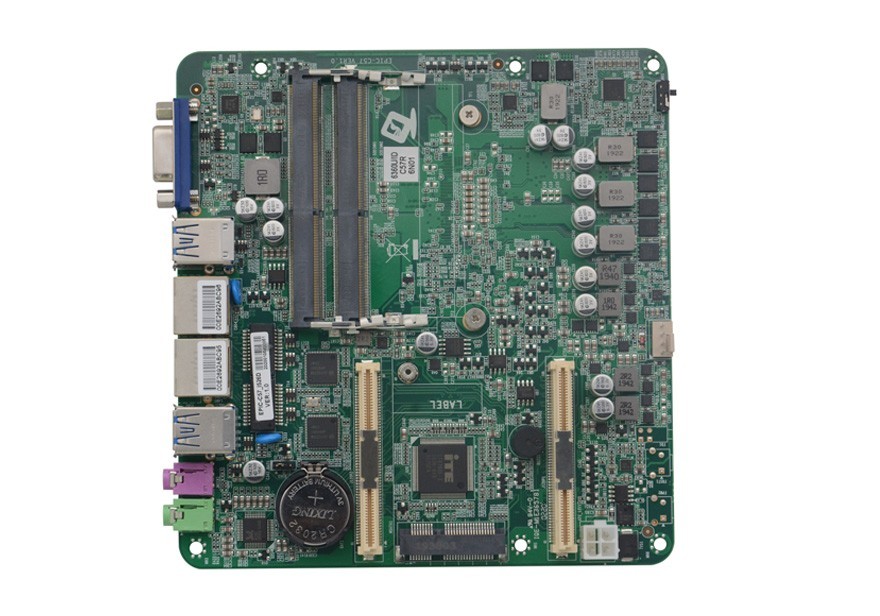

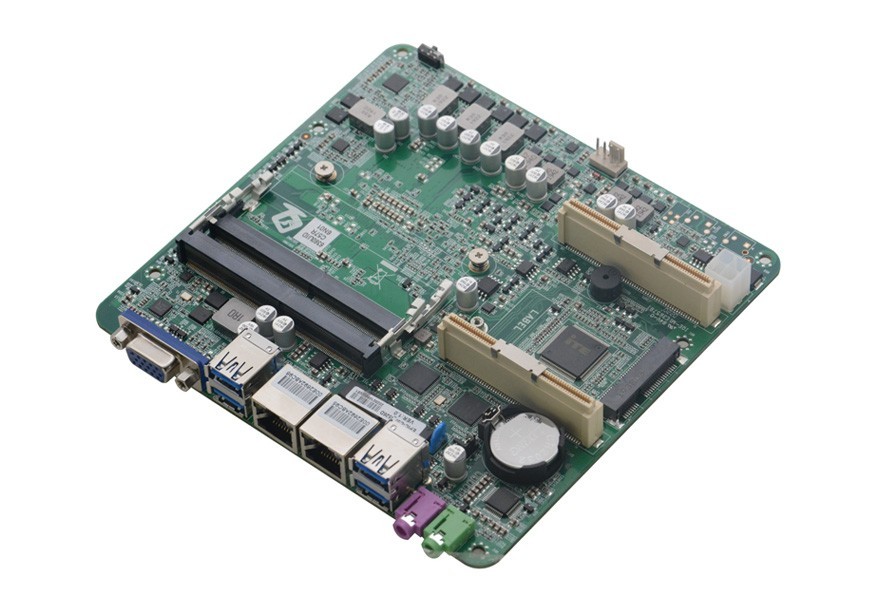

EPIC-C57_I526D VER: 1.0 (6360U)

项目介绍:
Model NO.EPIC-C57_I526D VER: 1.0 (6360U)
ProcessorIntegrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP15W
Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low-power processor
ChipsetSoc
Internal storage2*DDR4 SODIMM memory slot with 2133MHz memory, up to 32GB
DisplayIntegrated Intel ® Iris ™ The Graphics 540 supports DirectX 12 OpenGL 4.4, 4K support
1*VGA interface with the highest supported resolution: 1920X1200@60Hz
Note: HDMI/DVI/DP display output can also be supported, from 2 120pin high-speed terminals transferred to IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps

Note: Can also support the 1*SATA interface, 1*M.2 slot, through 2 120pin high-speed terminals transferred to the IO board to achieve, specific refer to the adapter board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal

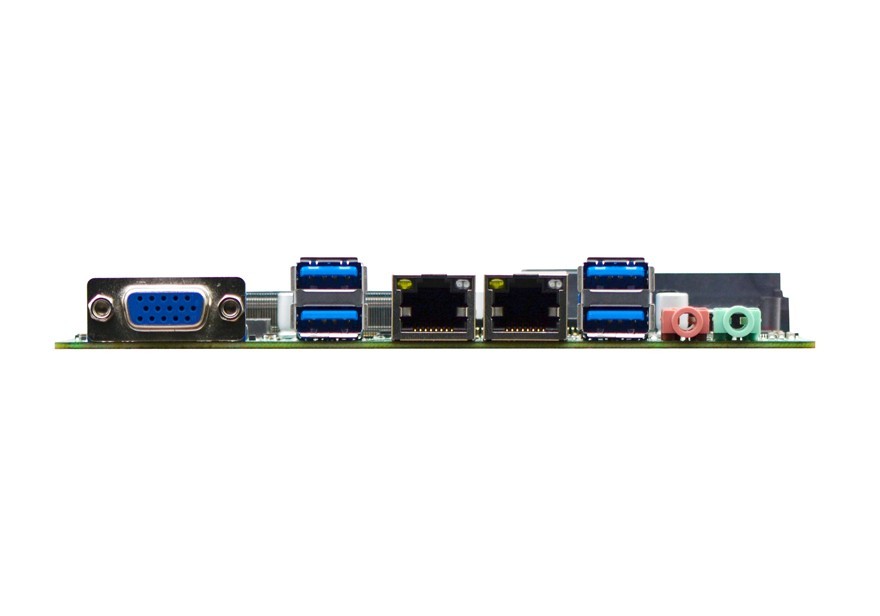

Backplane I/O Interface1*VGA interface
4*USB3.0 interface
2*RJ45 Gigabit Network Interface
1*Line-out (green)
1*MICK (red)
1*Power-on control switch
Built-in I/O interface1*4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1*4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*141mm


事宜人群:

◆Integrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP15W

◆Compatible with Intel ® Skylake-U Pentium/Celeron/I3/I5/I7 28W low-power processor

◆2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

◆Integrated Intel ® Iris ™ Graphics 540 Core Graphics

◆2*IntelWGI211AT Gigabit card chip, support snetwork/PXE function

◆2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER,

  1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.EPIC-C57_I526D VER: 1.0 (6360U)
ProcessorIntegrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP15W
Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low-power processor
ChipsetSoc
Internal storage2*DDR4 SODIMM memory slot with 2133MHz memory, up to 32GB
DisplayIntegrated Intel ® Iris ™ The Graphics 540 supports DirectX 12 OpenGL 4.4, 4K support
1*VGA interface with the highest supported resolution: 1920X1200@60Hz
Note: HDMI/DVI/DP display output can also be supported, from 2 120pin high-speed terminals transferred to IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps

Note: Can also support the 1*SATA interface, 1*M.2 slot, through 2 120pin high-speed terminals transferred to the IO board to achieve, specific refer to the adapter board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal
Backplane I/O Interface1*VGA interface
4*USB3.0 interface
2*RJ45 Gigabit Network Interface
1*Line-out (green)
1*MICK (red)
1*Power-on control switch
Built-in I/O interface1*4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1*4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*141mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-C57_I526D VER:1.0(6360U)

I5-6360U

2.0G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V

2

EPIC-C57_C326D VER:1.0(3865U)

3865U

1.8G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V

3

EPIC-C57_I726D VER:1.0(6650U)

I7-6650U

2.2G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V

4

EPIC-C57_I526D VER:1.0(7200U)

I5-7200U

2.5G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V

5

EPIC-C57_I726D VER:1.0(7600U)

I7-7600U

2.8G

2* SODDR4

1

/

/

/

2*211AT

4

/

/

DC12V


SpecificationsEPIC-C57_I526D VER:1.0(6360U)


Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetEPIC-C57
Win7/8/10 32/64BITGraphicsVGAEPIC-C57
Win7/8/10 32/64BITAudioRealtek AudioEPIC-C57
Win7/8/10 32/64BITLANIntel
EPIC-C57
Win7/8/10 32/64BITMEMEEPIC-C57
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114EPIC-C57
Win7/8/10 32/64BITRSTRSTEPIC-C57
Win7/8/10 32/64BITSerial IOSerial_IOEPIC-C57



◆Integrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP15W

◆Compatible with Intel ® Skylake-U Pentium/Celeron/I3/I5/I7 28W low-power processor

◆2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

◆Integrated Intel ® Iris ™ Graphics 540 Core Graphics

◆2*IntelWGI211AT Gigabit card chip, support snetwork/PXE function

◆2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER,

  1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal
