AMD 5357M/2.9G

ITX-B530_D12L VER:1.0(5357M)

项目介绍:
Model NO.ITX-B530_D12L VER: 1.0 (5357M)
ProcessorIntegrated AMD A6-5357M@2.9G Dual-Core 2-Thread Processor, TDP35W

Compatible with APU A10/A8/A6/A4 (FP2 package) dual-core, quad-core processors
ChipsetHigh-speed chipset with A70 (218-0755097)
Memory2 x SODIMM memory slot with dual-channel DDR3 1333MHz memory, up to 16GB
DisplayIntegrated AMD Radeon HD 8000 Series Core Graphics,
1 x VGA interface, 2 x HDMI interface, 1 x LVDS interface, support for dual-channel 24BIT
Network1 x RTL811H gigabit network card, supports network wake-up, PXE function.
Store1 x SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1 x MSATA slot, SSD SSD supporting Intel protocol, with a transmission rate of up to 6Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Extended1x Mini-PCIE slot with WIFI, 3G/4G module

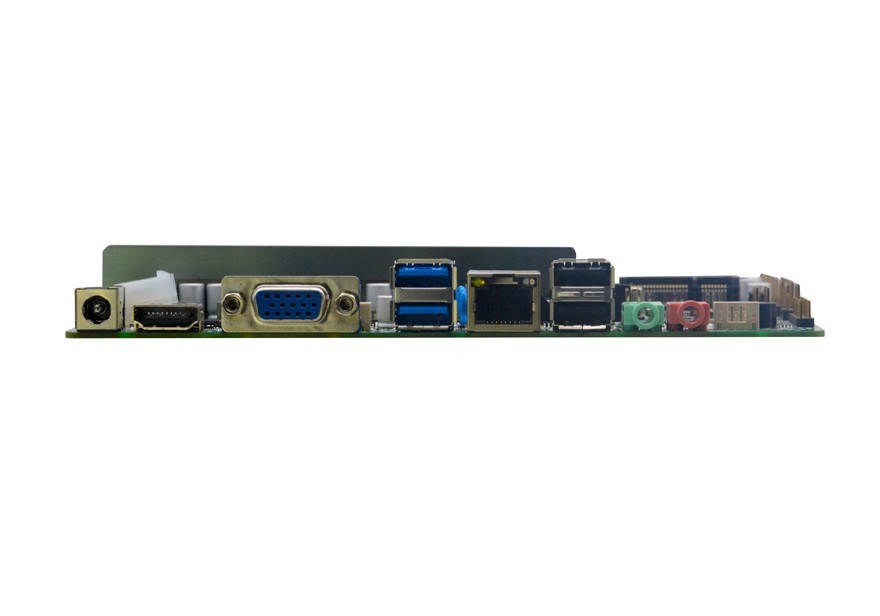

Backplane I/O Interface2 x USB 2.0 interface
2 x USB 3.0 interface
1x HDMI interface
1 x VGA interface
1 x RJ-45 Gigabit Network Interface
1 x Line out (green)
1 x MIC (red)
1 x DC 12V power input
Built-in I/O interface1 x JVGA interface 1 x 12pin is the same signal as DB15
1 x JHDMI interface 2x8Pin
1 x LVDS interface 2 x 15pin
1 x screen backlit power supply interface 1x6pin
1 x screen brightness adjustment interface 1x4pin
6x USB 2.0 Interface 2x5pin
2 x RS232 serial ports, 9pin all support live function
1 x LPT print interface , 2 x 13pin
1 x front audio interface 2 x 5pin
1 x Amplifier Interface 1x4pin
1 x front panel function button and LED interface 2 x 5pin
1 x SIM seat
1 x 4pin ATX power interface (can be done 12V input and output power interface)
1 x hard drive power interface 1x4pin
GPIOSupport for 4-way input and output GPIO
Fan interface1x 4pin CPU Smart Fan Interface, 1x4Pin Smart System Fan Interface
Bios32Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typePowered with DC 12V single-supply
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


事宜人群:

◆Integrated AMD A6-5357M@2.9G dual-core 2-thread processor, TDP35W, compatible with APU A10/A8/A6/A4 (FP2 package) dual-core, quad-core processor

◆A70 (218-0755097) high-speed chipset

◆2 x SODIMM memory slot, support slot of dual-channel DDR3 1333MHz memory, maximum support 16GB

◆Integrated AMD Radeon HD 8000 Series Core Graphics Card

◆1 x VGA interface, 2 x HDMI interface, 1 x LVDS interface, support dual-channel 24BIT

◆1 x RTL8111H gigabit network card, support network wake-up, PXE function.

◆8 x USB 2.0 interface, 2 x USB 3.0 interface


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-B530_D12L VER: 1.0 (5357M)
ProcessorIntegrated AMD A6-5357M@2.9G Dual-Core 2-Thread Processor, TDP35W

Compatible with APU A10/A8/A6/A4 (FP2 package) dual-core, quad-core processors
ChipsetHigh-speed chipset with A70 (218-0755097)
Memory2 x SODIMM memory slot with dual-channel DDR3 1333MHz memory, up to 16GB
DisplayIntegrated AMD Radeon HD 8000 Series Core Graphics,
1 x VGA interface, 2 x HDMI interface, 1 x LVDS interface, support for dual-channel 24BIT
Network1 x RTL811H gigabit network card, supports network wake-up, PXE function.
Store1 x SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1 x MSATA slot, SSD SSD supporting Intel protocol, with a transmission rate of up to 6Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Extended1x Mini-PCIE slot with WIFI, 3G/4G module
Backplane I/O Interface2 x USB 2.0 interface
2 x USB 3.0 interface
1x HDMI interface
1 x VGA interface
1 x RJ-45 Gigabit Network Interface
1 x Line out (green)
1 x MIC (red)
1 x DC 12V power input
Built-in I/O interface1 x JVGA interface 1 x 12pin is the same signal as DB15
1 x JHDMI interface 2x8Pin
1 x LVDS interface 2 x 15pin
1 x screen backlit power supply interface 1x6pin
1 x screen brightness adjustment interface 1x4pin
6x USB 2.0 Interface 2x5pin
2 x RS232 serial ports, 9pin all support live function
1 x LPT print interface , 2 x 13pin
1 x front audio interface 2 x 5pin
1 x Amplifier Interface 1x4pin
1 x front panel function button and LED interface 2 x 5pin
1 x SIM seat
1 x 4pin ATX power interface (can be done 12V input and output power interface)
1 x hard drive power interface 1x4pin
GPIOSupport for 4-way input and output GPIO
Fan interface1x 4pin CPU Smart Fan Interface, 1x4Pin Smart System Fan Interface
Bios32Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typePowered with DC 12V single-supply
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

ITX-B530_NL VER:1.0(5345M)

5345M

2.2G

2*SODDR3

1

2

/

1*RTL8111H

10

2

DC/12V

2

ITX-B530_D12L VER:1.0(5357M)

5357M

2.9G

2*SODDR3

1

2

2ch/24BIT

1*RTL8111H

10

2

DC/12V


SpecificationsITX-B530 VER:1.0


Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-B530
Win7/8/10 32/64BITAudioRealtek AudioITX-B530
Win7/8/10 32/64BITLANRealtek ITX-B530


◆Integrated AMD A6-5357M@2.9G dual-core 2-thread processor, TDP35W, compatible with APU A10/A8/A6/A4 (FP2 package) dual-core, quad-core processor

◆A70 (218-0755097) high-speed chipset

◆2 x SODIMM memory slot, support slot of dual-channel DDR3 1333MHz memory, maximum support 16GB

◆Integrated AMD Radeon HD 8000 Series Core Graphics Card

◆1 x VGA interface, 2 x HDMI interface, 1 x LVDS interface, support dual-channel 24BIT

◆1 x RTL8111H gigabit network card, support network wake-up, PXE function.

◆8 x USB 2.0 interface, 2 x USB 3.0 interface
