Whiskey Lake 8365UE/1.6GHz

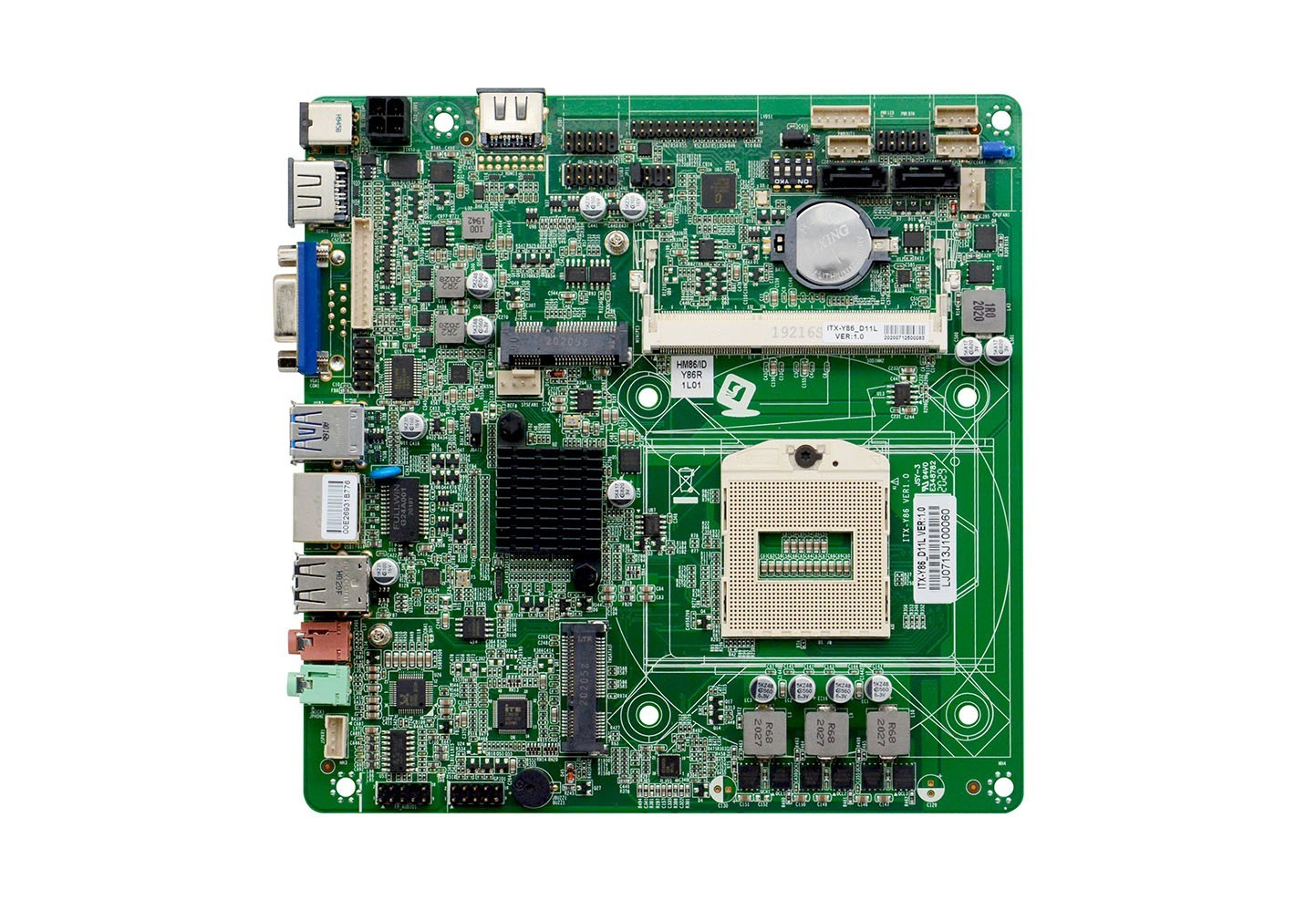

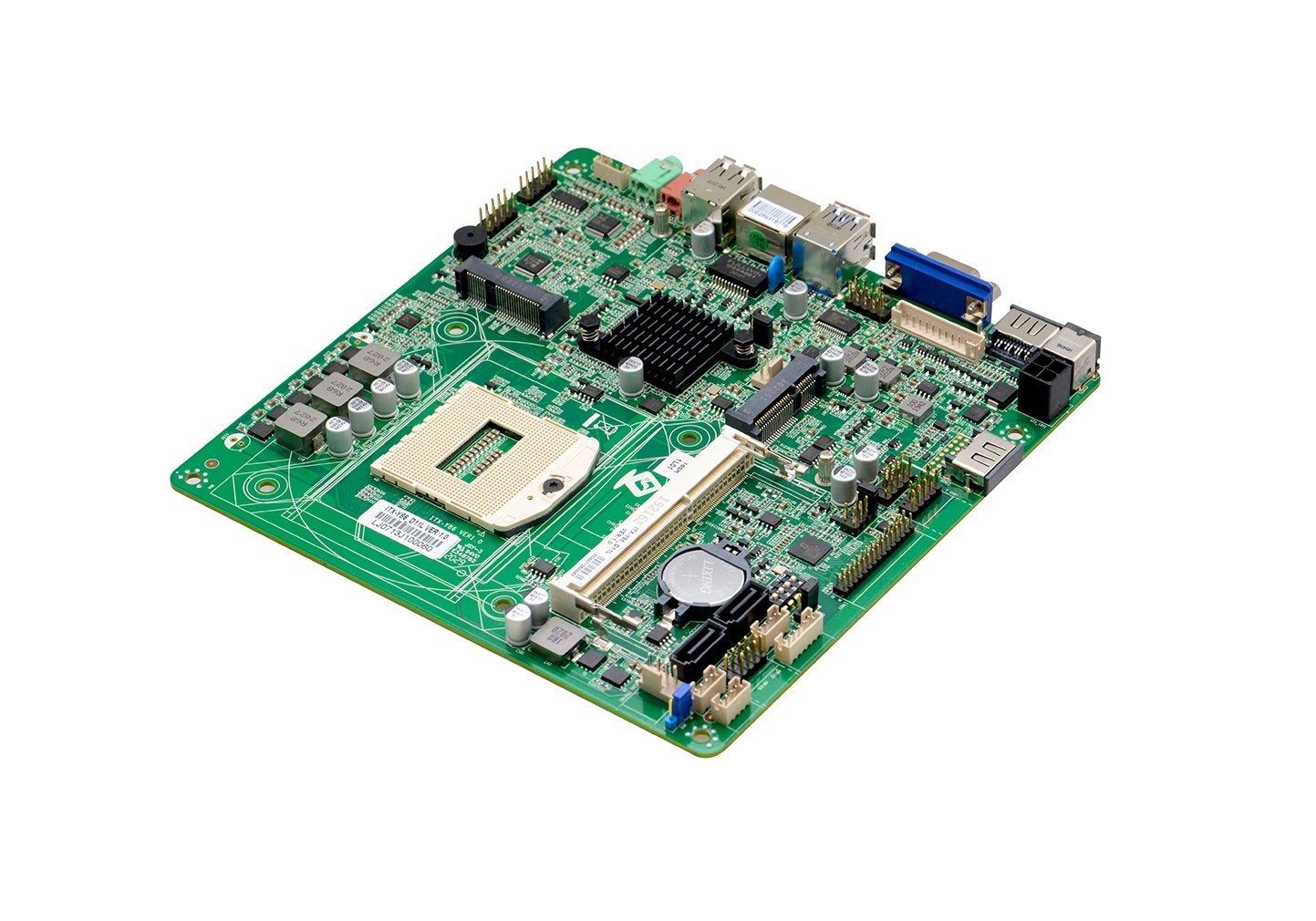

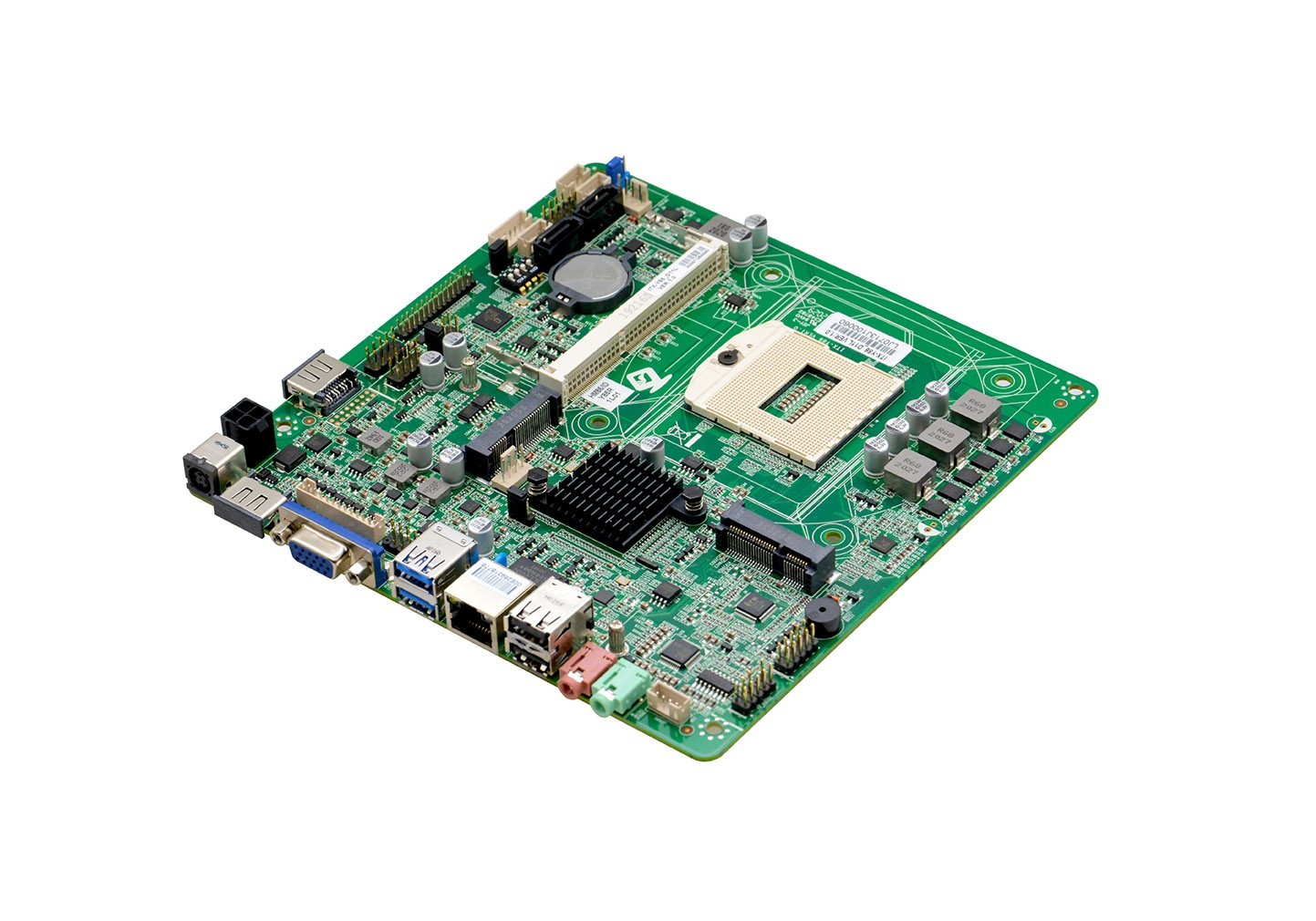

ITX-Y86_D11L VER:1.0

项目介绍:

Product  No.

ITX-Y86_D11L VER:1.0

processor

Support Intel® PGA 946 Intel® haswell fourth generation Celeron/Pentium/Corei3/i5/i7 series processors

chipset

Using Intel®HM86 Express Chipset,

RAM

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Show

Integrated Intel®HD Graphics core graphics


1*VGA, 2*HDMI interface, 1* LVDS interface, support dual channel 24BIT


Support VGA/HDMI/LVDS synchronous/asynchronous display

The internet

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Store



2* SATA hard disk interface, where SATA1 is 2.0, the transfer rate is up to 3Gbps, SATA2 is 3.0, the transfer rate is up to 6Gbps

1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Expansion slot

Power amplifier supports 2Ω/5W dual channel

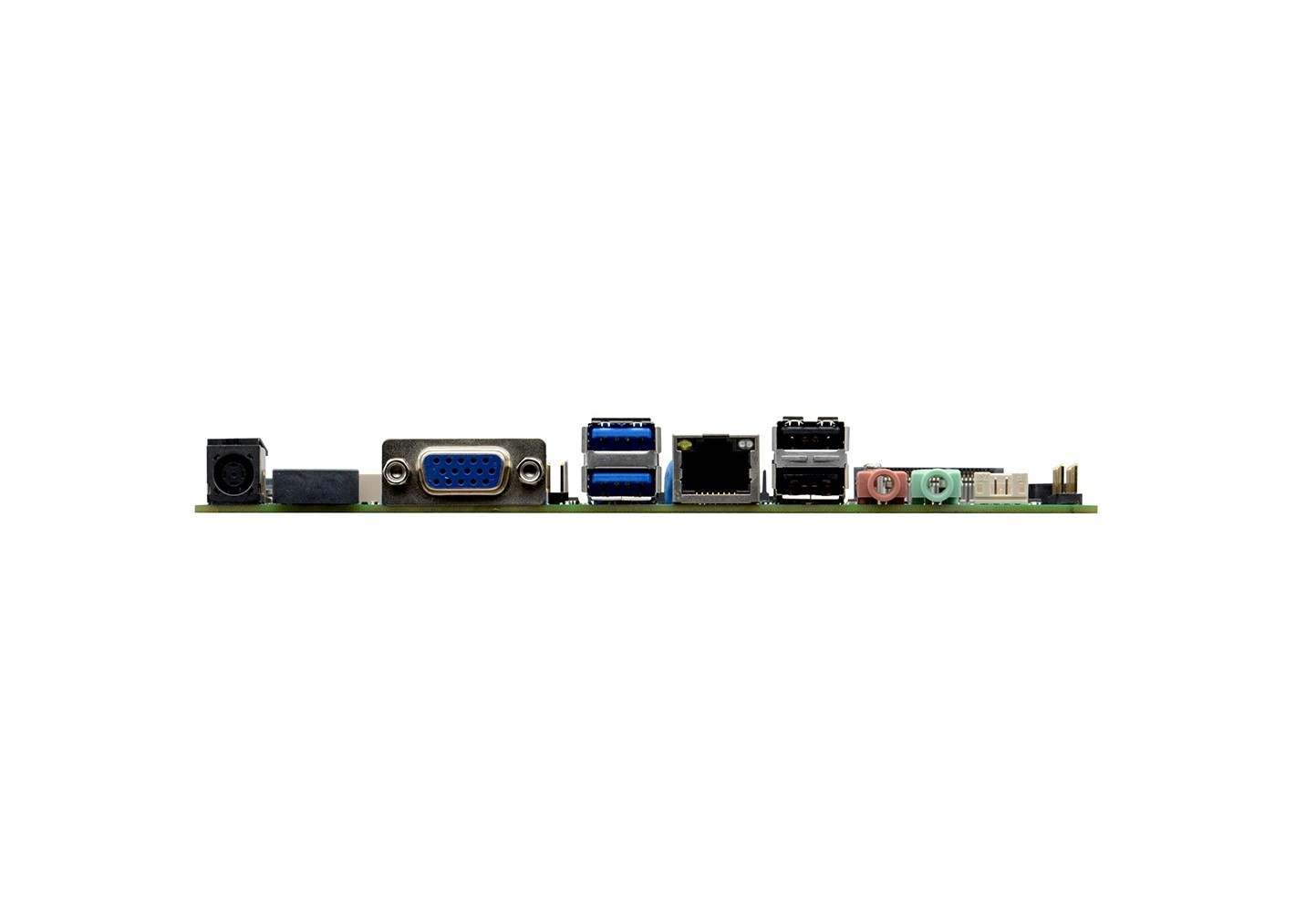

Backplane I/O interface



1* Mini-PCIE slot, support WIFI module

2* USB3.0 interface, 2* USB2.0 interface

2* HDMI interface

1* DB15 VGA interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

Built-in I/O interface



1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin,

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin


1*4pin ATX power interface. Support 19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

BIOS

64Mb Flash ROM

GPIO

Support 4 input and output GPIO function

support system

Windows® 7/ 8.1/ 10

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC19V power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃



Working humidity

5%-95% relative humidity, non-condensing


事宜人群:

♦Support Intel® PGA 946 Intel® haswell fourth generation Celeron/Pentium/Corei3/i5/i7 series processors

♦Using Intel®HM86 Express Chipset,

♦1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

♦Integrated Intel®HD Graphics core graphics

♦1*VGA, 2*HDMI interface, 1* LVDS interface, support dual channel 24BIT

♦Support VGA/HDMI/LVDS synchronous/asynchronous display

♦1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

♦2* SATA hard disk interface, where SATA1 is 2.0, the transfer rate is up to 3Gbps, SATA2 is 3.0, the transfer rate is up to 6Gbps

♦1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 6Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Product  No.

ITX-Y86_D11L VER:1.0

processor

Support Intel® PGA 946 Intel® haswell fourth generation Celeron/Pentium/Corei3/i5/i7 series processors

chipset

Using Intel®HM86 Express Chipset,

RAM

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Show

Integrated Intel®HD Graphics core graphics


1*VGA, 2*HDMI interface, 1* LVDS interface, support dual channel 24BIT


Support VGA/HDMI/LVDS synchronous/asynchronous display

The internet

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Store



2* SATA hard disk interface, where SATA1 is 2.0, the transfer rate is up to 3Gbps, SATA2 is 3.0, the transfer rate is up to 6Gbps

1* MSATA slot, support Intel protocol SSD solid state drive, transmission speed up to 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Expansion slot

Power amplifier supports 2Ω/5W dual channel

Backplane I/O interface



1* Mini-PCIE slot, support WIFI module

2* USB3.0 interface, 2* USB2.0 interface

2* HDMI interface

1* DB15 VGA interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

Built-in I/O interface



1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin,

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* power amplifier interface 1*4pin

2* Hard disk power supply voltage interface 1*4pin

1* Front panel function button and indicator port 2*5pin


1*4pin ATX power interface. Support 19V power input and output

Fan interface

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

BIOS

64Mb Flash ROM

GPIO

Support 4 input and output GPIO function

support system

Windows® 7/ 8.1/ 10

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Support DC19V power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃



Working humidity

5%-95% relative humidity, non-condensing


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

485/422

Power

1

ITX-Y86_D11L

VER:1.0

FPGA 946

/

HM86

1*SODDR3L

1

2

/

2ch*24bit

1*8111H

8

1

/

DC19V


SpecificationITX-Y86_D11L




Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-Y86_D11L
Win7/8/10 32/64BITGraphicsVGAITX-Y86_D11L
Win7/8/10 32/64BITAudioRealtek AudioITX-Y86_D11L
Win7/8/10 32/64BITLANRealtekITX-Y86_D11L
Win7/8/10 32/64BITMEME_SW_MSIITX-Y86_D11L
WIN7 32/64BITUSB3.0USB3.0ITX-Y86_D11L
