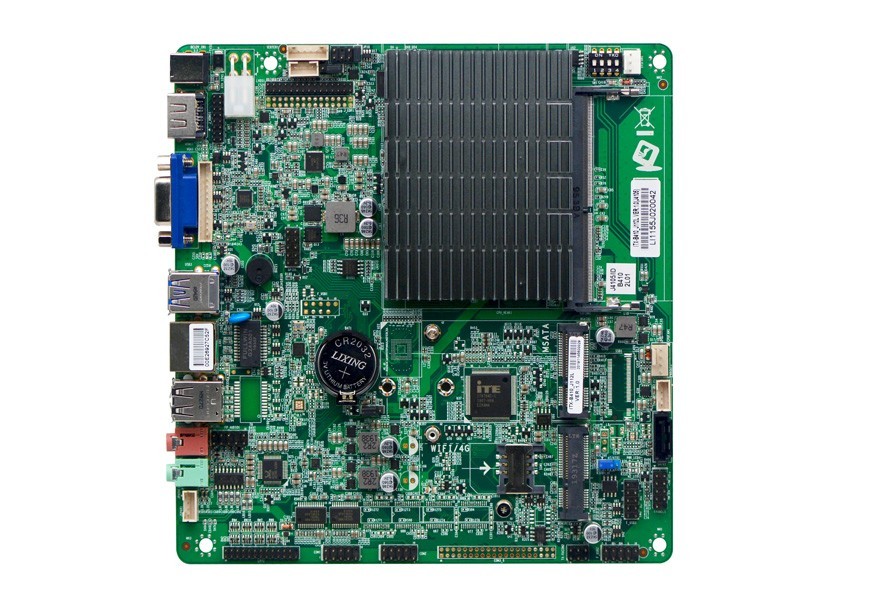

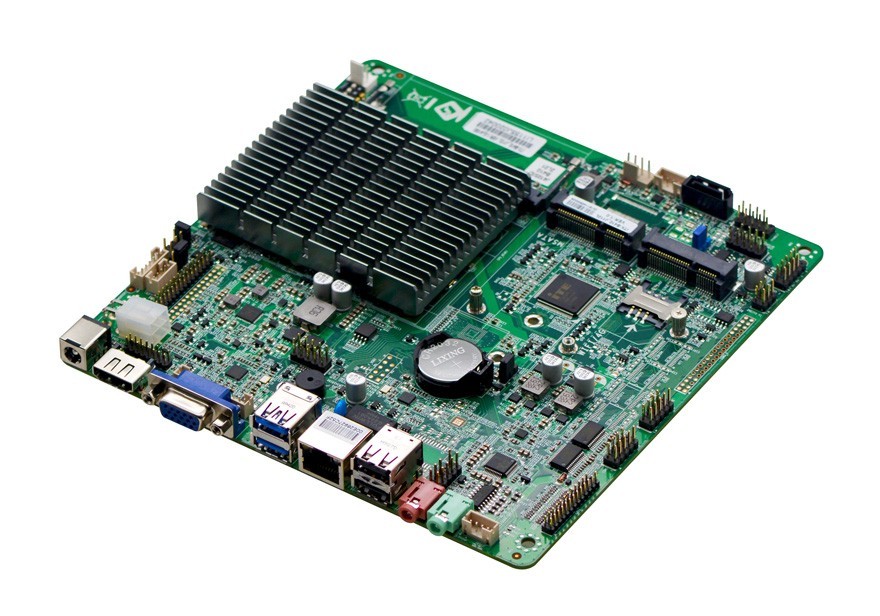

Gemini Lake J4105/1.5G

ITX-B410_J112L VER:1.0 (J4105)

项目介绍:

Product number

ITX-B410_J112L VER:1.0 (J4105)

processor

Integrated Intel® Celeron J4105 1.50GHz quad-core processor, TDP 10W

Chipset

Compatible with all series of Intel® Gemini Lake CPUs, allowing customers to choose flexibly

RAM

SOC

1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB

Show

Integrated Intel® UHD Graphics 600 core graphics

The internet

1* VGA, 1*HDMI, 1* LVDS interface, support dual channel 24BIT

1* Realtek RTL8111H Gigabit LAN, support Wake on LAN/PXE

Store

Store

1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

1* MSATA slot supports SSD solid state drive, transmission speed can reach 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier recommends using 2Ω5W speakers

Expand

1* Mini-PCIE slot, support WIFI, 4G module


Note: If MINIPE1 needs to support 4G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

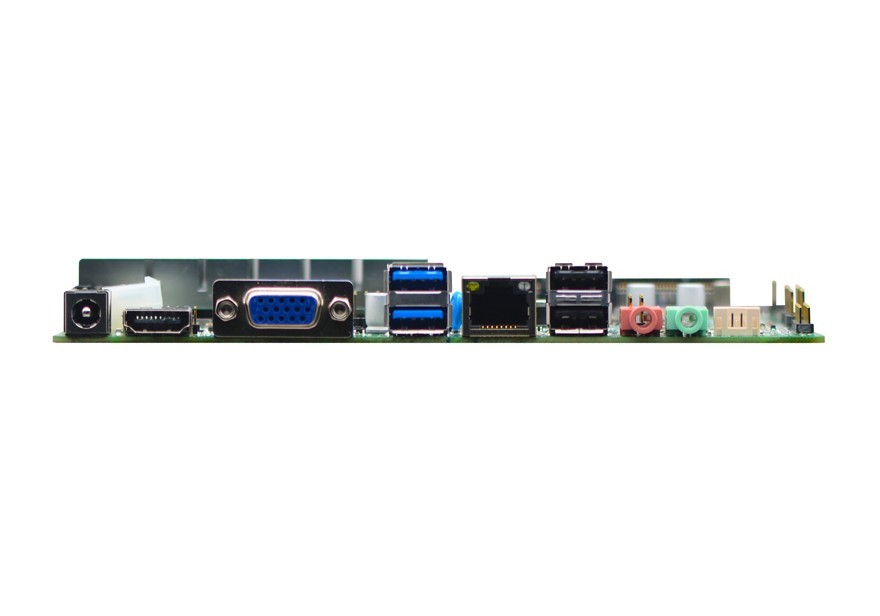

Backplane

I/O interface

1* HDMI display interface

1* VGA display interface

2* USB3.0 interface, 2* USB2.0 interface

Built-in

I/O interface

1* RJ-45 Gigabit network interface

1* Line out interface (green), 1* MIC interface (red)

1* 12V DC power input interface

1* 4pin ATX power interface (can be used as 12V input and output power interface)

1* LVDS interface 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

4* USB 2.0 interface 2*5Pin

1* J_HDMI interface 2*8Pin (same signal as HDMI1 of the backplane IO interface)

1* JVGA interface 1*12Pin (same signal with DB15)

2* RS232 serial interface, COM2 supports RS485

1* LPT parallel interface 2*13Pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

Fan interface

1* Hard disk power supply interface 1*4pin

GPIO

1* power amplifier interface 1*4pin

BIOS

1* SIM card holder

Watchdog

Fanless cooling design, reserved 1*4pin CPU fan interface, 1*3pin system fan interface

Operating system

Support 4 input and output GPIO

Power type

64Mb Flash ROM

Operating temperature

Support hardware reset function (256 levels, 0~255 seconds)

Storage temperature

Windows 7/Windows 10/Linux

Working humidity

Powered by DC 12V power supply

Size

-10℃~60℃


事宜人群:

♦Integrated Intel® Celeron J4105 1.50GHz quad-core processor, TDP 10W

♦Compatible with all series of Intel® Gemini Lake CPUs, allowing customers to choose flexibly

♦1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB

♦Integrated Intel® UHD Graphics 600 core graphics

♦1* VGA, 1*HDMI, 1* LVDS interface, support dual channel 24BIT

♦1* Realtek RTL8111H Gigabit LAN, support Wake on


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

ITX-B410_J112L VER:1.0 (J4105)

processor

Integrated Intel® Celeron J4105 1.50GHz quad-core processor, TDP 10W

Chipset

Compatible with all series of Intel® Gemini Lake CPUs, allowing customers to choose flexibly

RAM

SOC

1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB

Show

Integrated Intel® UHD Graphics 600 core graphics

The internet

1* VGA, 1*HDMI, 1* LVDS interface, support dual channel 24BIT

1* Realtek RTL8111H Gigabit LAN, support Wake on LAN/PXE

Store

Store

1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

1* MSATA slot supports SSD solid state drive, transmission speed can reach 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier recommends using 2Ω5W speakers

Expand

1* Mini-PCIE slot, support WIFI, 4G module


Note: If MINIPE1 needs to support 4G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

Backplane

I/O interface

1* HDMI display interface

1* VGA display interface

2* USB3.0 interface, 2* USB2.0 interface

Built-in

I/O interface

1* RJ-45 Gigabit network interface

1* Line out interface (green), 1* MIC interface (red)

1* 12V DC power input interface

1* 4pin ATX power interface (can be used as 12V input and output power interface)

1* LVDS interface 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

4* USB 2.0 interface 2*5Pin

1* J_HDMI interface 2*8Pin (same signal as HDMI1 of the backplane IO interface)

1* JVGA interface 1*12Pin (same signal with DB15)

2* RS232 serial interface, COM2 supports RS485

1* LPT parallel interface 2*13Pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

Fan interface

1* Hard disk power supply interface 1*4pin

GPIO

1* power amplifier interface 1*4pin

BIOS

1* SIM card holder

Watchdog

Fanless cooling design, reserved 1*4pin CPU fan interface, 1*3pin system fan interface

Operating system

Support 4 input and output GPIO

Power type

64Mb Flash ROM

Operating temperature

Support hardware reset function (256 levels, 0~255 seconds)

Storage temperature

Windows 7/Windows 10/Linux

Working humidity

Powered by DC 12V power supply

Size

-10℃~60℃


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

485

Power

1

ITX-B410_J112L  VER:1.0(J4105)

 J4105

1.5G

1*SODDR4

1

1

2ch*24bit

/

1*8111H

8

2

COM2

DC12V



SpecificationITX-B410_J112L





Driver(Win10)

OSDriver TypeDriver NameDownload Now
WIN10 64位ChipsetchipsetITX-B410
WIN10 64位GraphicsVGAITX-B410
WIN10 64位AudioRealtek AudioITX-B410
WIN10 64位LANRealtek
ITX-B410
WIN10 64位TXETXEITX-B410
WIN10 64位DPTFDPTFITX-B410
WIN10 64位Serial IOSerialITX-B410
