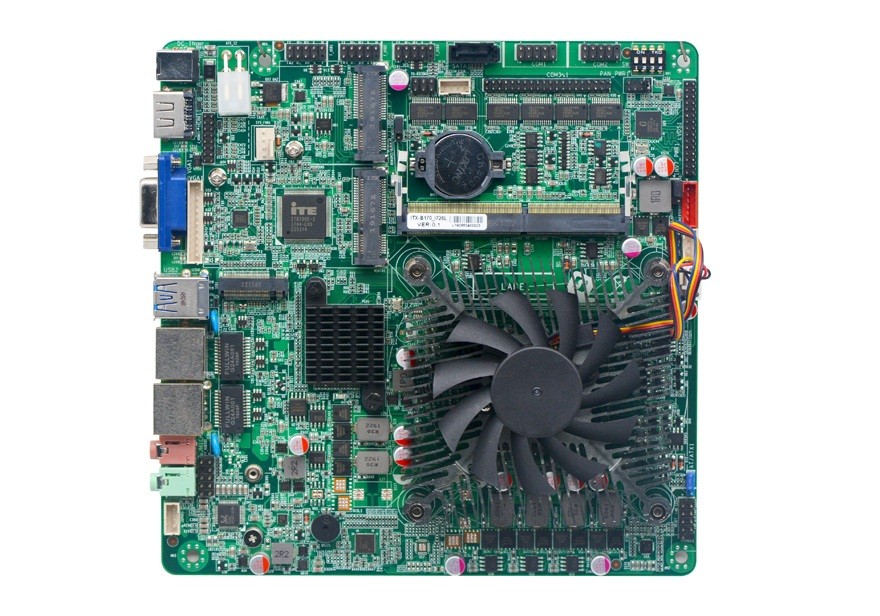

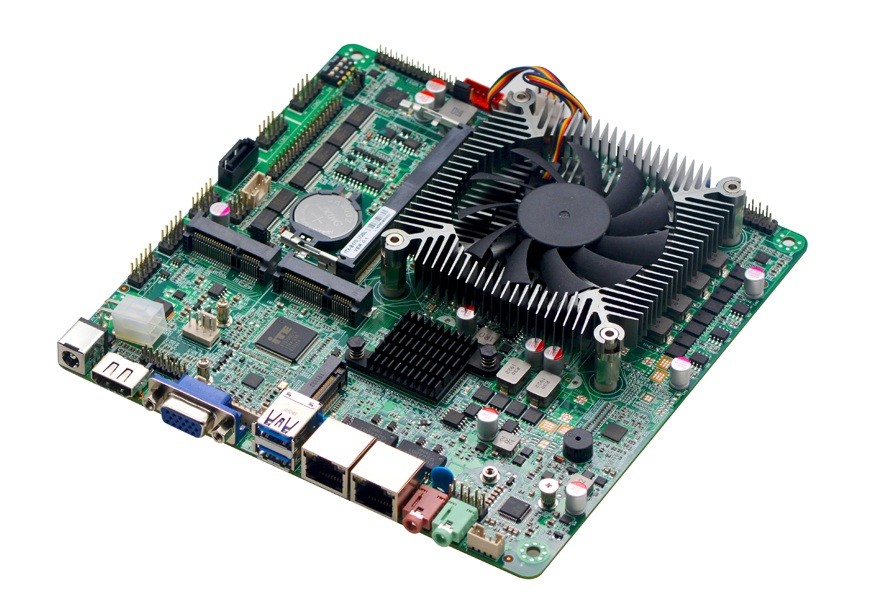

ITX-B170_I726L VER:0.1(6700HQ)

项目介绍:

Model No.

ITX-B170_I726L VER:0.1(6700HQ)

Processor

Integrated Intel@Skylake-H 6700HQ 2.6GHz quad core processor,TDP 45W

Chipset

Adopt Intel®HM170 high speed chipset

Memory

1* SODIMM,support single channel DDR4 2133MHz memory, up to 32GB

Graphics

Integrated Intel® HD Graphics 530 ,support DirectX12,OpenGL4.5,support 4K

1* VGA, the highest resolution as 1920X1200@60Hz

1* HDMI ,the highest resolution as  4096x2304@24Hz

1*LVDS,support dual channel 24BIT

Network

2* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA3.0 HDD port ,the transfer rate up to 6Gbps


1* MSATA slot, support SSD,the transfer rate up to 6Gbps


1* M.2 slot, support M.2 2280/2260 SSD

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion

1* MiniPCIE  slot,support WIFI module

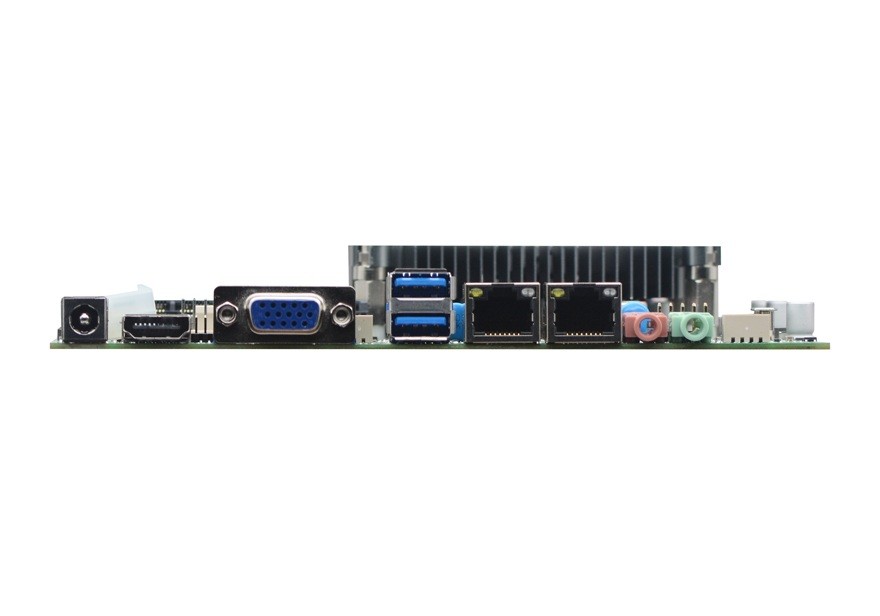

Rear I/O

2* USB3.0


1* HDMI


1* VGA


2* RJ45 Gigabit Ethernet


1* Line-out(Green),1*MIC(Red)


1* DC12V power input

Internal I/O

1* JVGA 1*12pin ,the same signal with VGA


1* JHDMI 2*8pin,the same signal with HDMI


1* LVDS,2*15pin,support dual channel 24BIT


1* screen backlight power port  1*6pin


1* screen brightness adjustment port  1*4pin


6* RS232 serial ports,COM3 support RS485/422


6* USB2.0 2*5pin


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* HDD power supply port  1*4pin


1* Front panel function button and indicator LED port 2*5pin


1*4pin ATX power port .support 12V power input/output

FAN connector

1*4pin CPU smart fan connector;1*4pin system fan connector

BIOS

128Mb Flash ROM

GPIO

NA

OS

Windows® 7/ 8.1/ 10

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

◆ Integrated Intel@Skylake-H 6700HQ 2.6GHz quad core processor,TDP 45W

◆ Adopt Intel®HM170 high speed chipset

◆ 1* SODIMM,support single channel DDR4 2133MHz memory, up to 32GB

◆ Integrated Intel® HD Graphics 530 ,support DirectX12,OpenGL4.5,support 4K

◆ 1* VGA,1*HDMI,1*LVDS

◆ 6*USB2.0,2*USB3.0,6*RS232 serial ports




  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-B170_I726L VER:0.1(6700HQ)

Processor

Integrated Intel@Skylake-H 6700HQ 2.6GHz quad core processor,TDP 45W

Chipset

Adopt Intel®HM170 high speed chipset

Memory

1* SODIMM,support single channel DDR4 2133MHz memory, up to 32GB

Graphics

Integrated Intel® HD Graphics 530 ,support DirectX12,OpenGL4.5,support 4K

1* VGA, the highest resolution as 1920X1200@60Hz

1* HDMI ,the highest resolution as  4096x2304@24Hz

1*LVDS,support dual channel 24BIT

Network

2* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA3.0 HDD port ,the transfer rate up to 6Gbps


1* MSATA slot, support SSD,the transfer rate up to 6Gbps


1* M.2 slot, support M.2 2280/2260 SSD

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion

1* MiniPCIE  slot,support WIFI module

Rear I/O

2* USB3.0


1* HDMI


1* VGA


2* RJ45 Gigabit Ethernet


1* Line-out(Green),1*MIC(Red)


1* DC12V power input

Internal I/O

1* JVGA 1*12pin ,the same signal with VGA


1* JHDMI 2*8pin,the same signal with HDMI


1* LVDS,2*15pin,support dual channel 24BIT


1* screen backlight power port  1*6pin


1* screen brightness adjustment port  1*4pin


6* RS232 serial ports,COM3 support RS485/422


6* USB2.0 2*5pin


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* HDD power supply port  1*4pin


1* Front panel function button and indicator LED port 2*5pin


1*4pin ATX power port .support 12V power input/output

FAN connector

1*4pin CPU smart fan connector;1*4pin system fan connector

BIOS

128Mb Flash ROM

GPIO

NA

OS

Windows® 7/ 8.1/ 10

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

485/422

Power

1

ITX-B170_I726LVER:0.1(6700HQ)

I7-6700HQ

2.6G

HM170

1*SODDR4

1

1

/

2ch*24bit

2*8111H

8

6

COM3

DC12V



SpecificationsITX-B170
DriverITX-B170
