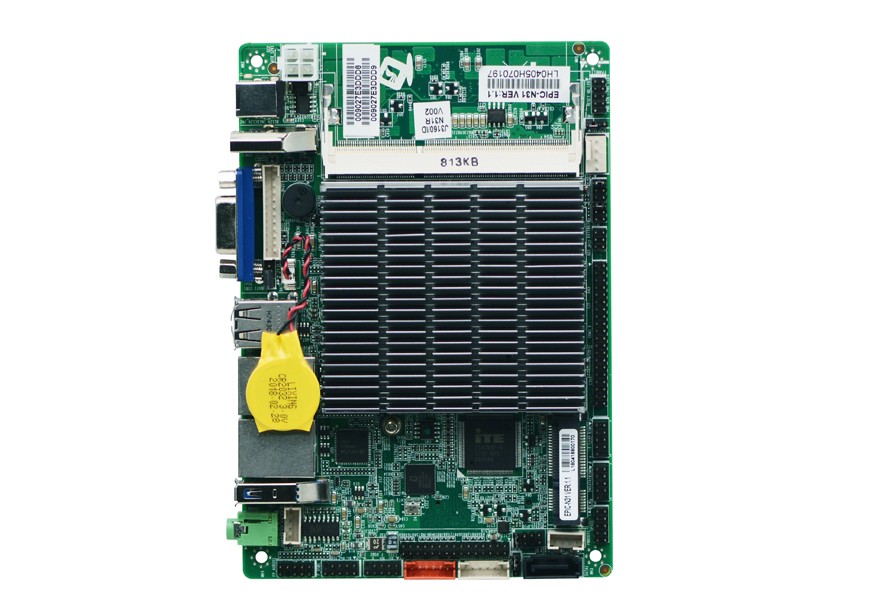

Model No. | EPIC-N31 VER:1.1 |
CPU | Integrated Intel®J3160/1.6GHz quad core processor ,TDP:6W |
Chipset | Intel® Braswelll SOC platform |
Memory | 1* DDR3L SODIMM Memory slot,Support single channel 1600/1333MHz DDR3L/1.35V memory ,up to 8GB |
Graphics | Integrated Intel®HD Graphics |
| 1*VGA,1*HDMI,1*LVDS(Supprt dual channels 24BIT) |
| Supports VGA;HDMI;LVDS synchronous / asynchronous display |
Ethernet | 2*Intel I211 Gigabit ethernet , support Wake on LAN/PXE Function |
Storage | 1*7pin SATA3.0,the transfer rate is up to 6Gbps. |
Audio | On board ALC662 6hannel audio controller ,support MIC/Line-out |
| 2Ω5W horn is recommended for power amplifier |
Expansion Slots | 1*Mini-PCIE slot,Support WIFI /3G modules |
| 1*MSATASlot, SSD solid-state hard disk support, transmission rate up to 6 Gbps |
Real I/O | 1* DC 12V |
| 1* HDMI |
| 1* VGA |
| 2* RJ-45 Gigabit ethernet |
| 2* USB2.0,1*USB3.0 |
| 1* Line out(Green) |
Internal I/O | 1* 4Pin power interface(12V Input and Output Power Interface) |
| 4* USB 2.0, 2*5Pin |
| 1* JVGA, 1*12Pin |
| 1* PS/2 Keyboard and mouse interface (red), 1*6Pin |
| 6* RS232 Serial port(COM2 supports RS485/RS422 function) |
| 1* Pre-Audio Interface2*5pin |
| 1* Pre-amplifier interface,1*4Pin |
| 1* LVDS interface, 2*15pin,Supporting dual channel 24bit |
| 1* LVDS Backlight power supply interface ,1*6pin |
| 1* Front panel switch button and indicator interface 2*5Pin |
| 1* Hard Disk Power Supply Interface ,1*4pin |
| 1* SIM |
FAN Interface | No fan heat dissipation, reserve 1*4pin CPU fan interface |
GPIO | Support 4-way input/output GPIO |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Operating System | Windows 7/Windows 10/Linux |
Power Input | DC 12V |
Operating Temp | -10℃~60℃ |
Storage Temp. | -20℃~70℃ |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 148mm x 102mm |
