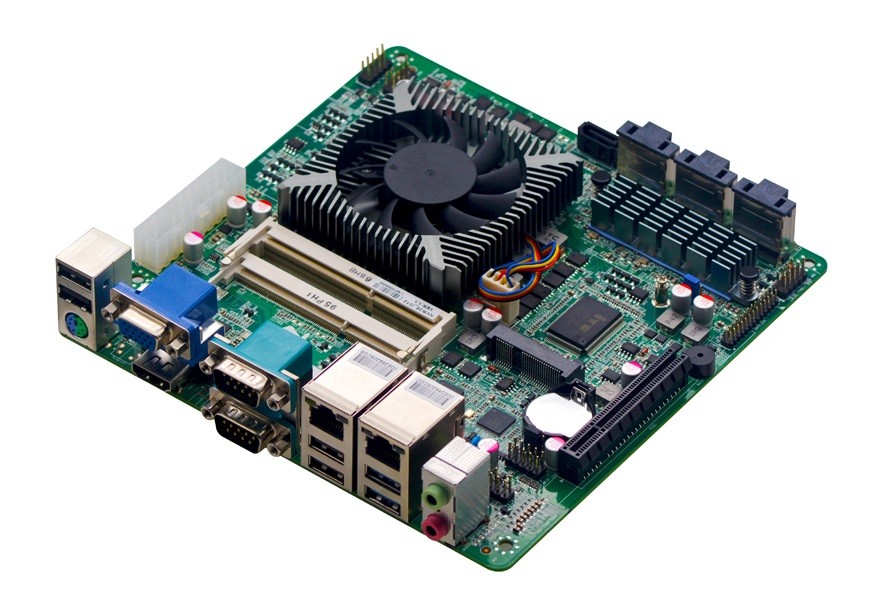

Skylake-U 3855U/6287U

NVR38_I512 VER:1.1

项目介绍:

model

NVR38_I512 VER:1.1

processor

Integrated Intel®Core I5-6287Udual core processor,TDP 28W


Compatible Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low power process

chipset

SOC

memory

2*DDR3L SODIMM memory slot, support 1600MHz memory,up to 32GB

display

Integrated Intel® Iris TM  Graphics 550,support DirectX 12 OpenGL 4.5,support 4K


1* VGA slot,the max resolution:1920X1200@60Hz


1 *HDMI1.4 slot,the max resolution:4096X2304@24Hz

network

2* Intel WGI211AT Gigabit Ethernet,,support wakeup/PXE

Storage

1* 7pin SATA3.0 slot,transmission speed is up to 6Gbps


3* MSASHard disk interface, a total of 12 SATA3.0 hard disks, transmission rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD, transmission speed is up to 6Gbps

Audio

Integrated ALC662 6 -channel high-fidelity audio controller, support MIC,Line_out

Expansion slot

1* PCIEx8 slot,support PCIE X4 speed

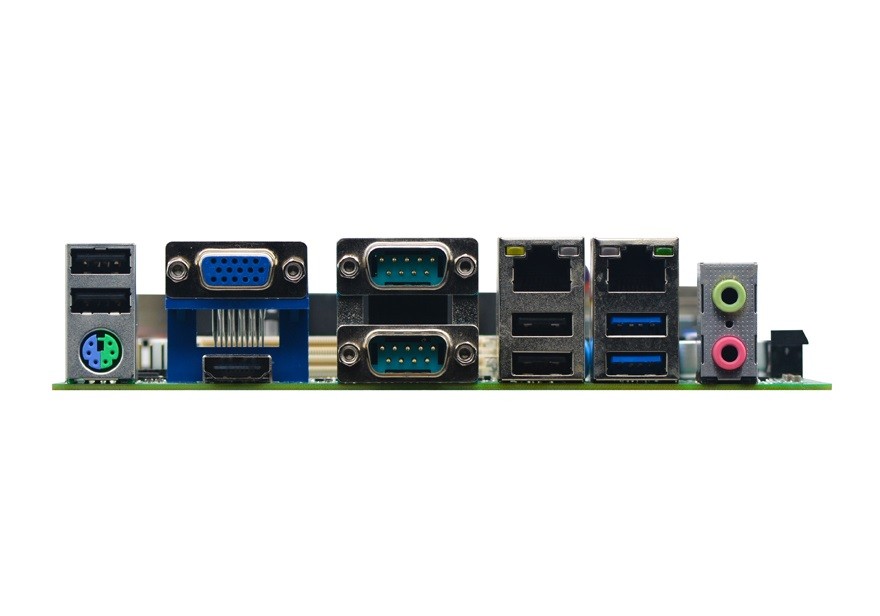

Rear I/O

1* HDMI


1*VGA


2* USB3.0


4* USB2.0


2* RJ45 Lan


1* Line-out(green),1*MIC(red),


1* PS/2 Keyboard and mouse interface


2* DB9 RS232 serial ports

Internal I/O

4* USB2.0, 2*5pin,


1* Hard Disk Indicator Interface 2*13pin


1* front audio interface 2*5pin


1* front panel switch button and indicator interface  2*5pin


1* 20pin ATX power supply interface

Fan

1*4pin CPU Fan interface

GPIO

Support 4-way input/output GPIO function

BIOS

64MB Flash ROM

Watchdog

Support hardware reset function (256,0~255 seconds)

OS

Windows 7 , Windows 8 , Windows 10 , Linux

Power

Adopt 20pin ATX power supply

Operating Temp

-10℃~60℃

Storage temp

-20℃~70℃

humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm X170mm


事宜人群:

♦ Integrated Intel®Core I5-6287Udual core processor,TDP 28W

♦ 2*DDR3L SODIMM memory slot, support 1600MHz memory,up to 32GB

♦ Integrated Intel® Iris TM  Graphics 550,support DirectX 12 OpenGL 4.5,support 4K

♦ 1* VGA,1*HDMI1.4

♦ 2* Intel I211AT Gigabit LAN, support Wake-on-LAN, PXE function.

♦ 1* PCIE x8 slot,13* SATA HDD

♦ 8* USB2.0,2* USB3.0


  • Product Specifications
  • Ordering Information
  • Download Center

model

NVR38_I512 VER:1.1

processor

Integrated Intel®Core I5-6287Udual core processor,TDP 28W


Compatible Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low power process

chipset

SOC

memory

2*DDR3L SODIMM memory slot, support 1600MHz memory,up to 32GB

display

Integrated Intel® Iris TM  Graphics 550,support DirectX 12 OpenGL 4.5,support 4K


1* VGA slot,the max resolution:1920X1200@60Hz


1 *HDMI1.4 slot,the max resolution:4096X2304@24Hz

network

2* Intel WGI211AT Gigabit Ethernet,,support wakeup/PXE

Storage

1* 7pin SATA3.0 slot,transmission speed is up to 6Gbps


3* MSASHard disk interface, a total of 12 SATA3.0 hard disks, transmission rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD, transmission speed is up to 6Gbps

Audio

Integrated ALC662 6 -channel high-fidelity audio controller, support MIC,Line_out

Expansion slot

1* PCIEx8 slot,support PCIE X4 speed

Rear I/O

1* HDMI


1*VGA


2* USB3.0


4* USB2.0


2* RJ45 Lan


1* Line-out(green),1*MIC(red),


1* PS/2 Keyboard and mouse interface


2* DB9 RS232 serial ports

Internal I/O

4* USB2.0, 2*5pin,


1* Hard Disk Indicator Interface 2*13pin


1* front audio interface 2*5pin


1* front panel switch button and indicator interface  2*5pin


1* 20pin ATX power supply interface

Fan

1*4pin CPU Fan interface

GPIO

Support 4-way input/output GPIO function

BIOS

64MB Flash ROM

Watchdog

Support hardware reset function (256,0~255 seconds)

OS

Windows 7 , Windows 8 , Windows 10 , Linux

Power

Adopt 20pin ATX power supply

Operating Temp

-10℃~60℃

Storage temp

-20℃~70℃

humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm X170mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

SATA

Power

1

NVR38_I512 VER:1.1(6287U)

I5-6287U

3.1G

2*SODDR3L

1

1

/

/

2*211AT

10

2

13

ATX

2

NVR38_C312 VER:1.1(3865U)

3865U

1.8G

2*SODDR3L

1

1

/

/

2*211AT

10

2

13

ATX


SpecificationsNVR38


Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetNVR38
Win7/8/10 32/64BITGraphicsVGANVR38
Win7/8/10 32/64BITAudioRealtek AudioNVR38
Win7/8/10 32/64BITLANIntel
NVR38
Win7/8/10 32/64BITMEMENVR38
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114NVR38
Win7/8/10 32/64BITRSTRSTNVR38
Win7/8/10 32/64BITSerial IOSerial_IONVR38
