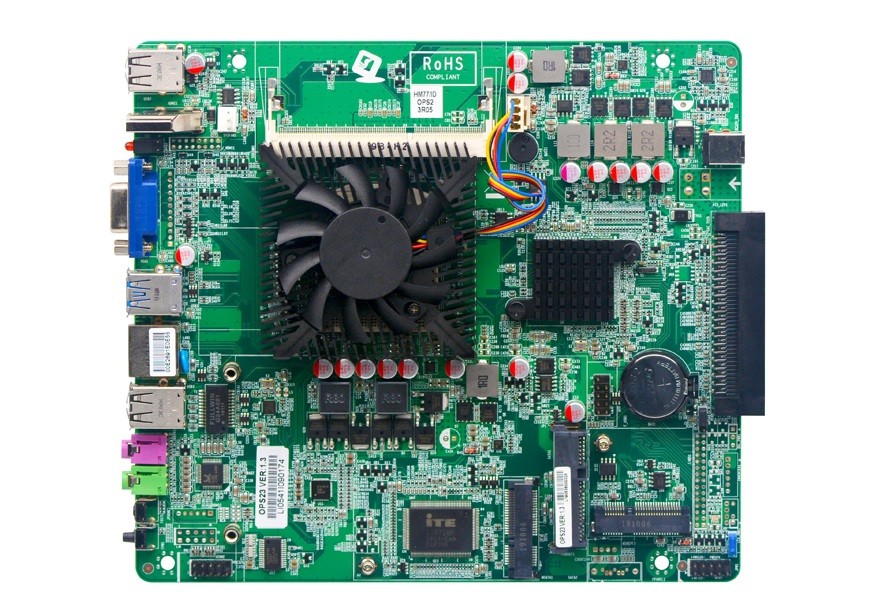

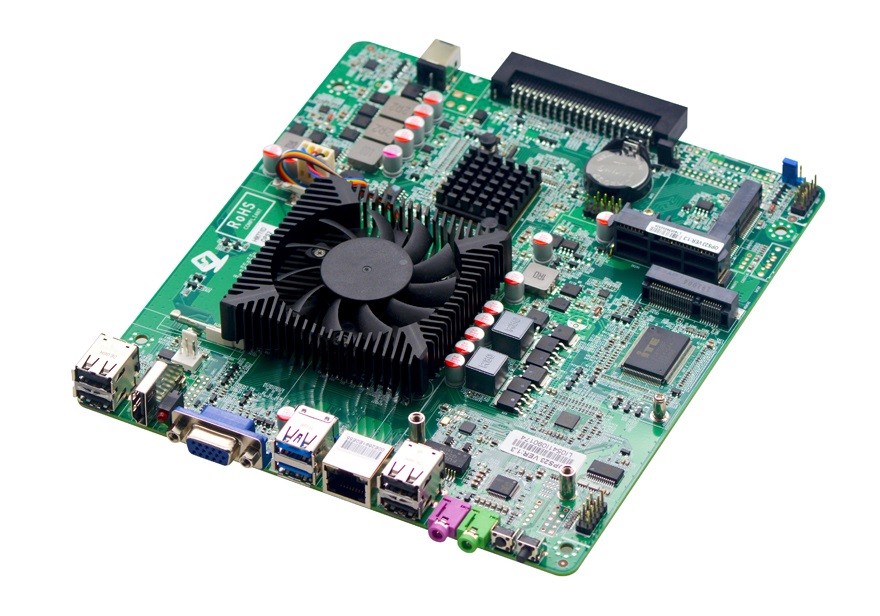

Ivy Bridge 1037U/1.8G

OPS23 VER:1.3

项目介绍:

Model NO.

OPS23 VER1.3

Processor

Support  Intel®PGA 988 Sandy Bridge/Ivy Bridge 2th/3th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM76/HM77 high speed chipset

Memory

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI


Support VGA;HDMI synchronous/asynchronous display

LAN

1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*2.5 inch SATA Notebook hard disk place , can be installed the hard disk directly


1* MSATA slot, support SSD the transfer rate up to 3Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Expansion

1* Mini-PCIE slot support WIFI


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

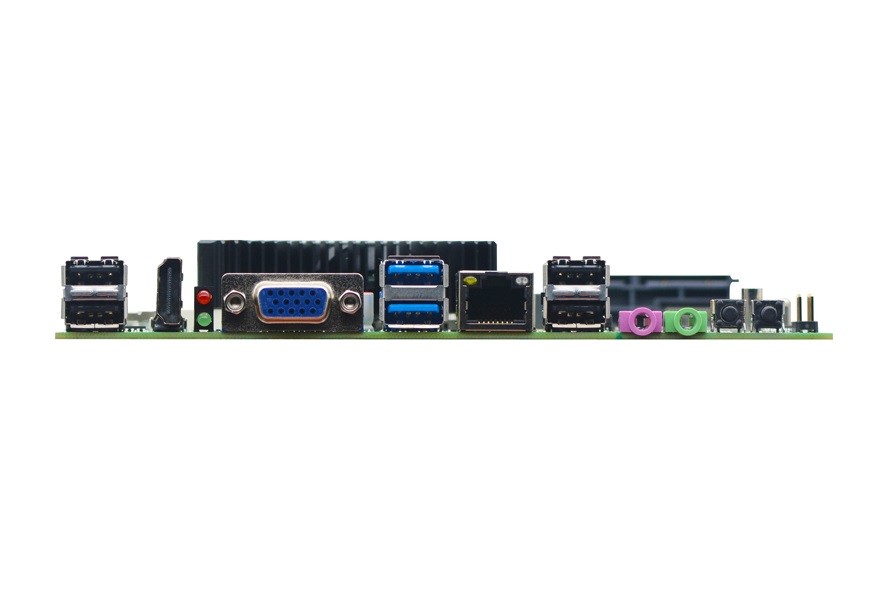

Rear I/O

4* USB 2.0 ,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC input


1* power switch


1* reset switch


1* power LED/1* HDD LED

Internal I/O

1* RS232 serial port, 2*5pin


2* USB2.0


1* front panel function buttons and indicator connector  2*5Pin

FAN interface

 1*4pin CPU fan interface,1*3pin system fan interface

GPIO

NA

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 19V power input or  through OPS-C standard slot JAE_TX25

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm


事宜人群:

♦ Support  Intel®PGA 988 Sandy Bridge/Ivy Bridge 2th/3th Celeron/Pentium/Corei3/i5/i7 processor

♦ Adopt HM76/HM77 high speed chipset

♦ 1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel®HD Graphics

♦ 1*VGA,1*HDMI,

♦ 1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

♦ 1* accord with OPS-C standard slot JAE_TX25 (80Pin)

♦ Adopt DC 19V power input or  through OPS-C standard slot JAE_TX25


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

OPS23 VER1.3

Processor

Support  Intel®PGA 988 Sandy Bridge/Ivy Bridge 2th/3th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM76/HM77 high speed chipset

Memory

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI


Support VGA;HDMI synchronous/asynchronous display

LAN

1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*2.5 inch SATA Notebook hard disk place , can be installed the hard disk directly


1* MSATA slot, support SSD the transfer rate up to 3Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Expansion

1* Mini-PCIE slot support WIFI


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

Rear I/O

4* USB 2.0 ,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC input


1* power switch


1* reset switch


1* power LED/1* HDD LED

Internal I/O

1* RS232 serial port, 2*5pin


2* USB2.0


1* front panel function buttons and indicator connector  2*5Pin

FAN interface

 1*4pin CPU fan interface,1*3pin system fan interface

GPIO

NA

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 19V power input or  through OPS-C standard slot JAE_TX25

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

OPS23 VER:1.3

PGA988

HM76/HM77

1*SODDR3L

1

1

/

1*8111H

8

1

DC19V

2

OPS23_I5 VER:1.3(3210M)

I5-3210M

HM76/HM77

1*SODDR3L

1

1

/

1*8111H

8

1

DC19V


SpecificationsOPS23



Driver(WINXP/7/8)

OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetchipsetOPS23
WinXP/7/8 32/64BITGraphicsVGAOPS23
WinXP/7/8 32/64BITAudioRealtek AudioOPS23
WinXP/7/8 32/64BITLANRealtekOPS23
WinXP/7/8 32/64BITMEiamt
OPS23
Win7 32/64BIT
USB3.0USB3.0OPS23
