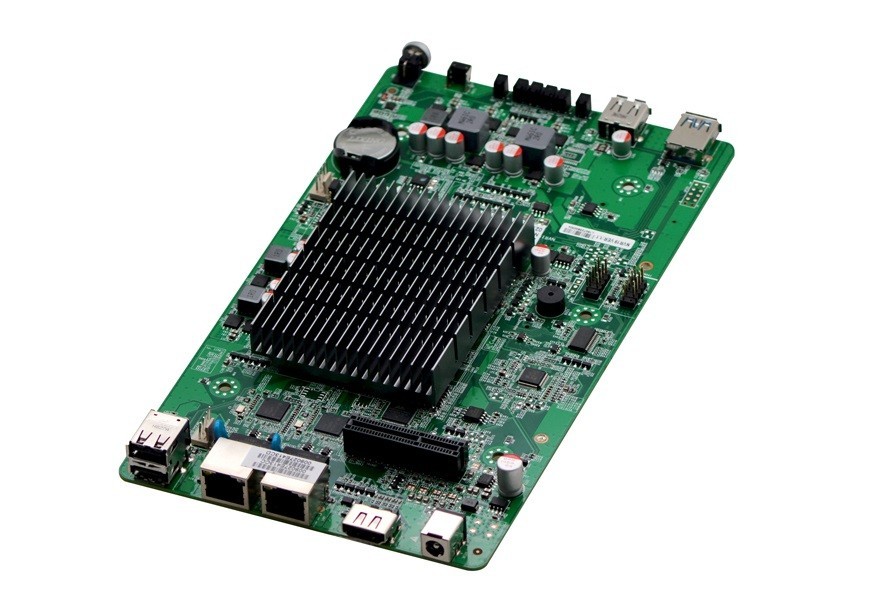

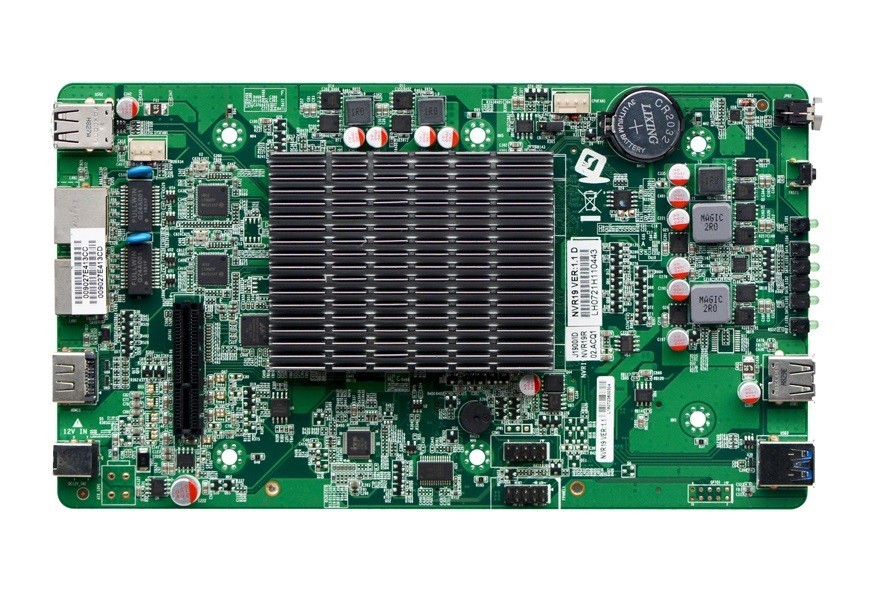

Baytrail J1900/2.0G

NVR19 VER:1.1

项目介绍:

Model No.

NVR19 VER:1.1

CPU

Support Intel®J1900/2.00GHz quad core processor ,TDP 10W

Chipset

Base on Intel® Bay trail SOC

Memory

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V ,up to 8GB

Graphics

Integrated Intel®HD Graphics

1* HDMI slot ,The maximum resolution 1920X1080@60HZ

Lan

2* Intel WGI211-AT Gigabit network,support wakeup/PXE

Ssd



Support 4*SATA 3.0,through the JSATA1 interface to transfer NVR19-H4 expansion board


1* MSATAsupport SSDSSDthe transfer rate up to 3Gbps

Expansion slot

1* PCIE X4Transferable NVR19-H4 expansion board to expand 4 SATA interfaces

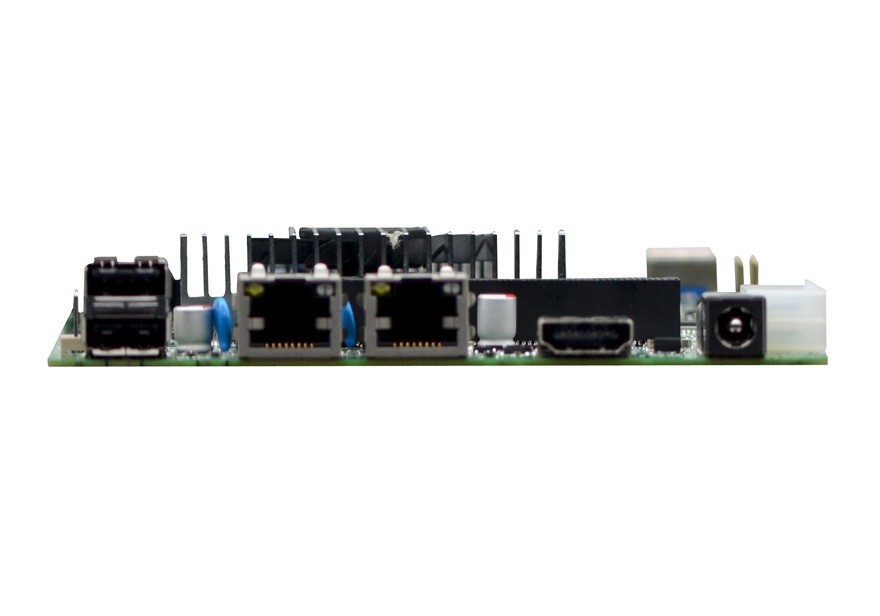

Rear I/O

2* RJ-45  lan

2* USB2.0

1* HDMI

1* DC12V

Front I/O

1* USB2.0

1* USB3.0

1*Light touch power switch

1* Power reset switch

4* Hard disk indicator, 1* power indicator, 1* network indicator

Internal I/O

1* RS232 serial port,   2*5pin

1* Front panel function button and indicator interface 2*5pin

Fan interface

fanless, Reserve 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

NA

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 12V

Operating Temp.

-10℃~60

Storage Temp.

-20℃~70

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

220mm x 125mm


事宜人群:

♦Support Intel®J1900/2.00GHz quad core processor ,TDP 10W

♦Base on Intel® Bay trail SOC

♦1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V ,up to 8GB

♦Integrated Intel®HD Graphics

♦1* HDMI slot ,The maximum resolution 1920X1080@60HZ

♦2* Intel WGI211-AT Gigabit network,support wakeup/PXE

♦Support 4*SATA 3.0,through the JSATA1 interface to transfer NVR19-H4 expansion board

♦1* MSATA,support SSD,SSDthe transfer rate up to 3Gbps

♦1* PCIE X4,Transferable NVR19-H4 expansion board to expand 4 SATA interfaces


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

NVR19 VER:1.1

CPU

Support Intel®J1900/2.00GHz quad core processor ,TDP 10W

Chipset

Base on Intel® Bay trail SOC

Memory

1*SODIMM memory slot, support 1600/1333MHz DDR3L/1.35V ,up to 8GB

Graphics

Integrated Intel®HD Graphics

1* HDMI slot ,The maximum resolution 1920X1080@60HZ

Lan

2* Intel WGI211-AT Gigabit network,support wakeup/PXE

Ssd



Support 4*SATA 3.0,through the JSATA1 interface to transfer NVR19-H4 expansion board


1* MSATAsupport SSDSSDthe transfer rate up to 3Gbps

Expansion slot

1* PCIE X4Transferable NVR19-H4 expansion board to expand 4 SATA interfaces

Rear I/O

2* RJ-45  lan

2* USB2.0

1* HDMI

1* DC12V

Front I/O

1* USB2.0

1* USB3.0

1*Light touch power switch

1* Power reset switch

4* Hard disk indicator, 1* power indicator, 1* network indicator

Internal I/O

1* RS232 serial port,   2*5pin

1* Front panel function button and indicator interface 2*5pin

Fan interface

fanless, Reserve 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

NA

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 12V

Operating Temp.

-10℃~60

Storage Temp.

-20℃~70

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

220mm x 125mm


No.

Model

Processor

Frequency

Memory

HDMI

LAN

USB2.0

USB3.0

COM

Power

1

NVR19 VER:1.1

J1900

2.0G/4C

1*SODDR3L

1

2*I211-AT

3

1

1

DC12V

IO board

No.

Model

SATA

1

NVR19 -H4 VER:1.1

4


说明书NVR19



规格书NVR19



Driver(WIN7/8/10)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetNVR19
Win7/8/10 32/64BITGraphicsVGANVR19
Win7/8/10 32/64BITAudioRealtek AudioNVR19
Win7/8/10 32/64BITLANIntelNVR19
Win7/8/10 32/64BITTXETXENVR19
Win7/8/10 32/64BITMBIMBINVR19
Win7 32/64BITUSB3.0USB3.0

NVR19
