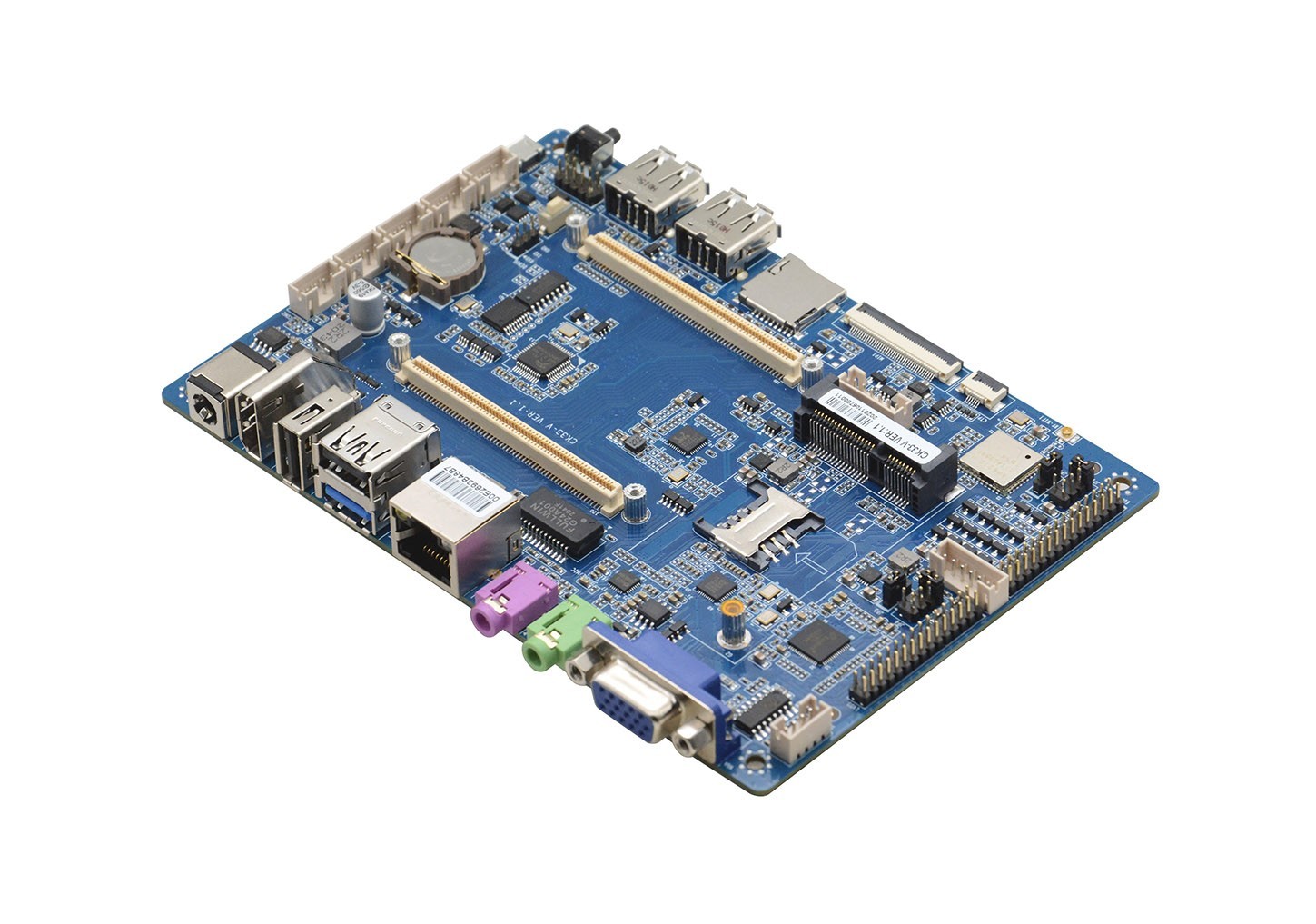

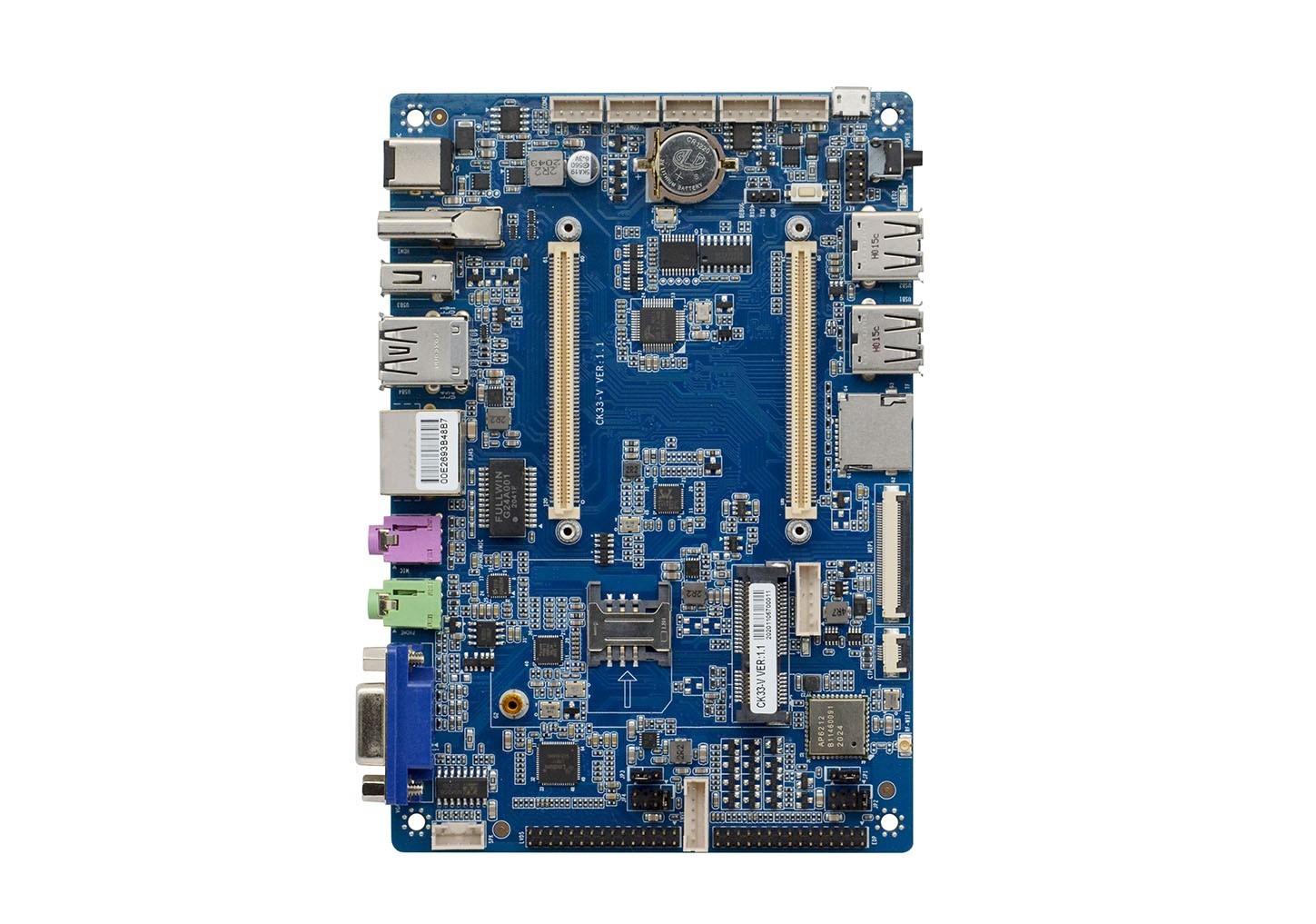

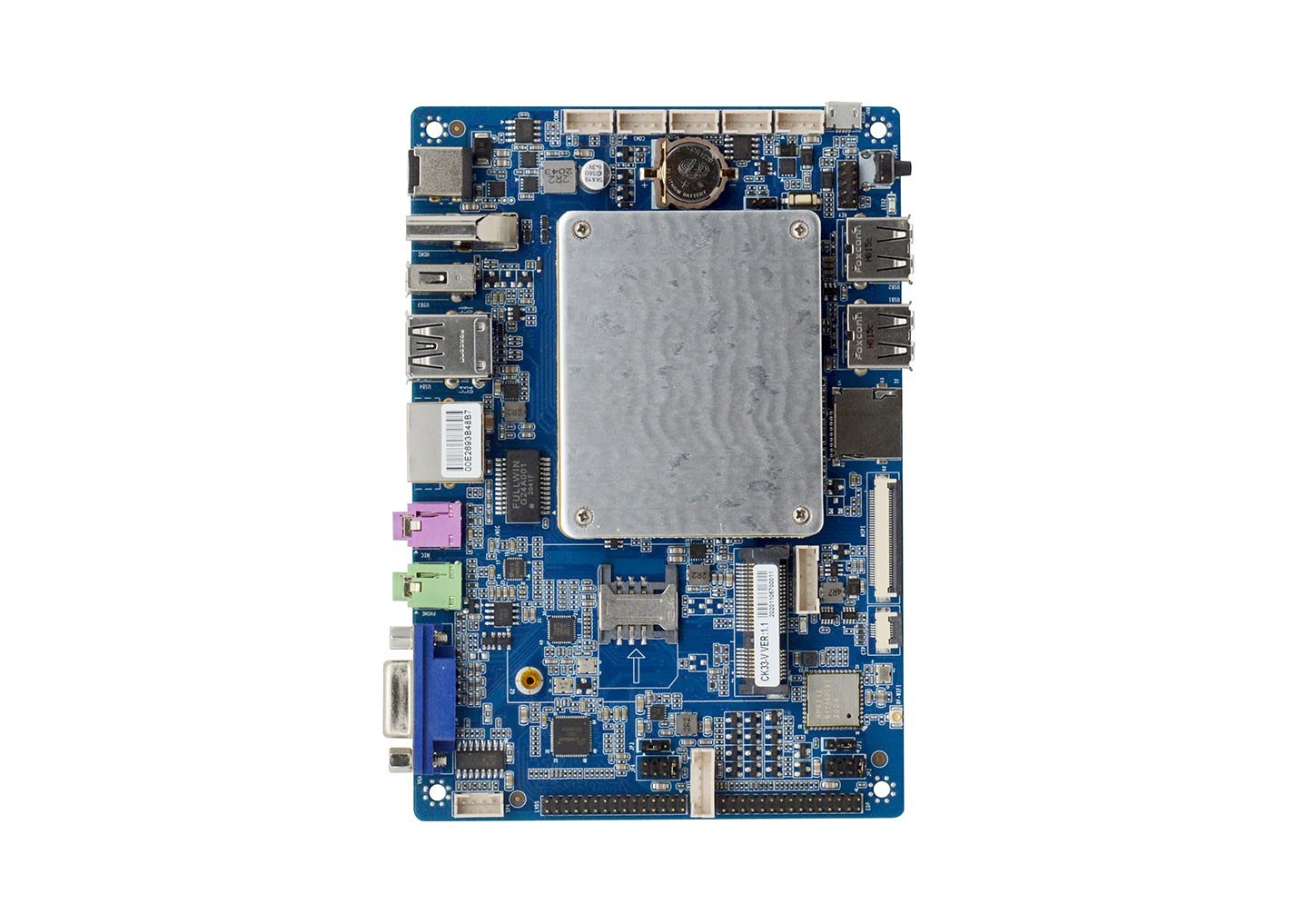

Rockchip RK3288

CK33-V VER: 1.1

项目介绍:

Product No.

CK33-V VER: 1.1

Display



Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

1*VGA interface, 1*HDMI interface, 1*LVDS interface, 1*EDP interface, 1*MIPI interface

Support three screens with the same display / three screens with different display

Internet



1* RTL8211F Gigabit Ethernet chip

1*WIFI/Bluetooth module

Store

1* TF card slot, maximum support 64G

Audio

Onboard Everest ES8316 Audio chip, support Line-out, MIC, power amplifier support 2Ω5W dual channel

Expansion slot

1* Mini-PCIE slot, support 4G module

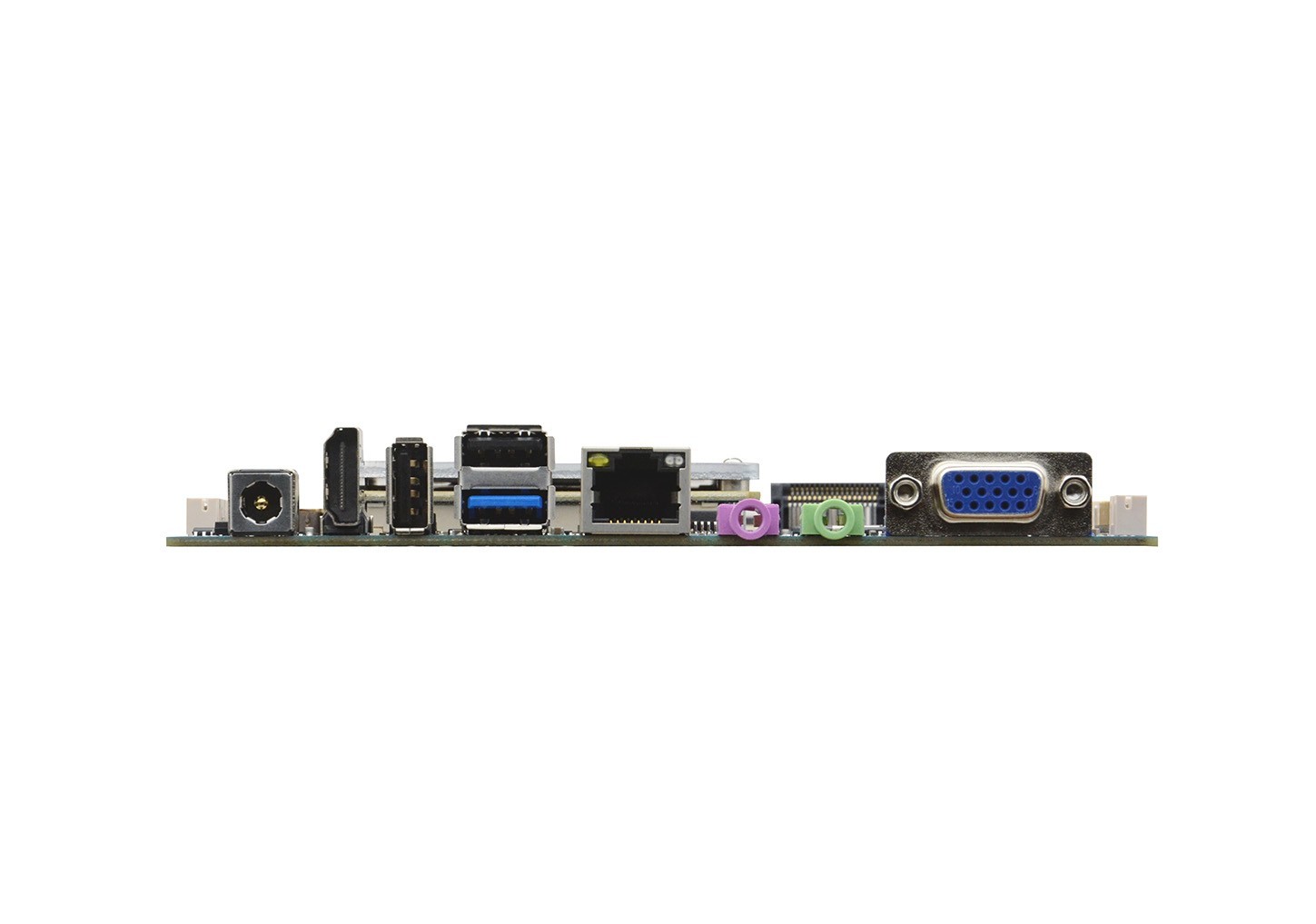

Rear I/O interface



2* USB2.0 interface, 1* USB3.0 interface

1* HDMI port

1* Gigabit network interface

1* Line-out (green)

1* MICK (red)

1* VGA port

1* DC 12V power interface, support 12V power input and output

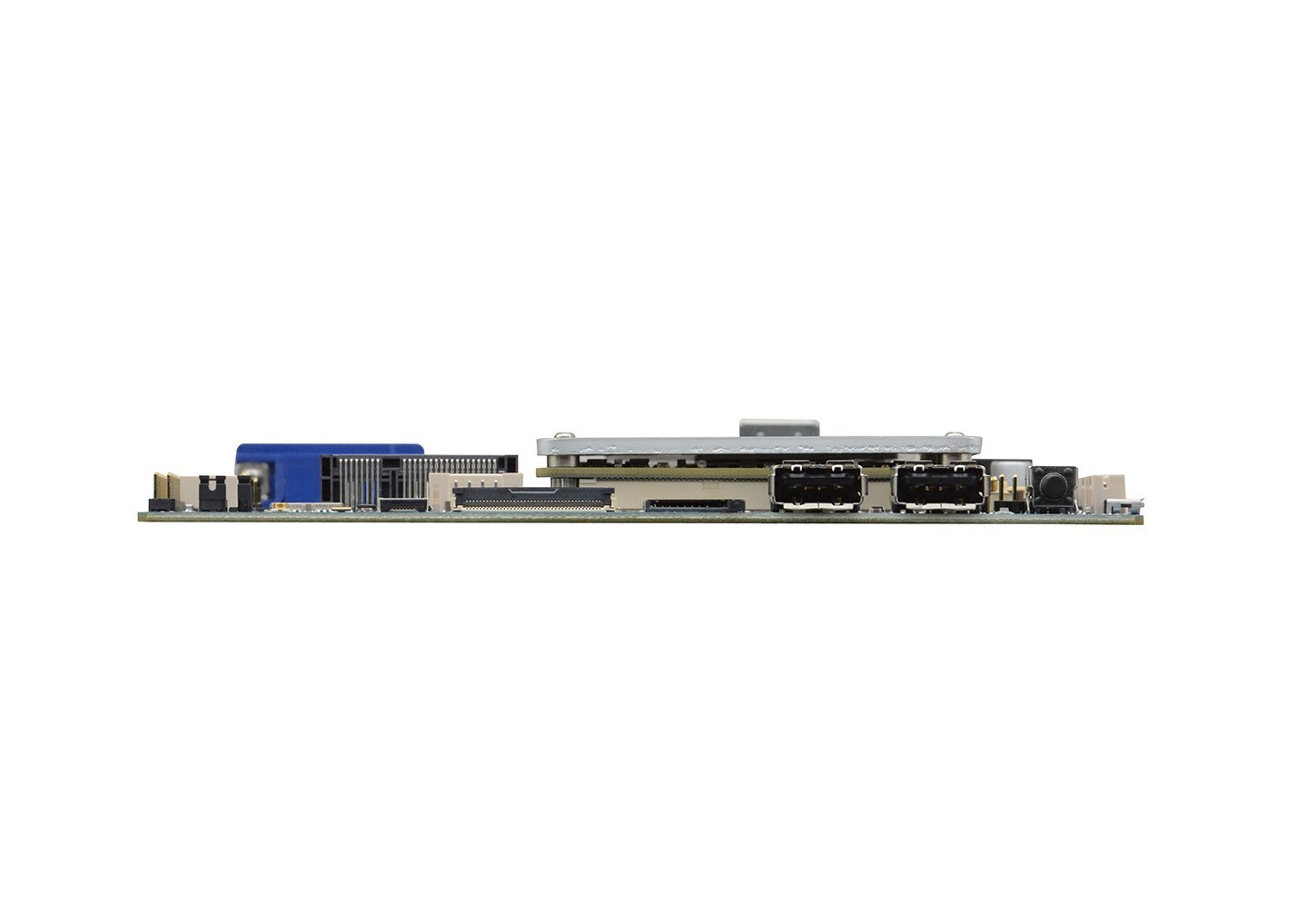

Front I/O interface



1* TF card slot

2* USB2.0 interface

1* MICRO_USB2.0 interface

1*Power switch

Built-in I/O



1* LVDS interface, 2*15pin, support dual channel 24BIT

1* EDP interface, 2*15pin,

2* RS232 serial interface, 1*4pin

1*RS485 serial interface, 1*4pin

1*TTL serial interface 1*4pin

1* Cash drawer interface 1*4pin

1* MIPI interface, FPC specification 40pin for connecting to MIPI screen

1* CTP interface, FPC specification 6pin, used to connect to touch screen

1* Screen backlight power supply interface 1*6pin

1* power amplifier interface 1*4pin

1*Front panel function button and indicator port 2*5pin

1* SIM card slot

Power type

DC 12V single power input

GPIO

Support 4 GPIO functions

system

Android 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)

Operating temperature

0℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

148mm x 102mm


事宜人群:

♦Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

♦1*VGA interface, 1*HDMI interface, 1*LVDS interface, 1*EDP interface, 1*MIPI interface

♦Support three screens with the same display / three screens with different display

♦1* RTL8211F Gigabit Ethernet chip

♦1*WIFI/Bluetooth module

♦1* TF card slot, maximum support 64G

♦Onboard Everest ES8316 Audio chip, support Line-out, MIC, power amplifier support 2Ω5W dual channel

♦1* Mini-PCIE slot, support 4G module


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

CK33-V VER: 1.1

Display



Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

1*VGA interface, 1*HDMI interface, 1*LVDS interface, 1*EDP interface, 1*MIPI interface

Support three screens with the same display / three screens with different display

Internet



1* RTL8211F Gigabit Ethernet chip

1*WIFI/Bluetooth module

Store

1* TF card slot, maximum support 64G

Audio

Onboard Everest ES8316 Audio chip, support Line-out, MIC, power amplifier support 2Ω5W dual channel

Expansion slot

1* Mini-PCIE slot, support 4G module

Rear I/O interface



2* USB2.0 interface, 1* USB3.0 interface

1* HDMI port

1* Gigabit network interface

1* Line-out (green)

1* MICK (red)

1* VGA port

1* DC 12V power interface, support 12V power input and output

Front I/O interface



1* TF card slot

2* USB2.0 interface

1* MICRO_USB2.0 interface

1*Power switch

Built-in I/O



1* LVDS interface, 2*15pin, support dual channel 24BIT

1* EDP interface, 2*15pin,

2* RS232 serial interface, 1*4pin

1*RS485 serial interface, 1*4pin

1*TTL serial interface 1*4pin

1* Cash drawer interface 1*4pin

1* MIPI interface, FPC specification 40pin for connecting to MIPI screen

1* CTP interface, FPC specification 6pin, used to connect to touch screen

1* Screen backlight power supply interface 1*6pin

1* power amplifier interface 1*4pin

1*Front panel function button and indicator port 2*5pin

1* SIM card slot

Power type

DC 12V single power input

GPIO

Support 4 GPIO functions

system

Android 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)

Operating temperature

0℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

148mm x 102mm


NO.

Model

Processor

Frequency

Memory

EDP

VGA

HDMI

LVDS

eMMC

WIFI

LAN

USB

COM

Power

1

CK33-V VER:1.1

/

/

/

1

1

1

2ch/24BIT

/

1

1*8211F

5

4

DC12V


♦Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

♦1*VGA interface, 1*HDMI interface, 1*LVDS interface, 1*EDP interface, 1*MIPI interface

♦Support three screens with the same display / three screens with different display

♦1* RTL8211F Gigabit Ethernet chip

♦1*WIFI/Bluetooth module

♦1* TF card slot, maximum support 64G

♦Onboard Everest ES8316 Audio chip, support Line-out, MIC, power amplifier support 2Ω5W dual channel

♦1* Mini-PCIE slot, support 4G module
