Rockchip RK3288

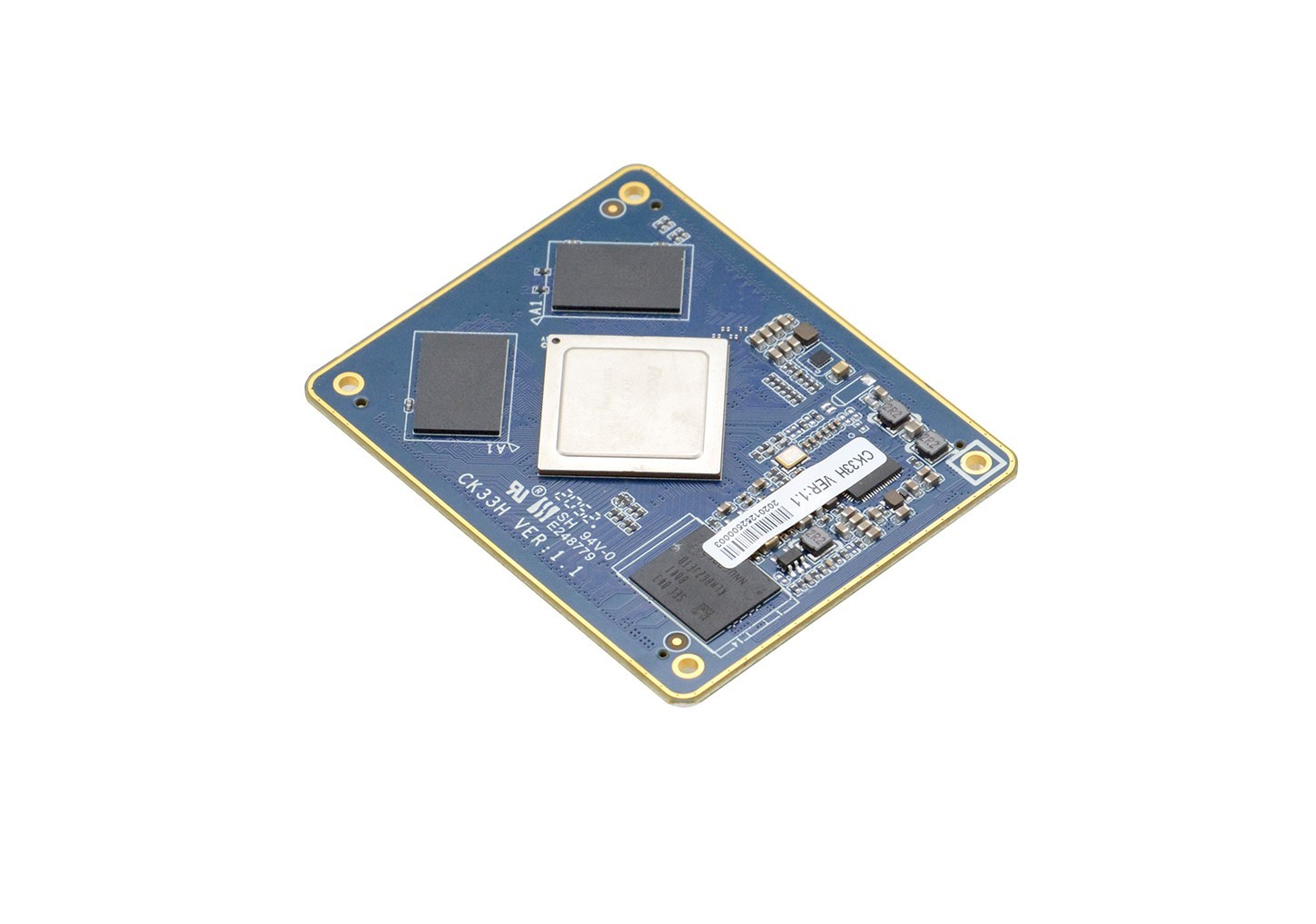

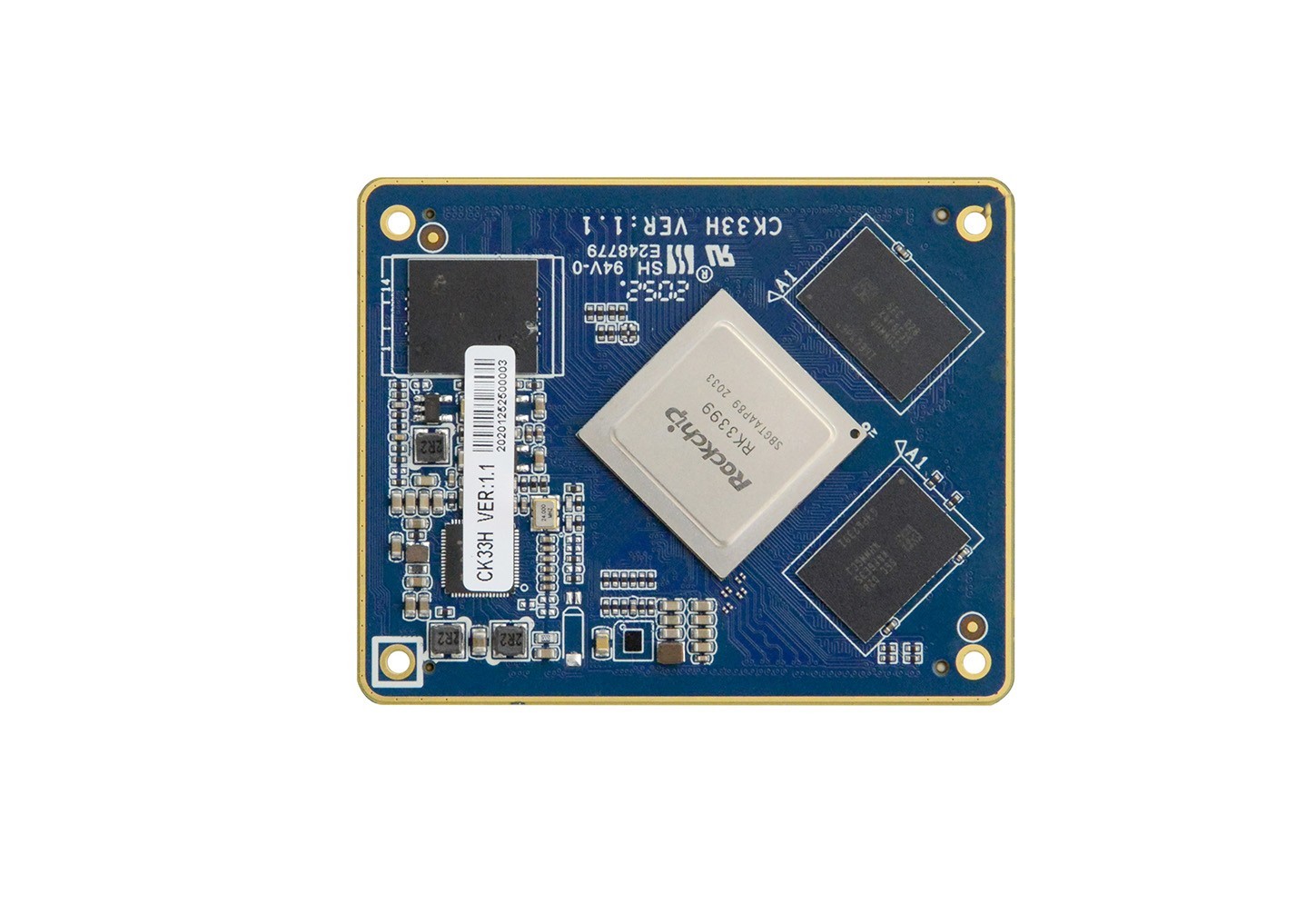

CK33H VER:1.1

项目介绍:

Product No.

CK33H VER:1.1

Processor

CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz

Quad-core Cortex-A53 up to 1.4GHz

Chipset

Based on RK3399 SOC platform

RAM

Onboard LPDDR4 4G memory

Display

Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

Support three screens with the same display, three screens with different display

Internet

10/100/1000Mbps Ethernet interface,

WIFI

Support Bluetooth/WIFI module

Store



1* eMMC5.1 memory chip 32G (16GB/32GB/128GB optional)

Support TF card expansion,

Audio

Support Line-out, MIC, power amplifier, power amplifier supports 2Ω5W/4Ω3W dual-channel, please refer to the specifications of the chassis

Expansion slot

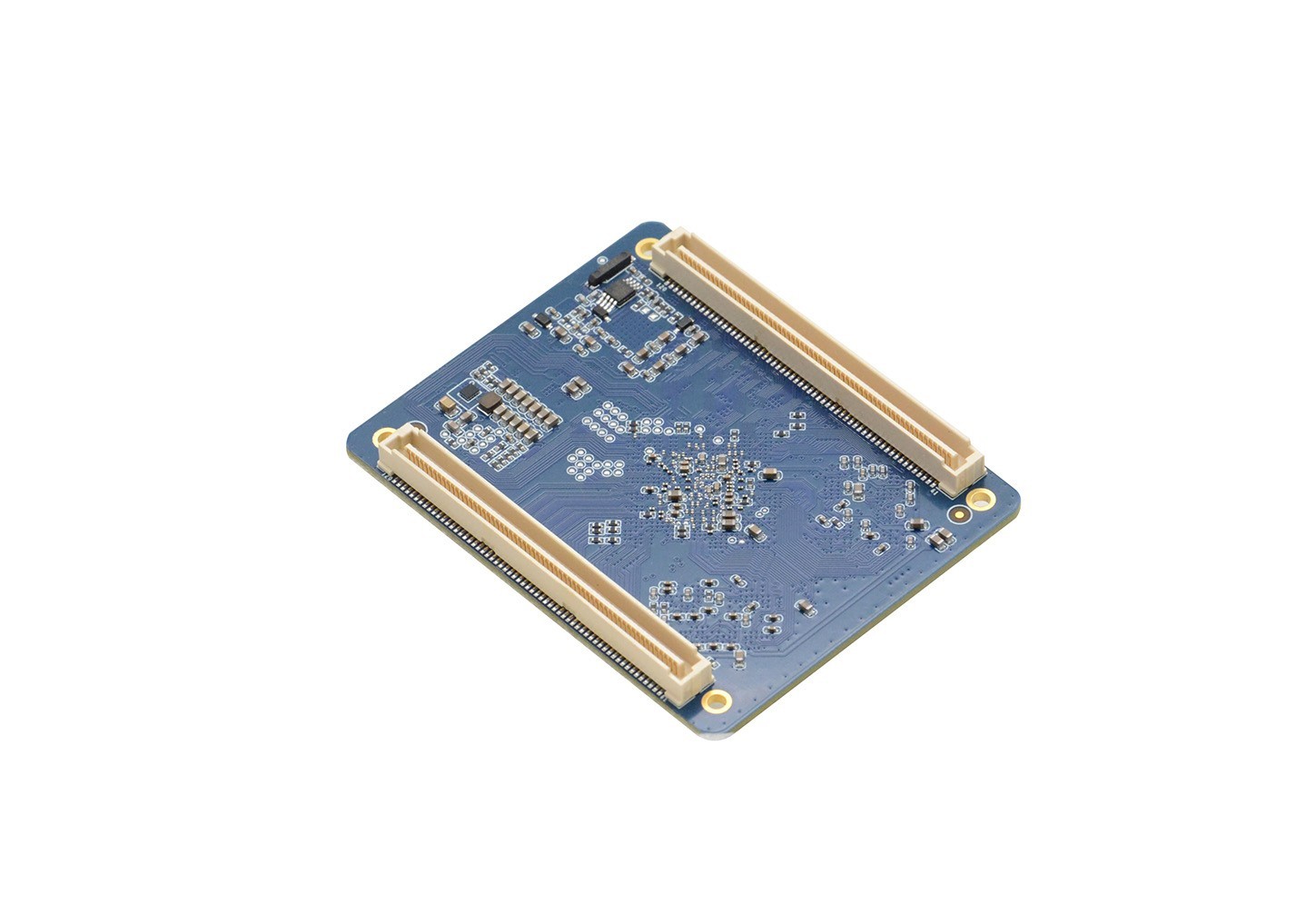

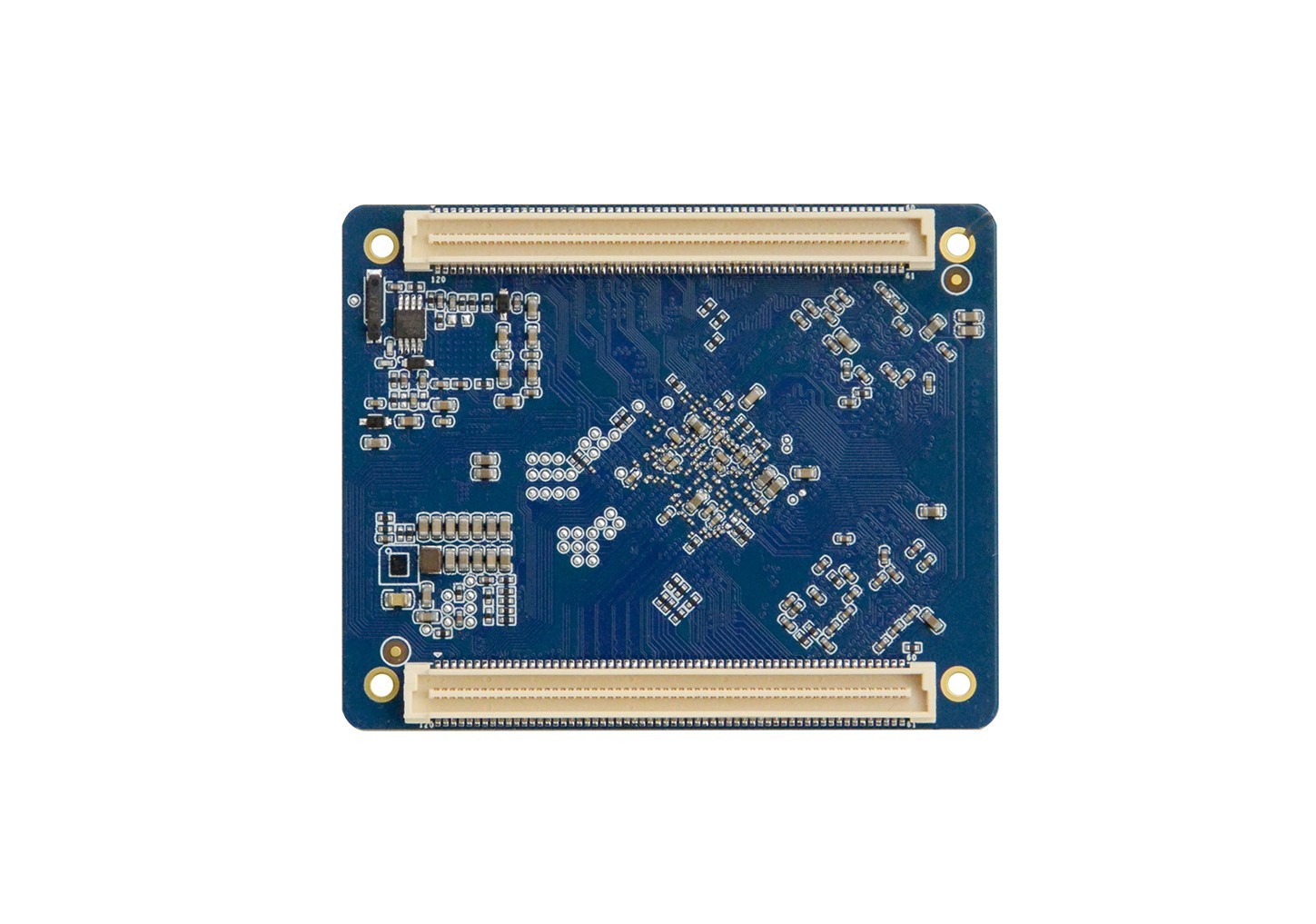

2* 120pin high-speed socket, transfer the signal on the motherboard to the IO board

Power type

DC input voltage 5V

system

Android 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)

Operating temperature

0℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

67mm x 54mm


事宜人群:

♦CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz

♦Quad-core Cortex-A53 up to 1.4GHz

♦Based on RK3399 SOC platform

♦Onboard LPDDR4 4G memory

♦Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

♦Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

♦Support three screens with the same display, three screens with different display

♦10/100/1000Mbps Ethernet interface,

♦Support Bluetooth/WIFI module


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

CK33H VER:1.1

Processor

CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz

Quad-core Cortex-A53 up to 1.4GHz

Chipset

Based on RK3399 SOC platform

RAM

Onboard LPDDR4 4G memory

Display

Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

Support three screens with the same display, three screens with different display

Internet

10/100/1000Mbps Ethernet interface,

WIFI

Support Bluetooth/WIFI module

Store



1* eMMC5.1 memory chip 32G (16GB/32GB/128GB optional)

Support TF card expansion,

Audio

Support Line-out, MIC, power amplifier, power amplifier supports 2Ω5W/4Ω3W dual-channel, please refer to the specifications of the chassis

Expansion slot

2* 120pin high-speed socket, transfer the signal on the motherboard to the IO board

Power type

DC input voltage 5V

system

Android 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)

Operating temperature

0℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

67mm x 54mm


NO.

Model

Processor

Frequency

Memory

eMMC

HDMI

LVDS

VGA

WIFI

LAN

USB

COM

Power

1

CK33H VER:1.1

RK3399

1.8GHz

4G

32G

/

/

/

/

/

/

/

DC5V


♦CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz

♦Quad-core Cortex-A53 up to 1.4GHz

♦Based on RK3399 SOC platform

♦Onboard LPDDR4 4G memory

♦Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

♦Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

♦Support three screens with the same display, three screens with different display

♦10/100/1000Mbps Ethernet interface,

♦Support Bluetooth/WIFI module
