Rockchip RK3288

CK32B VER: 1.0

项目介绍:
Product No.CK32B VER: 1.0
ProcessorCPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor
ChipsetBased on RK3288 SOC platform
RAMOnboard LPDDR3 2G memory (1G/2G optional)
DisplayIntegrated ARM Mali-T764 GPU, support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

Support dual-screen same display, dual-screen different display
The internetSupport 10/100/1000Mbps Ethernet interface,
WIFISupport Bluetooth/WIFI module
Store1* eMMC5.1 Memory chip 16G (8GB/16GB optional)

Support TF card expansion,
Tone frequencySupport Line-out, MIC, power amplifier, power amplifier supports 2Ω5W/4Ω3W dual-channel, please refer to the specifications of the chassis
Expansion slot2* 120pin high-speed socket, transfer the signal on the motherboard to the IO board
Power typeDC input voltage 5V
systemAndroid 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)
Operating temperature0℃~60
Storage temperature-20℃~70
Working humidity5%-95% relative humidity, non-condensing
Size67mm x 54mm


事宜人群:

♦CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

♦Based on RK3288 SOC platform

♦Onboard LPDDR3 2G memory (1G/2G optional)

♦Integrated ARM Mali-T764 GPU, support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

♦Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

♦Support dual-screen same display, dual-screen different display

♦Support 10/100/1000Mbps Ethernet interface,

♦Support Bluetooth/WIFI module


  • Product Specifications
  • Ordering Information
  • Download Center
Product No.CK32B VER: 1.0
ProcessorCPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor
ChipsetBased on RK3288 SOC platform
RAMOnboard LPDDR3 2G memory (1G/2G optional)
DisplayIntegrated ARM Mali-T764 GPU, support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

Support dual-screen same display, dual-screen different display
The internetSupport 10/100/1000Mbps Ethernet interface,
WIFISupport Bluetooth/WIFI module
Store1* eMMC5.1 Memory chip 16G (8GB/16GB optional)

Support TF card expansion,
Tone frequencySupport Line-out, MIC, power amplifier, power amplifier supports 2Ω5W/4Ω3W dual-channel, please refer to the specifications of the chassis
Expansion slot2* 120pin high-speed socket, transfer the signal on the motherboard to the IO board
Power typeDC input voltage 5V
systemAndroid 7.1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode)
Operating temperature0℃~60
Storage temperature-20℃~70
Working humidity5%-95% relative humidity, non-condensing
Size67mm x 54mm


NO.

Model

Processor

Frequency

Memory

EDP

HDMI

LVDS

eMMC

WIFI

LAN

USB

COM

1

CK32B VER:1.0

RK3288

1.8G

2G

/

/

/

16G

/

/

/

/

Matching bottom plate

NO.

Model

EDP

VGA

HDMI

LVDS

DP

WIFI

LAN

USB

COM

RS485

RJ11

Power

1

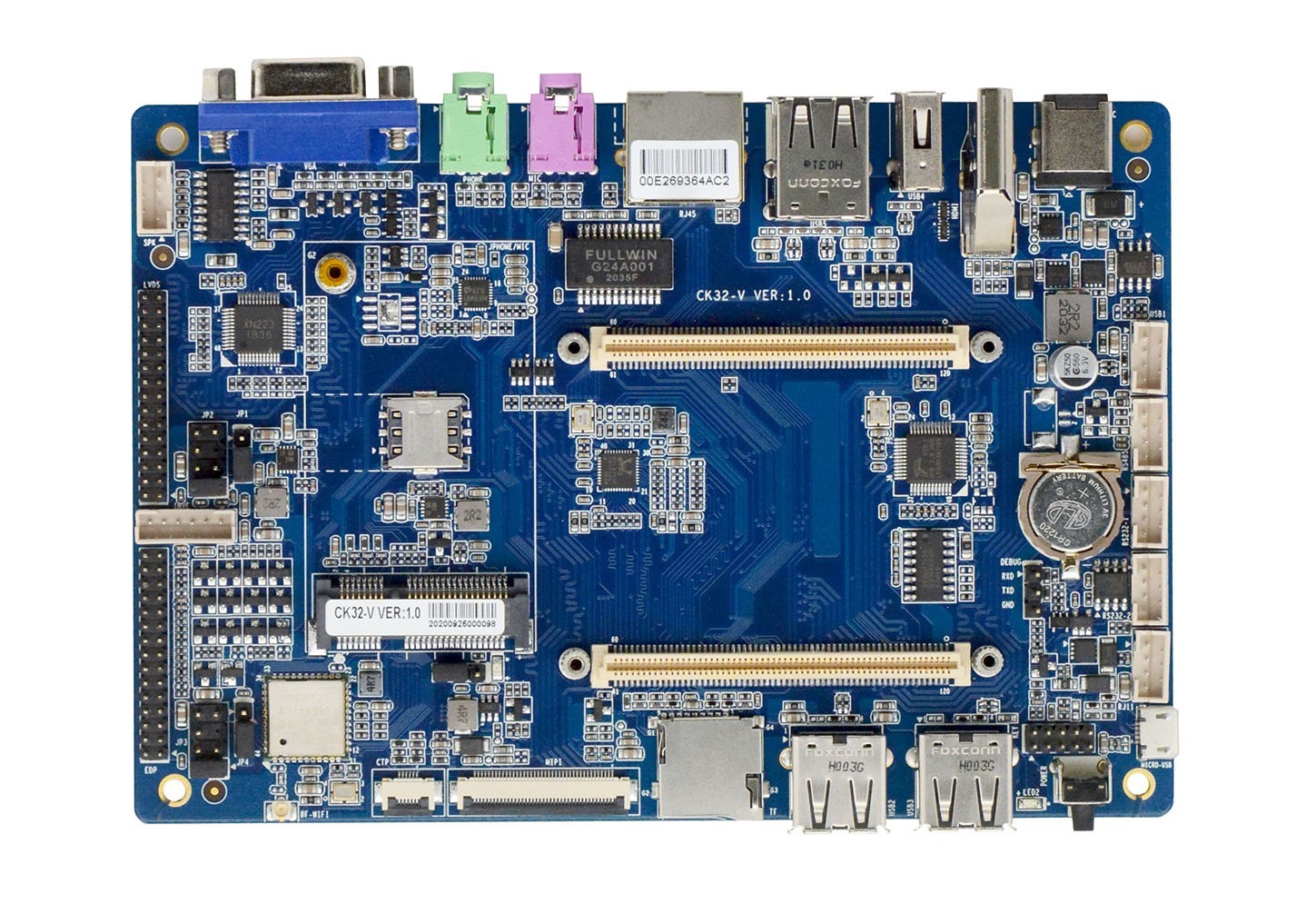

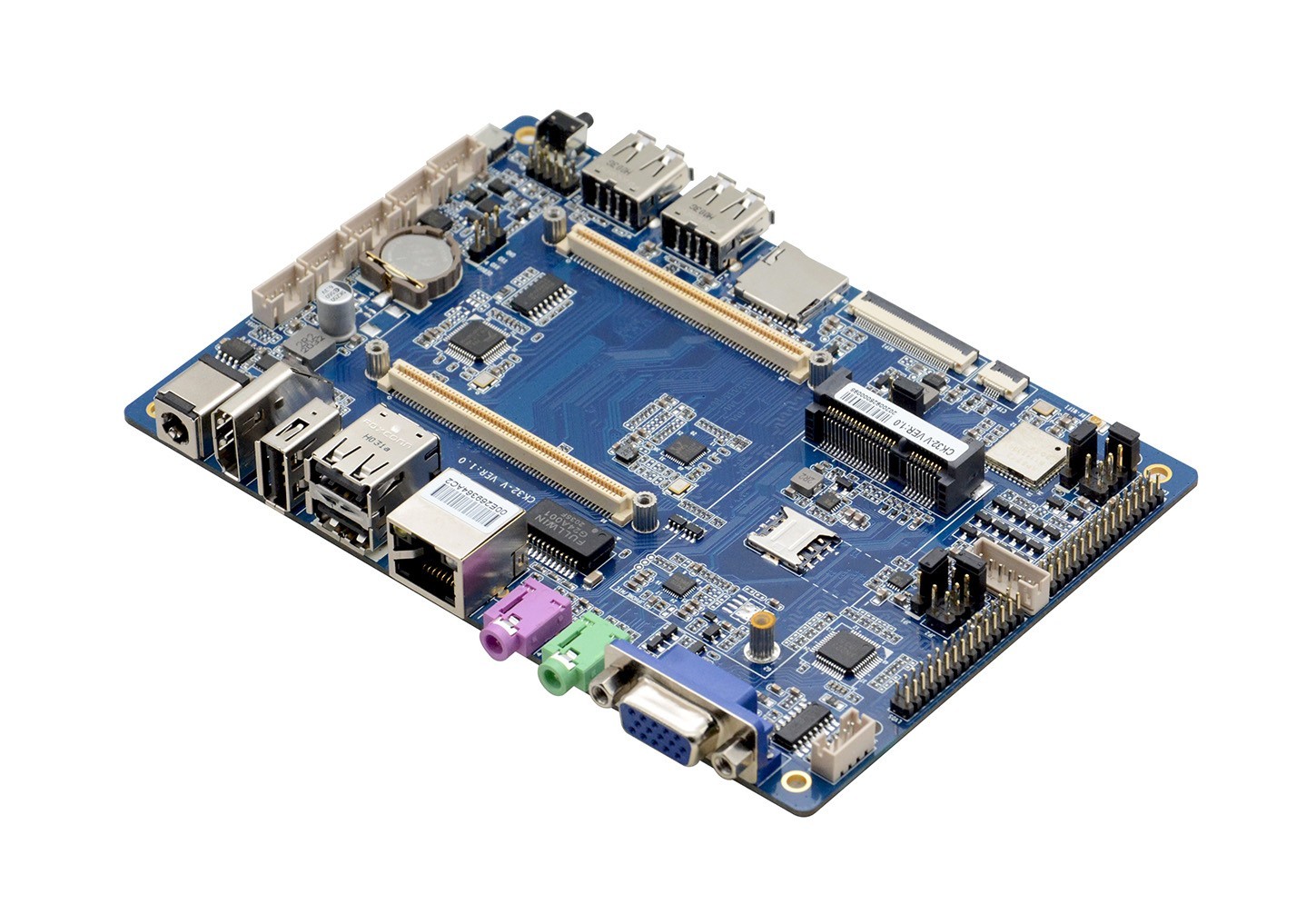

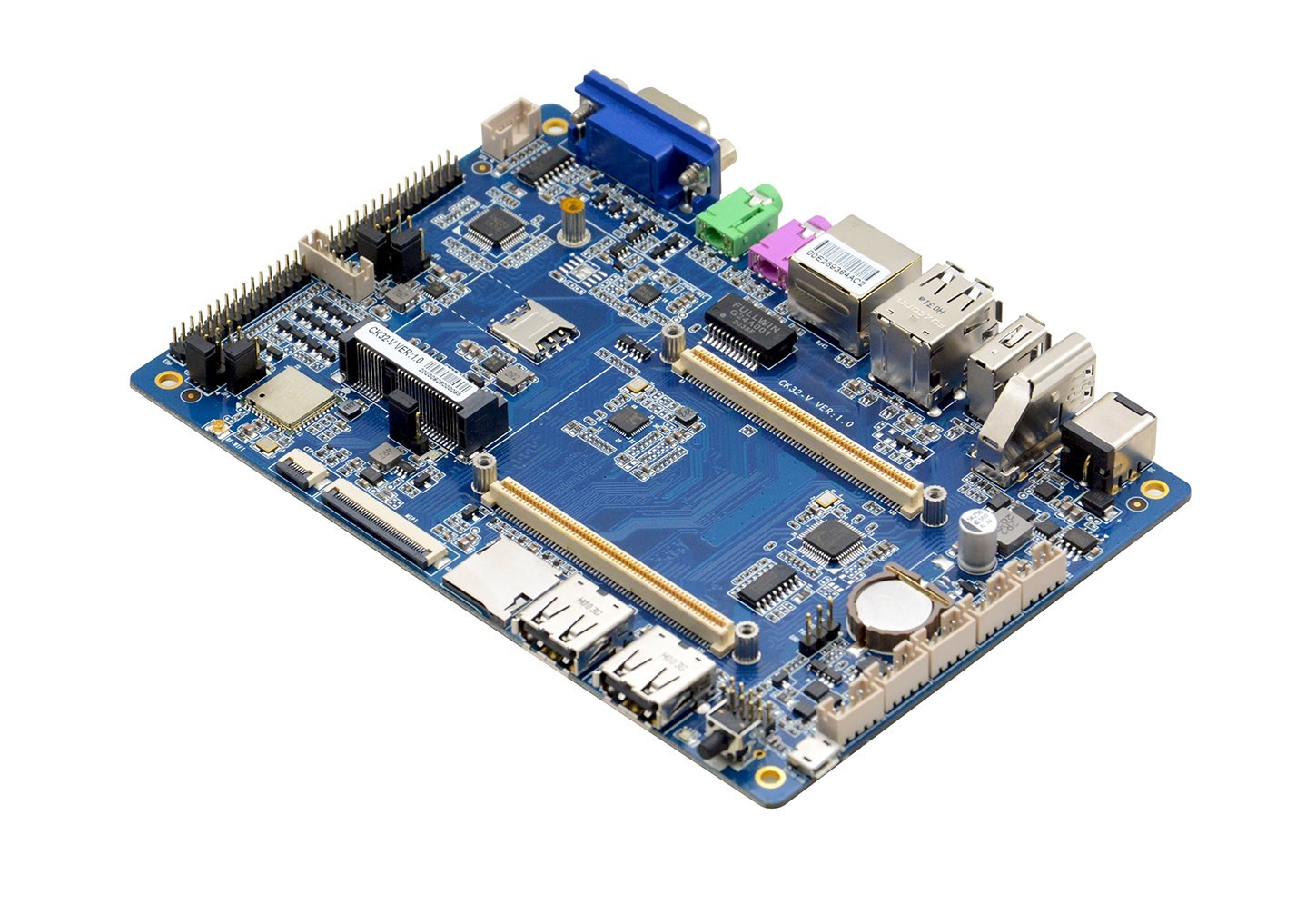

CK32-V VER:1.0

1

1

1

1

/

1

1

6

2

1

1

DC2V






♦CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

♦Based on RK3288 SOC platform

♦Onboard LPDDR3 2G memory (1G/2G optional)

♦Integrated ARM Mali-T764 GPU, support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

♦Support HDMI/LVDS/EDP/VGA/MIPI display, please refer to backplane specifications for details

♦Support dual-screen same display, dual-screen different display

♦Support 10/100/1000Mbps Ethernet interface,

♦Support Bluetooth/WIFI module
