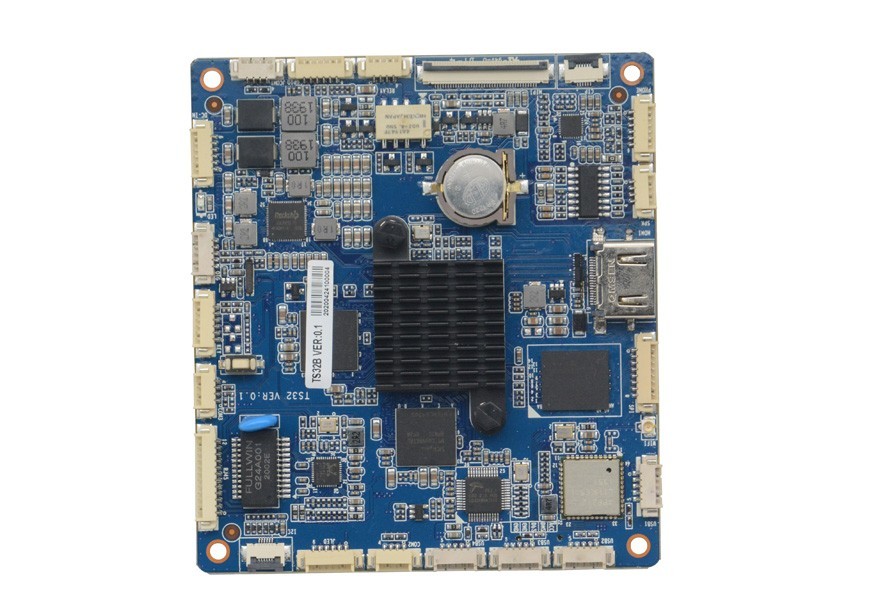

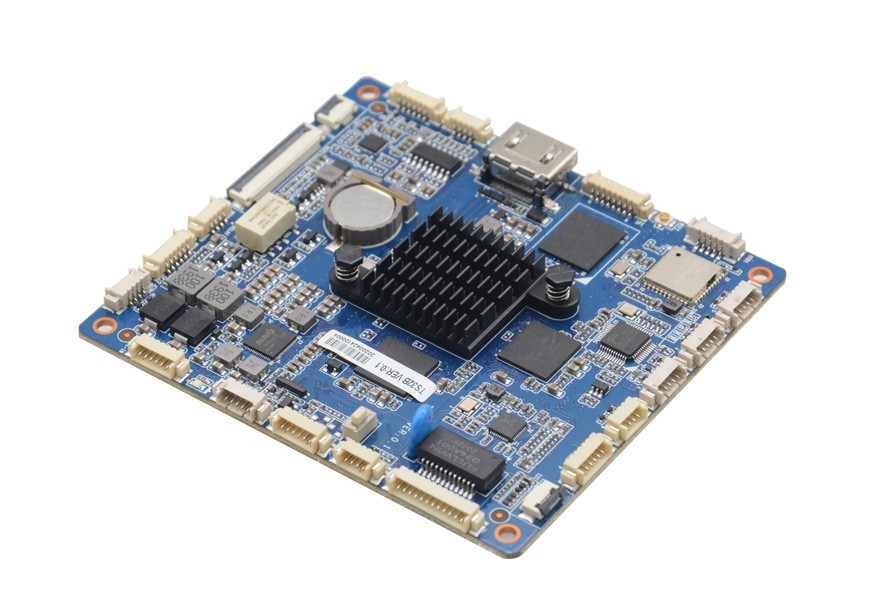

Rockchip RK3288

TS32B VER:1.0

项目介绍:
Model NO.

TS32B VER:1.0

ProcessorCPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor
ChipsetBased on the RK3288 SOC platform
MemoryOn-board LPDDR3 2G memory
DisplayIntegrated ARM Mali-T764 GPU supports OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11
1*HDMI interface (reserved optional), 1*EDP interface
Network1*RTL8211F Gigabit Network Card Chip

1*WIFI/Bluetooth module
Storage1*eMMC memory chip 16G
1*TF card slot with maximum support of 64G
AudioOn-board Everest ES8316 Audio chip with Line-out, MIC, amplifier

Amplifier supports 2 s5W/4o3W dual channels
ExtendedN/A
External I/O1*HDMI interface

1*TF card slot (back)
Built-in I/O1*EDP interface FPC specification, 30pin
1*MIPI interface FPC specification 40pin for connecting MIPI screen
3*TTL Serial Interface 1*4pin PH*1.25mm
1*Touch screen interface FPC specification 6pin
1*Audio Interface 1*6pin PH*1.25mm
1*Amplifier Interface 1*4pin PH*1.25mm
4*USB2.0 Interface 1*5pin PH*1.25mm
1*Network Interface 1*12pin PH*1.25mm
1*I2C interface FPC specification 6pin
1*SPI interface 1*8pin PH*1.25mm, can be used to extend com port
1*LED light interface 1*6pin PH*1.25mm
1*front panel function button and LED interface 1*6pin PH*1.25mm
1*OTG USB2.0 interface 1*5pin PH*1.25mm
1*DC12V power interface 1*6pin PH*1.25mm
1*Relay Lock Interface 1x4pin PH*1.25mm
Power typeDC 12V single power input
GPIOSupport for 4 GPIO interfaces
OSAndroid 7.1
Operating temperatureFrom 0C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size100mm*90mm


事宜人群:

♦ CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

♦ Based on RK3288 SOC platform

♦ on-board LPDDR3 2G memory

♦ Integrated ARM Mali-T764 GPU with OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

♦ 1 x HDMI interface (reserved optional), 1 x EDP interface

♦ 1 x eMMC memory chip 16G, 1 x TF card slot with maximum support of 64G

♦ 1 x RTL8211F Gigabit Card Chip


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.

TS32B VER:1.0

ProcessorCPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor
ChipsetBased on the RK3288 SOC platform
MemoryOn-board LPDDR3 2G memory
DisplayIntegrated ARM Mali-T764 GPU supports OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11
1*HDMI interface (reserved optional), 1*EDP interface
Network1*RTL8211F Gigabit Network Card Chip

1*WIFI/Bluetooth module
Storage1*eMMC memory chip 16G
1*TF card slot with maximum support of 64G
AudioOn-board Everest ES8316 Audio chip with Line-out, MIC, amplifier

Amplifier supports 2 s5W/4o3W dual channels
ExtendedN/A
External I/O1*HDMI interface

1*TF card slot (back)
Built-in I/O1*EDP interface FPC specification, 30pin
1*MIPI interface FPC specification 40pin for connecting MIPI screen
3*TTL Serial Interface 1*4pin PH*1.25mm
1*Touch screen interface FPC specification 6pin
1*Audio Interface 1*6pin PH*1.25mm
1*Amplifier Interface 1*4pin PH*1.25mm
4*USB2.0 Interface 1*5pin PH*1.25mm
1*Network Interface 1*12pin PH*1.25mm
1*I2C interface FPC specification 6pin
1*SPI interface 1*8pin PH*1.25mm, can be used to extend com port
1*LED light interface 1*6pin PH*1.25mm
1*front panel function button and LED interface 1*6pin PH*1.25mm
1*OTG USB2.0 interface 1*5pin PH*1.25mm
1*DC12V power interface 1*6pin PH*1.25mm
1*Relay Lock Interface 1x4pin PH*1.25mm
Power typeDC 12V single power input
GPIOSupport for 4 GPIO interfaces
OSAndroid 7.1
Operating temperatureFrom 0C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size100mm*90mm


NO.

Model

Processor

Frequency

Memory

EDP

VGA

HDMI

LVDS

eMMC

WIFI

LAN

USB

COM

Power

1

TS32B VER:1.0

RK3288

1.8G

2G

1

/

1

/

16G

1

1*8211F

5

3

DC12V


SpecificationsTS32B
DriverTS32B







♦ CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

♦ Based on RK3288 SOC platform

♦ on-board LPDDR3 2G memory

♦ Integrated ARM Mali-T764 GPU with OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

♦ 1 x HDMI interface (reserved optional), 1 x EDP interface

♦ 1 x eMMC memory chip 16G, 1 x TF card slot with maximum support of 64G

♦ 1 x RTL8211F Gigabit Card Chip
