LGA115X H87/B150

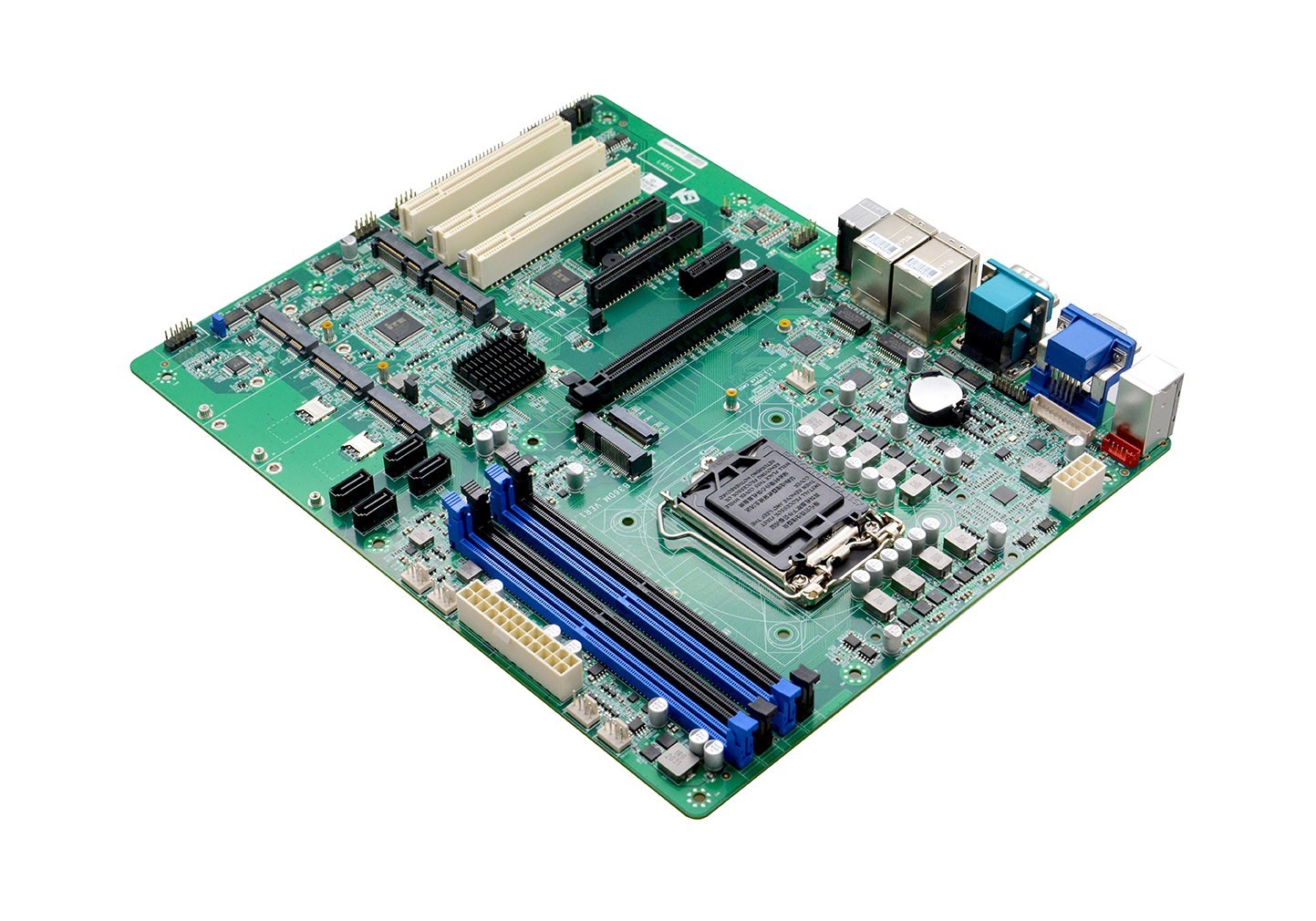

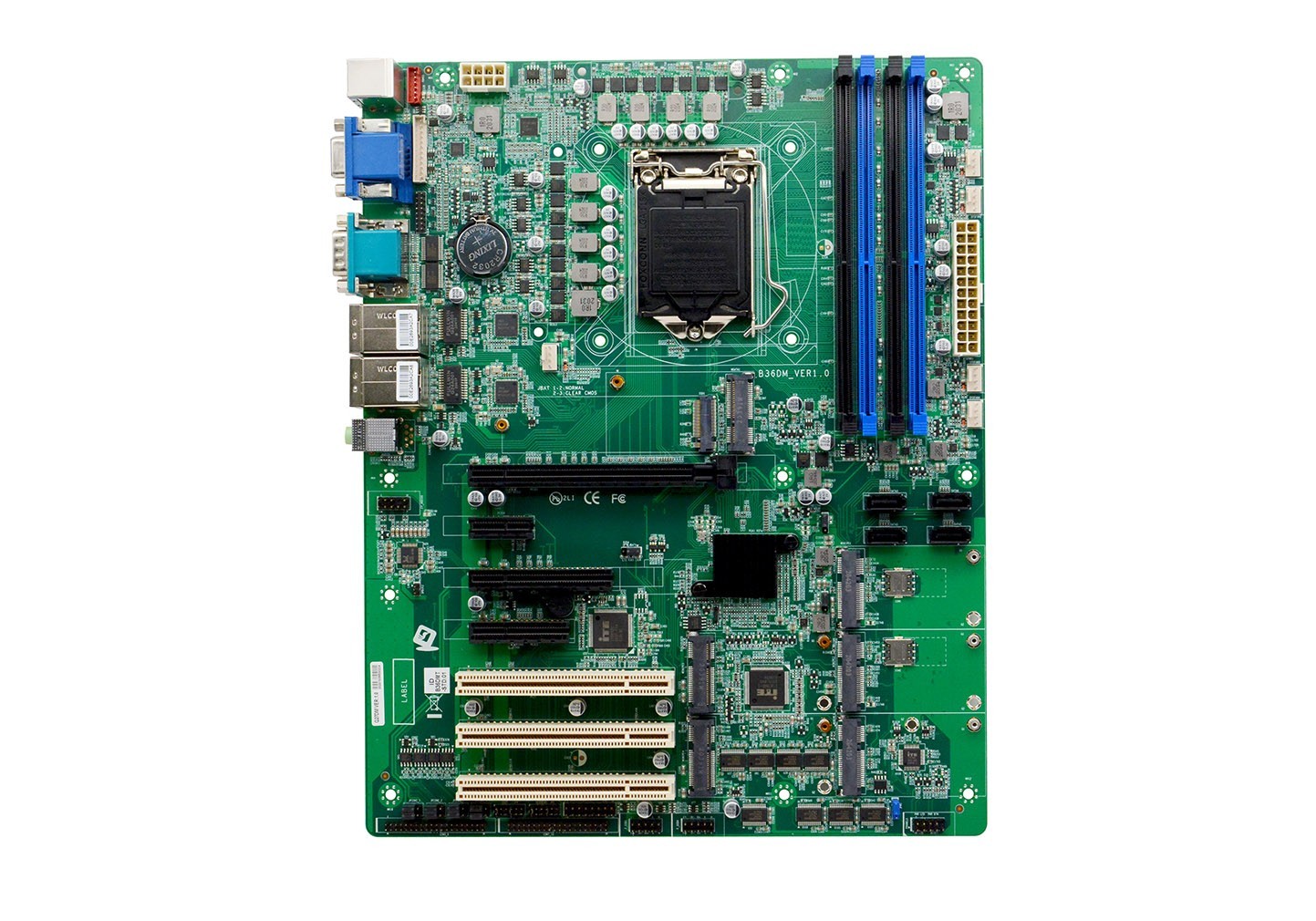

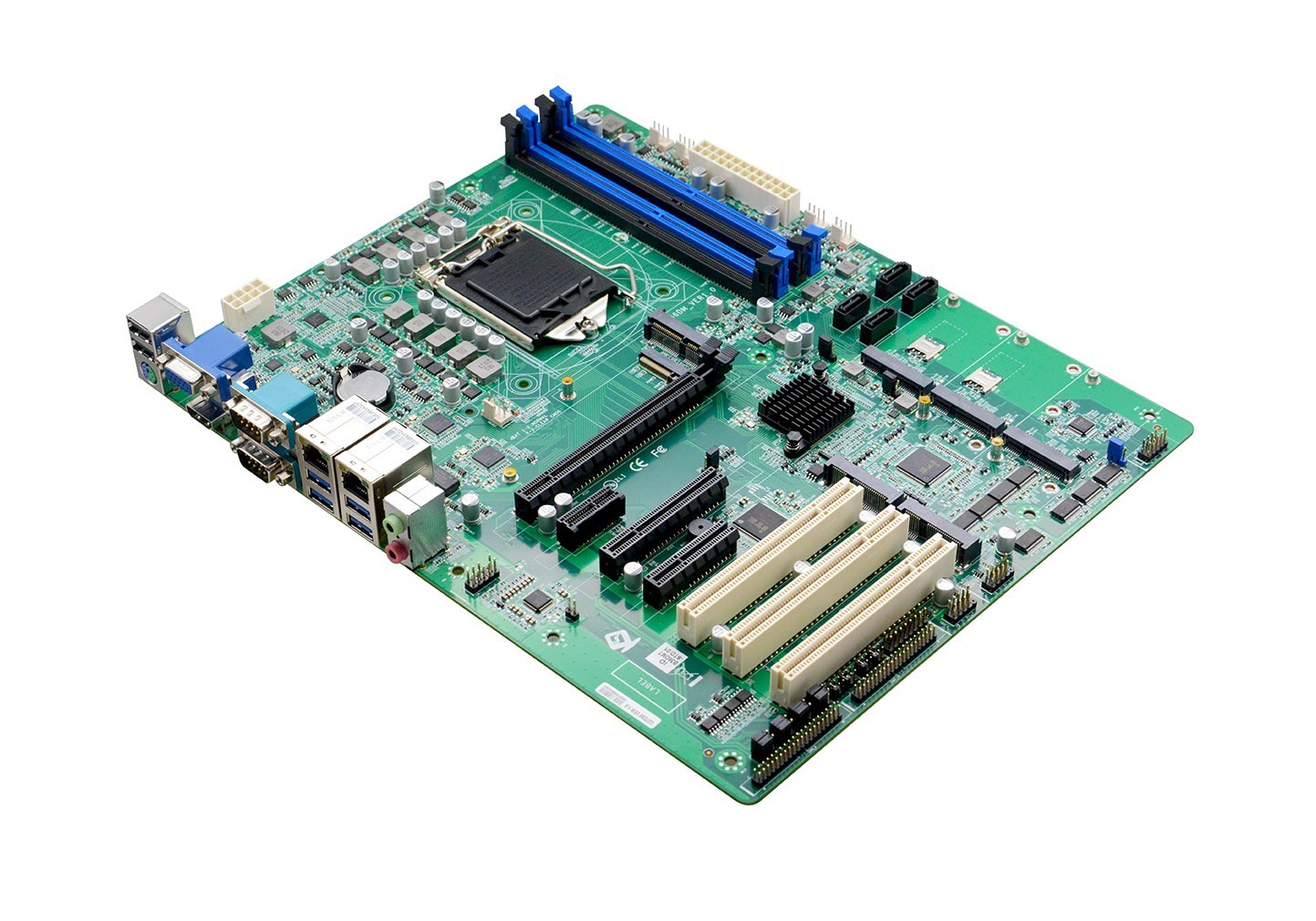

Q27DM VER1.0

项目介绍:

Product No.

Q27DM VER1.0

Processor

Supports 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1151 architecture

Chipset

Using Intel Q270 Express Chipset,

RAM

4*DDR4 UDIMM memory slot, support dual-channel maximum 2666MHz memory, maximum capacity 128GB

Display

Integrated Intel® HD Graphics graphics controller, support DirectX12, OpenGL4.4, support 4K display

Internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



2* HDMI1.4 interface, supports a maximum resolution of 4096X2304 @24Hz

2* Intel® WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function

4* SATA 3.0 hard disk interface, SATA interface transmission speed can reach 6Gbps

Audio

1* MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps

Expansion slot



1* M.2 slot, support M.2 2280 PCIE x4/SATA adaptive standard SSD

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

1* PCIE x16 slot,

1* PCIEx8 slot (actually PCIE x4 signal)

1* PCIEx4 slot (X4 signal when using Q270 south bridge, X1 signal for other south bridges)

1* PCIE X1 slot

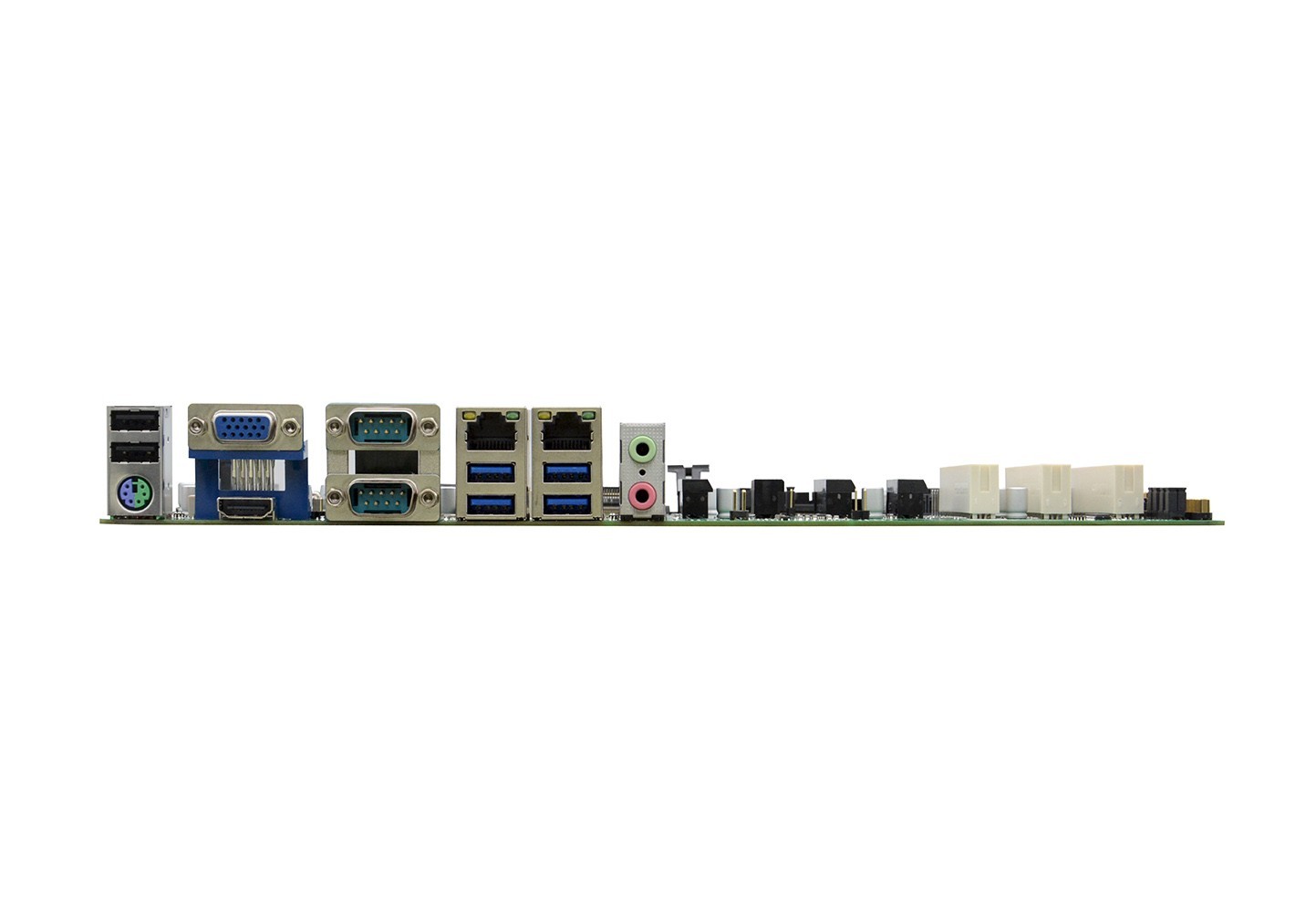

Backplane I/O interface



3* PCI slot

5* Mini-PCIE slots, each slot can use PCIE expansion board to expand 4 SATA interfaces and all support WIFI modules, of which MINIPE1 and MINIPE2 can support 4G modules

1* PS/2 keyboard and mouse interface

1* VGA display interface

1*HDMI display interface

2* DB9 RS232 serial interface, support the 9th pin charged function, COM2 supports RS485/422

2* RJ45 Gigabit network interface

2* USB 2.0 interface

Built-in I/O interface



4* USB 3.0 interface

1* Line out interface (green), 1* MIC interface (red)

1* PS/2 keyboard and mouse interface 1*6pin same signal as UK1

1* JVGA interface 1*12pin, same signal as DB15

1* JHDMI interface 2*8pin,

8* RS232 serial interface, COM3 supports RS485/422

1* Front audio interface 2*5pin

4* USB 2.0 interface 2*5Pin

1* TPM interface 2*8pin

1* Front panel function button and indicator port 2*5pin

2* SIM card slot


1* 24pin ATX power input interface

Fan interface

1* 8pin ATX power input interface

BIOS

1*4pin CPU intelligent fan interface, 4* 4pin system intelligent fan interface

operating system

64Mb Flash ROM

Watchdog

Windows system/ serve system/linux

Power type

Support hardware reset function (256 levels, 0~255 seconds)

Operating temperature

ATX power input

Storage temperature

0℃~60℃

Working humidity

-20℃~70℃


事宜人群:

♦Supports 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1151 architecture

♦Using Intel Q270 Express Chipset,

♦4*DDR4 UDIMM memory slot, support dual-channel maximum 2666MHz memory, maximum capacity 128GB

♦Integrated Intel® HD Graphics graphics controller, support DirectX12, OpenGL4.4, support 4K display

♦1* VGA interface, support the highest resolution 1920X1200@60Hz

♦2* HDMI1.4 interface, supports a maximum resolution of 4096X2304 @24Hz

♦2* Intel® WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function

♦4* SATA 3.0 hard disk interface, SATA interface transmission speed can reach 6Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

Q27DM VER1.0

Processor

Supports 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1151 architecture

Chipset

Using Intel Q270 Express Chipset,

RAM

4*DDR4 UDIMM memory slot, support dual-channel maximum 2666MHz memory, maximum capacity 128GB

Display

Integrated Intel® HD Graphics graphics controller, support DirectX12, OpenGL4.4, support 4K display

Internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



2* HDMI1.4 interface, supports a maximum resolution of 4096X2304 @24Hz

2* Intel® WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function

4* SATA 3.0 hard disk interface, SATA interface transmission speed can reach 6Gbps

Audio

1* MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps

Expansion slot



1* M.2 slot, support M.2 2280 PCIE x4/SATA adaptive standard SSD

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

1* PCIE x16 slot,

1* PCIEx8 slot (actually PCIE x4 signal)

1* PCIEx4 slot (X4 signal when using Q270 south bridge, X1 signal for other south bridges)

1* PCIE X1 slot

Backplane I/O interface



3* PCI slot

5* Mini-PCIE slots, each slot can use PCIE expansion board to expand 4 SATA interfaces and all support WIFI modules, of which MINIPE1 and MINIPE2 can support 4G modules

1* PS/2 keyboard and mouse interface

1* VGA display interface

1*HDMI display interface

2* DB9 RS232 serial interface, support the 9th pin charged function, COM2 supports RS485/422

2* RJ45 Gigabit network interface

2* USB 2.0 interface

Built-in I/O interface



4* USB 3.0 interface

1* Line out interface (green), 1* MIC interface (red)

1* PS/2 keyboard and mouse interface 1*6pin same signal as UK1

1* JVGA interface 1*12pin, same signal as DB15

1* JHDMI interface 2*8pin,

8* RS232 serial interface, COM3 supports RS485/422

1* Front audio interface 2*5pin

4* USB 2.0 interface 2*5Pin

1* TPM interface 2*8pin

1* Front panel function button and indicator port 2*5pin

2* SIM card slot


1* 24pin ATX power input interface

Fan interface

1* 8pin ATX power input interface

BIOS

1*4pin CPU intelligent fan interface, 4* 4pin system intelligent fan interface

operating system

64Mb Flash ROM

Watchdog

Windows system/ serve system/linux

Power type

Support hardware reset function (256 levels, 0~255 seconds)

Operating temperature

ATX power input

Storage temperature

0℃~60℃

Working humidity

-20℃~70℃


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

DP

EDP

LAN

USB

COM

RS485/422

Power

1

Q27DM VER:1.0

LGA1151

Q270

4*DDR4

1

2

/

/

2*211AT

10

10

COM2/3

ATX


Specification

Q27DM VER1.0



Driver (Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetQ27DM VER1.0
Win7/8/10 32/64BITGraphicsVGAQ27DM VER1.0
Win7/8/10 32/64BITAudioRealtek AudioQ27DM VER1.0
Win7/8/10 32/64BITLANIntel
Q27DM VER1.0
Win7/8/10 32/64BITMEME CorporateQ27DM VER1.0
Win7/8/10 32/64BITDPTFDPTFQ27DM VER1.0
Win7/8/10 32/64BITRSTRSTQ27DM VER1.0
Win7/8/10 32/64BITSerial IOSerial_IOQ27DM VER1.0
