LGA115X H87/B150

C36DM VER:1.1

项目介绍:

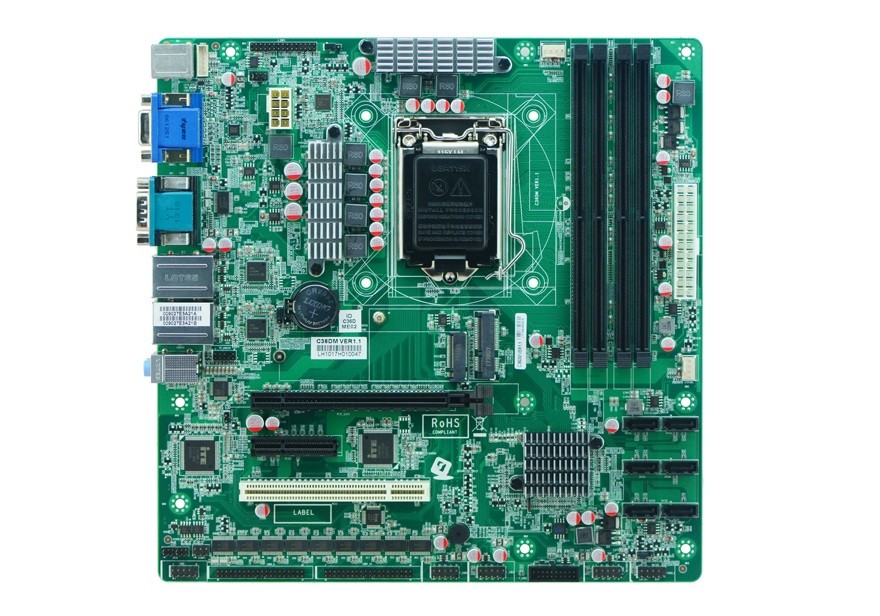

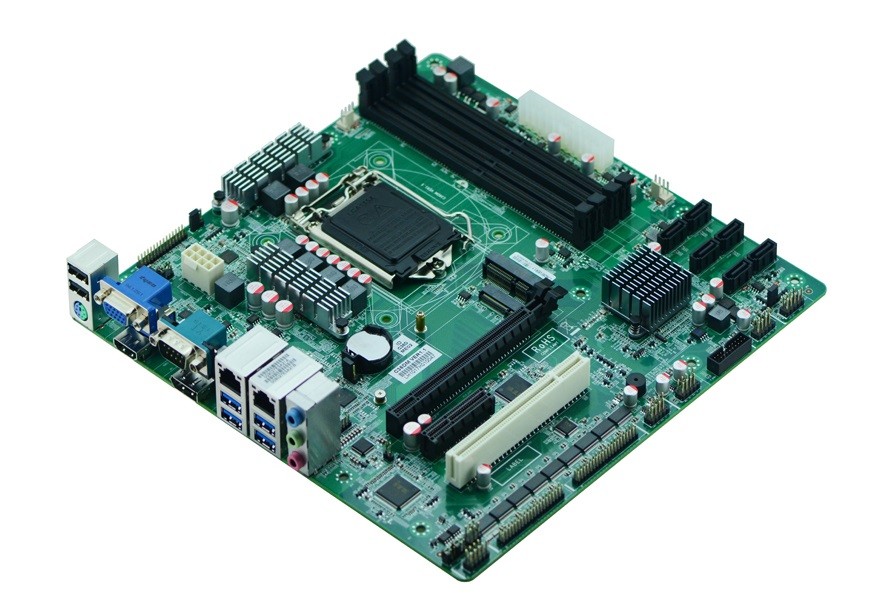

Model No.

C36DM VER1.1

CPU

Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Chipset

Adopt Intel C236 High speed chipset,Compatible intelB150 chipset

Memory

4*DDR4 UDIMM,support daul channel 2133MHz memory,up to 64GB

Graphics

Intel® HD Graphics graphics,support DirectX12,OpenGL4.4,support 4K/60Hz dispaly.

1* VGA slot,support max resolution :1920X1200@60Hz

1* HDMI1.4slot,support max resolution:4096X2304 @24Hz

1* Displayport slot,support max resolution:4096X2304@60Hz

1*Embedded Displayport slot,Support for individual display, complex display mode, extended mode

Lan

2*Intel® WGI211AT Gigabit Ethernet ,support wake on LAN/PXE

Storage

Provide 6/SATA 3.0,SATA slot the transfer rate up to 6Gbps(B150only support 4*SATA)


1*MSATA slot, support WIFIor SSD ,SSD the transfer rate up to6Gbps,


1*M.2 slot,support M.2 2280 standard SSD

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Extended slot

1*PCIE x16 slot ,1*PCIEx4 slot,1*PCI Extended slot

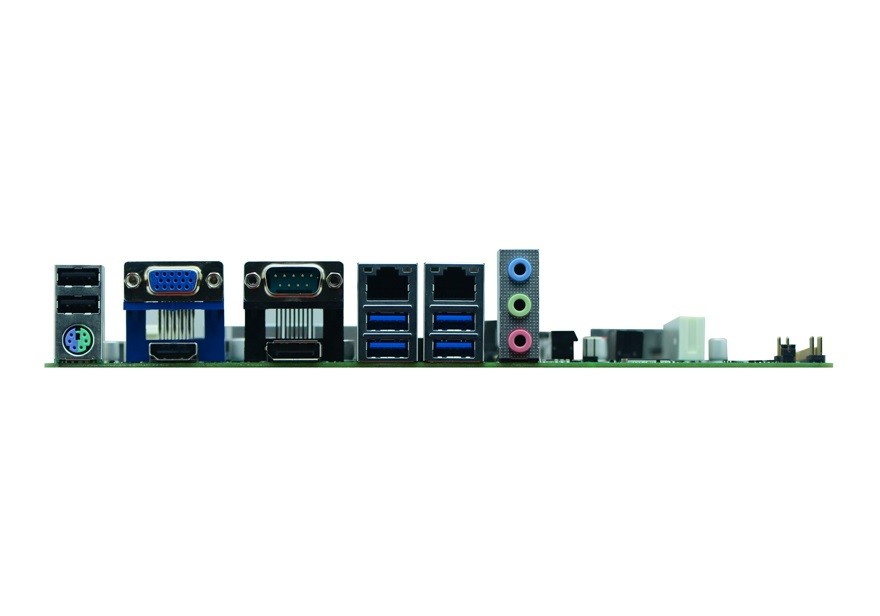

Rear I/O

1* PS/2 KB/MS connector


1* VGA


1*HDMI


1* Displayport


1*DB9 RS232,support 9pin live function


2* USB 2.0


4* USB 3.0


2* RJ-45 Gigabit network interface


1* Line out(green),1* Line in(blue),1* MIC(red)

Internal I/O

1* PS/2 KB/MS connector   1*6pin same signal as UK1


1* Embedded Displayport,2*15pin


9* RS232 serial port (COM3 support RS232/RS485/422)


1* front panel audio connector 2*5pin


6* USB 2.0  2*5Pin


2* USB3.0  2*10pin


1* front panel function buttons and indicator connector 2*5pin


1* 24pin ATX Power input interface


1* 8pin ATX Power input interface

FAN Interface

1*4pin CPU fan interface,1* 4pin system fan interface

BIOS

AMI 128Mb Flash ROM

OS

Windows system/ serve system/linux

Watchdog

Support hardware reset function(256,0~255 seconds)

Power input

ATX power input

Operating Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

245mm x 245mm


事宜人群:

◆ Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

◆ Adopt Intel C236 High speed chipset,

◆ 4*DDR4 UDIMM,support daul channel 2133MHz memory,up to 64GB

◆ Intel® HD Graphics graphics,support DirectX12,OpenGL4.4,support 4K/60Hz dispaly

◆ 1* VGA,1* DP,1* EDP,1* HDMI1.4

◆ 2*Intel® WGI211AT Gigabit Ethernet ,support wake on LAN/PXE

◆ 10* USB2.0,4个USB3.0,10*RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

C36DM VER1.1

CPU

Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Chipset

Adopt Intel C236 High speed chipset,Compatible intelB150 chipset

Memory

4*DDR4 UDIMM,support daul channel 2133MHz memory,up to 64GB

Graphics

Intel® HD Graphics graphics,support DirectX12,OpenGL4.4,support 4K/60Hz dispaly.

1* VGA slot,support max resolution :1920X1200@60Hz

1* HDMI1.4slot,support max resolution:4096X2304 @24Hz

1* Displayport slot,support max resolution:4096X2304@60Hz

1*Embedded Displayport slot,Support for individual display, complex display mode, extended mode

Lan

2*Intel® WGI211AT Gigabit Ethernet ,support wake on LAN/PXE

Storage

Provide 6/SATA 3.0,SATA slot the transfer rate up to 6Gbps(B150only support 4*SATA)


1*MSATA slot, support WIFIor SSD ,SSD the transfer rate up to6Gbps,


1*M.2 slot,support M.2 2280 standard SSD

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Extended slot

1*PCIE x16 slot ,1*PCIEx4 slot,1*PCI Extended slot

Rear I/O

1* PS/2 KB/MS connector


1* VGA


1*HDMI


1* Displayport


1*DB9 RS232,support 9pin live function


2* USB 2.0


4* USB 3.0


2* RJ-45 Gigabit network interface


1* Line out(green),1* Line in(blue),1* MIC(red)

Internal I/O

1* PS/2 KB/MS connector   1*6pin same signal as UK1


1* Embedded Displayport,2*15pin


9* RS232 serial port (COM3 support RS232/RS485/422)


1* front panel audio connector 2*5pin


6* USB 2.0  2*5Pin


2* USB3.0  2*10pin


1* front panel function buttons and indicator connector 2*5pin


1* 24pin ATX Power input interface


1* 8pin ATX Power input interface

FAN Interface

1*4pin CPU fan interface,1* 4pin system fan interface

BIOS

AMI 128Mb Flash ROM

OS

Windows system/ serve system/linux

Watchdog

Support hardware reset function(256,0~255 seconds)

Power input

ATX power input

Operating Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

245mm x 245mm


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

DP

EDP

LAN

USB

COM

RS485/422

Power

1

C36DM VER:1.1

LGA1151

C236

4*DDR4

1

1

1

1

2*211AT

14

10

COM3

ATX


 SpecificationsC36DM
DriverC36DM



◆ Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

◆ Adopt Intel C236 High speed chipset,

◆ 4*DDR4 UDIMM,support daul channel 2133MHz memory,up to 64GB

◆ Intel® HD Graphics graphics,support DirectX12,OpenGL4.4,support 4K/60Hz dispaly

◆ 1* VGA,1* DP,1* EDP,1* HDMI1.4

◆ 2*Intel® WGI211AT Gigabit Ethernet ,support wake on LAN/PXE

◆ 10* USB2.0,4个USB3.0,10*RS232 serial ports
