LGA115X H87/B150

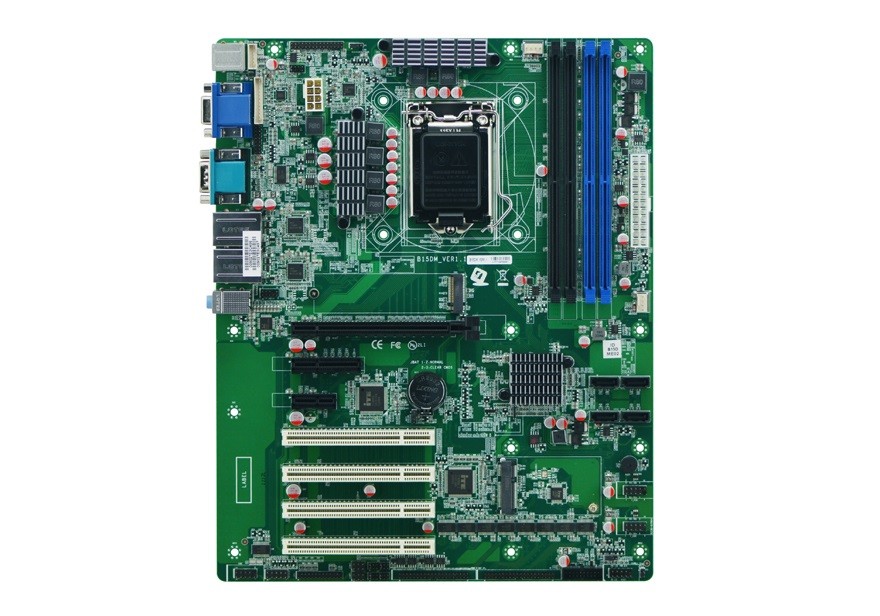

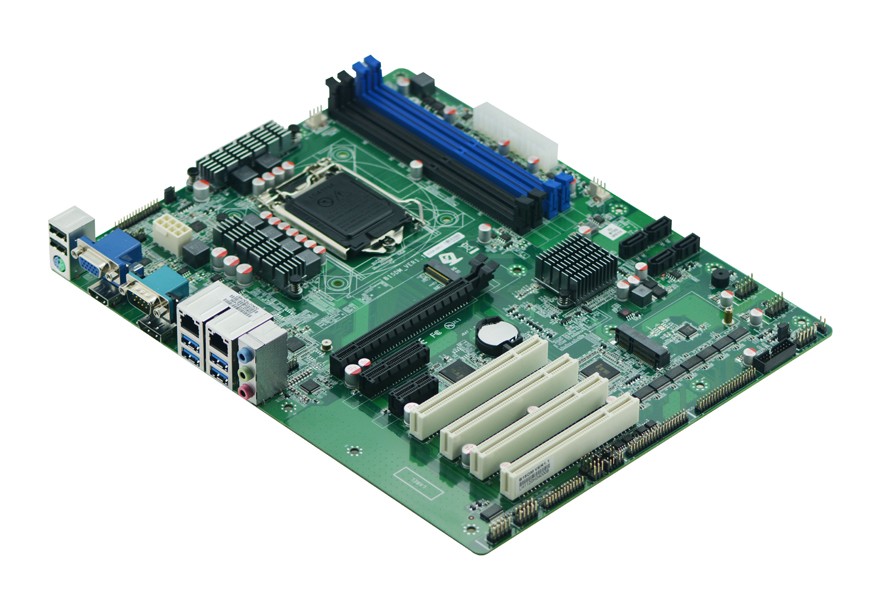

B15DM VER:1.1

项目介绍:

Model No.

B15DM VER:1.1

CPU

Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Chipset

Adopt Intel B150 Express chipset,compatible with intel100 series chipset

Memory

4*DDR4 DIMM memory slot, support dual channel 2133/1866MHz memory, up to 64GB

Display

Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K/60Hz

1*VGA, support the highest resolution: 1920X1200@60Hz

1*HDMI1.4, support the highest resolution: 4096X2304 @24Hz

1*DP, support the highest resolution 4096X2304@60Hz

1*Embedded Display port, support single display, double display mode, extend mode

Expansion Slot

Support 1*PCIE x16, 1*PCIEx4, 1*PCIEx1


4* PCI Expansion slot

Network

Integrated 2* Intel® WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

Storage

Provide 4* SATA 3.0 HDD port, transmission rate up to 6Gbps


Provide 1* MSATA SSD port, transmission rate up to 6Gbps


Provide 1* M.2, support M.2 2280 standard SSD

Audio

Integrated ALC892 7.1 channel high fidelity audio controller,support MIC、Line_out、Line_in

Rear I /O

1* PS/2 KB/MS connector


1* VGA


1* HDMI


1* DB9 RS232 COM port


1* DP


2* USB 2.0


4* USB 3.0


2* RJ-45 Gigabit LAN port


1* Line out (green)、1* Line in (blue)、1* MIC (red)

Internal I/O

1* JVGA1 display port, 1*12pin same signal with DB15


1* PS/2 KB/MS port 1*6pin


1*JHDMI port 2*10pin,same signal with HDMI port


1* Embedded Display port,2*15pin


9* RS232 COM port (COM3、COM4 support RS232/RS485/422)


1* LPT printing port 2*13pin


1* Front audio port 2*5pin


4* USB 2.0 port 2*5Pin


2* USB3.0 port 2*10pin


1* Front panel function button and LED indicator connector 2*5pin


1* 24pin ATX power input port


1* 8pin ATX power input port

GPIO function

Support 4 way input output GPIO

Fan connector

1* 4pin CPU smart fan connector, 1* 4pin system smart fan connector

BIOS

AMI 128Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Type

Adopt 24Pin ATX power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5~90% relative humidity, non-condensing

Dimension

305mm x 245mm


事宜人群:

Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Adopt Intel B150 Express chipset,compatible with intel100 series chipset

4*DDR4 DIMM memory slot, support dual channel 2133/1866MHz memory, up to 64GB

Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K/60Hz

◆1* VGA,1* DP,1* HDMI1.4,1*EDP

◆6* USB 2.0,6* USB 3.0,10*RS232

1*PCIE x16, 1*PCIEx4, 1*PCIEx1,4* PCI


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

B15DM VER:1.1

CPU

Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Chipset

Adopt Intel B150 Express chipset,compatible with intel100 series chipset

Memory

4*DDR4 DIMM memory slot, support dual channel 2133/1866MHz memory, up to 64GB

Display

Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K/60Hz

1*VGA, support the highest resolution: 1920X1200@60Hz

1*HDMI1.4, support the highest resolution: 4096X2304 @24Hz

1*DP, support the highest resolution 4096X2304@60Hz

1*Embedded Display port, support single display, double display mode, extend mode

Expansion Slot

Support 1*PCIE x16, 1*PCIEx4, 1*PCIEx1


4* PCI Expansion slot

Network

Integrated 2* Intel® WGI211AT Gigabit Ethernet, support Wake On LAN、PXE

Storage

Provide 4* SATA 3.0 HDD port, transmission rate up to 6Gbps


Provide 1* MSATA SSD port, transmission rate up to 6Gbps


Provide 1* M.2, support M.2 2280 standard SSD

Audio

Integrated ALC892 7.1 channel high fidelity audio controller,support MIC、Line_out、Line_in

Rear I /O

1* PS/2 KB/MS connector


1* VGA


1* HDMI


1* DB9 RS232 COM port


1* DP


2* USB 2.0


4* USB 3.0


2* RJ-45 Gigabit LAN port


1* Line out (green)、1* Line in (blue)、1* MIC (red)

Internal I/O

1* JVGA1 display port, 1*12pin same signal with DB15


1* PS/2 KB/MS port 1*6pin


1*JHDMI port 2*10pin,same signal with HDMI port


1* Embedded Display port,2*15pin


9* RS232 COM port (COM3、COM4 support RS232/RS485/422)


1* LPT printing port 2*13pin


1* Front audio port 2*5pin


4* USB 2.0 port 2*5Pin


2* USB3.0 port 2*10pin


1* Front panel function button and LED indicator connector 2*5pin


1* 24pin ATX power input port


1* 8pin ATX power input port

GPIO function

Support 4 way input output GPIO

Fan connector

1* 4pin CPU smart fan connector, 1* 4pin system smart fan connector

BIOS

AMI 128Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Type

Adopt 24Pin ATX power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5~90% relative humidity, non-condensing

Dimension

305mm x 245mm


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

DP

EDP

LAN

USB

COM

RS485/422

Power

1

B15DM VER:1.1

LGA1151

B150

4*DDR4

1

1

1

1

2*211AT

12

10

COM3/COM4

ATX


Support LGA1151 6th/7th Intel® Core™ i7/i5/i3/Pentium/celeron processor

Adopt Intel B150 Express chipset,compatible with intel100 series chipset

4*DDR4 DIMM memory slot, support dual channel 2133/1866MHz memory, up to 64GB

Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K/60Hz

◆1* VGA,1* DP,1* HDMI1.4,1*EDP

◆6* USB 2.0,6* USB 3.0,10*RS232

1*PCIE x16, 1*PCIEx4, 1*PCIEx1,4* PCI
