Skylake-U 3855U/1.6G

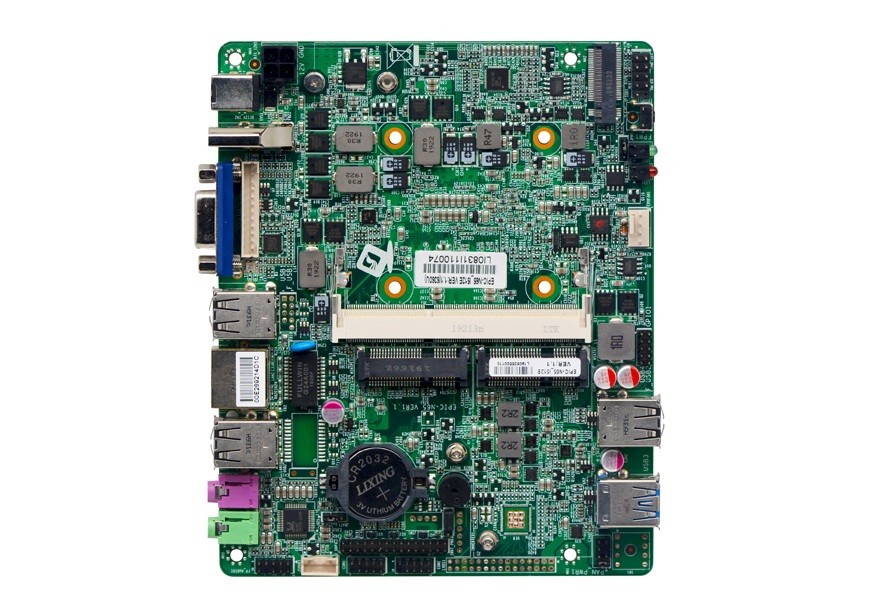

EPIC-N65_I512E VER:1.1(6360U)

项目介绍:

Model No.

EPIC-N65_I512E VER:1.1(6360U)

Processor

Integrated Intel® I5-6360U 2.0GHz dual core Processor,TDP15W


Compatible Intel® Skylake-U Celeron/PentiumI3/I5/I7  low power processor

Chipset

SOC

Memory

1*SODIMM ,support DDR3L 1600MHz memory , up to 16GB

Graphics

Integrated Intel® Iris™ Graphics 540  support DirectX 12 OpenGL 4.4,support 4K


1* VGA,the highest resolution as:1920X1200@60Hz


1* HDMI,the highest resolution as :4096X2304@24Hz


1* Embedded Display,

Network

1* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* M.2 slot ,support  M.2 2280/2260 SSD,the transfer rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out,amplifier


Support amplifer 2Ω5W trumpet

Expansion slots

1* Mini-PCIE slot ,support WIFI module

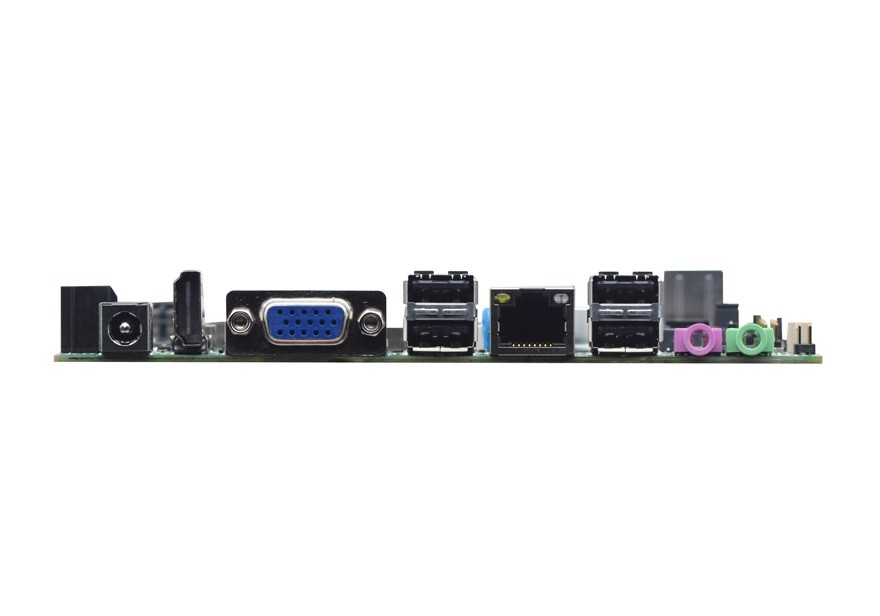

Rear I/O

1* DC 12V power input port


1* HDMI


1* VGA


2* USB3.0


6* USB2.0


1* RJ45 gigabit Ethernet  connector


1* Line-out(Green),1*MICK(Red)


1* Power switch ,


1* HDD LED,1* power LED

Internal I/O

1* 4pinATX power port ,support 12V power input/output


1* JVGA 1*12pin, the same signal with DB15


1* EDP,2*15pin,


2* RS232 serial ports,


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* Front panel switching button and LED indicator port 2*5Pin

FAN connector

Fanless cooling ,Reserve 1*4pin CPU smart fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

148mm x 120mm


事宜人群:

◆ Integrate Intel® I5-6360U 2.0GHz dual core processor,TDP15W

◆ 2*DDR3L  SODIMM slot ,support 1600MHz memory, up to 32GB

◆ Integrate Intel® Iris™ Graphics 540 support DirectX 12 OpenGL 4.4, support 4K

◆1* VGA,1*HDMI,1*EDP

◆1* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

◆ 2*USB3.0,6* USB2.0,2* RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

EPIC-N65_I512E VER:1.1(6360U)

Processor

Integrated Intel® I5-6360U 2.0GHz dual core Processor,TDP15W


Compatible Intel® Skylake-U Celeron/PentiumI3/I5/I7  low power processor

Chipset

SOC

Memory

1*SODIMM ,support DDR3L 1600MHz memory , up to 16GB

Graphics

Integrated Intel® Iris™ Graphics 540  support DirectX 12 OpenGL 4.4,support 4K


1* VGA,the highest resolution as:1920X1200@60Hz


1* HDMI,the highest resolution as :4096X2304@24Hz


1* Embedded Display,

Network

1* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* M.2 slot ,support  M.2 2280/2260 SSD,the transfer rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out,amplifier


Support amplifer 2Ω5W trumpet

Expansion slots

1* Mini-PCIE slot ,support WIFI module

Rear I/O

1* DC 12V power input port


1* HDMI


1* VGA


2* USB3.0


6* USB2.0


1* RJ45 gigabit Ethernet  connector


1* Line-out(Green),1*MICK(Red)


1* Power switch ,


1* HDD LED,1* power LED

Internal I/O

1* 4pinATX power port ,support 12V power input/output


1* JVGA 1*12pin, the same signal with DB15


1* EDP,2*15pin,


2* RS232 serial ports,


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* Front panel switching button and LED indicator port 2*5Pin

FAN connector

Fanless cooling ,Reserve 1*4pin CPU smart fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

148mm x 120mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-N65_I512E VER:1.1(6360U)

I5-6360U

2.0G

1* SODDR3L

1

1

/

1

1*8111H

10

2

1

DC12V


◆ Integrate Intel® I5-6360U 2.0GHz dual core processor,TDP15W

◆ 2*DDR3L  SODIMM slot ,support 1600MHz memory, up to 32GB

◆ Integrate Intel® Iris™ Graphics 540 support DirectX 12 OpenGL 4.4, support 4K

◆1* VGA,1*HDMI,1*EDP

◆1* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

◆ 2*USB3.0,6* USB2.0,2* RS232 serial ports
