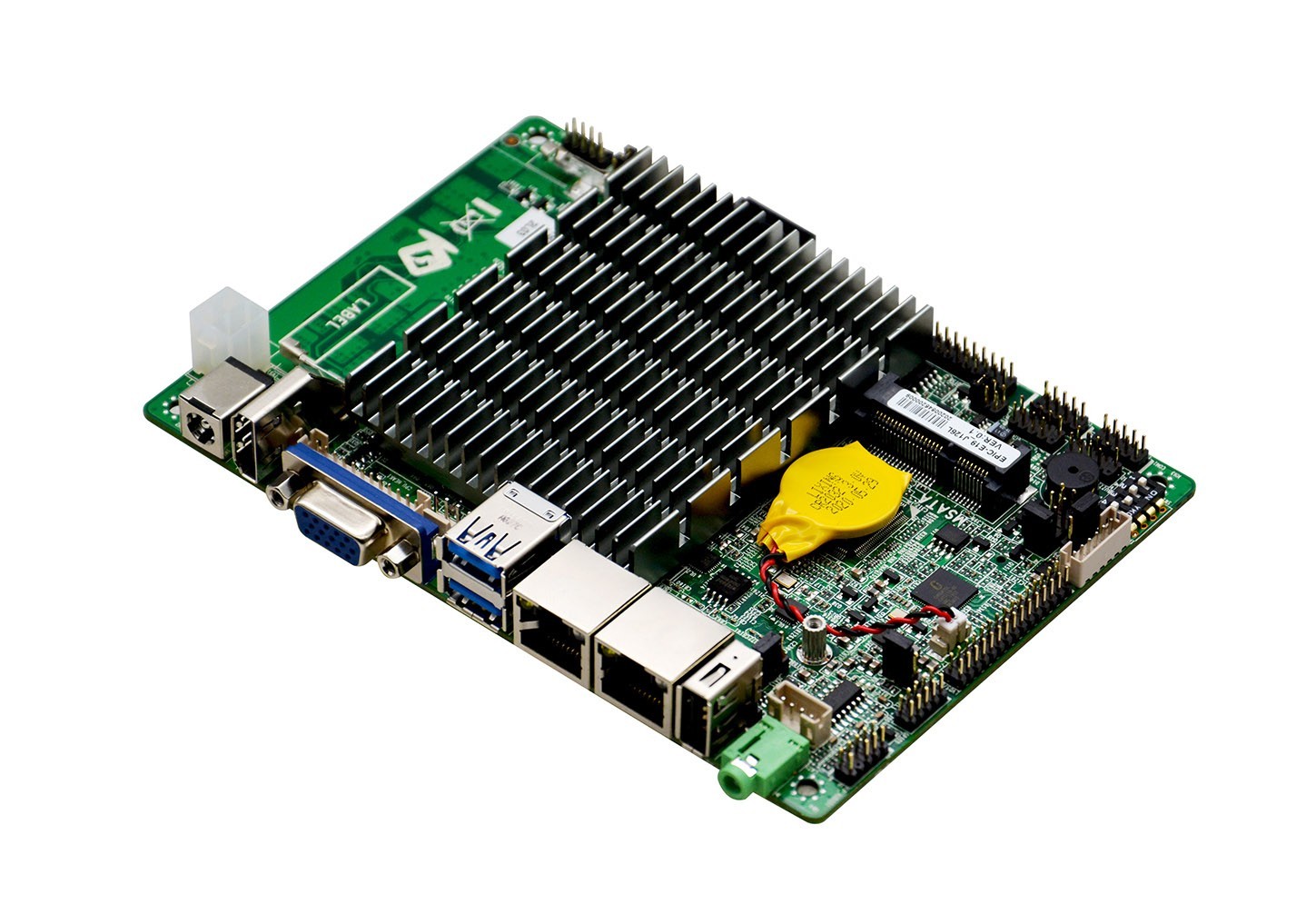

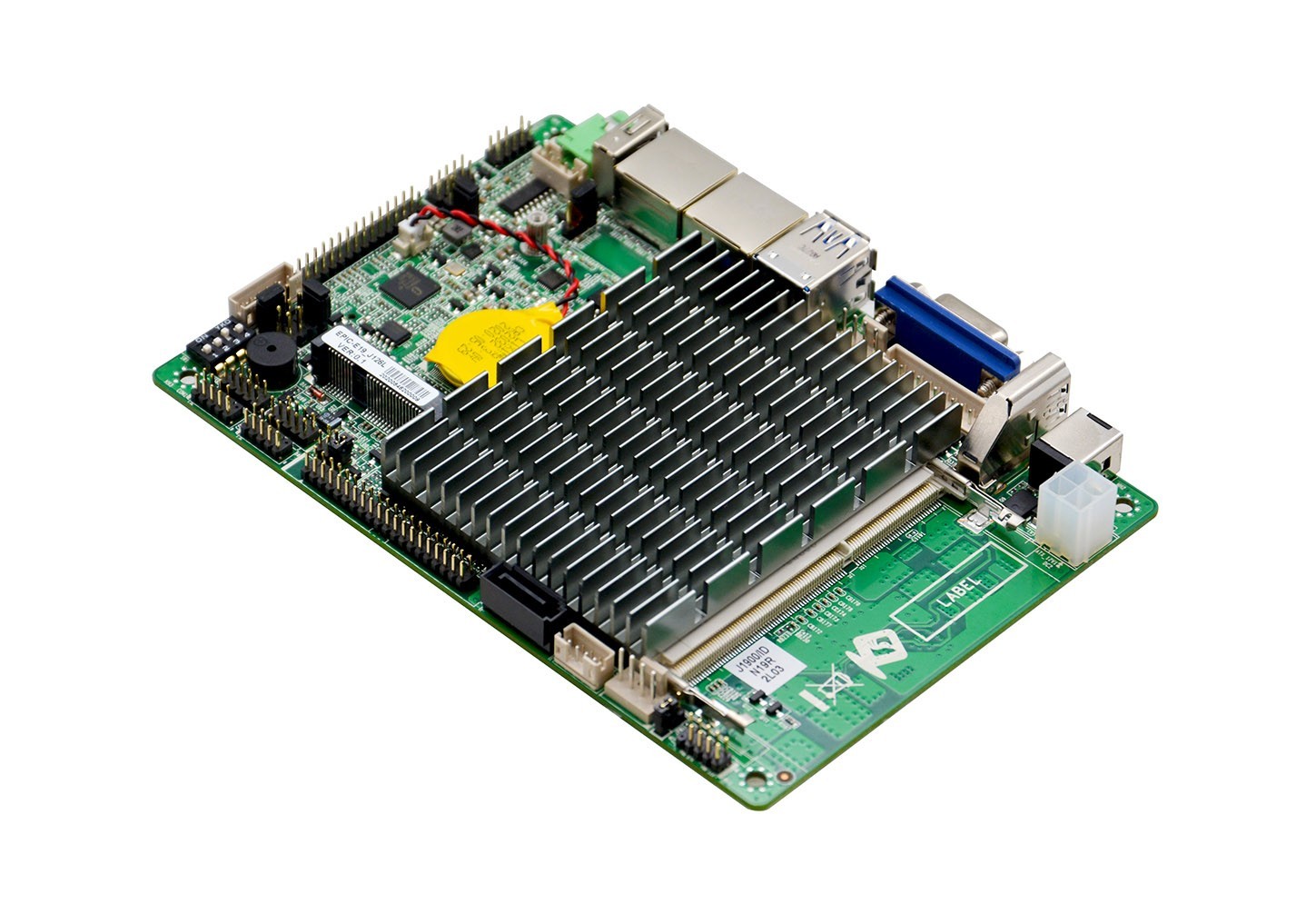

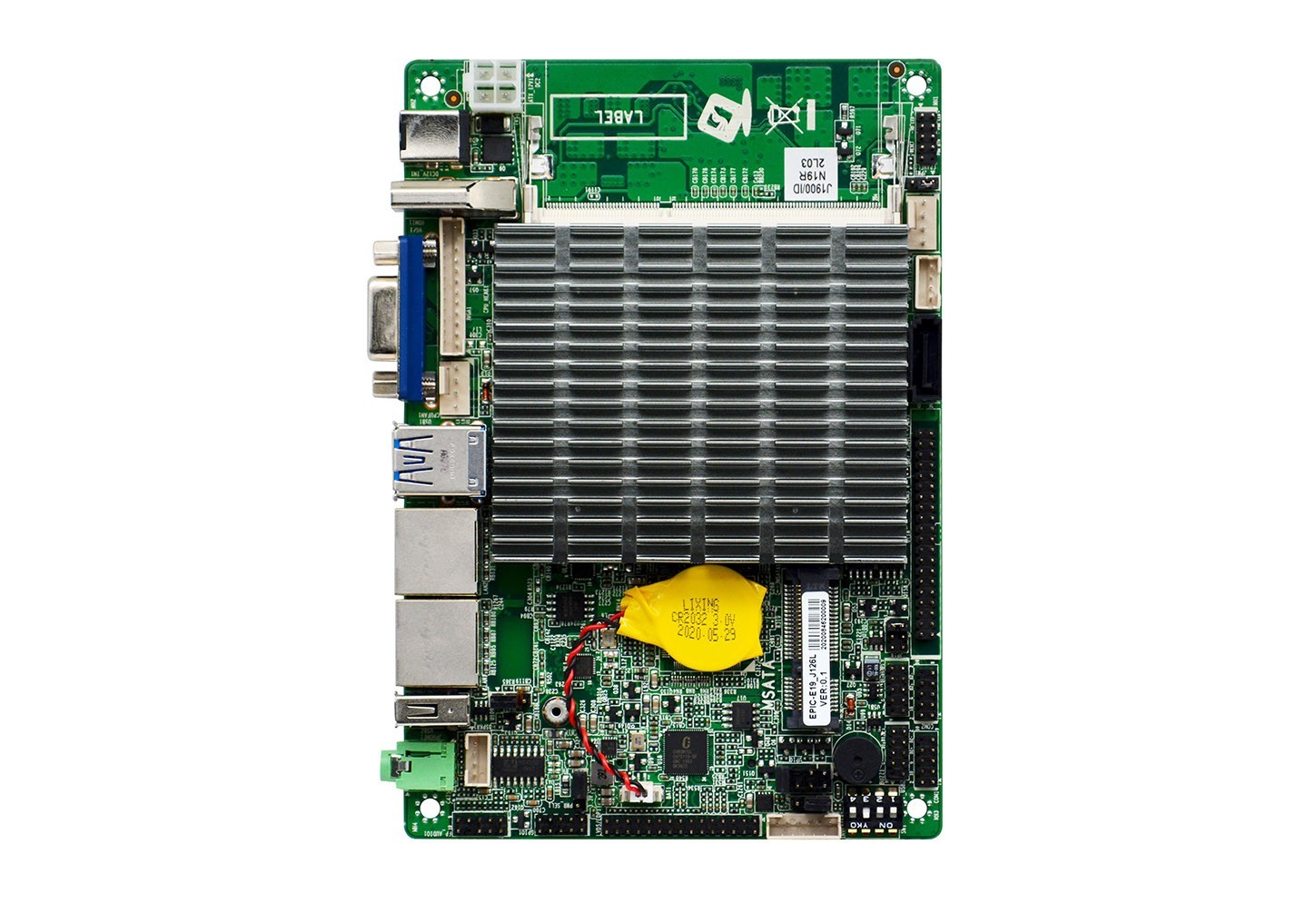

Baytrail J1900/2.0G

EPIC-E19_J126L VER:1.0

项目介绍:

Product number

EPIC-E19_J126L VER:1.0

Processor

Integrated Intel®J1900/2.0GHz quad-core processor, TDP power consumption 10W

Chipset

Based on Intel® BayTrail platform

RAM

1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Display



Integrated Intel®HD Graphics core graphics card

1* VGA, 1*HDMI interface, 1* LVDS interface

Internet

2* RTL8111H Gigabit network card, support Wake on LAN, PXE function

Store

1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps


1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission rate up to 3Gbps

Audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier is recommended to use 2Ω5W speakers

Expansion slot

1* Mini-PCIE slot, support WIF/4G module

Backplane I/O interface



1* DC 12V power input interface

1* VGA display interface

1* HDMI display interface

2* USB3.0 interface, 1* USB2.0 interface

2* RJ45 Gigabit network interface

1* Line-out (green)

Built-in I/O interface



1* 4pin ATX power connector, support 12V power input and output

1* JVGA interface 1*12pin, the same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

4* USB2.0 interface, 2*5pin

6* RS232 serial interface, COM1 supports the 9th pin charged function, COM2/COM3 supports RS485 function,

1*HDD power supply interface 1*4pin

1 Front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* SIM card slot

1* Front panel function button and indicator port 2*5pin

Fan interface

Fanless cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

148mm x 102mm


事宜人群:

♦Integrated Intel®J1900/2.0GHz quad-core processor, TDP power consumption 10W

♦Based on Intel® BayTrail platform

♦1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

♦Integrated Intel®HD Graphics core graphics card

♦1* VGA, 1*HDMI interface, 1* LVDS interface

♦2* RTL8111H Gigabit network card, support Wake on LAN, PXE function

♦1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps

♦1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission rate up to 3Gbps

♦Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

♦The power amplifier is recommended to use 2Ω5W speakers


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

EPIC-E19_J126L VER:1.0

Processor

Integrated Intel®J1900/2.0GHz quad-core processor, TDP power consumption 10W

Chipset

Based on Intel® BayTrail platform

RAM

1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Display



Integrated Intel®HD Graphics core graphics card

1* VGA, 1*HDMI interface, 1* LVDS interface

Internet

2* RTL8111H Gigabit network card, support Wake on LAN, PXE function

Store

1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps


1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission rate up to 3Gbps

Audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.

The power amplifier is recommended to use 2Ω5W speakers

Expansion slot

1* Mini-PCIE slot, support WIF/4G module

Backplane I/O interface



1* DC 12V power input interface

1* VGA display interface

1* HDMI display interface

2* USB3.0 interface, 1* USB2.0 interface

2* RJ45 Gigabit network interface

1* Line-out (green)

Built-in I/O interface



1* 4pin ATX power connector, support 12V power input and output

1* JVGA interface 1*12pin, the same signal as DB15

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

4* USB2.0 interface, 2*5pin

6* RS232 serial interface, COM1 supports the 9th pin charged function, COM2/COM3 supports RS485 function,

1*HDD power supply interface 1*4pin

1 Front audio interface 2*5pin

1* power amplifier interface 1*4pin

1* SIM card slot

1* Front panel function button and indicator port 2*5pin

Fan interface

Fanless cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

148mm x 102mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-E19_J126L VER:1.0

J1900

2.0G

1* SODDR3L

1

1

2ch*24BIT

/

2*8111H

7

6

COM2

DC12V


Specification

EPIC-E19_J126L_2L VER:1.6




Driver(WIN7/8/10 )


OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetEPIC-E19_J126L
Win7/8/10 32/64BITGraphicsVGAEPIC-E19_J126L
Win7/8/10 32/64BITAudioRealtek AudioEPIC-E19_J126L
Win7/8/10 32/64BITLANRealtekEPIC-E19_J126L
Win7/8/10 32/64BITTXETXEEPIC-E19_J126L
Win7/8/10 32/64BITMBIMBIEPIC-E19_J126L
Win7 32/64BITUSB3.0USB3.0EPIC-E19_J126L
