Baytrail J1900/2.0G

EPIC-A19_D812E version: 1.1

项目介绍:

Product model

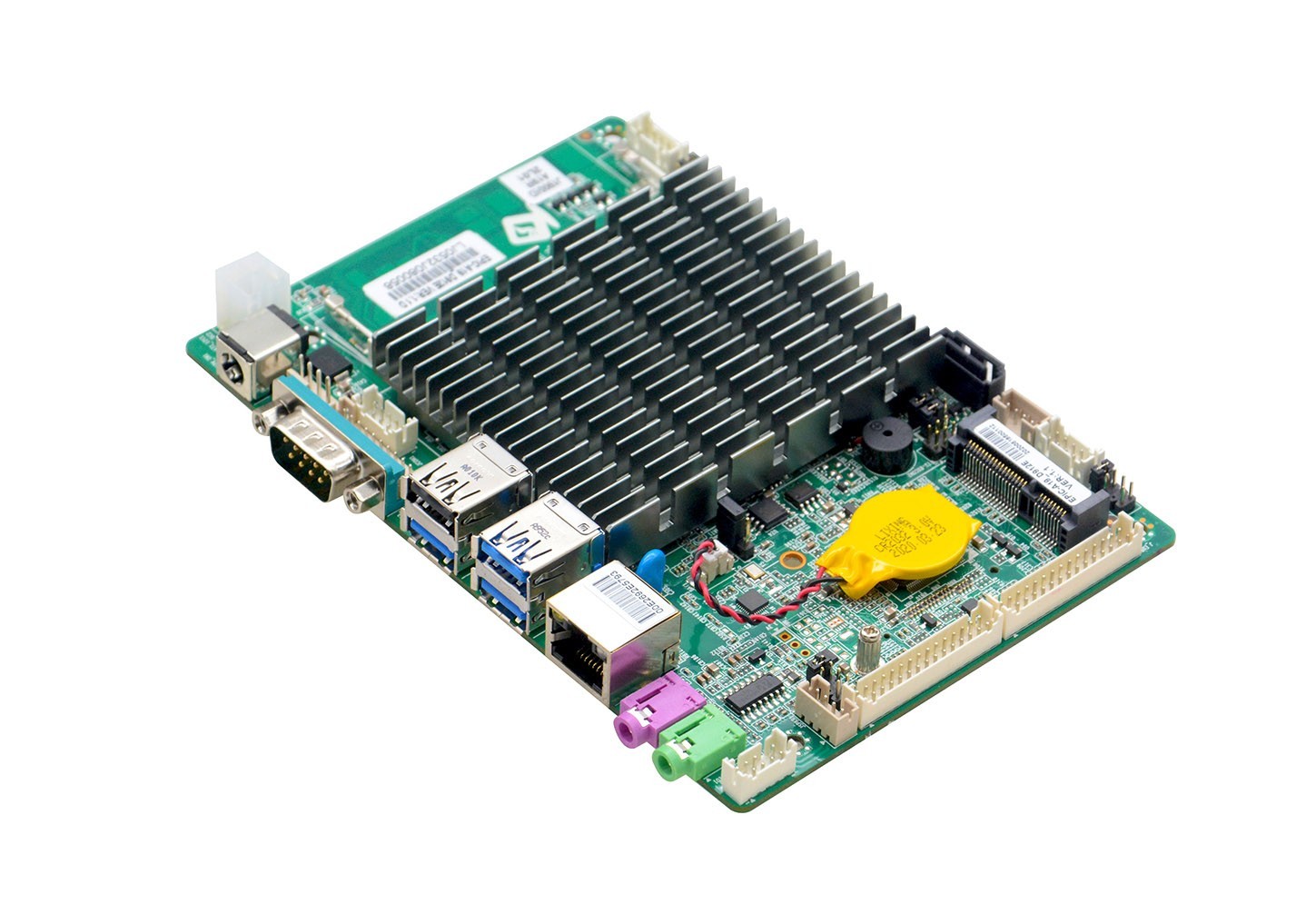

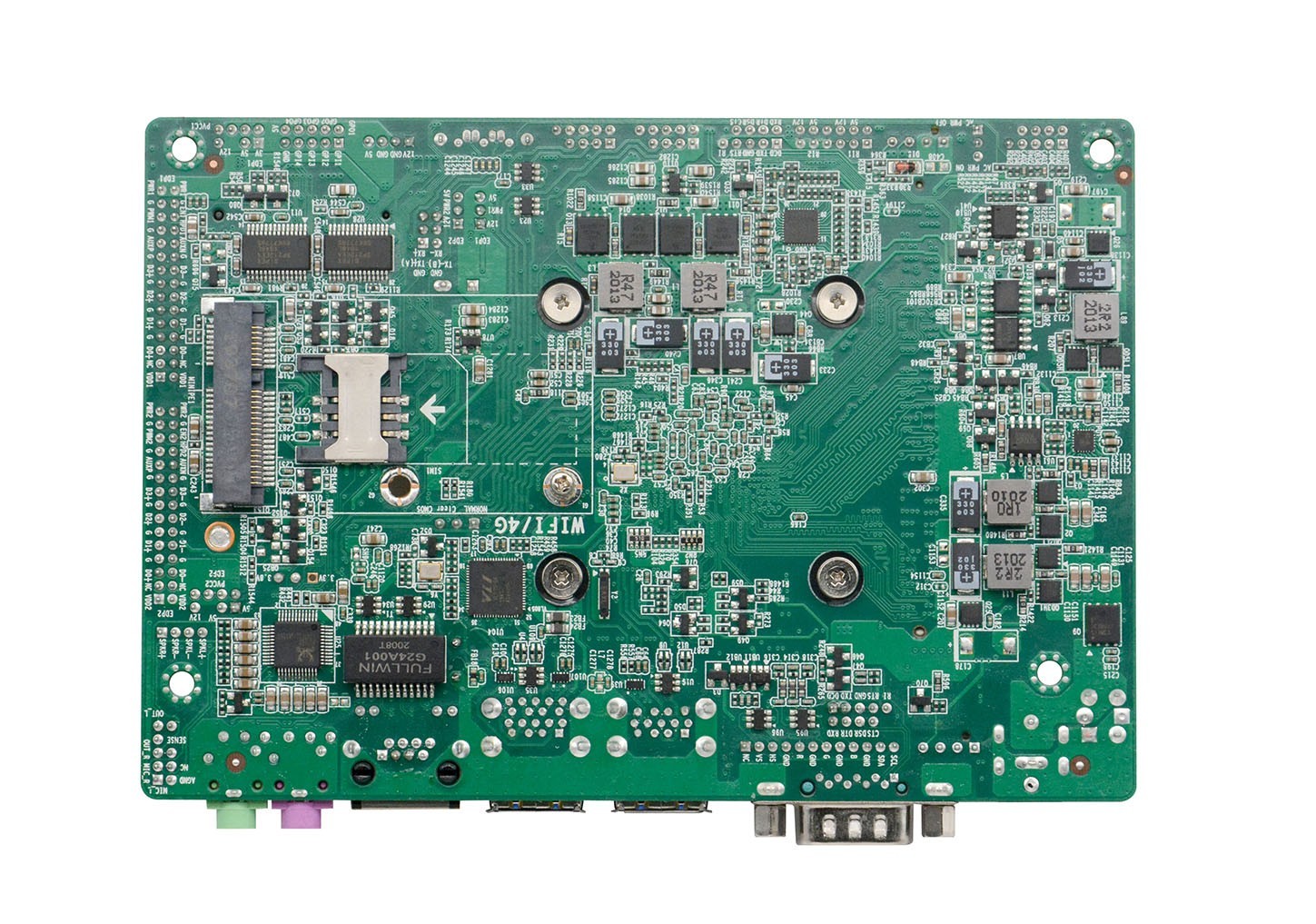

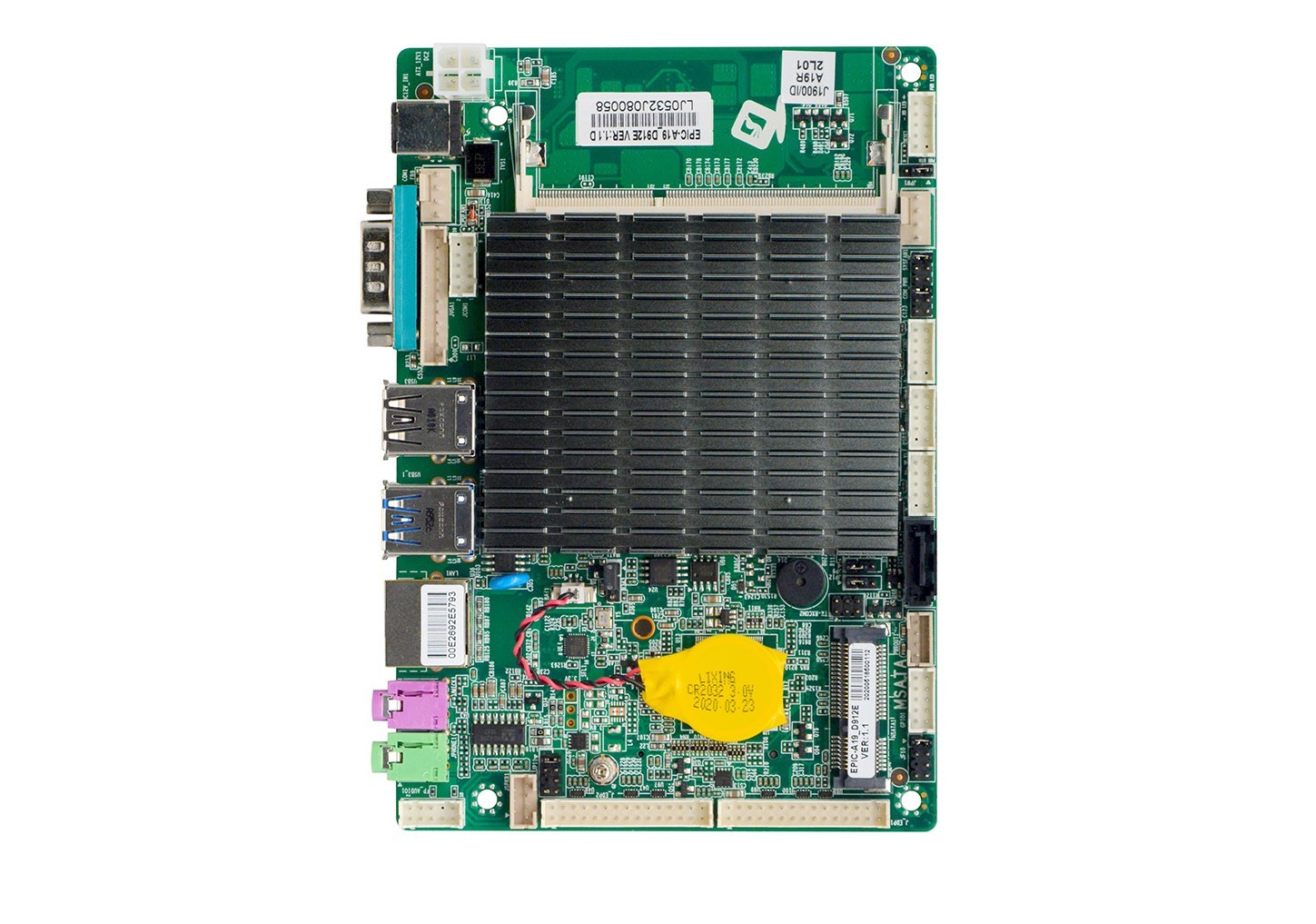

EPIC-A19_D812E version: 1.1

processor

Integrated Intel® J1800/2.41GHz dual-core processor, TDP power consumption 10W

chipset

Based on Intel® BayTrail platform

RAM

1 SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Show



Integrated Intel® HD Graphics Core Graphics

1 VGA, 2 EDP display interfaces

The internet

1 * RTL8111H Gigabit network card, support Wake on LAN, PXE function

Storage

1 * 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps


1 MSATA slot, support Intel SSD solid state drive, transfer rate up to 3Gbps

Audio frequency



Onboard ALC662 6-channel high-fidelity audio controller, supporting MIC/line output.

The amplifier is recommended to use 2Ω 5W speakers

Expansion slot

1 Mini-PCIE slot, support WIF/4G module

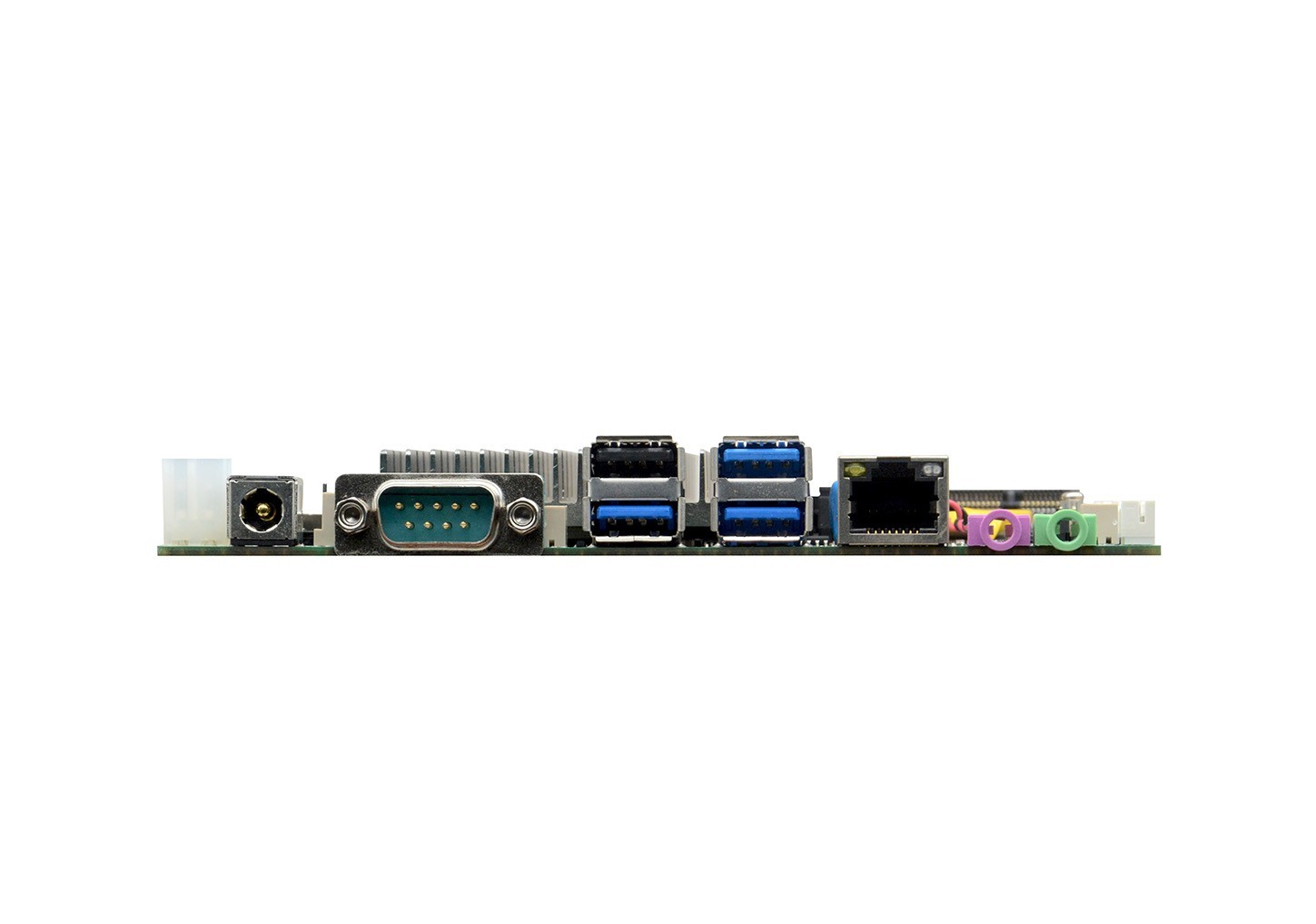

Backplane I/O interface









1 * DC 12V power input interface

1 DB9 RS232 serial interface

3 USB3.0 interfaces, 1 USB2.0 interface

1 RJ45 Gigabit network interface

1 * Outgoing (green), 1 * MICK (purple)

Built-in I/O interface



















1 * 4pin ATX power interface, support 12V power input and output

1 * JVGA interface 1 * 12pin

2 * EDP display interface, 2 * 15pin,

4*USB2.0 interface, 2*5pin

2 * RS232 serial interface 2 * 5pin, COM2 supports RS485/422 function, among which JCOM1 and DB9 RS232 serial interface are two options

1 * HDD power connector 1 * 4pin

1 front audio interface 2*5pin

1 * power amplifier interface 1 * 4pin

1 * SIM card slot

1 *Front panel function button and indicator light interface 2 * 5pin

Fan interface

No fan cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10 / Linux

Power type

Powered by DC 12V power supply

Operating temperature

-10~60

Storage temperature

-20~70

Working humidity

Relative humidity 5%-95%, no condensation

Size

148 mm x 102 mm


事宜人群:

♦Integrated Intel® J1800/2.41GHz dual-core processor, TDP power consumption 10W

♦Based on Intel® BayTrail platform

♦1 SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

♦Integrated Intel® HD Graphics Core Graphics

♦1 VGA, 2 EDP display interfaces

♦1 * RTL8111H Gigabit network card, support Wake on LAN, PXE function

♦1 * 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps

♦1 MSATA slot, support Intel SSD solid state drive, transfer rate up to 3Gbps

♦Onboard ALC662 6-channel high-fidelity audio controller, supporting MIC/line output.

♦The amplifier is recommended to use 2Ω 5W speakers


  • Product Specifications
  • Ordering Information
  • Download Center

Product model

EPIC-A19_D812E version: 1.1

processor

Integrated Intel® J1800/2.41GHz dual-core processor, TDP power consumption 10W

chipset

Based on Intel® BayTrail platform

RAM

1 SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB

Show



Integrated Intel® HD Graphics Core Graphics

1 VGA, 2 EDP display interfaces

The internet

1 * RTL8111H Gigabit network card, support Wake on LAN, PXE function

Storage

1 * 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps


1 MSATA slot, support Intel SSD solid state drive, transfer rate up to 3Gbps

Audio frequency



Onboard ALC662 6-channel high-fidelity audio controller, supporting MIC/line output.

The amplifier is recommended to use 2Ω 5W speakers

Expansion slot

1 Mini-PCIE slot, support WIF/4G module

Backplane I/O interface









1 * DC 12V power input interface

1 DB9 RS232 serial interface

3 USB3.0 interfaces, 1 USB2.0 interface

1 RJ45 Gigabit network interface

1 * Outgoing (green), 1 * MICK (purple)

Built-in I/O interface



















1 * 4pin ATX power interface, support 12V power input and output

1 * JVGA interface 1 * 12pin

2 * EDP display interface, 2 * 15pin,

4*USB2.0 interface, 2*5pin

2 * RS232 serial interface 2 * 5pin, COM2 supports RS485/422 function, among which JCOM1 and DB9 RS232 serial interface are two options

1 * HDD power connector 1 * 4pin

1 front audio interface 2*5pin

1 * power amplifier interface 1 * 4pin

1 * SIM card slot

1 *Front panel function button and indicator light interface 2 * 5pin

Fan interface

No fan cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10 / Linux

Power type

Powered by DC 12V power supply

Operating temperature

-10~60

Storage temperature

-20~70

Working humidity

Relative humidity 5%-95%, no condensation

Size

148 mm x 102 mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-A19_D912E VER:1.1

J1900

2.0G

1* SODDR3L

1

/

/

2

1*8111H

8

2

COM2

DC12V

2

EPIC-A19_D812E VER:1.1

J1800

2.41G

1* SODDR3L

1

/

/

2

1*8111H

8

2

COM2

DC12V


Specification
EPIC-A19_J122E VER:1.1




Driver (WIN7/8/10 )


OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetEPIC-A19
Win7/8/10 32/64BITGraphicsVGAEPIC-A19
Win7/8/10 32/64BITAudioRealtek AudioEPIC-A19
Win7/8/10 32/64BITLANRealtekEPIC-A19
Win7/8/10 32/64BITTXETXEEPIC-A19
Win7/8/10 32/64BITMBIMBIEPIC-A19
Win7 32/64BITUSB3.0USB3.0EPIC-A19
