Baytrail J1900/2.0G

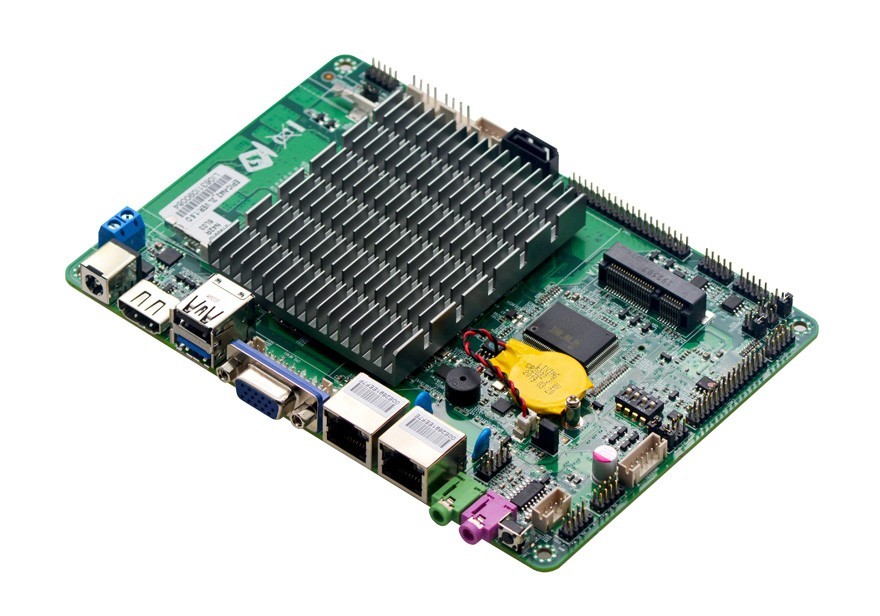

EPIC-N42_2L VER:1.6

项目介绍:
Model NO.EPIC-N42_2L VER: 1.6
ProcessorIntegrated Intel ® J1900/2.00GHz quad-core processor, TDP power consumption 10W
ChipsetBased on the Intel ® Bay trail SOC platform
Memory1xD3L SODIMM memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel®HD Graphics Core Graphics
Available in 1 x VGA, 1 x HDMI, 1 x LVDS interface (support for dual-channel 24BIT)
Support for VGA; HDMI; LVDS Sync/Asynchronous Display
Network2-Realtek RTL811H Gigabit Network Card, support snetwork, PXE function
Storage1 x SATA 2.0 hard drive interface with transmission speed of up to 3Gbps)
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Expansion1x Mini-PCIE slot, WIFI, 4G modules
1 x MSATA slot supports WIFI (optional), SSD SSD (default SSD, Intel protocol-enabled SSD, transmission speed up to 3Gbps)

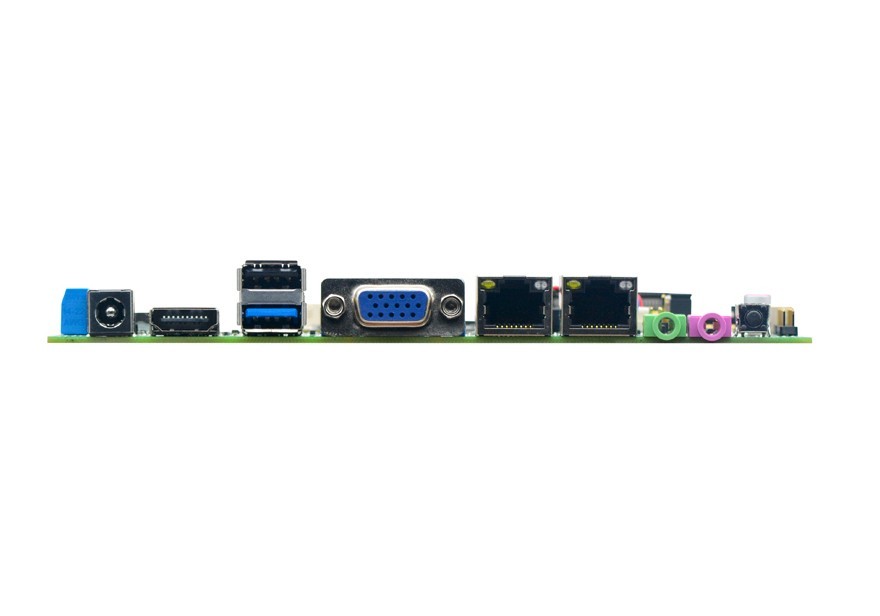

Backplane I/O Interface1 x 12V DC power input
1 x HDMI display interface
1 x VGA display interface
2x RJ-45 Gigabit Network Interface
1 x USB3.0 interface
1 x USB 2.0 interface
1x Line out interface (green)
1 x MIC interface (red)
1 x Power switch
Built-in I\/O interface1x 2Pin power interface (12V input and output power interface)
4x USB 2.0 Interface 2x5Pin
1 x JVGA interface 1 x 12Pin, with DB15 signal
6 x RS232 serial ports, where COM3 supports RS485/RS422 function.
1 x front audio interface 2 x 5pin
1 x Front Amplifier Interface 1x4Pin
1 x LVDS interface 2 x 15pin, supports dual-channel 24bit (double 8)
1 x LVDS backlit power supply interface 1 x 6pin
1 x front panel switch button and LED interface 2 x 5Pin
1 x hard drive power interface 1x4pin
1 x SIM seat
Fan interfaceSupport for fanless cooling, reserved 1x4pin CPU smart fan interface, 1 x 4pin system fan interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 7/Windows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size165mm x 115mm


事宜人群:

♦ Integrated Intel ® J1900/2.00GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1 x DDR3L SODIMM memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ provides 1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24BIT support), support VGA; HDMI; LVDS Sync/Asynchronous Display

♦ 2-Realtek RTL811H Gigabit Network Card, supports network wake-up, PXE function

♦ 6 x RS232 serial port, where COM3 supports RS485/RS422 function.

♦ 5x USB2.0 interface, 1 x USB 3.0 interface


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.EPIC-N42_2L VER: 1.6
ProcessorIntegrated Intel ® J1900/2.00GHz quad-core processor, TDP power consumption 10W
ChipsetBased on the Intel ® Bay trail SOC platform
Memory1xD3L SODIMM memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel®HD Graphics Core Graphics
Available in 1 x VGA, 1 x HDMI, 1 x LVDS interface (support for dual-channel 24BIT)
Support for VGA; HDMI; LVDS Sync/Asynchronous Display
Network2-Realtek RTL811H Gigabit Network Card, support snetwork, PXE function
Storage1 x SATA 2.0 hard drive interface with transmission speed of up to 3Gbps)
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Expansion1x Mini-PCIE slot, WIFI, 4G modules
1 x MSATA slot supports WIFI (optional), SSD SSD (default SSD, Intel protocol-enabled SSD, transmission speed up to 3Gbps)
Backplane I/O Interface1 x 12V DC power input
1 x HDMI display interface
1 x VGA display interface
2x RJ-45 Gigabit Network Interface
1 x USB3.0 interface
1 x USB 2.0 interface
1x Line out interface (green)
1 x MIC interface (red)
1 x Power switch
Built-in I\/O interface1x 2Pin power interface (12V input and output power interface)
4x USB 2.0 Interface 2x5Pin
1 x JVGA interface 1 x 12Pin, with DB15 signal
6 x RS232 serial ports, where COM3 supports RS485/RS422 function.
1 x front audio interface 2 x 5pin
1 x Front Amplifier Interface 1x4Pin
1 x LVDS interface 2 x 15pin, supports dual-channel 24bit (double 8)
1 x LVDS backlit power supply interface 1 x 6pin
1 x front panel switch button and LED interface 2 x 5Pin
1 x hard drive power interface 1x4pin
1 x SIM seat
Fan interfaceSupport for fanless cooling, reserved 1x4pin CPU smart fan interface, 1 x 4pin system fan interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 7/Windows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size165mm x 115mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

EPIC-N42_2L VER:1.6

J1900

2.0G/4C

1*SODDR3

1

1

2*24BIT

2*8111H

6

6

DC/12V



SpecificationsEPIC-N42_2L VER:1.6



Driver(WIN7/8/10)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetEPIC-N42
Win7/8/10 32/64BITGraphicsVGAEPIC-N42
Win7/8/10 32/64BITAudioRealtek AudioEPIC-N42
Win7/8/10 32/64BITLANRealtekEPIC-N42
Win7/8/10 32/64BITTXETXEEPIC-N42
Win7/8/10 32/64BITMBIMBIEPIC-N42
Win7 32/64BITUSB3.0USB3.0EPIC-N42






♦ Integrated Intel ® J1900/2.00GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1 x DDR3L SODIMM memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ provides 1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24BIT support), support VGA; HDMI; LVDS Sync/Asynchronous Display

♦ 2-Realtek RTL811H Gigabit Network Card, supports network wake-up, PXE function

♦ 6 x RS232 serial port, where COM3 supports RS485/RS422 function.

♦ 5x USB2.0 interface, 1 x USB 3.0 interface
