Baytrail J1900/2.0G

EPIC-N19_J122E VER1.1

项目介绍:

Model No.

EPIC-N19_J122E VER:1.1

Processor

Integrated Intel®J1900/2.0GHz quad core processor,TDP10W

Chipset

Based on Intel® BayTrail platform

Memory

1* SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Graphics

Integrated Intel®HD Graphics


1* VGA,1*HDMI,1*EDP

Network

2* RTL8111H Gigabit Ethernet , support wake on LAN/PXE

Storage

1* JSATA HDD interface ,the transfer rate up to 3Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 3Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1* Mini-PCIE slot,support WIF/4G module

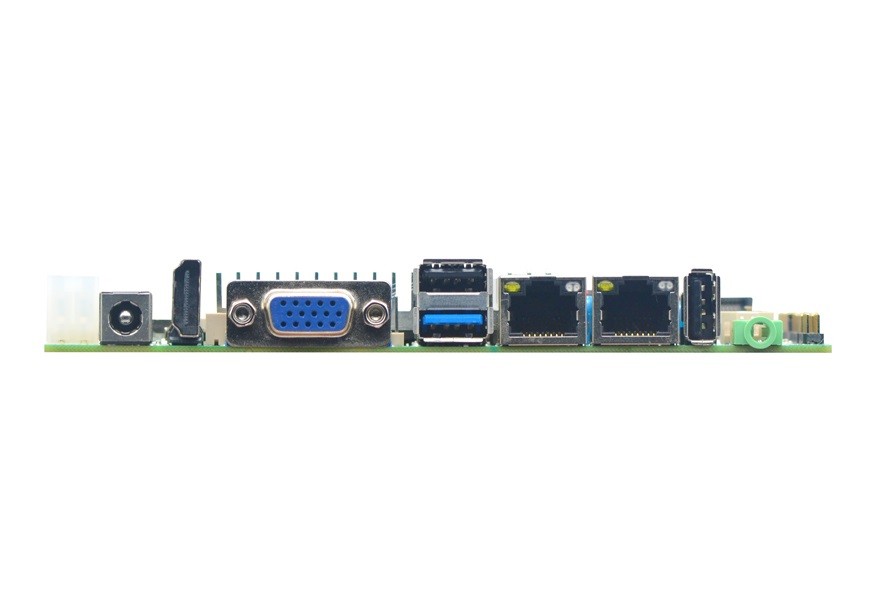

Rear I/O

1* DC 12V power input


1* HDMI


1* VGA


1* USB3.0 ,2* USB2.0


2* RJ45 Gigabit Ethernet connectors


1* Line-out

Internal I/O

1* 4pin ATX power port ,support 12V power input/output


1* JVGA 1*12pin


1* EDP ,2*15pin,


3* USB2.0,2*5pin


2* RS232 serial ports  2*5pin ,COM2 support RS485/422 function


1*JTPM,2*8pin


1 * front audio port  2*5pin


1* power amplifier 1*4pin


1* JSIM,2*3pin


1* Front panel switching button and LED indicator port 2*5Pin

FAN interface

Fanless cooling ,Reserve 1*4pin CPU intelligent fan interface ,1*4pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


事宜人群:

♦ Integrated Intel®J1900/2.0GHz quad core processor,TDP10W

♦ 1* SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel®HD Graphics

♦ 1* VGA,1*HDMI,1*EDP

♦ 2* RTL8111H Gigabit Ethernet , support wake on LAN/PXE

♦ 2*RS232 serial ports,6*USB,


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

EPIC-N19_J122E VER:1.1

Processor

Integrated Intel®J1900/2.0GHz quad core processor,TDP10W

Chipset

Based on Intel® BayTrail platform

Memory

1* SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Graphics

Integrated Intel®HD Graphics


1* VGA,1*HDMI,1*EDP

Network

2* RTL8111H Gigabit Ethernet , support wake on LAN/PXE

Storage

1* JSATA HDD interface ,the transfer rate up to 3Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 3Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1* Mini-PCIE slot,support WIF/4G module

Rear I/O

1* DC 12V power input


1* HDMI


1* VGA


1* USB3.0 ,2* USB2.0


2* RJ45 Gigabit Ethernet connectors


1* Line-out

Internal I/O

1* 4pin ATX power port ,support 12V power input/output


1* JVGA 1*12pin


1* EDP ,2*15pin,


3* USB2.0,2*5pin


2* RS232 serial ports  2*5pin ,COM2 support RS485/422 function


1*JTPM,2*8pin


1 * front audio port  2*5pin


1* power amplifier 1*4pin


1* JSIM,2*3pin


1* Front panel switching button and LED indicator port 2*5Pin

FAN interface

Fanless cooling ,Reserve 1*4pin CPU intelligent fan interface ,1*4pin system fan interface

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-N19_J122E VER:1.1

J1900

2.0G

1* SODDR3L

1

1

/

1

2*8111H

6

2

COM2

DC12V


SpecificationsEPIC-N19_J122E VER:1.1


Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload New
Win7/8/10 32/64BITChipsetchipsetEPIC-N19
Win7/8/10 32/64BITGraphicsVGAEPIC-N19
Win7/8/10 32/64BITAudioRealtek AudioEPIC-N19
Win7/8/10 32/64BITLANRealtekEPIC-N19
Win7/8/10 32/64BITTXETXEEPIC-N19
Win7/8/10 32/64BITMBIMBIEPIC-N19
Win7 32/64BITUSB3.0USB3.0EPIC-N19
