LGA115X H61/H81/H110

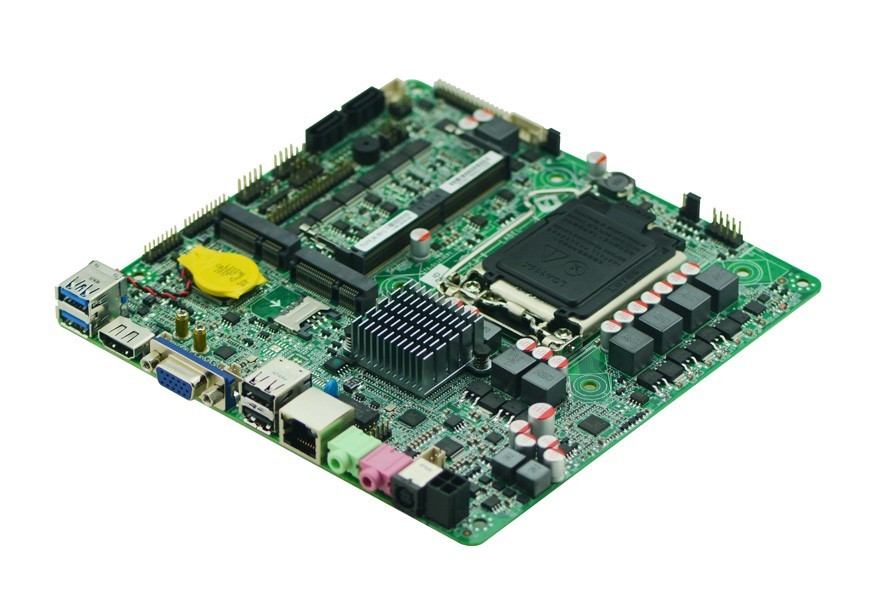

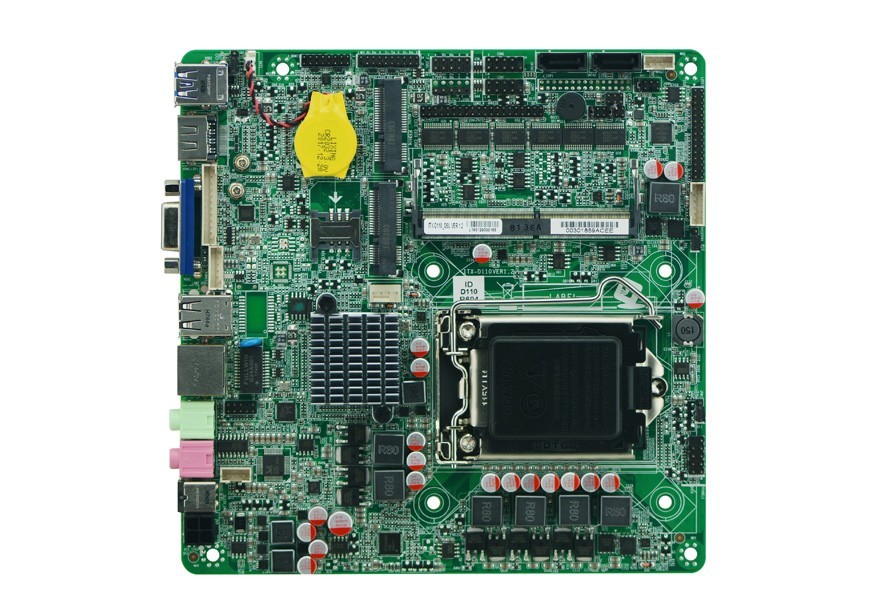

ITX-D110_D6L VER:1.2

项目介绍:

Model NO.

ITX-D110_D6LVER:1.2

Processor

Support for LGA1151 Intel® Celeron/Pentium/Core™ i3/i5/i7SkyLake/KabyLake-S processor

Chipset

With Intel® B150 high-speed chipset

Memory

1*DDR4 SODIMM memory slot with support for 2400/2133/1866MHz memory, up to 16GB

Display

Integrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*VGA interface with the highest resolution of 1920X1200@60Hz

2* HDMI1.4 Interface, supporting the highest resolution for 4096X2304@24Hz

1*Support for dual-channel 24bit LVDS interface

Network

1* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

Storage

2* SATA3.0 Hard drive interface with transmission speeds of up to 6Gbps

1*MSATA slot, SSD support, transmission speed up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels

Extended slot

1* MiniPCIE slot with WIFI/3G/4G module

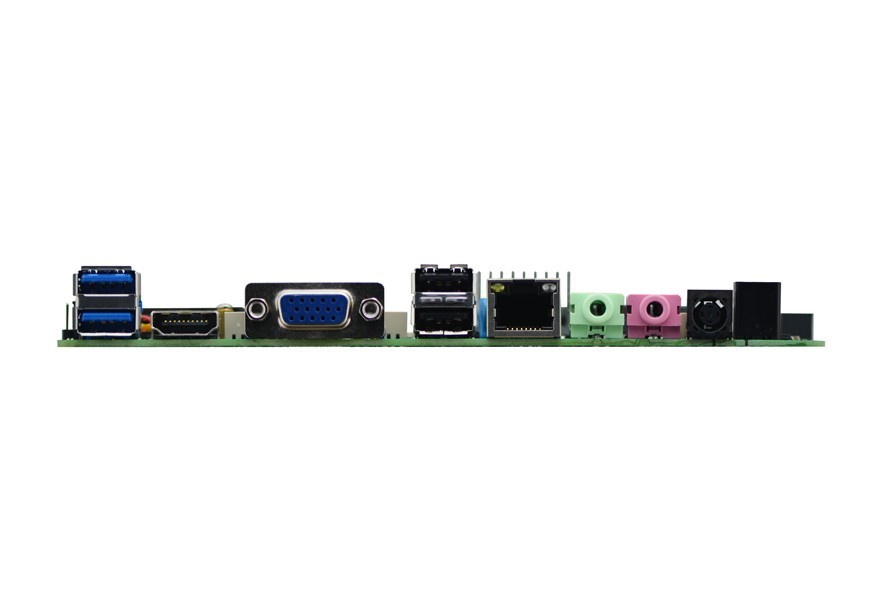

Backplane I/O Interface

2*USB 3.0 interface, 2*USB2.0 interface

1*HDMI

1* VGA

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC12~19V Power input interface

Built-in I\/O interface

1* JVGA interface 1*12pin, with the same signal as the VGA interface

1* JHDMI interface 2*8pin

1* LVDS Interface 2*15pin ,Support for dual-channel 24bit

1* Backlit power interface 1*6pin

6* RS232 COM 2*5Pin,COM1 supports 9pin live and COM3 supports RS485/422

3* USB2.0 2*5pin ,F_USB2 Only 1 USB 2.0 interface is supported

2* USB 3.0 Interface 2*10pin

1* PS/2 Mouse keyboard interface 1*6pin

1*Front audio interface 2*5pin

1*Amplifier interface 1*4pin

1*Hard drive supply voltage interface 1*4pin

1*Front panel function buttonand LED interface 2*5pin


1* 4pin ATX Power interface

Fan interface

1*4pin CPU Smart fan interface;

BIOS

64Mb Flash ROM

Support system

Windows® 7/ 8.1/ 10

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Support for DC19V power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


事宜人群:

♦ Support for LGA1151 Intel® Celeron/Pentium/Core™ i3/i5/i7SkyLake/KabyLake-S processor

♦ With Intel® B150 chipset

♦ 1* DDR4 SODIMM,Supports 2133\/1866\/2400MHz memory, up to 16GB

♦ Integrated Intel ® HD graphics controller

♦ 1*VGA, 2*HDMI1.4, 1*Support for 24bit LVDS interface

♦ 1* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

♦ 5* USB2.0 Interface, 4x USB3.0 Interface

♦ 6* RS232 Serial

  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-D110_D6LVER:1.2

Processor

Support for LGA1151 Intel® Celeron/Pentium/Core™ i3/i5/i7SkyLake/KabyLake-S processor

Chipset

With Intel® B150 high-speed chipset

Memory

1*DDR4 SODIMM memory slot with support for 2400/2133/1866MHz memory, up to 16GB

Display

Integrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*VGA interface with the highest resolution of 1920X1200@60Hz

2* HDMI1.4 Interface, supporting the highest resolution for 4096X2304@24Hz

1*Support for dual-channel 24bit LVDS interface

Network

1* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

Storage

2* SATA3.0 Hard drive interface with transmission speeds of up to 6Gbps

1*MSATA slot, SSD support, transmission speed up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels

Extended slot

1* MiniPCIE slot with WIFI/3G/4G module

Backplane I/O Interface

2*USB 3.0 interface, 2*USB2.0 interface

1*HDMI

1* VGA

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC12~19V Power input interface

Built-in I\/O interface

1* JVGA interface 1*12pin, with the same signal as the VGA interface

1* JHDMI interface 2*8pin

1* LVDS Interface 2*15pin ,Support for dual-channel 24bit

1* Backlit power interface 1*6pin

6* RS232 COM 2*5Pin,COM1 supports 9pin live and COM3 supports RS485/422

3* USB2.0 2*5pin ,F_USB2 Only 1 USB 2.0 interface is supported

2* USB 3.0 Interface 2*10pin

1* PS/2 Mouse keyboard interface 1*6pin

1*Front audio interface 2*5pin

1*Amplifier interface 1*4pin

1*Hard drive supply voltage interface 1*4pin

1*Front panel function buttonand LED interface 2*5pin


1* 4pin ATX Power interface

Fan interface

1*4pin CPU Smart fan interface;

BIOS

64Mb Flash ROM

Support system

Windows® 7/ 8.1/ 10

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Support for DC19V power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-D110_D2L VER:1.2

LGA1151

/

B150

1*SODDR4

1

2

/

24ch/24bit

1*8111F

9

2

/

DC19V

2

ITX-D110_D6L VER:1.2

LGA1151

/

B150

1*SODDR4

1

2

/

24ch/24bit

1*8111F

9

6

COM3

DC19V

3

ITX-D110_2L VER:1.2

LGA1151

/

B150

1*SODDR4

1

2

/

24ch/24bit

2*8111F

7

6

COM3

DC19V






SpecificationsITX-D110_D6L VER:1.2



Driver(WIN 7/8/10)

OSDriver TypeDriver NameDownload Now
Win 7/8/10 32/64 BITChipsetIntel_infITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITGraphicsVGAITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITAudioRealtek AudioITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITLANRealtekITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITUSB3.0USB3.0ITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITDPTFIntel_dptf_81137_1114ITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITRSTRSTITX-D110_D6L VER:1.2
Win 7/8/10 32/64 BITSerial IOSerial IOITX-D110_D6L VER:1.2






♦ Support for LGA1151 Intel® Celeron/Pentium/Core™ i3/i5/i7SkyLake/KabyLake-S processor

♦ With Intel® B150 chipset

♦ 1* DDR4 SODIMM,Supports 2133\/1866\/2400MHz memory, up to 16GB

♦ Integrated Intel ® HD graphics controller

♦ 1*VGA, 2*HDMI1.4, 1*Support for 24bit LVDS interface

♦ 1* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

♦ 5* USB2.0 Interface, 4x USB3.0 Interface

♦ 6* RS232 Serial
