LGA115X H61/H81/H110

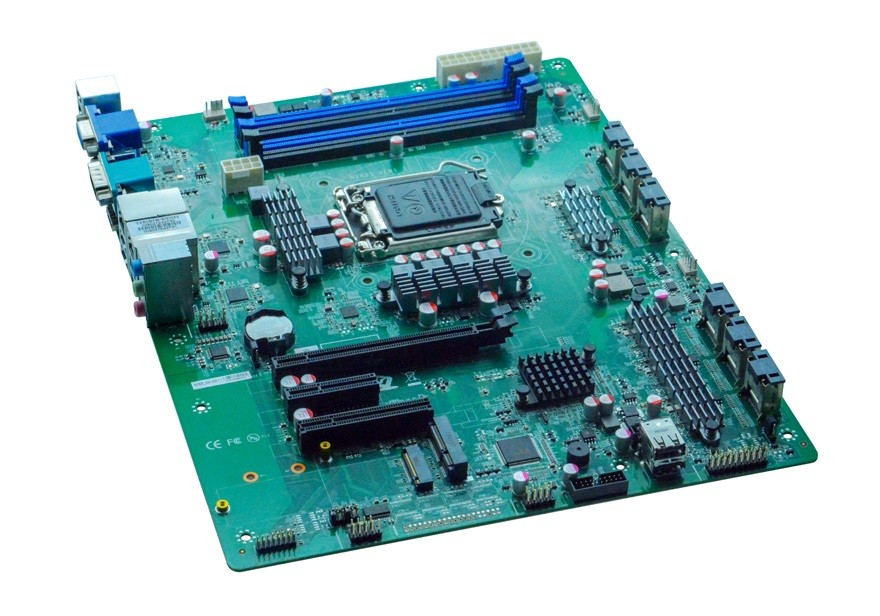

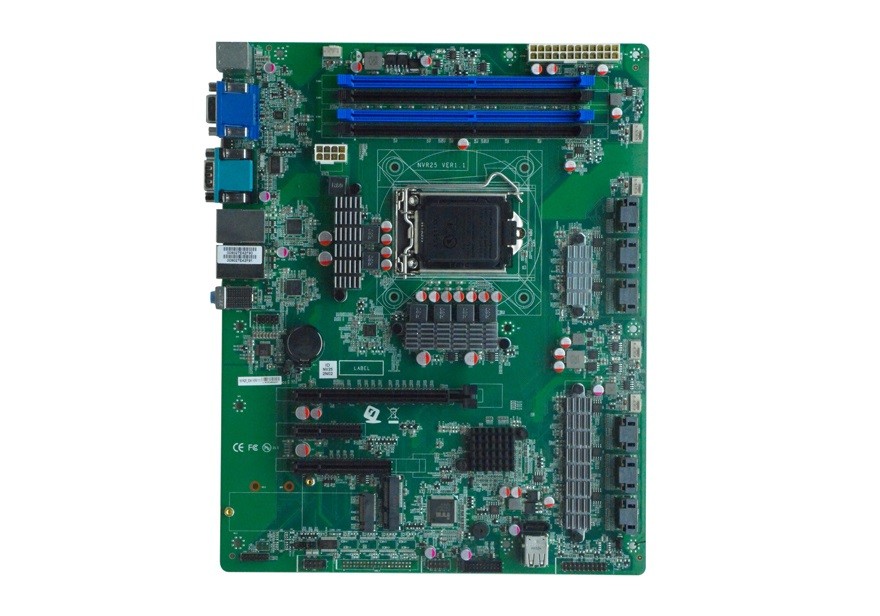

NVR25_S24 VER:1.1

项目介绍:

Model No.

NVR25_S24 VER:1.1

Processor

Support Intel® Skylake/KabyLake-S Core™ i3/i5/i7 Celeron/Pentium LGA1151 processor

Chipset

Adopt Intel® B250 high speed chipset

Memory

4* DDR4 DIMM, support dual channel 2133/2400MHz memory, up to 64GB

Graphics

Integrated Intel® HD Graphics ,support DirectX 12 OpenGL 4.5


1* VGA, the highest resolution as 1920X1200@60Hz


2* HDMI1.4, the highest resolution as :4096X2304@24Hz

Network

2* Intel®WGI211AT Gigabit Ethernet ,support wake on LAN/.PXE

Storage

6* MSAS HDD interface ,total support 24* SATA3.0 HDD ,the transfer rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 6Gbps


1* 7pin SATA3.0 HDD interface (optional),the transfer rate up to 6Gbps,with MSATA optional


1* M.2 slot,support M.2 2280 SSD.

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/Line-in

Expansion slot

1* PCI-Express 3.0 16x slot


1* PCIE x8 slot,actually is PCIE x4 signal


1* PCIE x4 slot,actually is PCIE x1 signal

Rear I/O

1* VGA


2* HDMI1.4


1* DB9 RS232 serial port


2* USB3.0


4* USB2.0


1* PS/2 KB/MS port


2* RJ-45 Gigabit Ethernet connectors


1* Line-out,1*MIC,1*Line-in


1* reset button


1*UID indicator,1* indicator button

Internal I/O

2* USB3.0  2*10pin


2* USB2.0  2*5pin


2* standard USB2.0


1* COM serial port  2*5pin


1* front audio port  2*5pin


1* Front panel switching button and LED indicator port 2*10Pin


1* TPM  2*8pin


1* 24pin ATX power input


1* 8pin ATX power input

FAN interface

1* 4pin CPU intelligent fan interface and 4*4pin system intelligent fan interface

GPIO

NA

BIOS

128Mb  Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

305mmX245mm


事宜人群:

♦ Support Intel®Skylake-S/Kabylake-S Core™ i3/i5/i7//Celeron/Pentium LGA1151 processor

♦ Intel® B250 Express chipset

♦ 4* DDR4 memory slot, support dual channels 2400/2133MHz memory, up to 64GB

♦ Integrated Intel® HD Graphics, support DirectX 12 OpenGL 4.5,

♦ 2* Intel®WGI211AT Gigabit Ethernet, support Wake On LAN / PXE

♦ 24*SATA3.0 HDD,1*PCIE 3.0 x16 slot,1* PCIE x8 slot,1*PCIE x4


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

NVR25_S24 VER:1.1

Processor

Support Intel® Skylake/KabyLake-S Core™ i3/i5/i7 Celeron/Pentium LGA1151 processor

Chipset

Adopt Intel® B250 high speed chipset

Memory

4* DDR4 DIMM, support dual channel 2133/2400MHz memory, up to 64GB

Graphics

Integrated Intel® HD Graphics ,support DirectX 12 OpenGL 4.5


1* VGA, the highest resolution as 1920X1200@60Hz


2* HDMI1.4, the highest resolution as :4096X2304@24Hz

Network

2* Intel®WGI211AT Gigabit Ethernet ,support wake on LAN/.PXE

Storage

6* MSAS HDD interface ,total support 24* SATA3.0 HDD ,the transfer rate up to 6Gbps


1* MSATA slot,support Intel protocol SSD,the transfer rate up to 6Gbps


1* 7pin SATA3.0 HDD interface (optional),the transfer rate up to 6Gbps,with MSATA optional


1* M.2 slot,support M.2 2280 SSD.

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/Line-in

Expansion slot

1* PCI-Express 3.0 16x slot


1* PCIE x8 slot,actually is PCIE x4 signal


1* PCIE x4 slot,actually is PCIE x1 signal

Rear I/O

1* VGA


2* HDMI1.4


1* DB9 RS232 serial port


2* USB3.0


4* USB2.0


1* PS/2 KB/MS port


2* RJ-45 Gigabit Ethernet connectors


1* Line-out,1*MIC,1*Line-in


1* reset button


1*UID indicator,1* indicator button

Internal I/O

2* USB3.0  2*10pin


2* USB2.0  2*5pin


2* standard USB2.0


1* COM serial port  2*5pin


1* front audio port  2*5pin


1* Front panel switching button and LED indicator port 2*10Pin


1* TPM  2*8pin


1* 24pin ATX power input


1* 8pin ATX power input

FAN interface

1* 4pin CPU intelligent fan interface and 4*4pin system intelligent fan interface

GPIO

NA

BIOS

128Mb  Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

305mmX245mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

LAN

USB

COM

SATA

Power

1

NVR25_S24 VER:1.1

LGA1151

/

B250

4*DDR4

1

2

2*211AT

12

2

24

ATX


SpecificationsNVR25 VER:1.1


Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetNVR25_S24
Win7/8/10 32/64BITGraphicsVGANVR25_S24
Win7/8/10 32/64BITAudioRealtek AudioNVR25_S24
Win7/8/10 32/64BITLANIntel
NVR25_S24
Win7/8/10 32/64BITMEME CorporateNVR25_S24
Win7/8/10 32/64BITDPTFDPTFNVR25_S24
Win7/8/10 32/64BITRSTRSTNVR25_S24
Win7/8/10 32/64BITSerial IOSerial_IONVR25_S24
