Skylake-U 3855U/1.6G

STX-N61_I521E VER:1.1(6300U)

项目介绍:

Product No.

STX-N61_I521E VER:1.1(6300U)

Processor

Integrated Intel® Processor I5-6300U/2.4G dual-core four-thread processor, TDP 15W

Chipset

Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors


SOC

RAM

1* DDR4 SODIMM memory slot, support single channel 2133MHz memory, maximum support 16GB

Display

Integrated Intel® HD Grap1* DDR4hics 520 supports DirectX 12 OpenGL 4.4, supports 4K/60Hz

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

The internet

1* Embedded DisplayPort, the highest resolution supported is: 4096X2304@60Hz

Store



2* Intel WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

1* M.2 standard slot, support M.2 2242 SATA standard SSD

Audio

1*7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

Expand

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

Rear panel

I/O interface



1* Mini-PCIE slot supports WIFI/3G module

1* DC12V power input interface

1* HDMI1.4 interface

1* VGA port

2* RJ45 Gigabit network interface

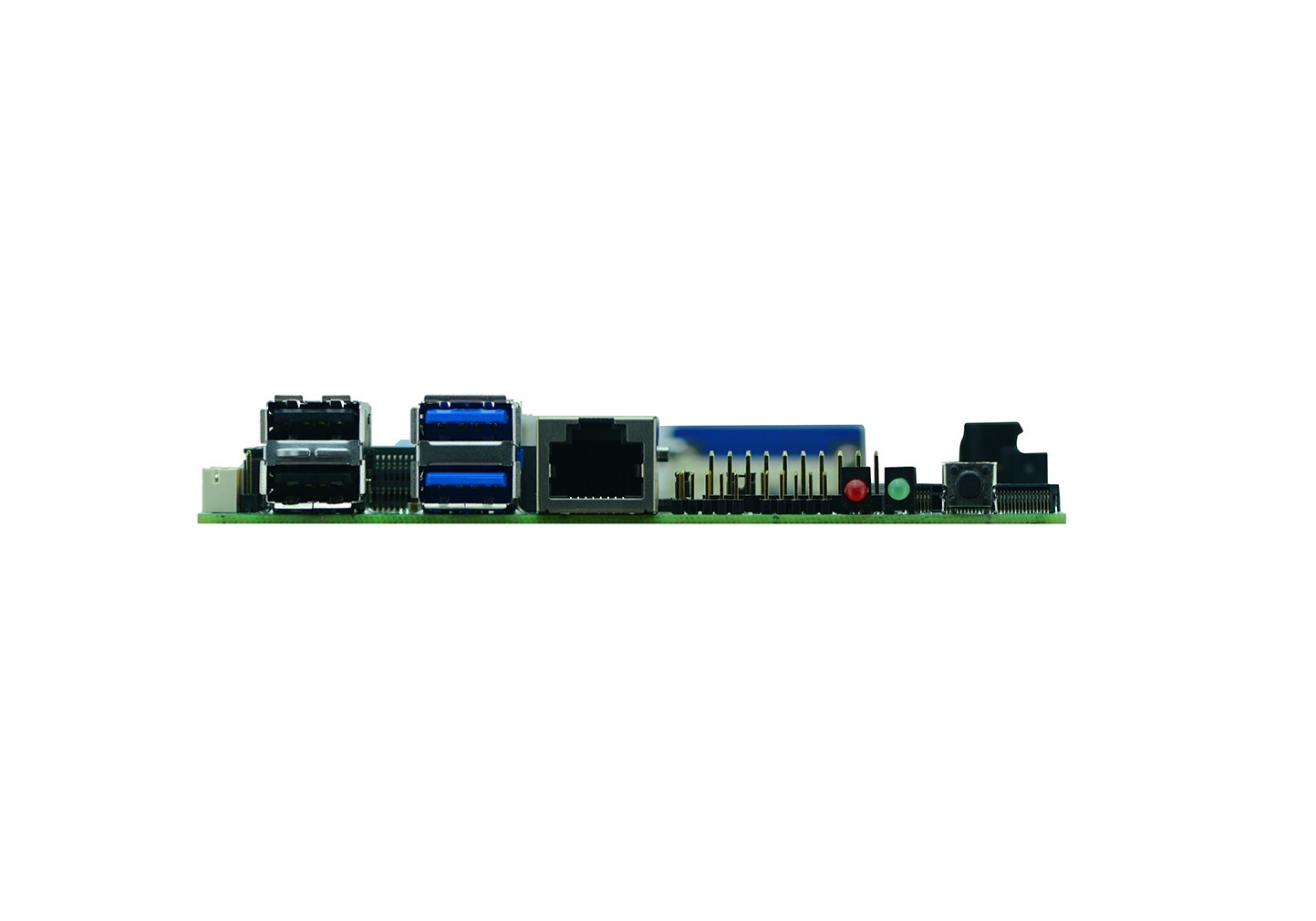

Front panel

I/O interface



1* Line-out (green), 1*MIC (purple)

2* USB2.0

2* USB3.0

1* CISCO COM serial interface

1* power indicator, 1* hard disk indicator

Built-in

I/O interface



1* Power switch

1* JVGA1 interface (1*12pin) same signal as DB15

1* Embedded DisplayPort interface, 2*15pin

4* USB2.0 interface 2*5pin,

1* PS/2 mouse keyboard interface 1*6pin

1* Hard disk power supply interface 1*4pin

Built-in

I/O interface



1* TPM interface 2*10pin

1* GPIO interface

1* Front function button and indicator port 2*5pin

1* 4pin ATX power interface, support 12V power input and output

Fan interface

1* SIM card slot

GPIO

1*4pin CPU smart fan interface

BIOS

Support 4 input and output GPIO

Watchdog

64Mb Flash ROM

operating system

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Windows 7/Windows 10/Linux

Operating temperature

DC 12V single power input

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

120mm x 120mm


事宜人群:

♦Integrated Intel® Processor I5-6300U/2.4G dual-core four-thread processor, TDP 15W

♦Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦1* DDR4 SODIMM memory slot, support single channel 2133MHz memory, maximum support 16GB

♦Integrated Intel® HD Grap1* DDR4hics 520 supports DirectX 12 OpenGL 4.4, supports 4K/60Hz

♦1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

♦1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

♦1* Embedded DisplayPort, the highest resolution supported is: 4096X2304@60Hz

♦2* Intel WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

♦1* M.2 standard slot, support M.2 2242 SATA standard SSD


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

STX-N61_I521E VER:1.1(6300U)

Processor

Integrated Intel® Processor I5-6300U/2.4G dual-core four-thread processor, TDP 15W

Chipset

Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors


SOC

RAM

1* DDR4 SODIMM memory slot, support single channel 2133MHz memory, maximum support 16GB

Display

Integrated Intel® HD Grap1* DDR4hics 520 supports DirectX 12 OpenGL 4.4, supports 4K/60Hz

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

The internet

1* Embedded DisplayPort, the highest resolution supported is: 4096X2304@60Hz

Store



2* Intel WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

1* M.2 standard slot, support M.2 2242 SATA standard SSD

Audio

1*7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

Expand

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

Rear panel

I/O interface



1* Mini-PCIE slot supports WIFI/3G module

1* DC12V power input interface

1* HDMI1.4 interface

1* VGA port

2* RJ45 Gigabit network interface

Front panel

I/O interface



1* Line-out (green), 1*MIC (purple)

2* USB2.0

2* USB3.0

1* CISCO COM serial interface

1* power indicator, 1* hard disk indicator

Built-in

I/O interface



1* Power switch

1* JVGA1 interface (1*12pin) same signal as DB15

1* Embedded DisplayPort interface, 2*15pin

4* USB2.0 interface 2*5pin,

1* PS/2 mouse keyboard interface 1*6pin

1* Hard disk power supply interface 1*4pin

Built-in

I/O interface



1* TPM interface 2*10pin

1* GPIO interface

1* Front function button and indicator port 2*5pin

1* 4pin ATX power interface, support 12V power input and output

Fan interface

1* SIM card slot

GPIO

1*4pin CPU smart fan interface

BIOS

Support 4 input and output GPIO

Watchdog

64Mb Flash ROM

operating system

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Windows 7/Windows 10/Linux

Operating temperature

DC 12V single power input

Storage temperature

-10℃~60℃

Working humidity

-20℃~70℃

Size

120mm x 120mm


No

Mode

Processor

Frequency

Memory

VGA

HDMI

EDP

LAN

USB

COM

RS485

Power

1

STX-N61_C321E

VER:1.1

3855U

1.6G

1*SODDR4

1

1

1

2*I211-AT

8

1

X

DC/12V

2

STX-N61_I321E

VER:1.1(6100U)

I3-6100U

2.3G

1*SODDR4

1

1

1

2*I211-AT

8

1

X

DC/12V

3

STX-N61_I521E

VER:1.1(6300U)

I5-6300U

2.4G

1*SODDR4

1

1

1

2*I211-AT

8

1

X

DC/12V


SpecificationSTX-N61_I521E VER:1.1(6300U)



Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetSTX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITGraphicsVGASTX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITAudioRealtek AudioSTX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITLANIntel
STX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITMEMESTX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114STX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITRSTRSTSTX-N61_I521E VER:1.1(6300U)
Win7/8/10 32/64BITSerial IOSerial_IOSTX-N61_I521E VER:1.1(6300U)
