Skylake-U 3855U/1.6G

ITX-A55_I5210L VER:1.2(6360U)

项目介绍:

Model NO.

ITX-A55_I5210LVER:1.2(6360U)

Processor

Integrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W

Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 Low Power Processor

Chipset

SOC

Memory

2* DDR4 SODIMM Memory slot,Supports 2133MHz memory, up to 32GB

Display

Integrated Intel ® HD Graphics 540 Core Graphics

1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface

Support for VGA, HDMI, LVDS synchronous/asynchronous display

Network

2* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

Storage

1* SATA3.0 Hard drive interface SATA1, transmission speed up to 6Gbps

1* MSATA Slot, SSD support, transmission speed up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended 2Ω5W Horn

Extended slot

1* Mini-PCIE Slot Support WIFI/3G Module

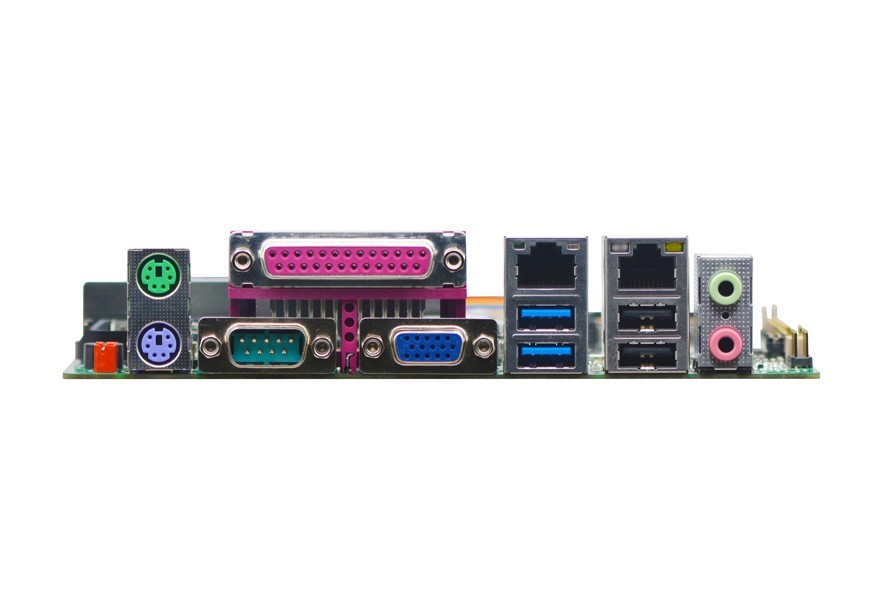

Backplane I/O Interface

2*USB3.0 interface, 2*USB 2.0 interface

1*PS/2 Keyboard interface (purple),1*PS/2 mouse interface (green)

1*RS232 COM

1* VGA Interface

2* RJ-45 Gigabit network interface

1* Line out(Green)

1* Mic(Red)

1* LPT Interface

Built-in I/O interface

1* LVDS Interface 2*15pin,Support for dual-channel 24BIT

1* On-screen backlit power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* HDMI Interface2*8Pin,

9* RS232 Serial interface,COM3 Support for RS485/RS422

4* USB2.0 Interface,2*5Pin

1* PS/2 Mouse keyboard interface 1*6Pin

1* Front audio interface 2*5pin

1* SIM Card

1* Front panel function buttonand LED interface 2*5pin

1* 20pin ATX Power interface

1* 4pin Amplifier interface

FAN interface

1* 4pin CPU Smart Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

ATX Power Input

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


事宜人群:

◆ Integrated Intel® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W

◆ Compatible with Intel® Skylake-U Celeron\/Pentium\/I3\/I5\/I7 Low Power Processor

◆ 2* DDR4 SODIMM Memory Slot,Support for 2133MHz memory,Up to 32GB support

◆ Integrated Intel ® HD Graphics 540 Core Graphics

◆ 1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface

◆ 2* RTL8111F Gigabit Card Chip, Support network wake-up\/PXE function

◆ 2* USB 3.0 Interface,6*USB 2.0 Interface,1*LPT

◆ 10* RS232 COM,COM3 Support RS485/RS422

  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-A55_I5210LVER:1.2(6360U)

Processor

Integrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W

Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 Low Power Processor

Chipset

SOC

Memory

2* DDR4 SODIMM Memory slot,Supports 2133MHz memory, up to 32GB

Display

Integrated Intel ® HD Graphics 540 Core Graphics

1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface

Support for VGA, HDMI, LVDS synchronous/asynchronous display

Network

2* RTL8111F Gigabit card chip, support for network wake-up\/PXE function

Storage

1* SATA3.0 Hard drive interface SATA1, transmission speed up to 6Gbps

1* MSATA Slot, SSD support, transmission speed up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended 2Ω5W Horn

Extended slot

1* Mini-PCIE Slot Support WIFI/3G Module

Backplane I/O Interface

2*USB3.0 interface, 2*USB 2.0 interface

1*PS/2 Keyboard interface (purple),1*PS/2 mouse interface (green)

1*RS232 COM

1* VGA Interface

2* RJ-45 Gigabit network interface

1* Line out(Green)

1* Mic(Red)

1* LPT Interface

Built-in I/O interface

1* LVDS Interface 2*15pin,Support for dual-channel 24BIT

1* On-screen backlit power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* HDMI Interface2*8Pin,

9* RS232 Serial interface,COM3 Support for RS485/RS422

4* USB2.0 Interface,2*5Pin

1* PS/2 Mouse keyboard interface 1*6Pin

1* Front audio interface 2*5pin

1* SIM Card

1* Front panel function buttonand LED interface 2*5pin

1* 20pin ATX Power interface

1* 4pin Amplifier interface

FAN interface

1* 4pin CPU Smart Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

ATX Power Input

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

5

ITX-A55_I5210L VER:1.2(6360U)

I5-6360U

2.0G

2*SODDR4

1

1

1

/

2*8111F

8

10

COM3

ATX




SpecificationsITX-A55_I5210L VER:1.2(6360U)



Driver(WIN 7/8/10)


OSDriver TypeDriver NameDownload Now
Win 7/8/10 32/64 BITGraphicsVGAITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITChipsetIntel_infITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITGraphicsVGAITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITAudioRealtek AudioITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITLANRealtekITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITMEMEITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITDPTFintel_dptf_81137_1114ITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITRSTRSTITX-A55_I5210L VER:1.2(6360U)
Win 7/8/10 32/64 BITSerial IOSerial IOITX-A55_I5210L VER:1.2(6360U)



◆ Integrated Intel® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W

◆ Compatible with Intel® Skylake-U Celeron\/Pentium\/I3\/I5\/I7 Low Power Processor

◆ 2* DDR4 SODIMM Memory Slot,Support for 2133MHz memory,Up to 32GB support

◆ Integrated Intel ® HD Graphics 540 Core Graphics

◆ 1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface

◆ 2* RTL8111F Gigabit Card Chip, Support network wake-up\/PXE function

◆ 2* USB 3.0 Interface,6*USB 2.0 Interface,1*LPT

◆ 10* RS232 COM,COM3 Support RS485/RS422
