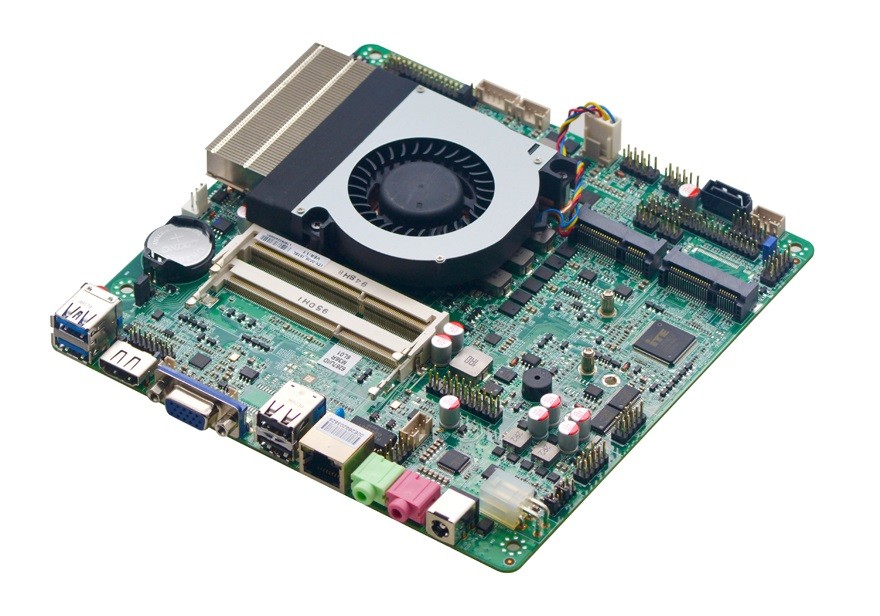

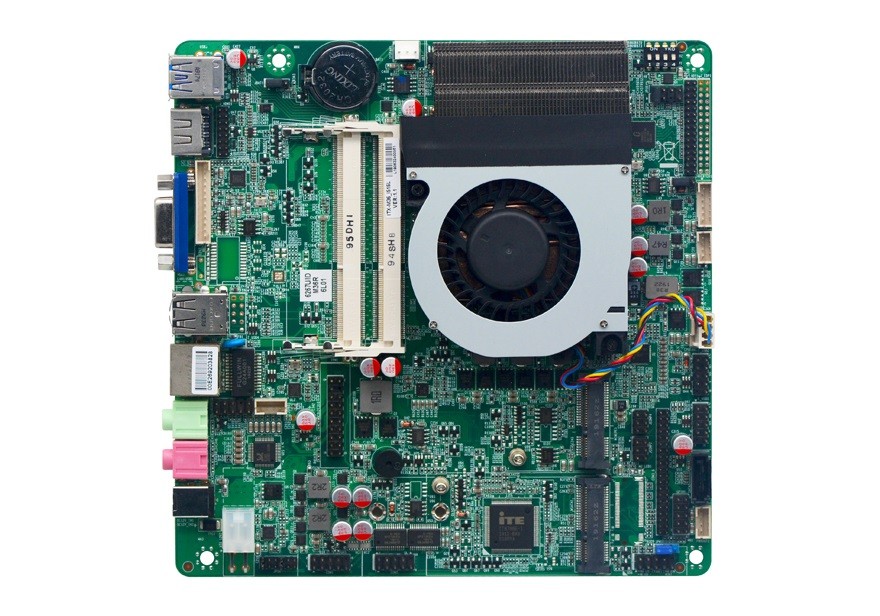

Model No. | ITX-M36_I516L VER:1.1(6267U) |
Processor | Integrated Intel®I5-6267U 2.9GHz dual core processor,TDP 28W |
| Compatible Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low power processor |
Chipset | SOC |
Memory | 2*DDR3L SODIMM, support 1600MHz memory, up to 32GB |
Graphics | Integrated Intel® Iris™ Graphics 550. support DirectX 12 OpenGL 4.5, support 4K |
| 1*VGA, the highest resolution as ：1920X1200@60Hz |
| 1*HDMI1.4, the highest resolution as ：4096X2304@24Hz |
| 1* support dual channel 24bit LVDS（with EDP optional） |
Network | 1* RTL8111H Gigabit Ethernet ,support wake on LAN/PXE |
Storage | 1* SATA3.0 HDD port ,the transfer rate up to 6Gbps |
| 1* MSATA slot,support Intel protocol SSD,the transfer rate up to 6Gbps |
Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier |
| Amplifier proposed using 2Ω5W speakers |
Expansion slots | 1* Mini-PCIE slot,support WIFI module |

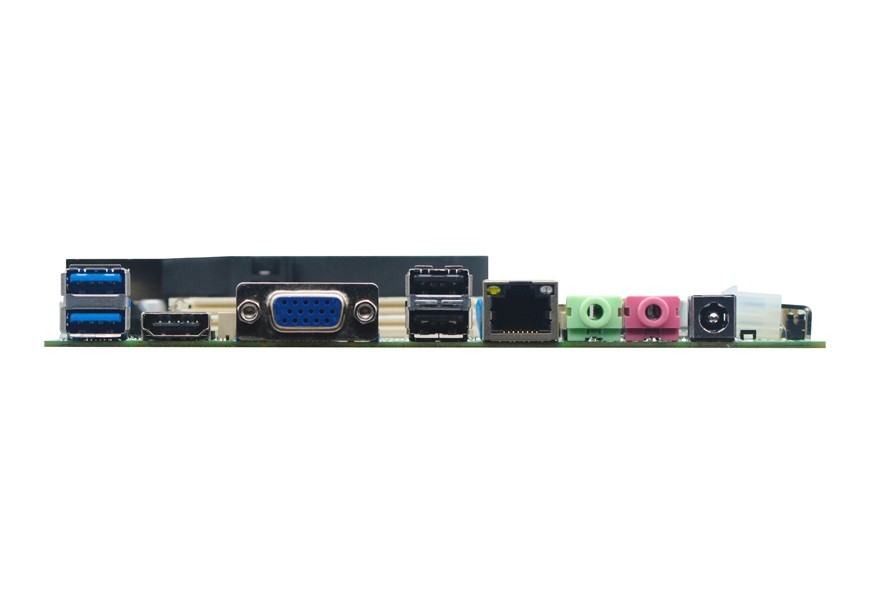

Rear I/O | 2* USB3.0 |
| 1* HDMI |
| 1* DB15 VGA |
| 1* RJ45 gigabit ethernet |
| 2* USB2.0 |
| 1*Line-out(Green），1*MIC(Red） |
| 1*DC12V power port ,support 12V power input |
Internal I/O | 1* JVGA1 1*12pin( the same signal with DB15) |
| 1* JHDMI 2*8pin(the same signal with HDMI) |
| 1* LVDS 2*15pin，support dual channel 24bit，with EDP optional |
| 1*LVDS backlight power supply port 1*6pin |
| 1* screen brightness adjustment port 1*4pin |
| 6* RS232 serial ports,COM1/COM2 support 9pin charged function,COM2/COM4 support RS485 |
| 1* TPM port ,2* 10pin |
| 4* USB2.0 2*5pin , |
| 1* front audio port 2*5pin |
| 1* front panel function buttons and indicator LED port 2*5Pin |
| 1* HDD power supply port 1*4pin |
| 1* power amplifier port 1*4pin |
| 1* 4pin ATX power port (can do 12V power input port) |
FAN connector | 1*4pin CPU smart fan connector, 1* 3pin system fan connector |
GPIO | Support 4 way input/output GPIO |
BIOS | 64Mb Flash ROM |
Watch dog | Support hardware reset function (L256, 0~255 seconds) |
Power input | Adpot DC 12V power supply |
OS | Windows 7 , Windows 8 , Windows 10 , Linux |
Working Temp. | -10℃～60℃ |
Storage Temp. | -20℃～70℃ |
Working Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
