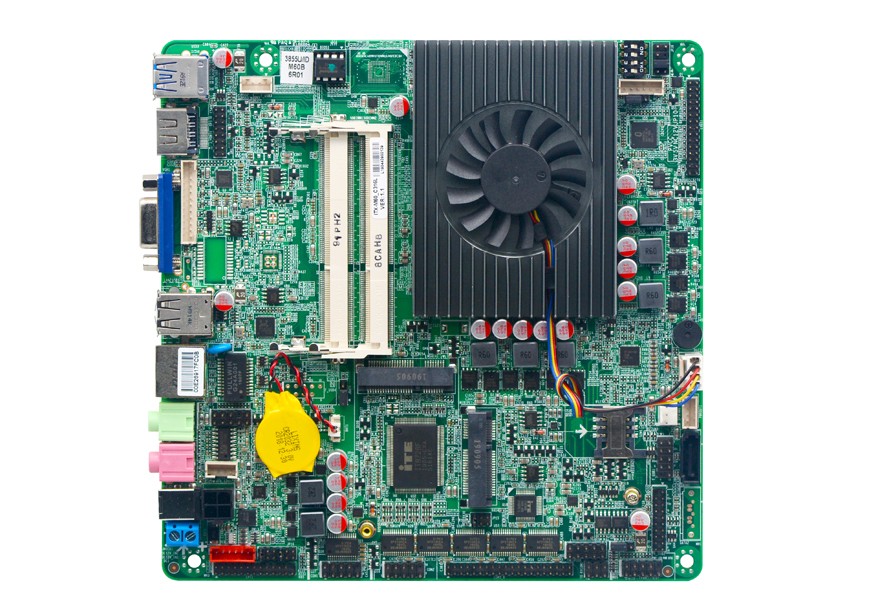

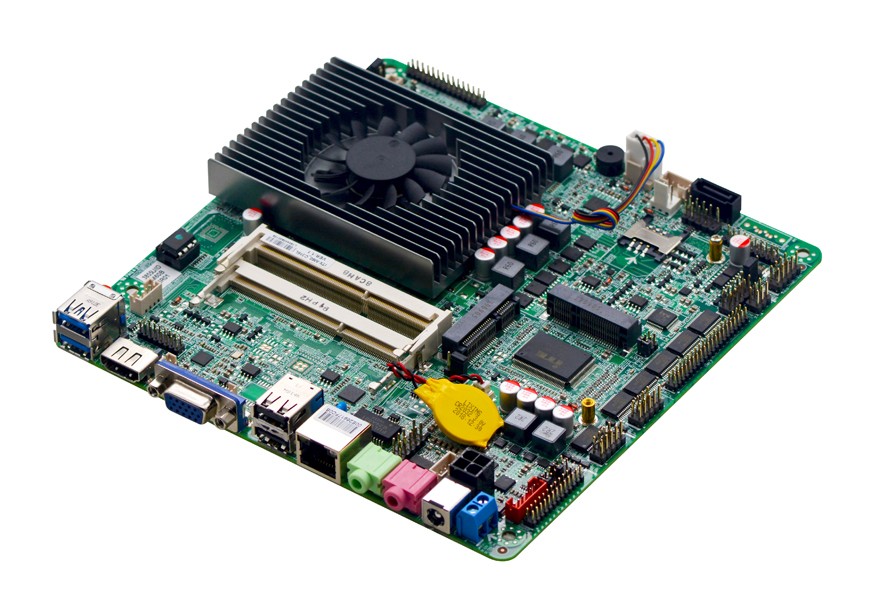

Model No. | ITX-M60_C316L VER:1.1(3855U) |
Processor | Integrated Intel® Celeron® Processor 3855U /1.6GHz dual core processor,TDP 15W |
| Compatible Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low power processor |
Chipset | SOC |
Memory | 2* DDR3L SODIMM, support 1600\1333MHz memory, up to 16G |
Display | Integrated Intel® HD Graphics 510,support DirectX 12 OpenGL 4.4, |
| 1*VGA ,the highest resolution as ：1920X1200@60Hz |
| 1*HDMI1.4, the highest resolution as ：4096X2304@24Hz |
| 1*support dual channel 24bit LVDS |
Network | 1* Realtek RTL8111F Gigabit Ethernet , support wake on LAN/PXE |
Storage | 1* SATA3.0 HDD interface, the transfer rate up to 6Gbps |
Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier |
| Amplifier proposed using 2Ω5W speakers |
Expansion slot | 1* Mini-PCIE slot, support WIFI、3G module |
| 1* MSATA slot, support Intel protocol SSD, the transfer rate up to 6Gbps |
Rear I/O | 2* USB3.0 |
| 1* HDMI(can do Display port) |
| 1* VGA |
| 1* RJ45 Gigabit Ethernet connector |
| 2* USB2.0 |
| 1*Line-out(Green），1*MIC(Red） |
| 1*DC12V |
Internal I/O | 1* JVGA1 1*12pin(same signal with DB15) |
| 1* JHDMI 2*8pin(same signal with HDMI) |
| 6* RS232 serial ports,COM3 support RS485/422 |
| 1* PS/2 KB/MS port 1*6Pin |
| 2* USB2.0 2*5pin |
| 1* USB2.0 1*4pin |
| 2*USB3.0 2*10pin |
| 1* LPT print port 2*13Pin |
| 1* front audio port 2*5pin |
| 1* front panel function buttons and indicator connector,2*5Pin |
| 1* LVDS 2*15pin, support dual channel 24bit (double 8) |
| 1* LVDS backlight power supply port 1*6pin |
| 1* HDD power supply port |
| 1* power amplifier port, 1*4pin |
| 1* SIM card socket |
| 1* 4pin ATX power port(can do 12V input/output port) |
| 1* 2pin 12V DC power input |
FAN interface | 1*4pin CPU intelligent fan interface, 1* 3pin system fan interface |
GPIO | Support 4 way input/output GPIO |
BIOS | 64Mb Flash ROM |
Watch dog | Support hardware reset function (L256, 0~255 seconds) |
OS | Windows 7/Windows 10/Linux |
Power input | Adopt DC 12V power supply |
Working Temp. | -10℃～60℃ |
Storage Temp. | -20℃～70℃ |
Working Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
