Haswell-U 4025/4200U

EPIC-C43_I526D VER: 1.0 (4300U)

项目介绍:

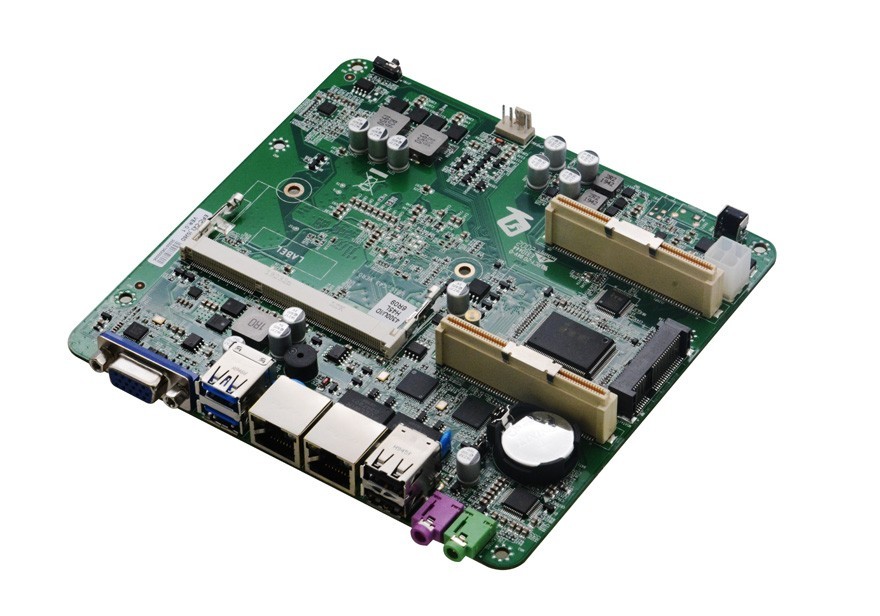

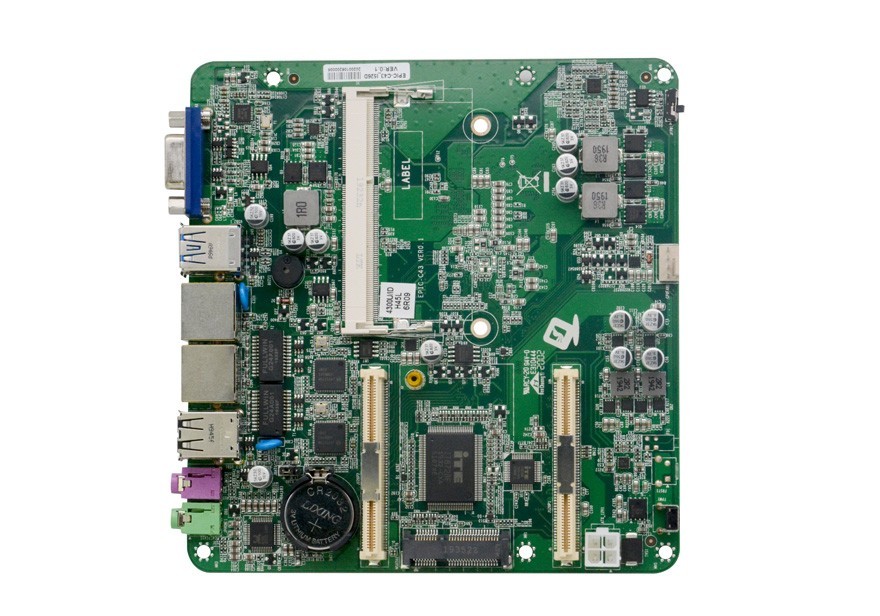

Model NO.EPIC-C43_I526D VER: 1.0 (4300U)
ProcessorIntegrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor

Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor
ChipsetBased on Intel® Haswell-U/Broadwell-U SOC platform
Memory1*SO DDRIII slot with 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 4400 Core Graphics
1*VGA interface with the highest supported resolution: 1920X1200@60Hz
Note: 2 HDMI display outputs can also be supported, from 2 120pin high-speed terminals transferred to the IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps
Note: Can also support the 1 sATA interface, through 2 120pin high-speed terminals transferred to the IO board to achieve, refer to the transfer board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal

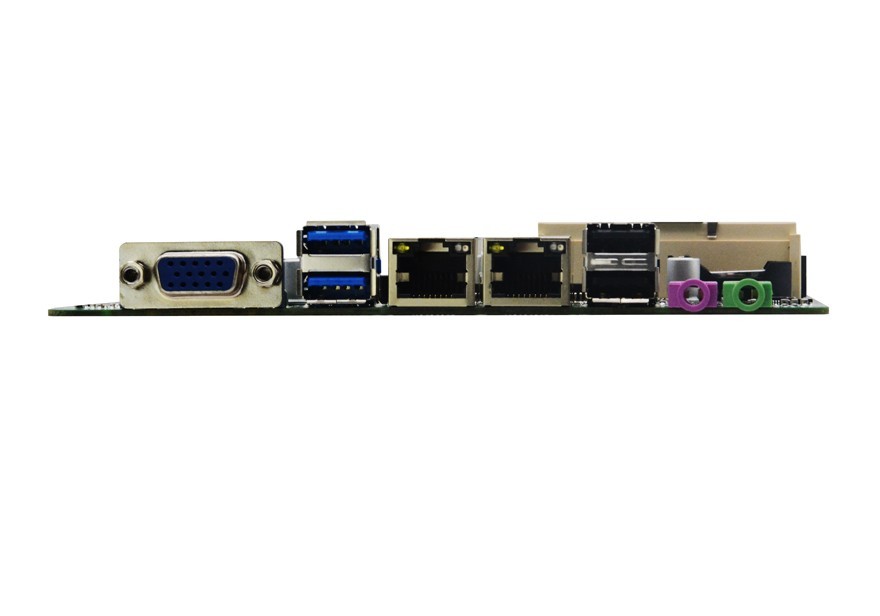

1*VGA interface
2*USB3.0 interface, 2*USB 2.0 interface
2x RJ45 Gigabit Network Interface
1x Line-out (green)
1*MICK (red)
1x Switch button
1x Hardware Power-on button
Built-in I/O interface1x 4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1x4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*148mm


事宜人群:

♦ Integrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor

♦ compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor

♦ 1*SO DDRIII slot with 1600/133MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics 4400 Core Graphics

♦ 2*Intel I211 Gigabit card with network wake-up, PXE capabilities

♦ 1*VGA interface, 2*USB 2.0 interface, 2*USB 3.0 interface

♦ 2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.EPIC-C43_I526D VER: 1.0 (4300U)
ProcessorIntegrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor

Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor
ChipsetBased on Intel® Haswell-U/Broadwell-U SOC platform
Memory1*SO DDRIII slot with 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 4400 Core Graphics
1*VGA interface with the highest supported resolution: 1920X1200@60Hz
Note: 2 HDMI display outputs can also be supported, from 2 120pin high-speed terminals transferred to the IO trigger implementation, refer to the transfer plate specifications
Network2*Intel I211 Gigabit Card, supports network wake-up, PXE function
Storage1*MSATA slot, SSD supports Intel protocol, transfer rate up to 6Gbps
Note: Can also support the 1 sATA interface, through 2 120pin high-speed terminals transferred to the IO board to achieve, refer to the transfer board specifications
AudioOn-board ALC662 6-channel hi-fi audio controller with line-out.MICK support
Extended slot2*120pin high-speed terminals, including 6*PCIE, 2*DDI, 1*SATA, 1*LPC, 1*SPEAKER, 1*AUDIO, 5*USB2.0, 6*COM, 8*GPIO, 1*PS/2 signal
1*VGA interface
2*USB3.0 interface, 2*USB 2.0 interface
2x RJ45 Gigabit Network Interface
1x Line-out (green)
1*MICK (red)
1x Switch button
1x Hardware Power-on button
Built-in I/O interface1x 4pin ATX power interface with 12V power in and out
Fan interfaceFanless cooling, reserved 1x4pin CPU Smart Fan Interface
GPIOSupport for 4 input and output GPIO, from 2 120pin high-speed terminals to IO board implementation
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size148mm*148mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

EPIC-C43_I526D VER:1.0(4300U)

I5-4300U

1.9G

1*SODDR3L

1

/

/

/

2*211AT

4

/

/

DC12V



SpecificationsEPIC-C43_I526D (4300U)



Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetEPIC-C43
Win7/8/10 32/64BITGraphicsVGAEPIC-C43
Win7/8/10 32/64BITAudioRealtek AudioEPIC-C43
Win7/8/10 32/64BITLANIntelEPIC-C43
Win7/8/10 32/64BITMEME_SW_MSIEPIC-C43
WIN7 32/64BITUSB3.0USB3.0EPIC-C43
