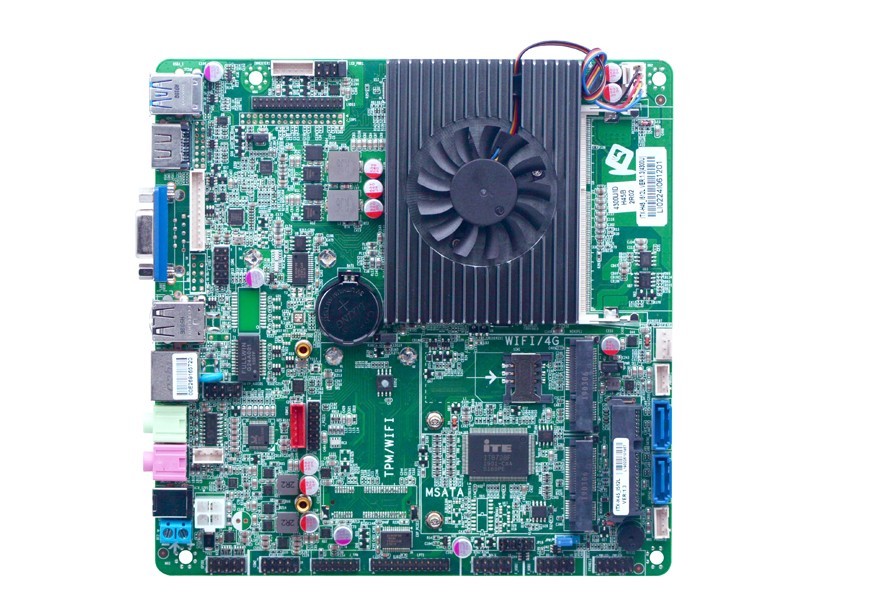

Haswell-U 4025/4200U

ITX-H45_I512L VER:1.3(4300U)

项目介绍:

Model NO.

ITX-H45_I512L VER1.3(4300U)

Processor

Integrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor


Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor

Chipset

Based on Intel® Haswell-U/Broadwell-U SOC platform

Memory

1*SO DDRIII Slot,Support snare 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HDGraphics 4400 Core Graphics Card

1*VGA,1*HDMI,1*LVDS Interface

Support for individual display, dual-display mode, extended mode

Network

1* RTL8111H Gigabit network card, support network wake-up\/PXE function

Storage

1*SATA3.0 2.5 Inch notebook hard drive bit


2* 7pin SATA3.0 Hard drive interface with a transfer rate of up to 6Gbps


1* MSATA Slots, Intel Protocol-enabled SSD SSDs with transmission speeds of up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC\/Line-out amplifier support


Amplifiers use a 2Ω5W horn

Expansion

1*Mini-PCIE Slot Support WIFI/4G Module


Note:MINIPE1 If you need to support 4G modules, you will need to adjust the relevant hardware settings and will result in F_USB2 support only 1 USB

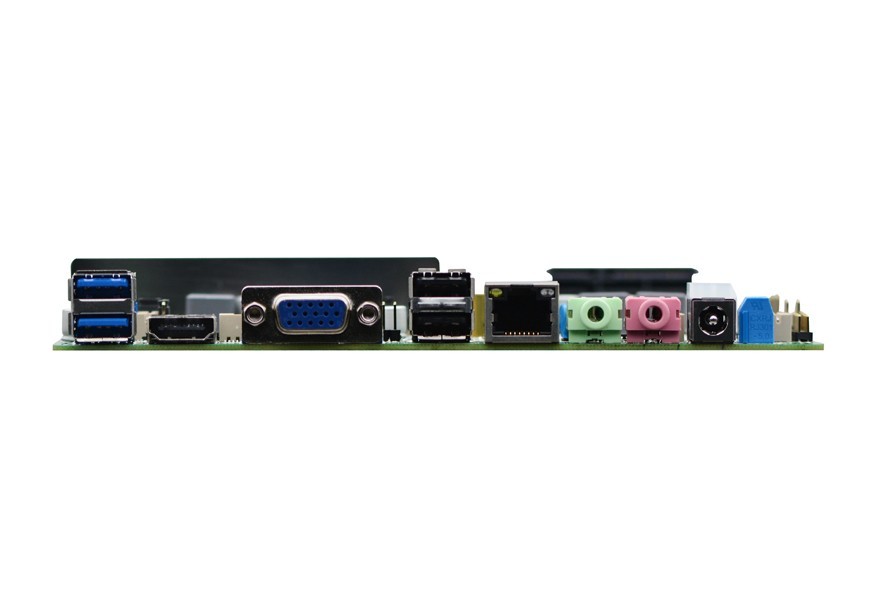

Backplane I/O Interface

1* 12V DC JACK Power input interface

1* HDMI Show interface

1* VGA Show interface

2* USB 3.0,2*USB2.0

1* RJ-45 Gigabit network interface

1* Line out Interface (green)

1* MIC Interface (red)

Built-in I/O interface

1* JVGA1 Interface 1*12Pin(same signal as DB15)

1*LVDS,2*15pin,Support for dual-channel 24bit

1*On-screen backlit power supply interface 1*6pin

1*Front audio interface 2*5pin

1*Front amplifier interface 1*4Pin

4* USB 2.0 2*5Pin

2* RS232 COM,2*5pin

2* Hard drive power interface 1*4pin

1* LPT Print interface 2*13pin

1* PS/2 Keyboard and mouse interface 1*6Pin

1* TPM Interface 2*8pin,With EXP_PCIE1 for two picks

1* SIM Card

1*Front panel function buttonand LED interface 2*5pin

1* JPCIE Interface 2*8pin,Support for 1 PCIE x1 signal

1* 4pin ATX Power interface

1* 2pin 12V DC Power input interface

Fan interface

1*4pin CPU Smart Fan Interface, 1x 4pin System Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

DC_12V single power input

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


事宜人群:

◆ Integration Intel®Haswell-U I5-4300U/1.9GHzDual-core processor

◆ Support slot 1 s, 1600/1333MHz DDR3L/1.35V memory, up to 8GB

◆ Integrated Intel® HDGraphics 4400 Core Graphics Card

◆1*VGA, 1*HDMI, 1*LVDS interface (support s24BIT support)

◆1* RTL8111H Gigabit network card, support network wake-up\/PXE function

◆ 6* USB 2.0 ,2*USB3.0

◆ 2* RS232 COM,1*LPT


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-H45_I512L VER1.3(4300U)

Processor

Integrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor


Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor

Chipset

Based on Intel® Haswell-U/Broadwell-U SOC platform

Memory

1*SO DDRIII Slot,Support snare 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HDGraphics 4400 Core Graphics Card

1*VGA,1*HDMI,1*LVDS Interface

Support for individual display, dual-display mode, extended mode

Network

1* RTL8111H Gigabit network card, support network wake-up\/PXE function

Storage

1*SATA3.0 2.5 Inch notebook hard drive bit


2* 7pin SATA3.0 Hard drive interface with a transfer rate of up to 6Gbps


1* MSATA Slots, Intel Protocol-enabled SSD SSDs with transmission speeds of up to 6Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC\/Line-out amplifier support


Amplifiers use a 2Ω5W horn

Expansion

1*Mini-PCIE Slot Support WIFI/4G Module


Note:MINIPE1 If you need to support 4G modules, you will need to adjust the relevant hardware settings and will result in F_USB2 support only 1 USB

Backplane I/O Interface

1* 12V DC JACK Power input interface

1* HDMI Show interface

1* VGA Show interface

2* USB 3.0,2*USB2.0

1* RJ-45 Gigabit network interface

1* Line out Interface (green)

1* MIC Interface (red)

Built-in I/O interface

1* JVGA1 Interface 1*12Pin(same signal as DB15)

1*LVDS,2*15pin,Support for dual-channel 24bit

1*On-screen backlit power supply interface 1*6pin

1*Front audio interface 2*5pin

1*Front amplifier interface 1*4Pin

4* USB 2.0 2*5Pin

2* RS232 COM,2*5pin

2* Hard drive power interface 1*4pin

1* LPT Print interface 2*13pin

1* PS/2 Keyboard and mouse interface 1*6Pin

1* TPM Interface 2*8pin,With EXP_PCIE1 for two picks

1* SIM Card

1*Front panel function buttonand LED interface 2*5pin

1* JPCIE Interface 2*8pin,Support for 1 PCIE x1 signal

1* 4pin ATX Power interface

1* 2pin 12V DC Power input interface

Fan interface

1*4pin CPU Smart Fan Interface, 1x 4pin System Fan Interface

GPIO

Support for 4-way input and output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

DC_12V single power input

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-H45_I512E VER:1.3(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

/

1

1*8111H

8

2

/

DC12V

2

ITX-H45_I312E VER:1.3(4025U)

I3-4025U

1.9G

1*SODDR3L

1

1

/

1

1*8111H

8

2

/

DC12V

3

ITX-H45_I512L VER:1.3(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

2ch/24BIT

/

1*8111H

8

2

/

DC12V

4

ITX-H45_I312L VER:1.3(4025U)

I5-4025U)

1.9G

1*SODDR3L

1

1

2ch/24BIT

/

1*8111H

8

2

/

DC12V



SpecificationsITX-H45 VER:1.3


Driver(WIN7/8/10)

◆ Integration Intel®Haswell-U I5-4300U/1.9GHzDual-core processor

◆ Support slot 1 s, 1600/1333MHz DDR3L/1.35V memory, up to 8GB

◆ Integrated Intel® HDGraphics 4400 Core Graphics Card

◆1*VGA, 1*HDMI, 1*LVDS interface (support s24BIT support)

◆1* RTL8111H Gigabit network card, support network wake-up\/PXE function

◆ 6* USB 2.0 ,2*USB3.0

◆ 2* RS232 COM,1*LPT
